OVERVIEW

TRENDnet’s 26-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG262ES, is a cost-effective rackmount easy smart PoE+ switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG262ES easy smart PoE+ switch provides 24 gigabit PoE+ ports for connecting network devices, such as wireless access points, IP cameras, and VoIP handsets; and two gigabit SFP ports for long-distance fiber connectivity.

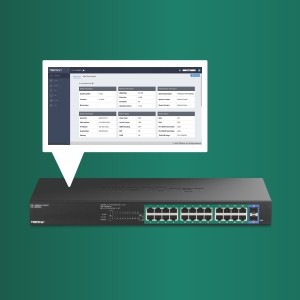

EdgeSmart Management

Provides an easy-to-use management interface and the most commonly used SMB management features for reduced switch configuration complexity and easy deployment.

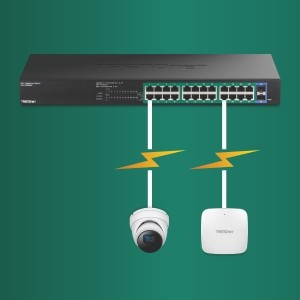

PoE+ Power

This easy smart PoE+ switch features a 380W PoE power budget for up to 24 Power over Ethernet devices, such as wireless access points and IP cameras.

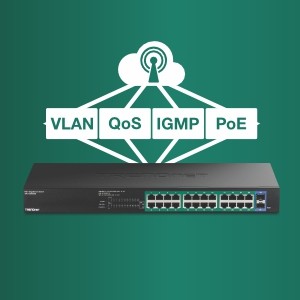

Integration Flexibility

Managed features include loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS for flexible network integration.

FEATURES

Hardware Design

The easy smart PoE+ switch
includes 24 x gigabit PoE+ ports,
2 x gigabit SFP ports, and a builtin power supply

Power over Ethernet

Provides a total PoE power budget
of 380W, with gigabit PoE+ ports for
802.3at PoE+ and 802.3af PoE
powered devices

SFP Ports

Includes two dedicated gigabit SFP
ports for high-speed, long-distance
fiber network connections

Network Management

The easy-to-use, web-based
management interface on the lite
smart PoE+ switch offers features
for loopback detection, RSTP, static
link aggregation, VLAN, IGMP
Snooping, and QoS

Monitoring

Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra.

Troubleshooting

A convenient cable diagnostic test
and traffic statistics aid in network
troubleshooting

Rackmount Design

Sturdy 1U rack mountable
metal housing with mounting
brackets included

Lorem ipsum dolor sit amet

Smart Fans

This cost-effective, inexpensive
managed PoE+ switch saves
energy and reduces noise
during operation by auto
adjusting fan speed based on
cooling needs

LED Indicators

The easy smart PoE+ switch
includes LED indicators that
convey port status

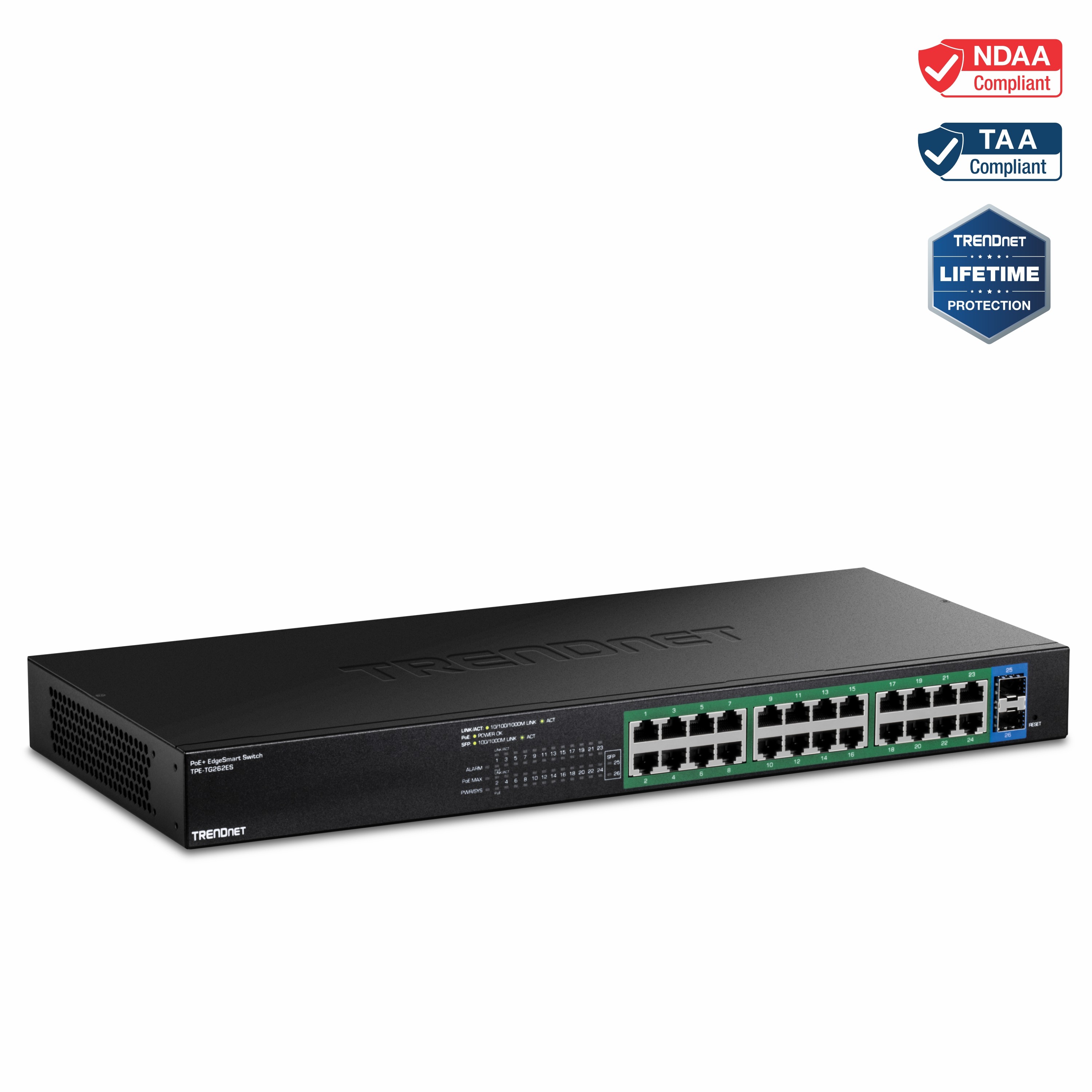

26-Port Gigabit EdgeSmart PoE+ Switch

24 x Gigabit PoE+ ports
2 x Gigabit SFP ports (100Mbps / 1000Mbps)
380W PoE power budget
Easy-to-use web-based management interface
Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
Voice VLAN for VoIP applications
Bandwidth control per port
52Gbps switching capacity
IEEE 802.1p CoS with queue scheduling support
Smart fans reduce noise during operation
1U 19” rack mountable metal housing
Lifetime Warranty*

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az

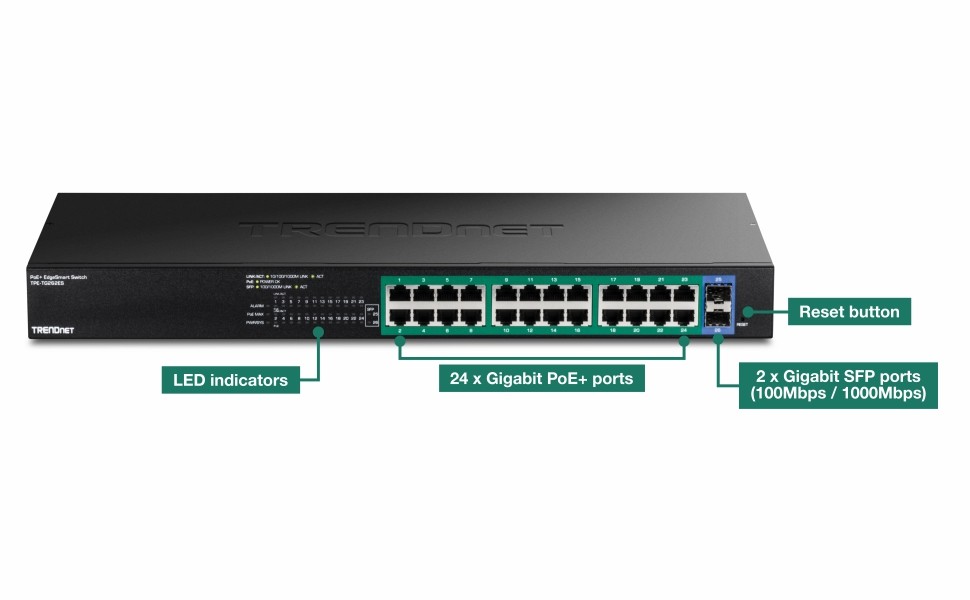

Device Interface	24 x Gigabit PoE+ ports 2 x Gigabit SFP ports (100Mbps / 1000Mbps) LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 52Gbps RAM buffer: 512KB MAC Address Table: 8K entries Jumbo Frames: 9KB Forwarding rate: 38.69Mpps (64-byte packet size)
Management	HTTP Web based GUI SNMP v1, v2c Cable diagnostic test Backup/Restore Configuration Upload Firmware
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 3 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control/Rate Limiting per port (Min. Limit: 16Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 16Kbps) Multicast (Min. Limit: 16Kbps) Loopback Detection
Power	Input: 100 – 240V AC, 50/60Hz, 4.4A Max. consumption: 14.93W (without PD load) / 399.41W (with full PD load)
PoE	PoE budget: 380W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power + and pins 3,6 for power - PD auto classification Over current/short circuit protection
Fan/Acoustics	Quantity: 2 Smart Fans Noise Level: 51 dBa (max.)
MTBF	447,228 hours @ 25° C
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 195 x 44mm (17.3 x 7.68 x 1.73 in.)
Weight	3.06kg (6.75 lbs.)
Certifications	CE FCC ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG262ES
Quick Installation Guide
Power cord (1.5m / 5 ft.)
Rackmount kit
