Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 10G Switches. This 10G switch comes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or better cabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 10G switches are cost-effective solutions to increase your network’s throughput.

OVERVIEW

10G Ports

Offers eight 10G ports, and two 10G SFP+ ports for high-speed network
uplinks or downlink connections for a cost-effective solution in adding
10G link capability.

Smart Fan

The smart fan design lowers power consumption and energy costs, and eliminates distracting operating noise.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance.

FEATURES

Easy Installation

No configuration needed, simply
connect network devices to the
10G switch

10G Ports

Equipped with 10GBASE-T RJ-45
ports that provide speeds
capable of up to 10Gbps over
existing Cat6A or better cabling

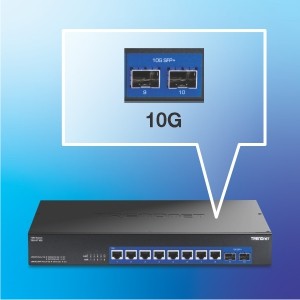

10G SFP+ Ports

The 10Gb switch features 10G
SFP+ ports for high-speed
network connections providing a
costeffective solution in adding
10G fiber link capability

Smart fan

Smart fan design lowers
energy consumption and
eliminates distracting operating
noise

Lorem ipsum dolor sit amet

Housing Design

Sturdy metal housing

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 12KB), for
increased performance

LED Indicators

LED indicators on this 10Gb
switch conveys port status

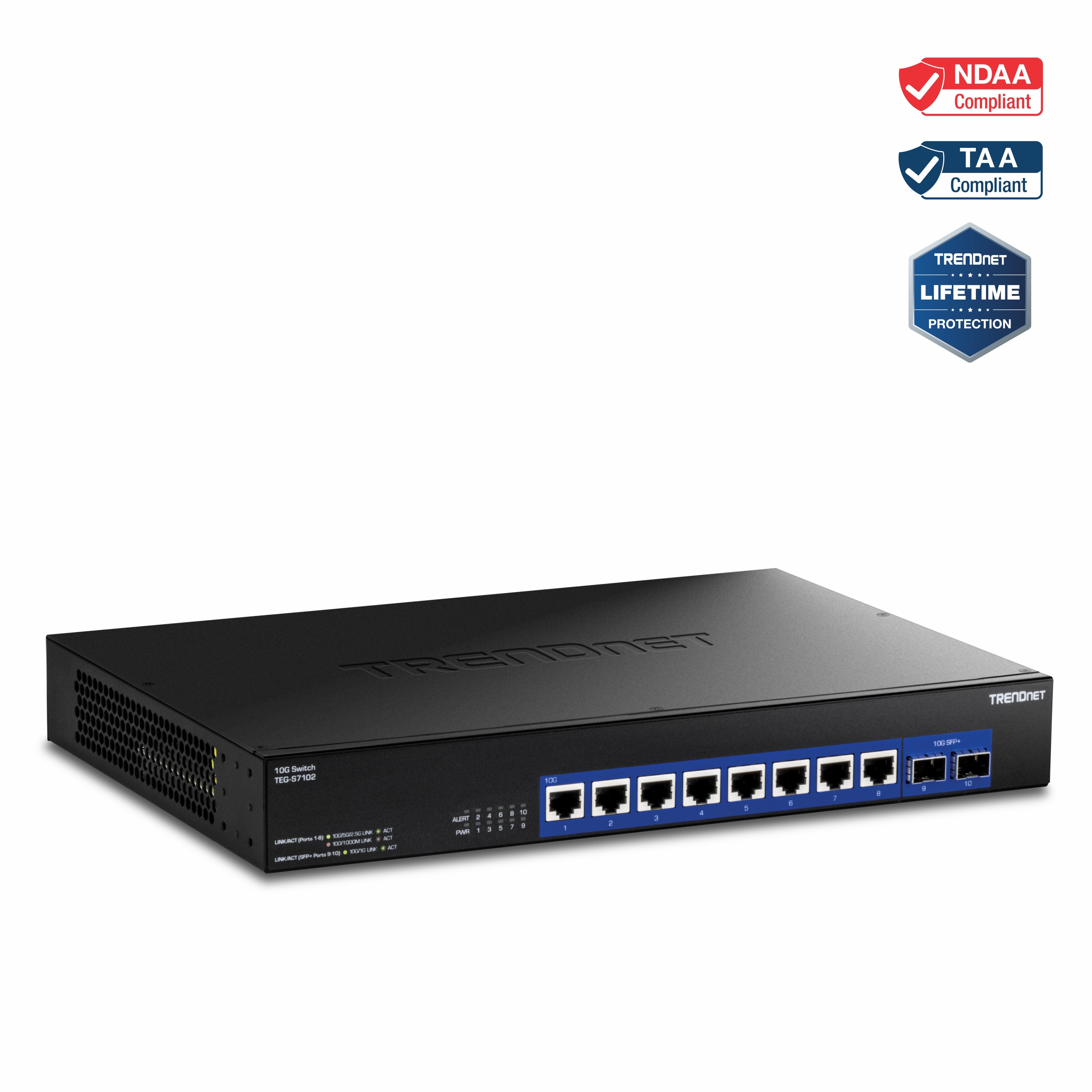

10-Port 10G Unmanaged Switch

8 x 10G RJ-45 ports

2 x 10G SFP+ ports

Backwards compatible with 100/1000BASE-T devices

Smart fan design eliminates noise

Rackmount design

200Gbps switching capacity

IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant

Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3ab IEEE 802.3ae IEEE 802.3an IEEE 802.3az IEEE 802.3bz IEEE 802.1x

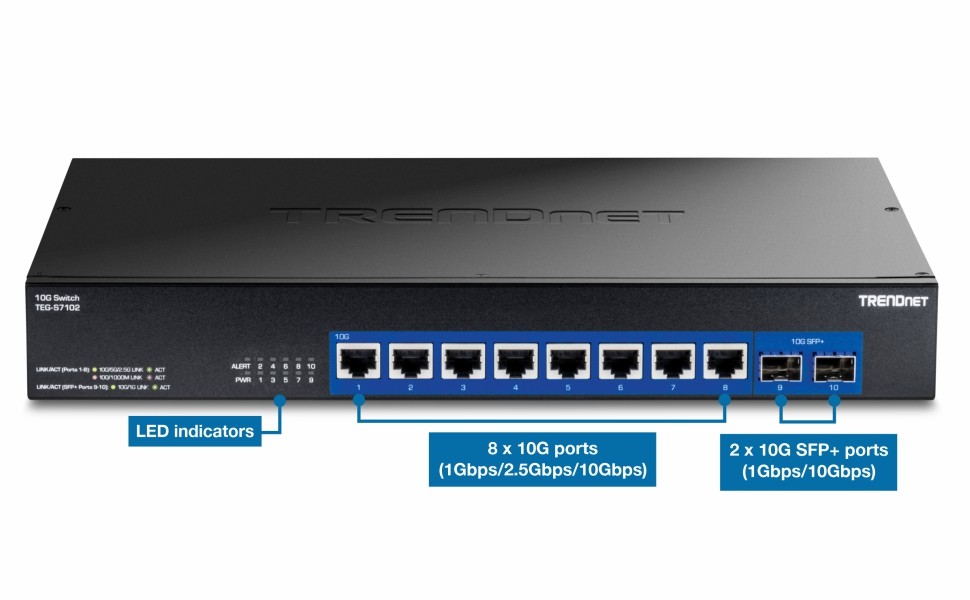

Device Interface	8 x 10G ports (1Gbps/2.5Gbps/10Gbps) 2 x 10G SFP+ ports (1Gbps/10Gbps) LED indicators
Data Transfer Rate	Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5Gbps (full duplex) 10 Gigabit Ethernet: 20Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Switch fabric: 200Gbps RAM buffer: 2MB MAC address table: 32K entries Jumbo frames: 12KB Forwarding mode: Store and forward Forwarding rate: 148.8Mpps (64-byte packet size)
Power	Input: 90 – 264V AC, 47/63 Hz. Internal power supply Max. consumption: 40W
MTBF	151,765 hours
Fan / Acoustics	Quantity: 1 Max. noise level: 47dBA
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	330 x 230 x 44mm (13 x 9 x 1.73 in.)
Weight	2.54 kg (5.6 lbs.)
Certifications	CE FCC LVD ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S7102
Quick Installation Guide
Power cord (1.5m / 4.9ft.)
Rackmount kit
