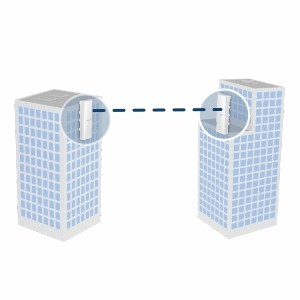

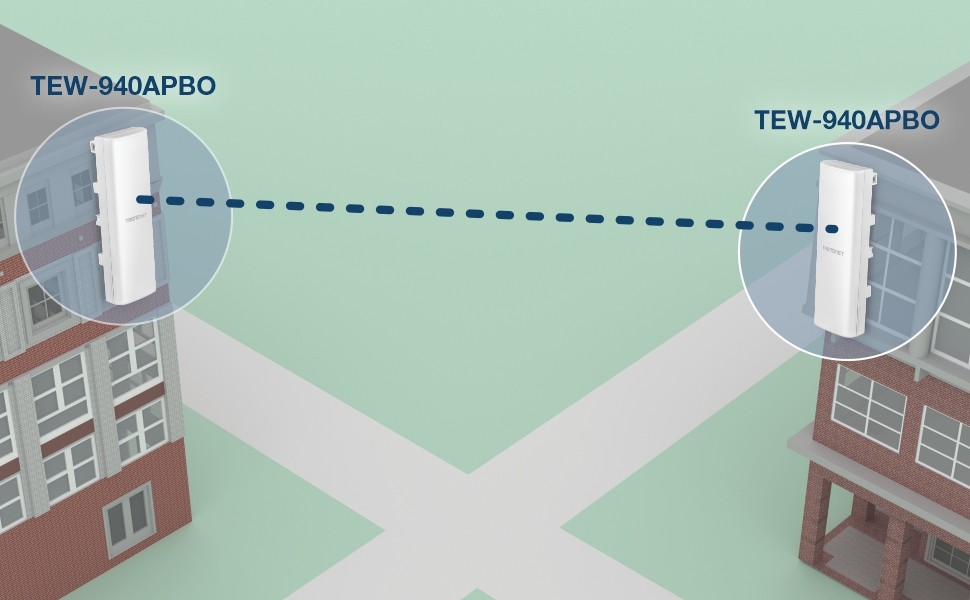

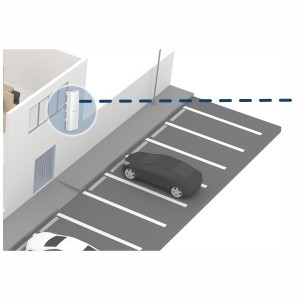

Point-to-Point Bridge

The outdoor wireless access point supports wireless AX1200
point-to-point networking (5GHz) with access point, client bridge, and
repeater modes.

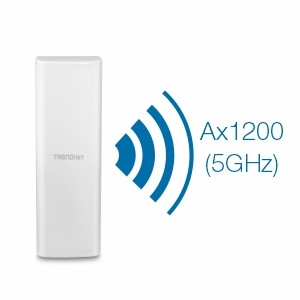

WiFi 6 AX1200

Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking
speeds and includes convenient wireless connection quality LEDs for ease
of installation.

Outdoor Ready

Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).

TRENDnet’s 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point,
model TEW-940APBO, is designed for point-to-point WiFi bridging
applications. The 5GHz outdoor wireless access point supports wireless
point-to-point installation scenarios with Access Point, Client Bridge,
and Repeater modes. The IP55 rated housing is designed for outdoor
environments, and includes wall and pole mounting hardware. Faster
speeds are possible on this WiFi 6 access point with OFDMA and MU-MIMO
technologies. MU-MIMO technology processes multiple data streams
simultaneously, increasing real-time WiFi performance on the outdoor
wireless access point when multiple devices access the network.

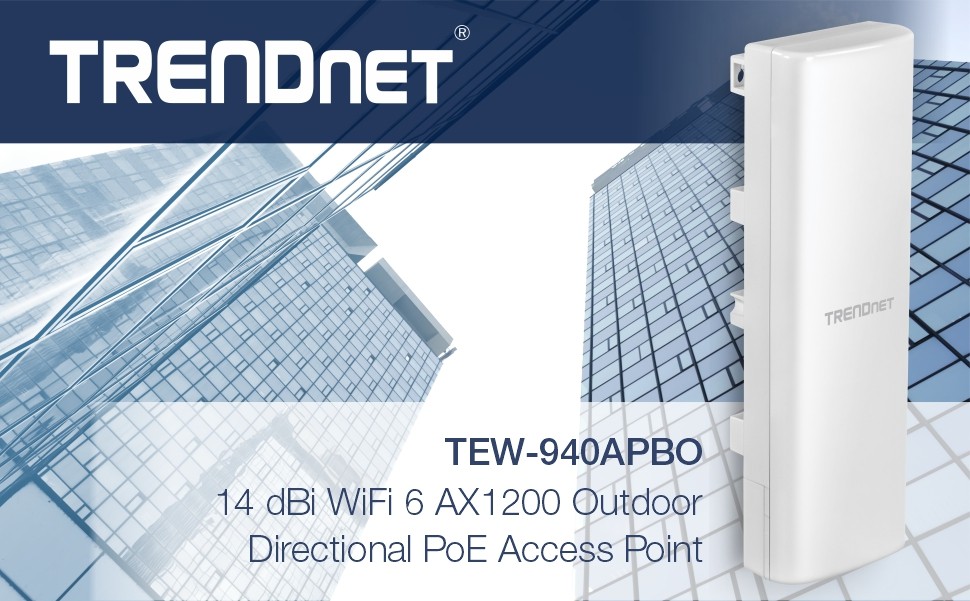

14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point

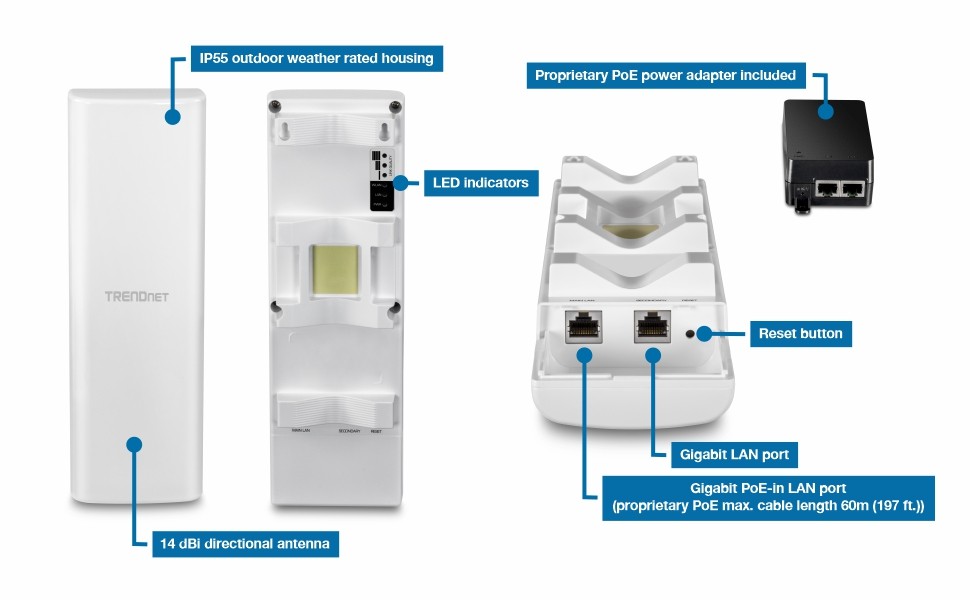

DEVICE INTERFACE: 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.)); 1 x Gigabit LAN port; LED indicators; Reset button
POINT TO POINT BRIDGE: The outdoor wireless access point supports wireless AX1200 point-to-point networking (5GHz) with access point, client bridge, and repeater modes.
WIFI 6 AX1200: Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking speeds and includes convenient wireless connection quality LEDs for ease of installation
DIRECTIONAL ANTENNA: 14 dBi Directional patch antenna
OUTDOOR READY: Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).
POWER ADAPTER INCLUDED: A proprietary PoE power adapter included
NDAA / TAA compliant (U.S. and Canada only)

Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.

Wireless Modes

Supports Access Point, Client Bridge, and Repeater modes

WiFi 6 AX1200 (5GHz)

Compliant with 802.11ax/n/ac 5GHz technology with data rates up to 1.2Gbps*

Outdoor Rated

Durable enclosure with an IP55 outdoor weather rating

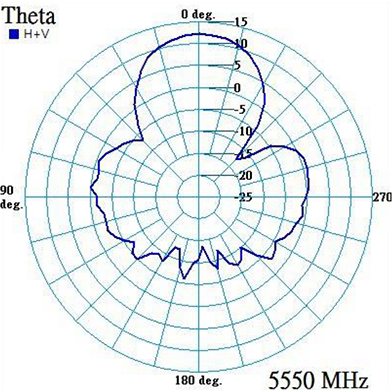

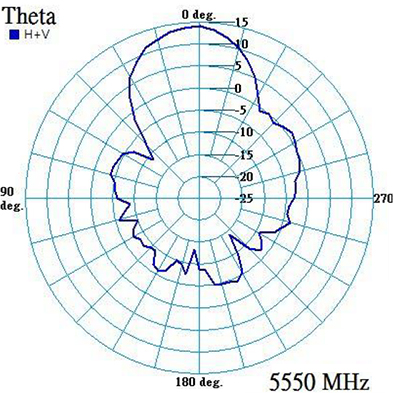

Directional Antenna

14 dBi directional antenna

PoE Power Adapter

Proprietary PoE power adapter included

Encrypted Wireless

Support for wireless encryption of up to WPA3

Mounting Hardware

Pole and wall mount hardware included

LED Indicators

LEDs convey wireless connection quality for ease of installation

SPECIFICATIONS

PACKAGE CONTENTS

TEW-940APBO
Quick Installation Guide
Proprietary/Passive PoE injector (54V DC, 0.6A)
Mounting hardware

Disclaimer:

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally, environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

** The distance listed in the specification is based on internal wireless connectivity between two TEW-940APBO units with consideration to acceptable data transmission rates performance throughput. Actual achievable connectivity and performance throughput may vary based on environmental factors in the installed locations.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
