Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged Multi-Gigabit Switches. This 2.5G switch with SFP+ support comes equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The 2.5G switch with 10G fiber also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.

10G SFP+ Port

Offers two 10G SFP+ ports for high speed network connections providing a cost-effective solution in adding 10G link capability.

2.5G Ports

Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

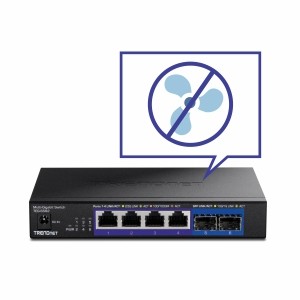

Fanless

The compact fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.

FEATURES

Easy Installation

No configuration needed, simply
connect network devices to the
2.5G switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45
ports that provide higher gigabit
speeds capable of up to 2.5Gbps
over existing Cat5e or better
cabling

10G SFP+ Ports

The 2.5G switch with SFP+ ports
features 10G SFP+ ports for highspeed network connections
providing a cost-effective solution in
adding 10G link capability

Fanless

Compact fanless design lowers
energy consumption and eliminates
operating noise

Housing Design

Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra.

Wall Mountable

Features a convenient wallmountable design for greater
installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 12KB) for increased
performance

LED Indicators

LED indicators on this 2.5G switch
with SFP+ ports conveys port status

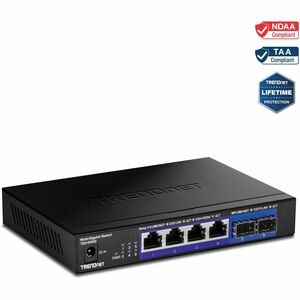

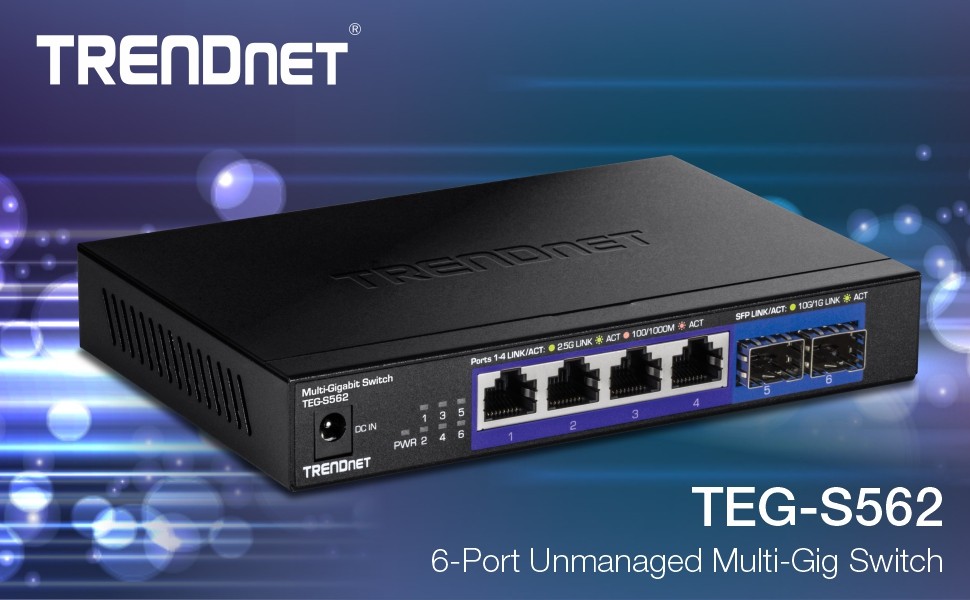

6-Port Unmanaged Multi-Gig Switch

4 x 2.5GBASE-T ports
2 x 10G SFP+ ports
IEEE 802.3bz (2.5G) compliant
IEEE 802.3ae (SFP+) compliant
Backwards compatible with 100/1000BASE-T devices
60Gbps switching capacity
Compact fanless design eliminates noise
Wall mountable for installation flexibility
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3ab IEEE 802.3ae IEEE 802.3an IEEE 802.3bz IEEE 802.1x

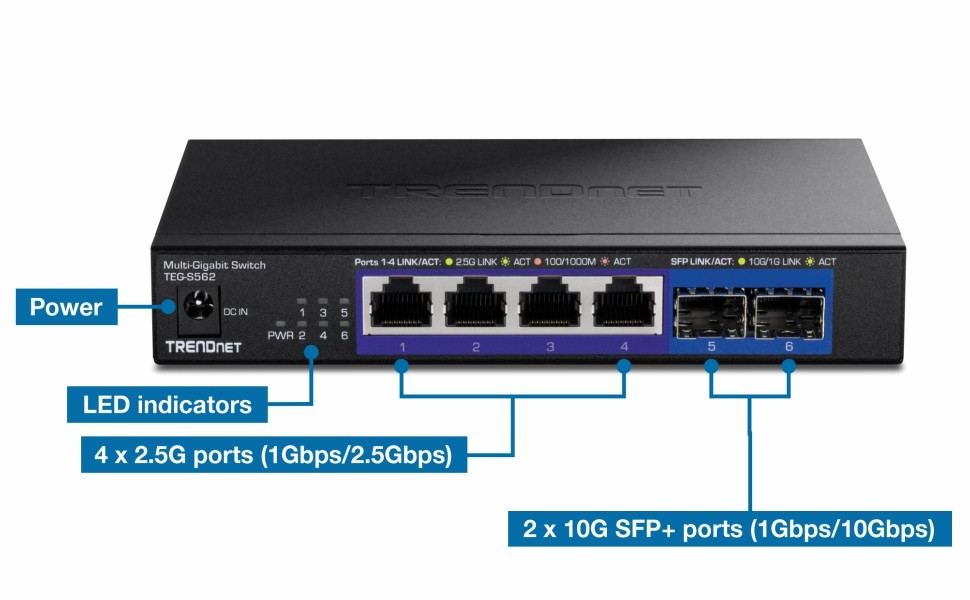

Device Interface	4 x 2.5G ports (1Gbps/2.5Gbps) 2 x 10G SFP+ ports (1Gbps/10Gbps) LED indicators
Data Transfer Rate	Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Switch fabric: 60Gbps RAM buffer: 1MB MAC address table: 4K entries Jumbo frames: 12KB Forwarding mode: Store and forward Forwarding rate: 44.64Mpps (64-byte packet size)
Power	Input: 90 – 264V AC, 47/63 Hz Output: 12V, 1A Max. consumption: 5.86W
MTBF	1,079,150 hours @25°
Fan / Acoustics	Fanless
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	160 x 110 x 26mm (6.2 x 4.3 x 1 in.)
Weight	0.4 kg (1 lbs.)
Certifications	CE FCC LVD
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S562
Quick Installation Guide
Power adapter (12V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
