TRENDnet’s 6-Outlet Managed Rackmount Power Distribution Unit, model TPI-06, provides a networkable power solution with intelligent monitoring and management capabilities. Automate outlet reboot settings in case of connection loss to ensure efficient usage of available resources, control power consumption, and protect the safety of connected equipment. Fanless design eliminates operating noise.
The 6-Outlet Managed Rackmount Power Distribution Unit features six NEMA 5-15R managed power outlets, one NEMA 5-15R bypass power outlet, and one gigabit port. Each managed power outlet is controllable individually. The TPI-06 PDU filters AC for best electronics performance, while simultaneously reducing excess energy usage with power scheduling.
TPI-06 Easily manage and configure the power distribution unit remotely with TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet’s reliable cloud service.

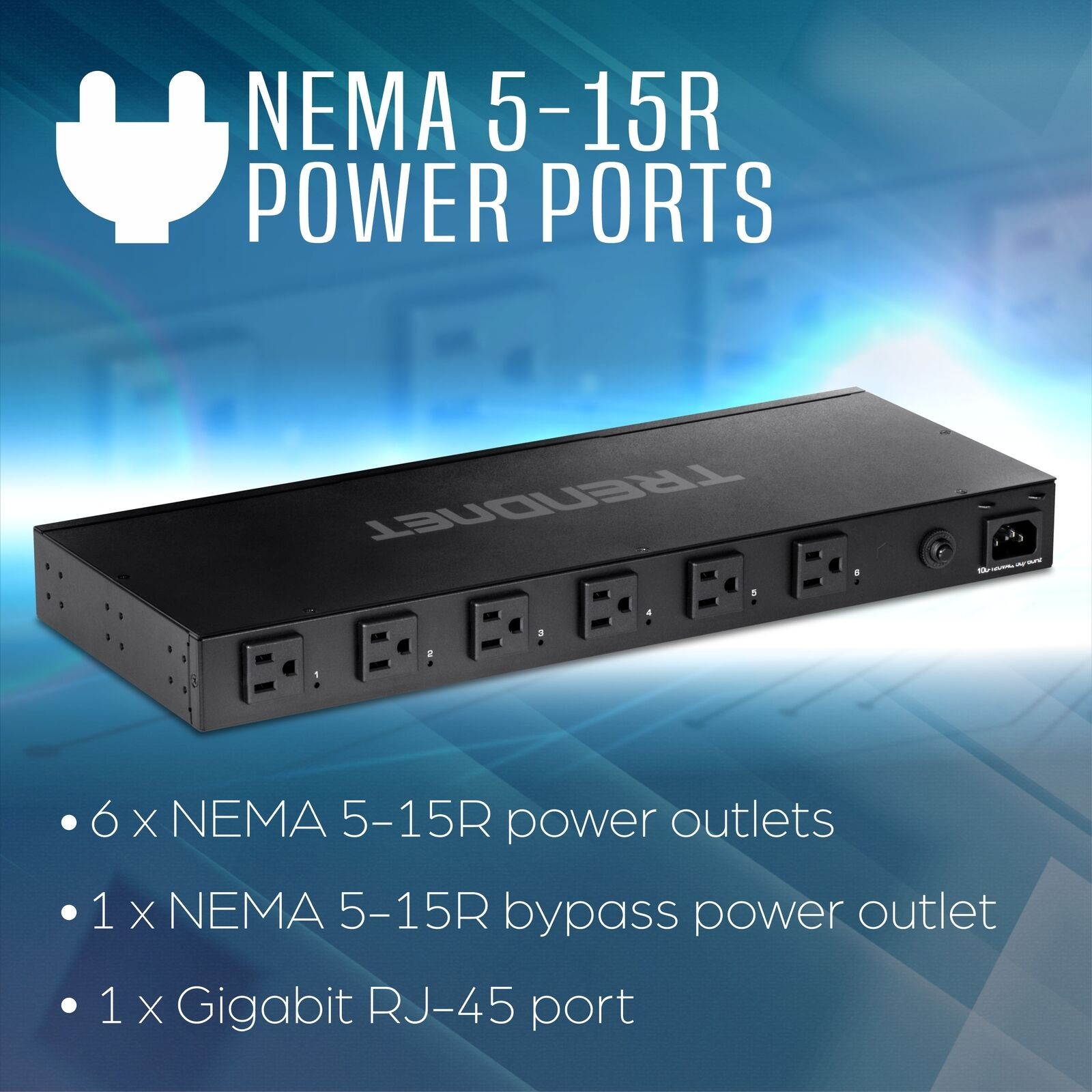

Ports
6 x NEMA 5-15R power outlets, 1 x
NEMA 5-15R bypass power outlet, 1 x
Gigabit RJ-45 Port.
Managed PDU
Supports individual control of power
outlets, and to assign a power schedule
to automate the process.
Fanless
Fanless design eliminates operating
noise.
FEATURES

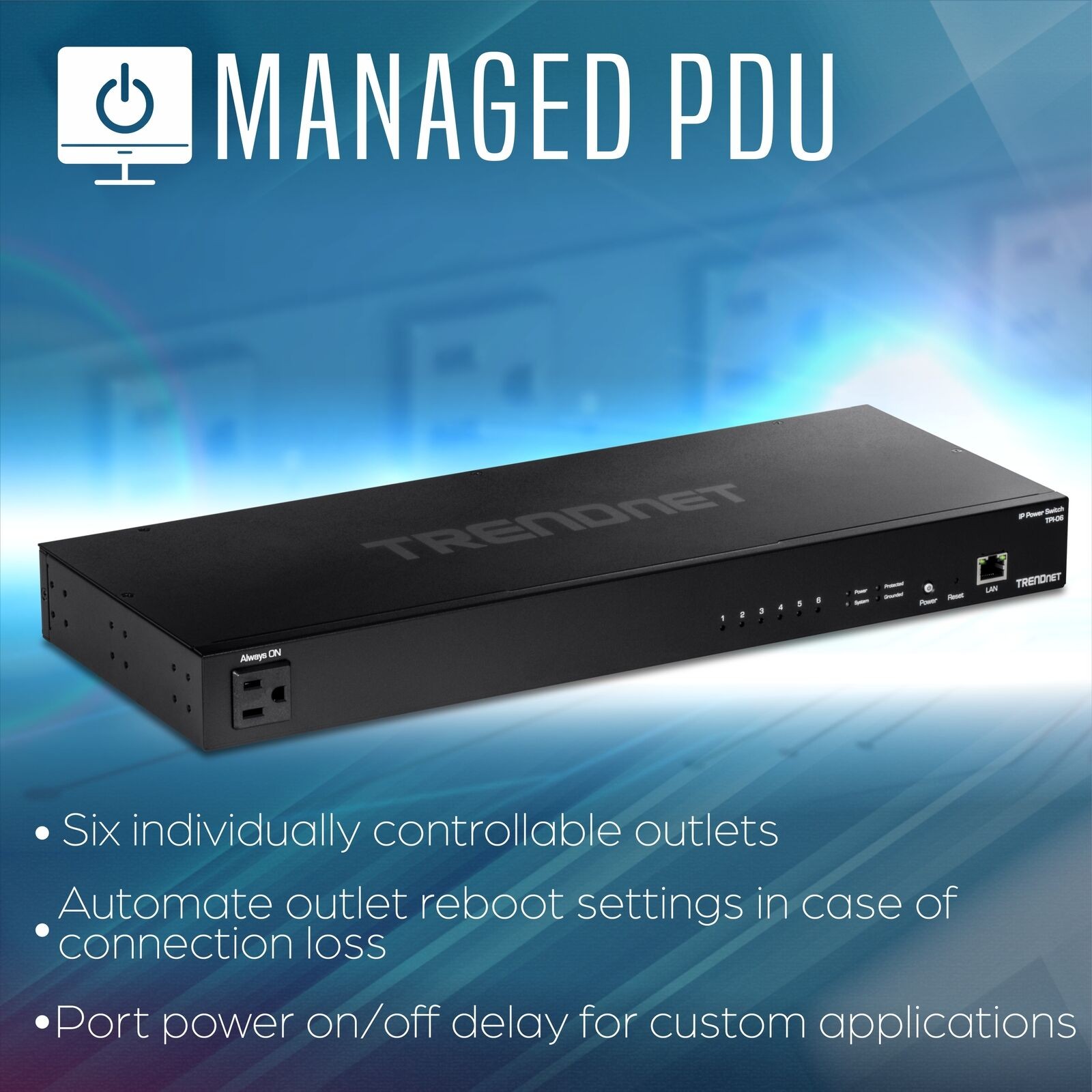

Managed PDU
Supports individual control of power outlets, and to assign a power schedule to automate the process
Ports
6 x NEMA 5-15R managed power
outlets, 1 x NEMA 5-15R bypass
power outlet, 1 x Gigabit RJ-45 Port
Hive Enabled
Remotely manage, configure, and
diagnose this power distribution unit
via TRENDnet’s cloud service
(Additional fee applies)

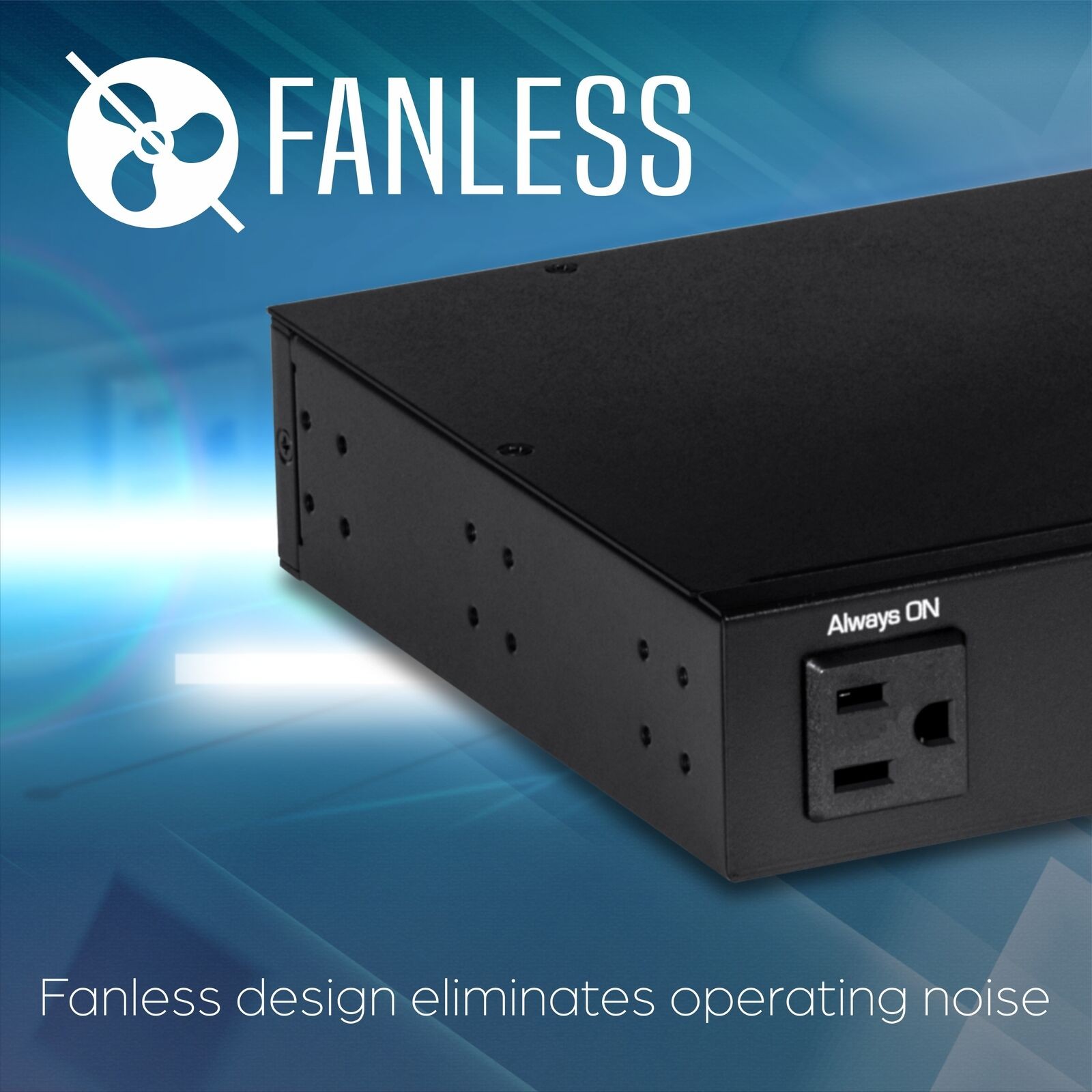

Fanless
Fanless design eliminates operating
noise
Email Notifications
Email notifications for safe voltage,
overload break, and host timeout
events

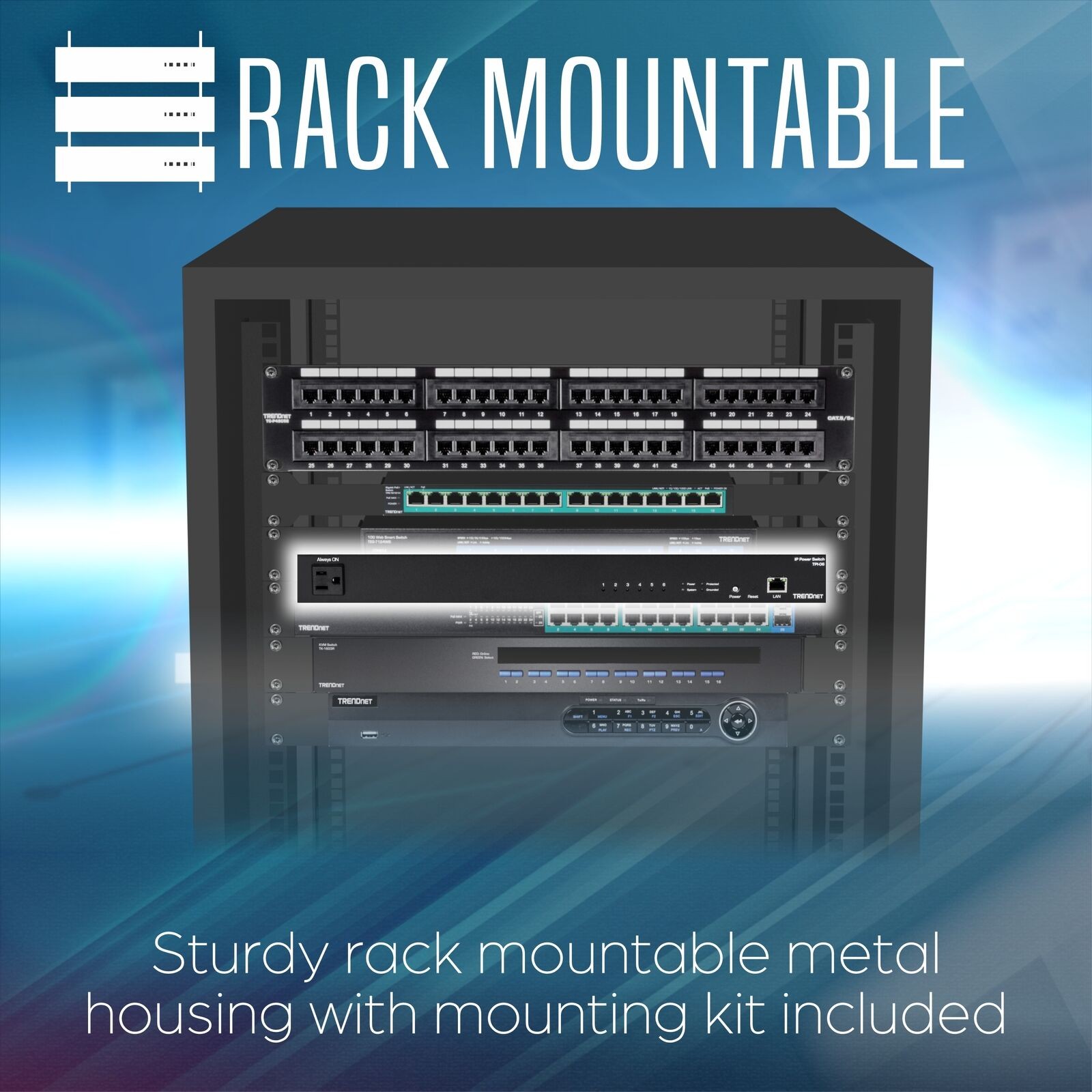

1U 19” Rack Mountable
Sturdy rack mountable metal housing with mounting kit included
LED Indicators
LED indicators conveniently convey AC ground status
Cursus Sapien Ut
Vivamus elit magna
6-Outlet Managed Rackmount Power Distribution Unit - TPI-06
Experience a centralized cloud-based, remote management solution for select TRENDnet network devices.
- DEVICE INTERFACE: 6 x NEMA 5-15R Managed Power Outlets (15A max. @ 120V AC); 1 x NEMA 5-15R-Bypass Power Outlet (15A max. @ 120V AC); 1 x Gigabit port; LED indicators; 1U 19” Rack mountable
- MANAGED POWER DISTRIBUTION UNIT: Supports individual controllable power outlets, and ability to assign a power schedule to automate the process.

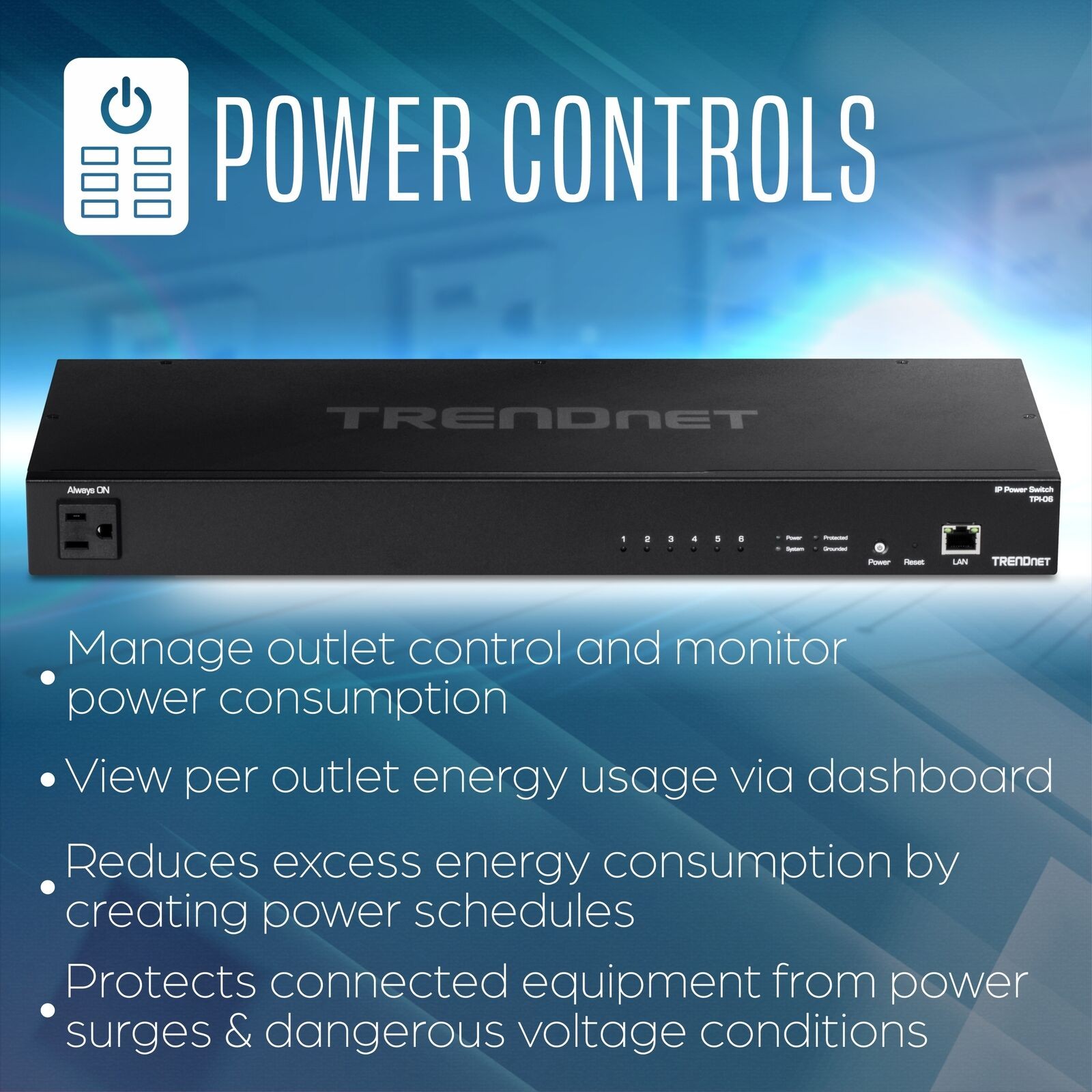

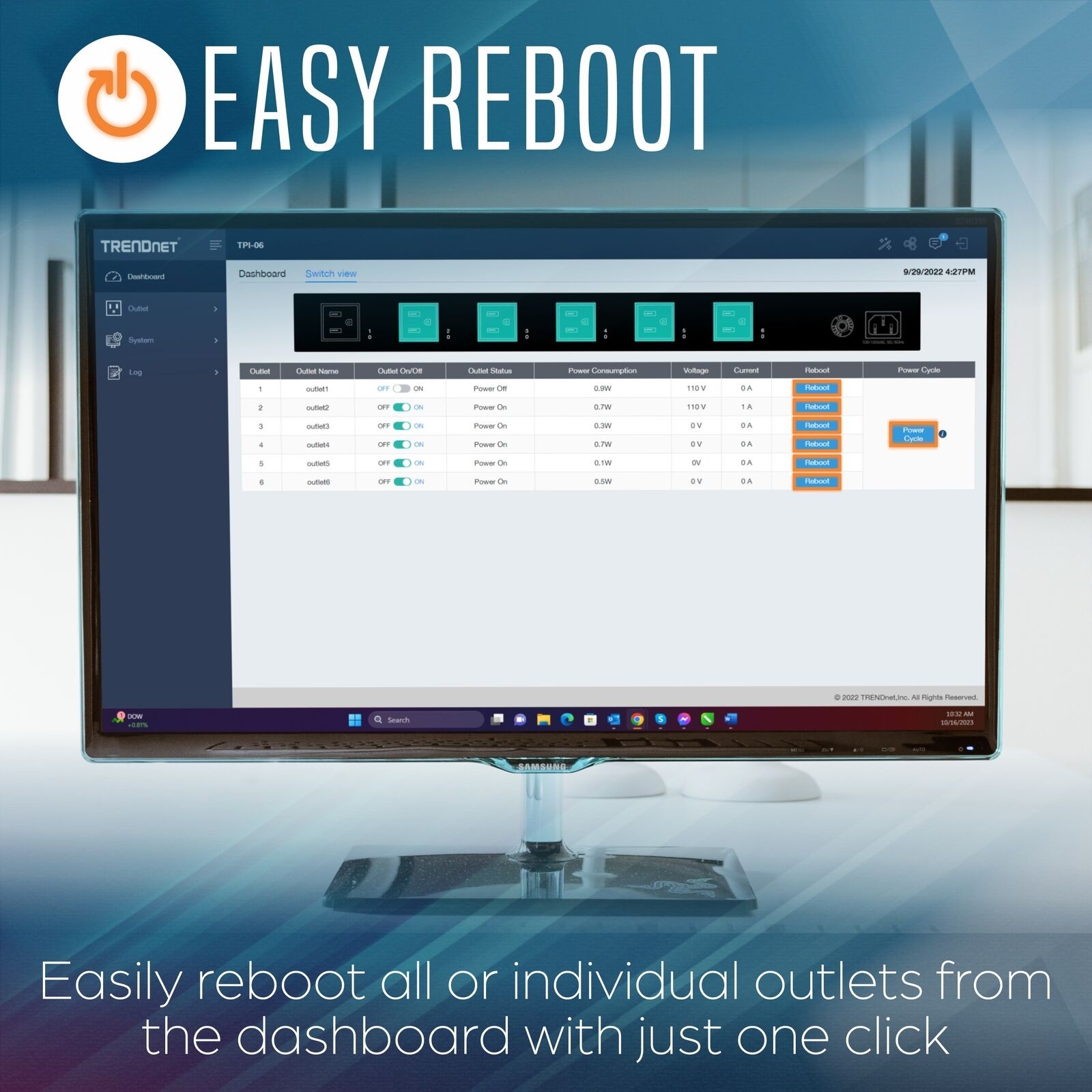

- MANAGE OUTLET CONTROL: Each managed power outlet can be individually controlled. Utilize port power on/off delay for custom applications.

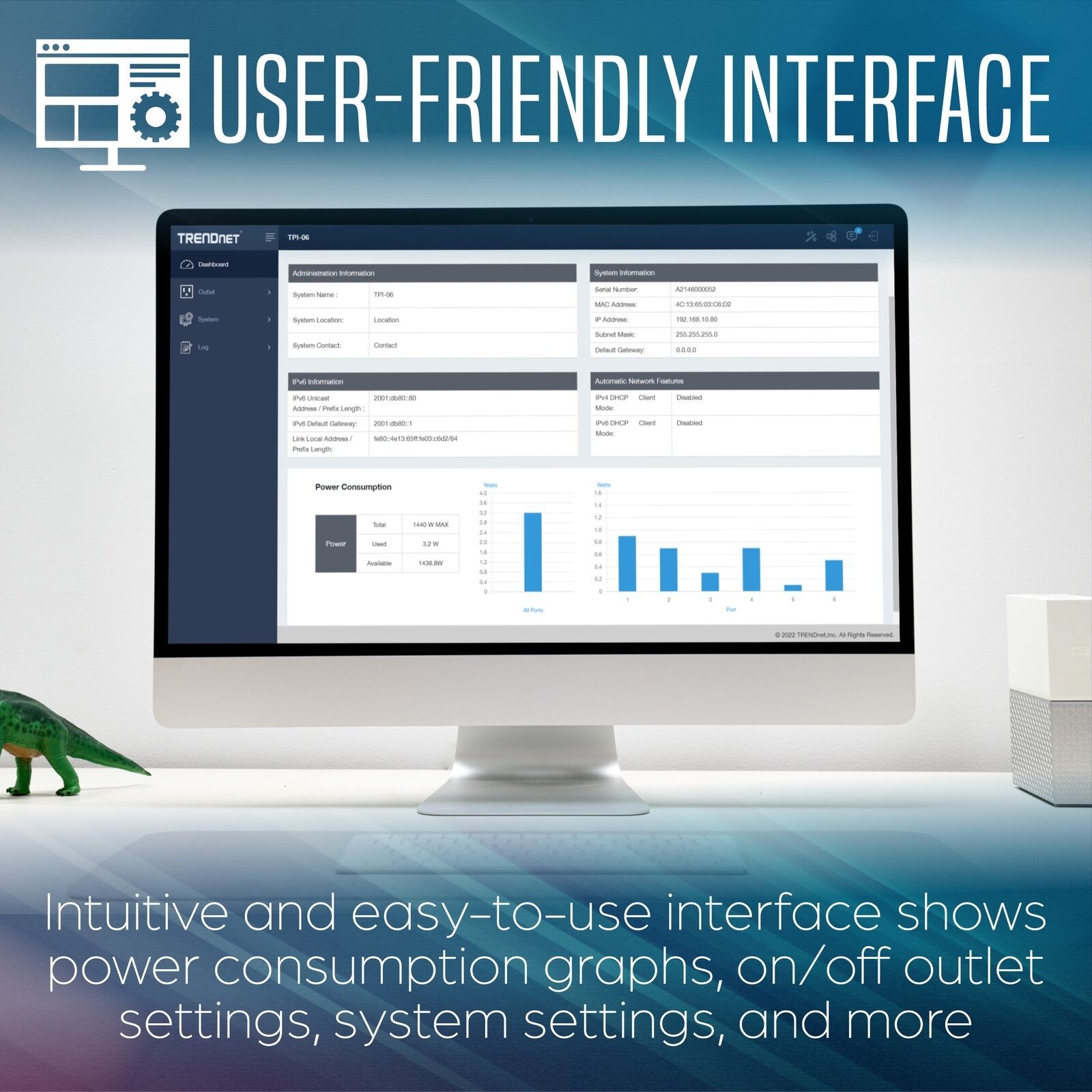

- MONITOR POWER CONSUMPTION: View per outlet energy usage via dashboard.
- OVERLOAD AND SURGE PROTECTION: Protect your connected equipment from power surges with overload protection 15A and dangerous voltage conditions with surge protection 2160J
- EMAIL NOTIFICATIONS: Set up email notifications for safe voltage, overload break, and host timeout events
- OPTIMIZED PERFORMANCE: Power distribution unit filters the alternating current (AC) for best electronic performance, while simultaneously reducing excess energy usage with power scheduling.
- LED INDICATORS: The LED indicators conveniently convey AC ground status
- Input Voltage 100-120VAC
- Certifications: UL 62368-1
SPECIFICATIONS
|
Device Interface
|
|
|
Power Output
|
|
|
Power Input
|
|
|
Hive Cloud Management
|
|
|
Special Features
|
|
|
Operating Temperature
|
|
|
Operating Humidity
|
|
|
Dimensions
|
|
|
Weight
|
|
|
Certifications
|
|
|
Warranty
|
|
|
PACKAGE CONTENTS
|
|
*Disclaimer: Max rated total output current is 15A. This device is meant to add additional outlets. It does not change the amount of power being received from the main outlet.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
