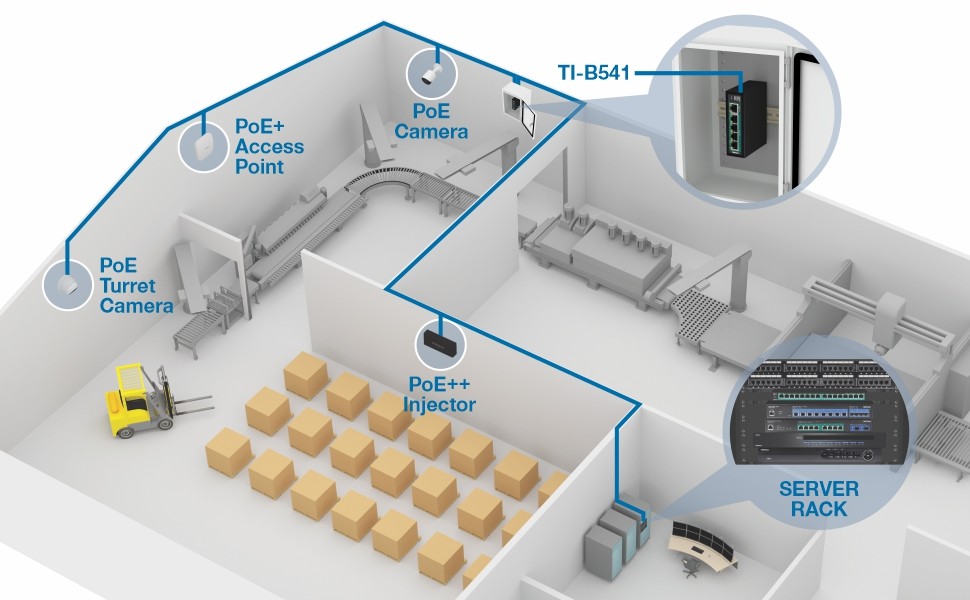

TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.

Industrial Hardened Design

Rugged IP30 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range (- 40° – 75° C (- 40°- 167° F))

PoE++ Powered

No AC adapter required—this switch is powered by a PoE++ switch or injector. It features four gigabit PoE+ ports to power PoE devices such as IP cameras.

Easy Installation

No configuration needed, simply connect PoE network devices to the reliable PoE powered industrial switch.

FEATURES

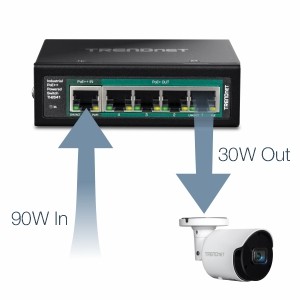

PoE++ Powered

PD-powered industrial switch, no
external power required – powered
by a PoE++ switch or injector

PoE Power

This PoE pass-through industrial
switch features four gigabit PoE
pass-through ports with a 60W total
PoE power budget

DIN-Rail/Wall Mounts

The PoE-powered industrial switch
features an IP30 rated metal
enclosure with included DIN-Rail
and wall mount hardware

Rated for ExtremeEnvironments

Rugged IP30 rated enclosure
designed to withstand a high
degree of vibration and shock, and
operate within a wide temperature
range (- 40° – 75° C (- 40° - 167°
F)) for harsh environments

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 9KB), for increased
performance

Switching Capacity

10Gbps switching capacity

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27),
freefall (IEC 60068-2-32), and
vibration (IEC 60068-2-6)

Grounding Point

Grounding point on the PoEpowered industrial switch protects
equipment against external
electrical surges

LED Indicators

LED indicators on the PoE-powered
industrial switch convey port status

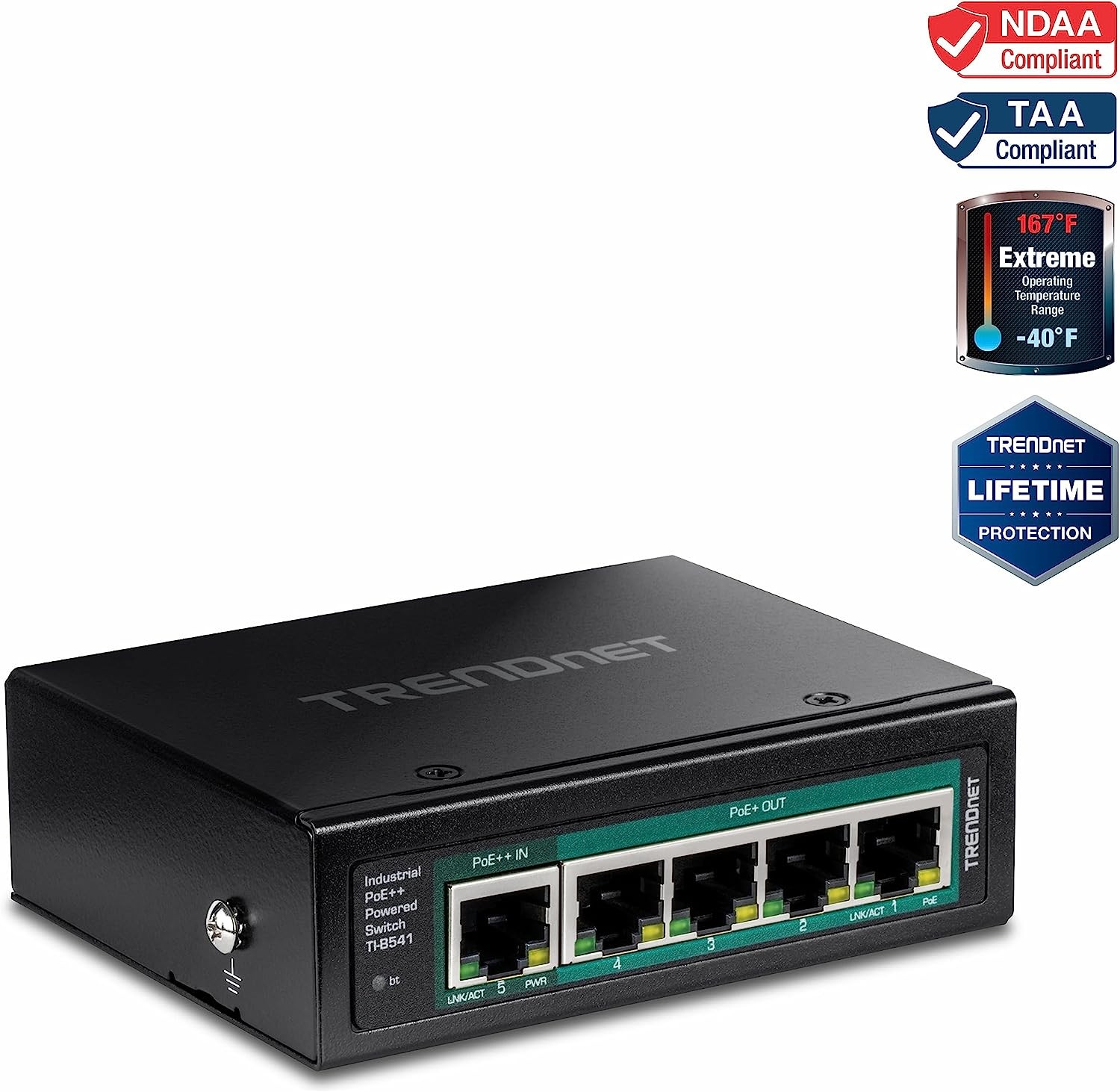

5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switchwith PoE Pass-Through

• 1 x Gigabit PoE++ input port

• 4 x Gigabit PoE+ output ports

• 65W PoE power budget with PoE++ Type 4 (90W) input power

• 10Gbps switching capacity • Hardened IP30 rated metal switch

• Includes DIN-Rail and wall mounts • Extreme operating temperature range of -40° - 75° C (-40° - 167° F)

• NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3bt

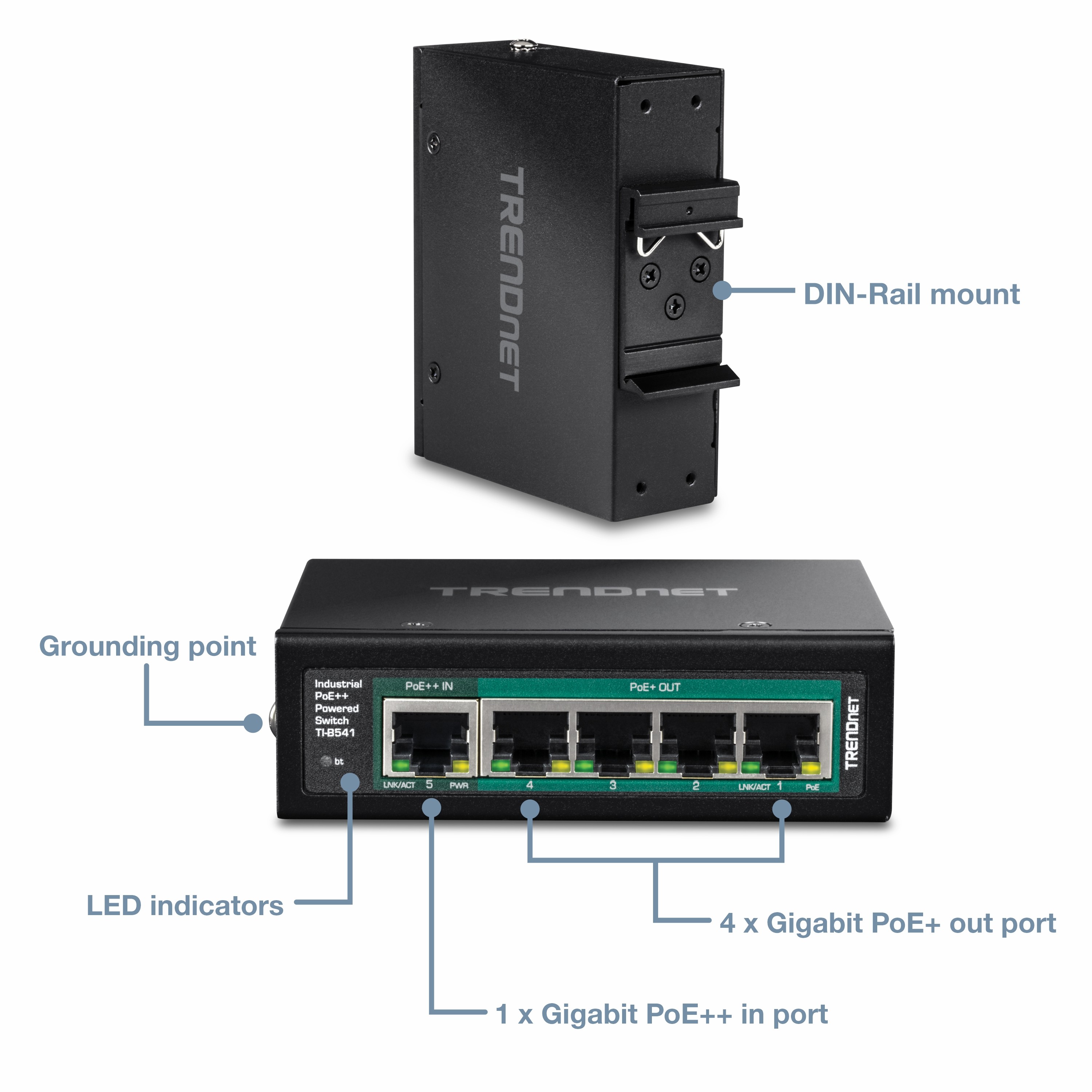

Device Interface	1 x Gigabit PoE++ in port 4 x Gigabit PoE+ out port LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 1MB Switching Fabric: 10Gbps MAC Address Table: 2K entries Jumbo Frame: 9KB Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features	PoE++ Powered Hardened components rated for extreme temperatures Auto-Negotiation
Power	IEEE 802.3bt Type 4 (90W), IEEE 802.3bt Type 3 (60W), or IEEE 802.3at (30W), PoE input only (no external power supply) IEEE 802.3bt Type 4 PoE PD Class 7 IEEE 802.3bt Type 3 PoE PD Class 5 IEEE 802.3at Type 2 PoE PD Class 4 IEEE 802.3af Type 1 PoE PD Class 0 Max. consumption: 3.9W (no PoE)
PoE	65W PoE budget with IEEE 802.3bt Type 4 (90W) input power 50W PoE budget with IEEE 802.3bt Type 3 (60W) input power 21W PoE budget with IEEE 802.3at (30W) input power
MTBF	537,083 hours @ 25°C
Housing	IP30 metal case DIN-Rail mount Wall mount Grounding point
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	102 x 80 x 31mm (4.01 x 3.14 x 1.22 in.)
Weight	160g (0.35 lb.)
Certifications	CE FCC LVD IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty

PACKAGE CONTENTS

TI-B541
Quick Installation Guide
