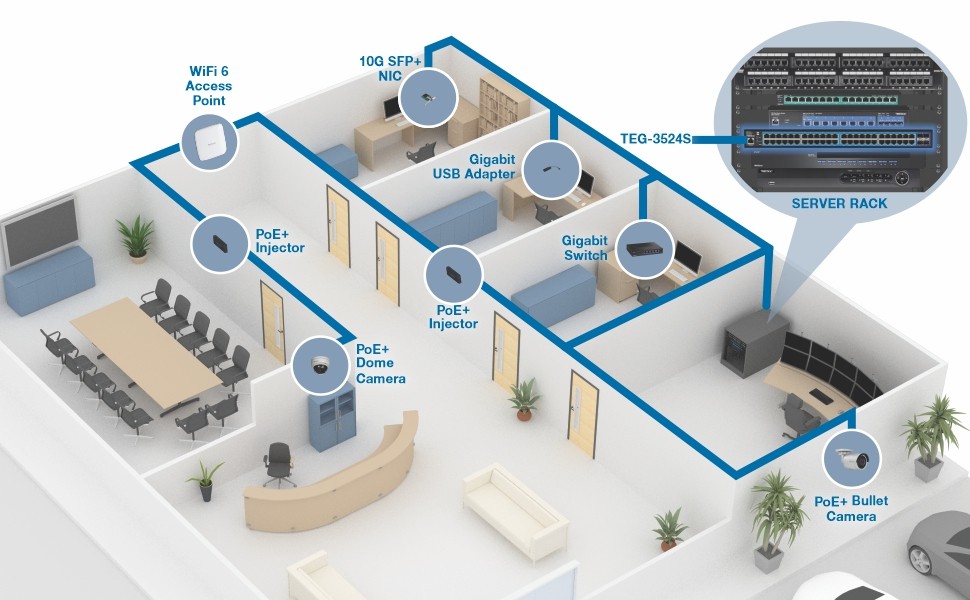

TRENDnet’s Gigabit Web Smart Switch series offers advanced L2+ features with enhanced traffic management controls to meet the
evolving demands of today’s SMB networks. These managed switches with SFP+ ports each come with an intuitive web-based
interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together,
VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring,
making these managed switches with 10G SFP+ ports powerful solutions for any SMB network. Improve voice performance by
isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

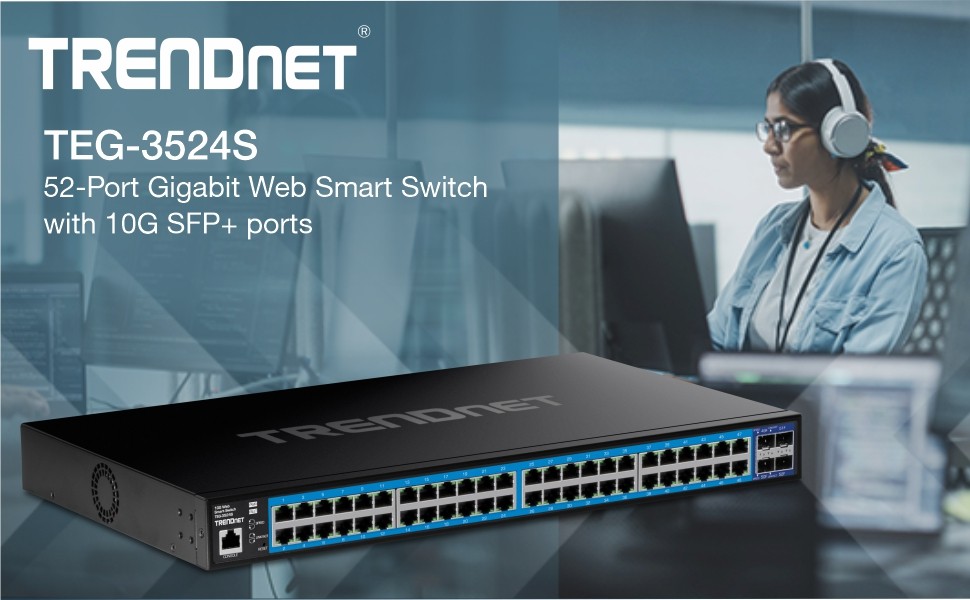

TEG-3524S
These gigabit managed switches come equipped with RJ-45 ports that provide gigabit speeds over your existing Cat5e or better
cabling. The gigabit managed switches also each offer four dedicated 10G SFP+ ports for high-speed network connections, providing
a cost-effective solution in adding 10G link capability to an SMB network. The strategic design of the switches lowers energy
consumption and eliminates distracting operating noise. TRENDnet’s reliable managed switches with SFP+ ports offer cost-effective
solutions to increase your network’s throughput.

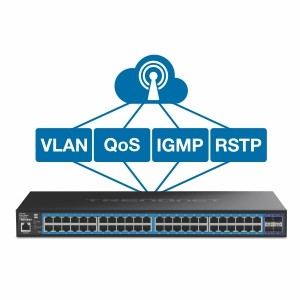

Integration Flexibility

Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

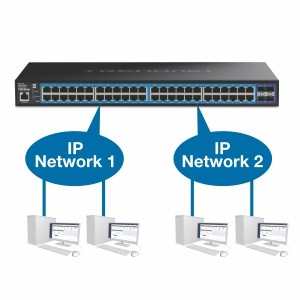

IPv4/IPv6 Static Routing

Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level.

10G SFP+ Ports

Offers four ultra-fast 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability.

DEVICE INTERFACE: 48 x Gigabit Ports; 4 x 10G SFP+ Ports; LED Indicators; Rack Mountable
SWITCHING CAPACITY: The Web Smart Gigabit switch provides 48 gigabit (RJ-45) ports with 176Gbps switching capacity.
WEB SMART MANAGEMENT: The 52 Port Switch provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
IPv4/IPv6 STATIC ROUTING: Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level.
INTEGRATION FLEXIBILITY: The Gigabit network switch managed features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
10G SFP+ PORTS: The network switch has four shared 10 gigabit SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to increase you network throughput.
TRAFFIC MANAGEMENT: This web smart Ethernet switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management
TRENDnet LIFETIME PROTECTION: The 52 Port Gigabit Switch comes with lifetime TRENDnet Manufacturer Protection.
NDAA / TAA compliant (U.S. and Canada only)

Hardware Design

Provides gigabit ports for device connections, 10G SFP+ ports for fiber applications, and a 1U 19” rackmount design with brackets included

Access Control

The managed switch include advanced features, such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls congue.

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Smart Fan

The smart fan on this managed switch saves energy by auto-adjusting the fan speed and use based on cooling needs

LED Indicators

LED indicators on this managed
switch with SFP+ ports convey port
status

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 10KB) for increased
performance

Housing Design

Sturdy rack mountable metal
housing

Troubleshooting

A convenient cable diagnostic test
and traffic statistics aid in network
troubleshooting

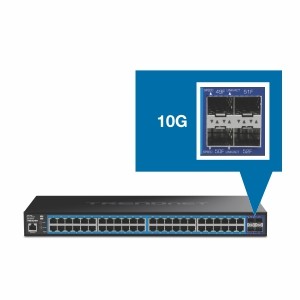

10G SFP+ Ports

Offers four dedicated 10G SFP+
ports for high-speed network
connections, providing a costeffective solution in adding 10G link
capability to an SMB network

IPv6 Ready

This managed switch with SFP+
ports supports IPv6 configuration
and IPv6 neighbor discovery

Traffic Management

Managed switch features include:
Link aggregation, 802.1Q VLAN,
Voice VLAN, Multicast VLAN,
RSTP, MSTP, Loopback Detection,
QoS, and port bandwidth
management

IPv4/IPv6 Static Routing

Offload routing processes to the
managed switch by using the L2+
IPv4/IPv6 static routing feature to
efficiently route traffic at the switch
level

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3az

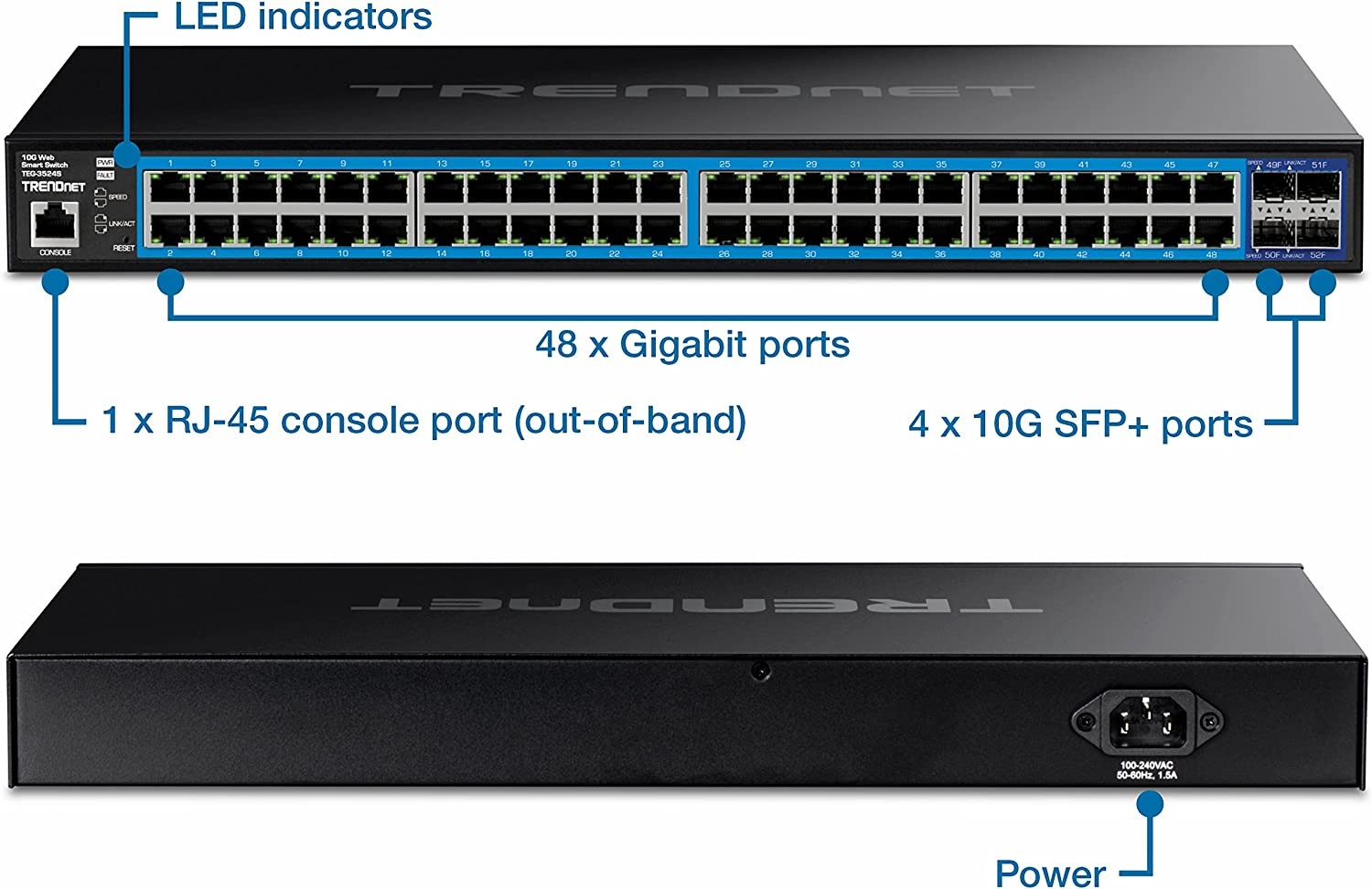

Device Interface	48 x Gigabit ports 4 x 10G SFP+ ports 1 x RJ-45 console port (out-of-band) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) SFP: 2000Mbps (full duplex) SFP+: 20Gbps (full duplex)
Performance	Switch fabric: 176Gbps RAM buffer: 2MB MAC Address Table: 32K entries Jumbo Frames: 10KB HOL Blocking Prevention Forwarding rate: 130.95Mpps (64-byte packet size)
Management	CLI (Telnet / SSHv2) for basic administration HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration Dual image and configuration
MIB	RMON MIB RFC 1271 LLDP MIB IEEE 802.1ab RFC 1213 MIB II RFC 1643 Ethernet intf MIB RFC 1493 bridge MIB
Spanning Tree	IEEE 802.1d STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) MLD Snooping v1, v2 IGMP fast leave Up to 256 multicast entries
Port Mirror	RX, TX, or Both Many to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial-In User Authentication DHCP Snooping Loopback Detection Trusted Host Denial of Service (DoS) IP MAC port binding Block unknown multicast
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p TOS (IPv4 only) IPv4 Address and Mask (IPv4 only) IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features	IPv4 / IPv6 static routing IP interfaces: Up to 6 Routing table entries: Up to 32 (IPv4 / IPv6) ARP table (up to 128 entries) Inter-VLAN routing
Power	Input: 100 – 240V AC, 50/60Hz, internal power supply Max. consumption: 20.85W
Fan/Acoustics	Quantity: 1 Smart Fan Noise Level: 38.6 dBa (max.)
MTBF	175,750 hours
Operating Temperature	0° – 50° C (32° – 122° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	440 x 255 x 44mm (17.32 x 10.04 x 1.73 in.)
Weight	3.408kg (7.51 lbs.)
Certifications	CE FCC
Warranty	Lifetime Warranty
