TRENDnet’s Indoor/Outdoor 5MP H.265 PoE IR Fixed Turret Network Camera, model TV-IP1515PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This fixed turret network camera delivers year-round surveillance with an IP66 weather rated housing to withstand outdoor environments. Record up to 5MP HD video at 20fps in a space saving
H.265 compression format. Easily view live video from the 5MP turret camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.

Indoor/Outdoor 5MP H.265 WDR PoE IR Fixed TurretNetwork Camera

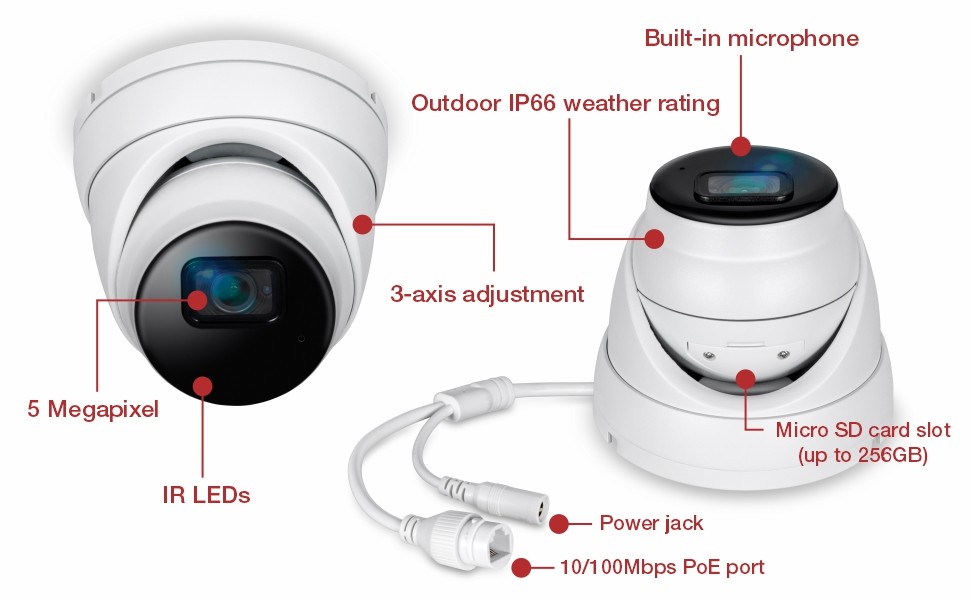

DEVICE INTERFACE: 10/100Mbps PoE Port; Micro SD Card Slot; Power Jack; Built-in Microphone; Reset Button
NIGHT VISION HD SURVEILLANCE: Powerful 5MP HD video (2592 x 1920) at 20fps and up to 30m (98 ft.) night vision provides 24-hour surveillance. Night vision Infrared LEDs dynamically adjusts the Infrared (IR) LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away

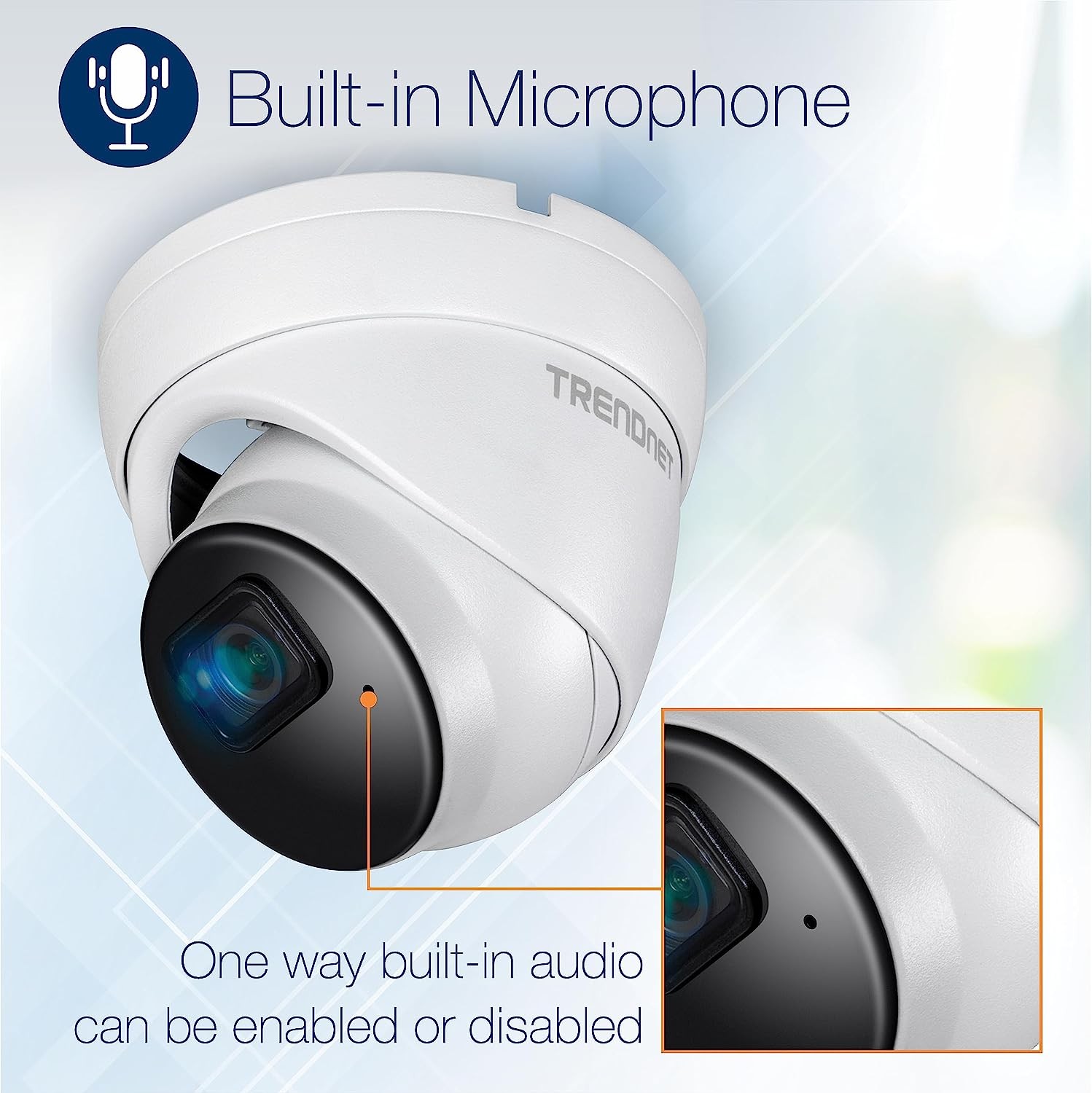

ONE-WAY AUDIO: The 5MP Fixed Turret camera has a built-in microphone for one-way audio; 3-AXIS ADJUSTMENT: Manually adjust the pan and tilt angles of this poe camera to find the optimal camera lens position
NDAA & TAA COMPLIANT: This National Defense Authorization Act (NDAA) compliant camera abides by the guidelines that prohibits equipment or components from certain Chinese companies and their subsidiaries. TAA compliant in accordance to the Trade Agreements Act (19 U.S.C. & 2501-2581)
MANUFACTURER PROTECTION: The TV-IP1515PI Indoor Outdoor 5MP H.265 PoE IR Fixed Turret Network Camera is backed and supported with 3 years of TRENDnet Manufacturer Protection.
WIDE DYNAMIC RANGE (WDR): WDR setting improves image quality and focus when a camera is exposed to high contrastlighting environments by enhancing the dark areas of the image to make them more visible.
VIEW MANAGER SOFTWARE: View live video, recording playback, custome viewing modes and options, and manage TRENDnet cameras with included complimentary software and Free Sentinel iOS and Android mobile apps.

MOTION DETECTION: Create custom motion detection zones to record video and send email notifications when a zone is triggered.
POWER OVER ETHERNET (POE): PoE offers cost savings and the flexibility to install this night vision camera up to 100m (328 ft.) from the PoE source equipment.
NETWORK STORAGE: Record video to a network storage device or to a Micro SD card (up to 256GB not included); OUTDOOR READY: Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° – 50° C (-22° – 122° F).

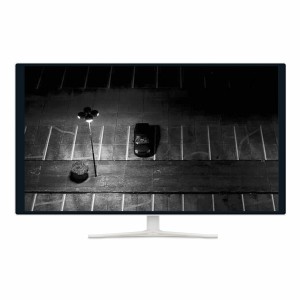

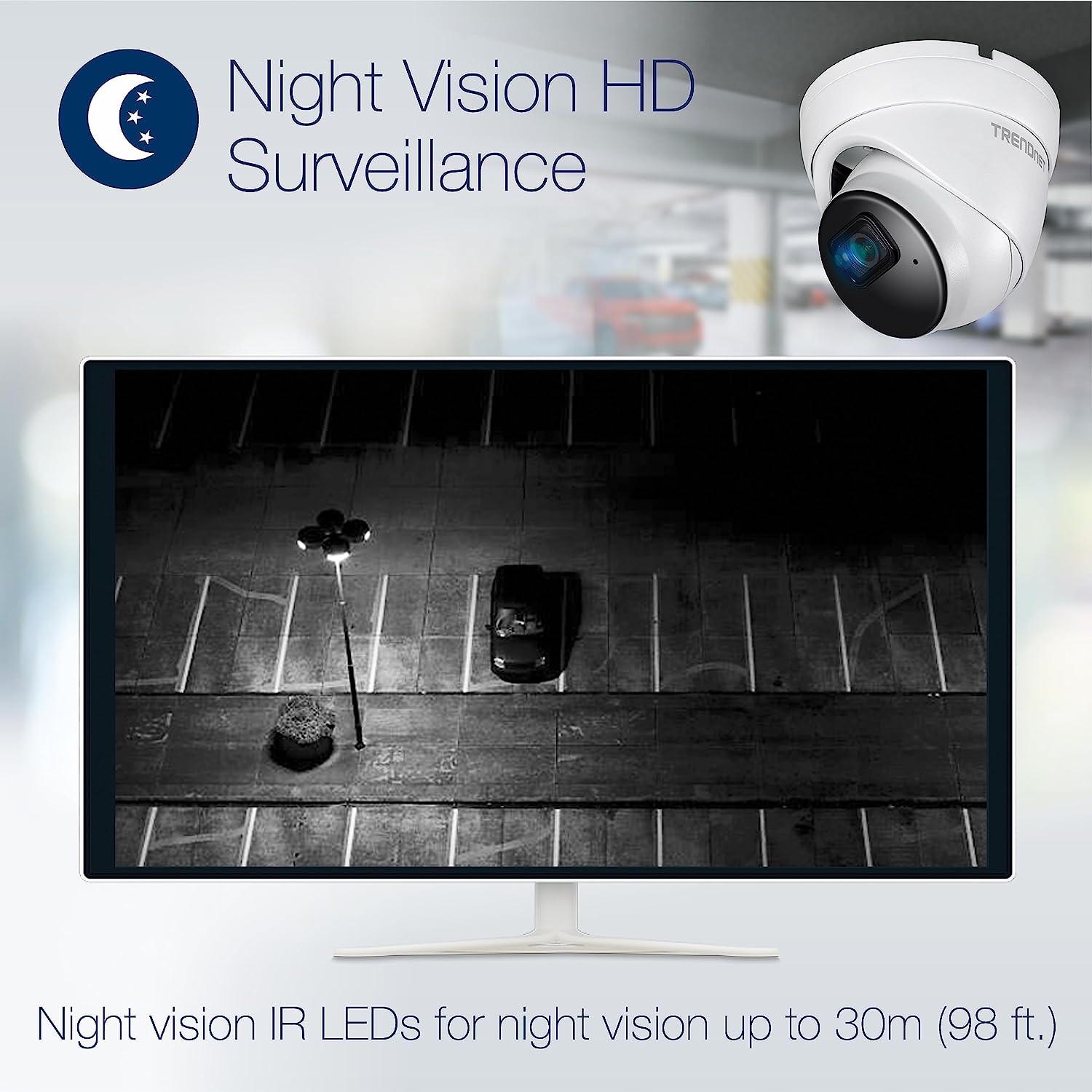

Night Vision HD Surveillance

Night-time viewing up to 30 meters (98
ft.) away, with night vision infrared (IR)
LEDs that dynamically adjusts as
needed.

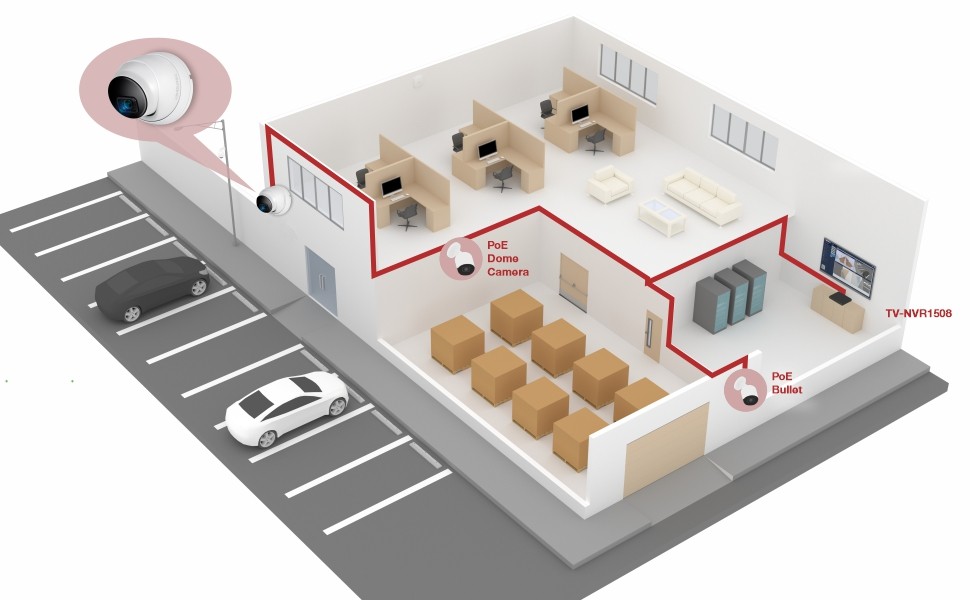

Power over Ethernet (PoE)
PoE offers cost savings and the flexibility
to install this 5MP turret camera up to
100m (328 ft.) from the PoE source
equipment.

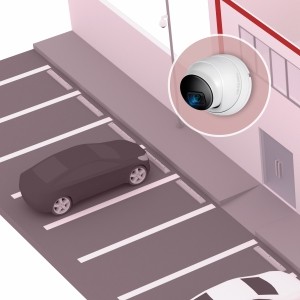

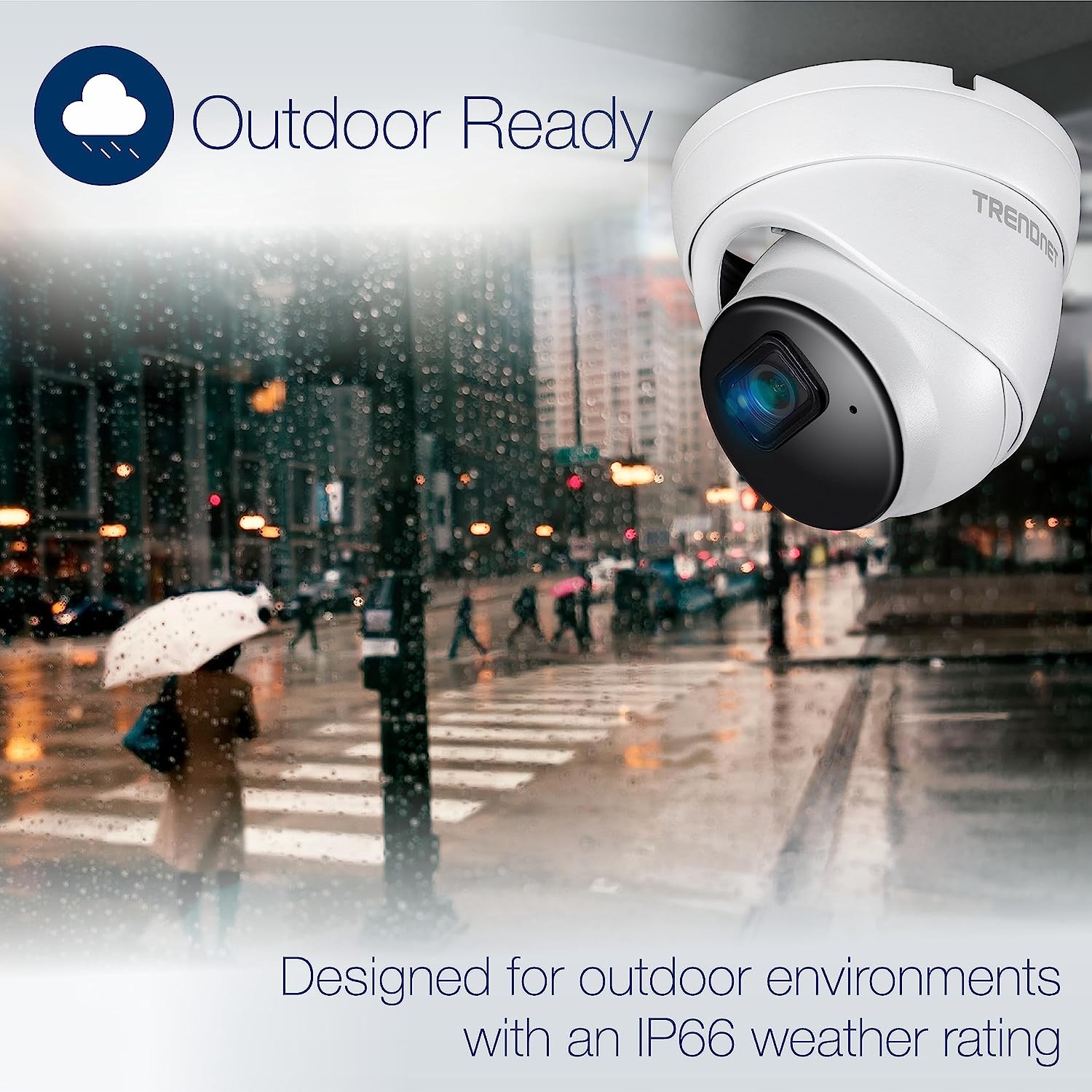

Outdoor Ready

Built for outdoor environments with an
IP66 weather rating and an operating
temperature range of -30° – 50° C (-22°
– 122° F).

5 Megapixel

Record up to 5MP HD video (2592
x 1920) at 20 fps in the space
saving H.265 compression format

3-Axis Adjustment

Manually adjust the pan and tilt
angles on this 5MP turret camera to
find the optimal camera lens
position

Recording Flexibility

Define custom schedules using
continuous (24/7) and event-based
recording modes

ONVIF

ONVIF Profile S

Wide Dynamic Range (WDR)

WDR setting improves image
quality and focus when a camera is
exposed to high contrast lighting
environments by enhancing the
dark areas of the image to make
them more visible

Complimentary Software

Complimentary pro-grade View
Manager software to manage
TRENDnet cameras

Complimentary Apps

View live video from the 5MP turret
camera to a mobile device with free
Sentinel iOS® and Android™ apps

Advanced Playback

Advanced in-camera archived video
playback functionality

TRENDnet Indoor Outdoor 5MP H.265 PoE IR Fixed Turret Network Camera, IP66 Rated Housing, IR Night Vision up to 30m (98 ft.), Security Surveillance Camera, microSD Card Slot, White, TV-IP1515PI

SPECIFICATIONS

Lens	Focal length: 3.6mm @ F1.6 Sensor: 1/ 2.7” CMOS sensor DWDR 3D NDR
Viewing	Horizontal angle: 79˚ Vertical angle : 56˚ Diagonal angle : 106˚ Manual pan: 0° to 360° Manual tilt: 0° to 80° Lens rotation: 0° to 360°
Minimum Illumination	IR off: 0.02 lux IR on: 0 lux IR distance: 30m (98 ft.) IR LED wavelength: 850nm
Compression	H.265 H.264 MJPEG
Resolution	Main stream: H.265/H.264: 2592 x 1920 up to 20fps Sub stream: H.265/H.264/MJPEG: 1280 x 720 up to 10fps Third stream: H.265/H.264/MJPEG: 720 x 480 up to 10fps
Hardware Standards	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Device Interface	10/100Mbps PoE port Micro SD card slot Power jack Built-in microphone Reset button
Micro SD slot	Supports Micro SD/SDHC/SDXC (not included) Up to 256GB
Housing	IP66 weather rated
Network Protocol	IPv4, IPv6, UDP, TCP/IP DHCP, NTP, DDNS, SMTP, FTP, LLTD SMB HTTP, HTTPS RTSP, RTP
Compliant Standard	ONVIF (Profile S)
Dimension	100 x 100 x 90mm (3.9 x 3.9x 3.54 in.)
Weight	438g (0.96 lb.)
Operating Temperature	-30° – 50° C (-22° – 122° F)
Humidity	Max. 95% non-condensing
Power	Input: PoE Max. consumption: 6W
Power Adapter (optional model: 12VDC1A)	Input: 100 – 240V AC , 50/60Hz Output: 12V DC, 1A external power adapter
Management Interface	Multi-language support Image settings: 3D Noise Reduction, Brightness, Hue Contrast, Saturation, Sharpness, Exposure Value, image Auto Gain, Day/Night switch, WDR, white balance, Mirror, Flip, Color Mode WDR enhances video quality in high contrast daytime lighting 3D Noise Reduction removes digital noise from the video signal Audio: built-in microphone can be enabled and disabled Time and date overlay Video Recording: scheduled, motion detection, and tamper detection Motion detection: define motion detection areas and motion sensitivity Privacy masks: define custom privacy masks Tamper detection function: email notification Snapshot: real time snapshot and motion triggered Supports remote management
View Manager	Supports TRENDnet cameras Recording playback Custom viewing modes and options Compatibility: Windows®
Sentinel App	Free iOS® and Android™ apps View live camera video Push notifications Take snapshots and videos Playback
Certifications	CE FCC UL
Warranty	3 year

PACKAGE CONTENTS

TV-IP1515PI
Weather seal
Quick installation guide
Camera mounting hardware
