TRENDnet’s 12-Port 10G Web Smart Switch, model TEG-7124WS, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready 10Gb managed switch comes with an easy-to-use, intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this 10Gb managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

This 12-Port 10G managed switch also features eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for long-distance, high-speed fiber network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

High-Speed 10GBASE-T and 10G SFP+

Offers eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability to an SMB network.

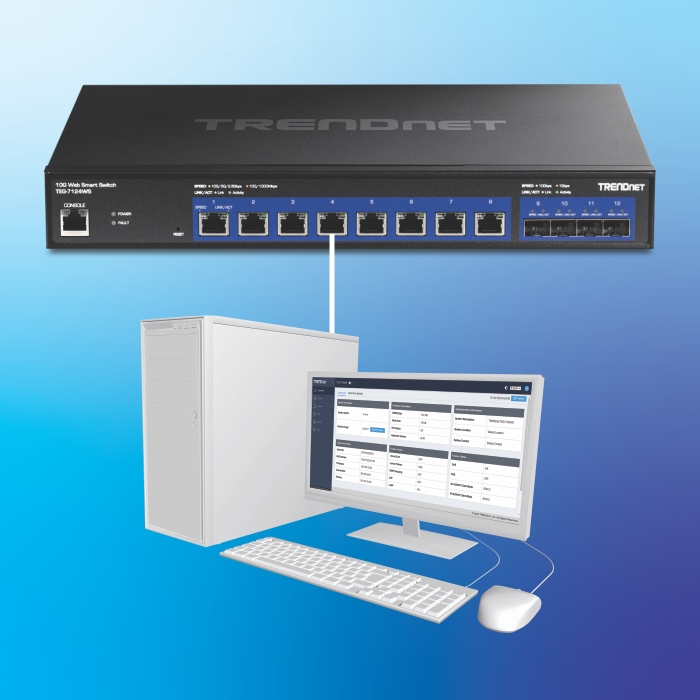

Web Smart Management

Provides an easy-to-use web-based management GUI for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

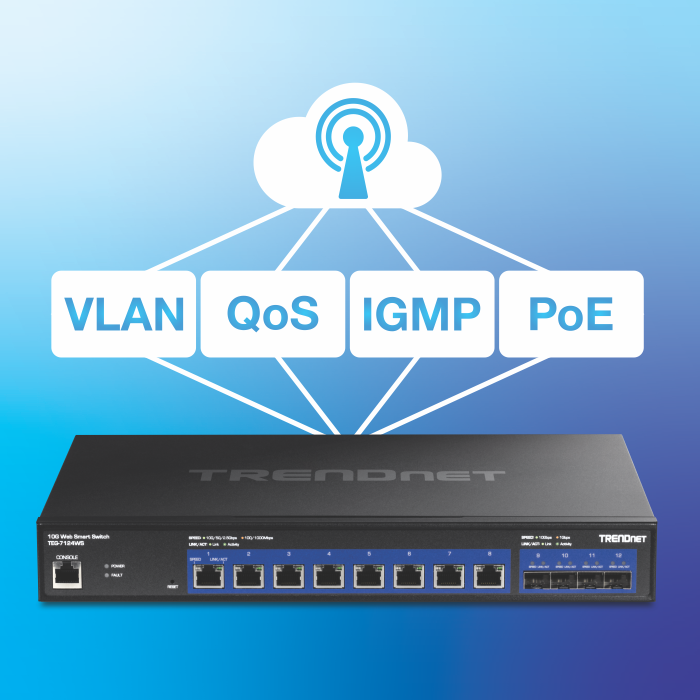

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring for flexible network integration.

NETWORKING SOLUTION

12-Port 10G Web Smart Switch

8 x 10G ports
4 x SFP+ slots
Supports 1G/2.5G/10G link speeds

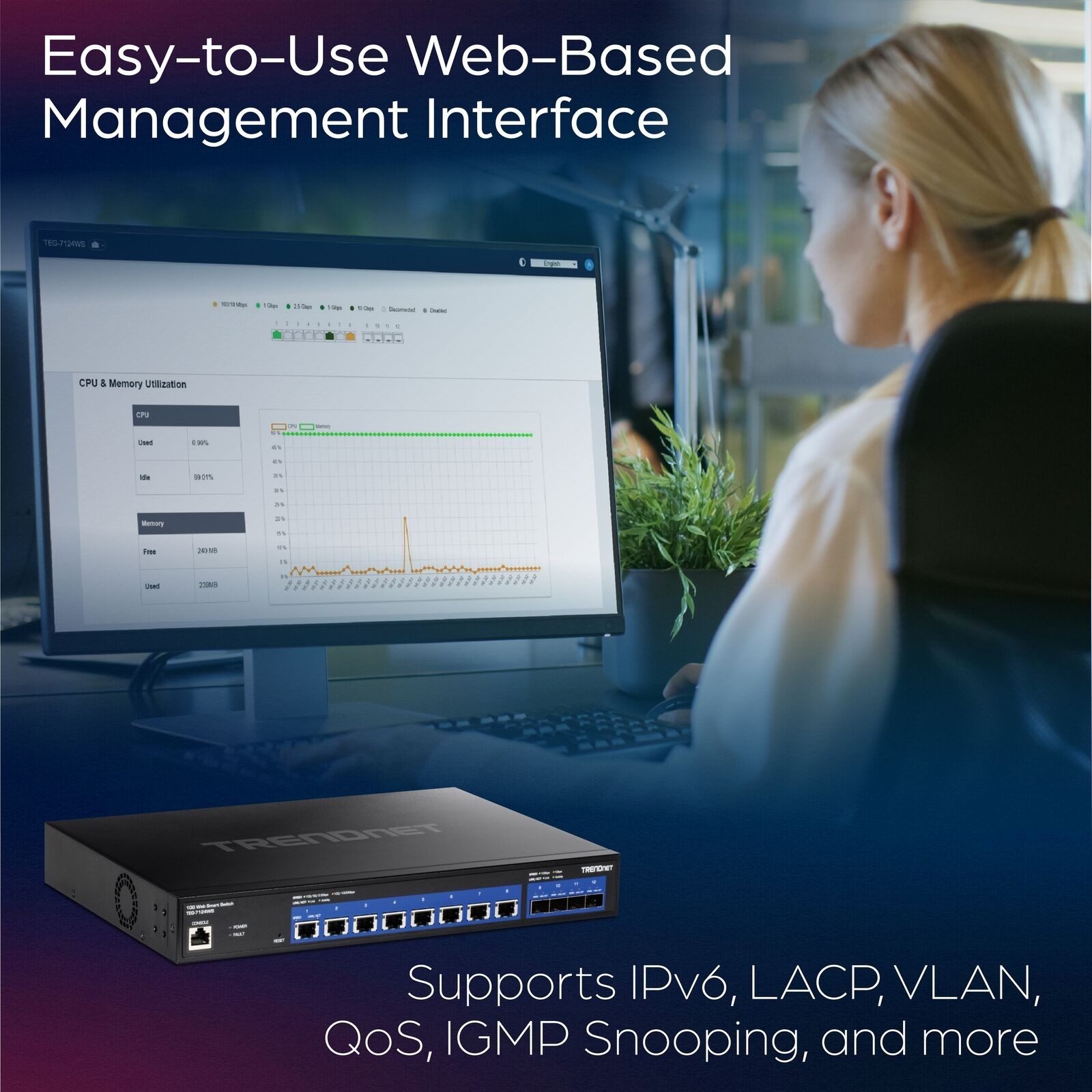

Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private and Voice VLAN support
240Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support
1U 19” rack mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)

FEATURES

Monitoring
RMON, SNMP, SNMP Trap, and
Port Mirroring support administrator
monitoring solutions

Access Control
Features such as ACL, SSL, MAC/
port filtering, 802.1X, TACACS+,
and RADIUS are compatible with
layered access controls

Troubleshooting
A convenient cable diagnostic test
and traffic statistics aid in network
troubleshooting

Hardware Design

Provides eight 10G ports, four 10G
SFP+ slots, a 240Gbps switching
capacity, a built-in power supply,
and rackmount brackets

IPv6 Ready
This switch supports IPv6
configuration and IPv6 neighbor
discovery

Traffic Management
A broad range of network
configurations are supported by:
802.3ad link aggregation,
Asymmetric VLAN, 802.1Q VLAN,
Voice VLAN, RSTP, MSTP,
Loopback Detection, GVRP, 802.1p
Class of Service (CoS), port
bandwidth management, and QoS
queue scheduling

TRENDnet 12-Port 10G Web Smart Switch - TEG-7124WS

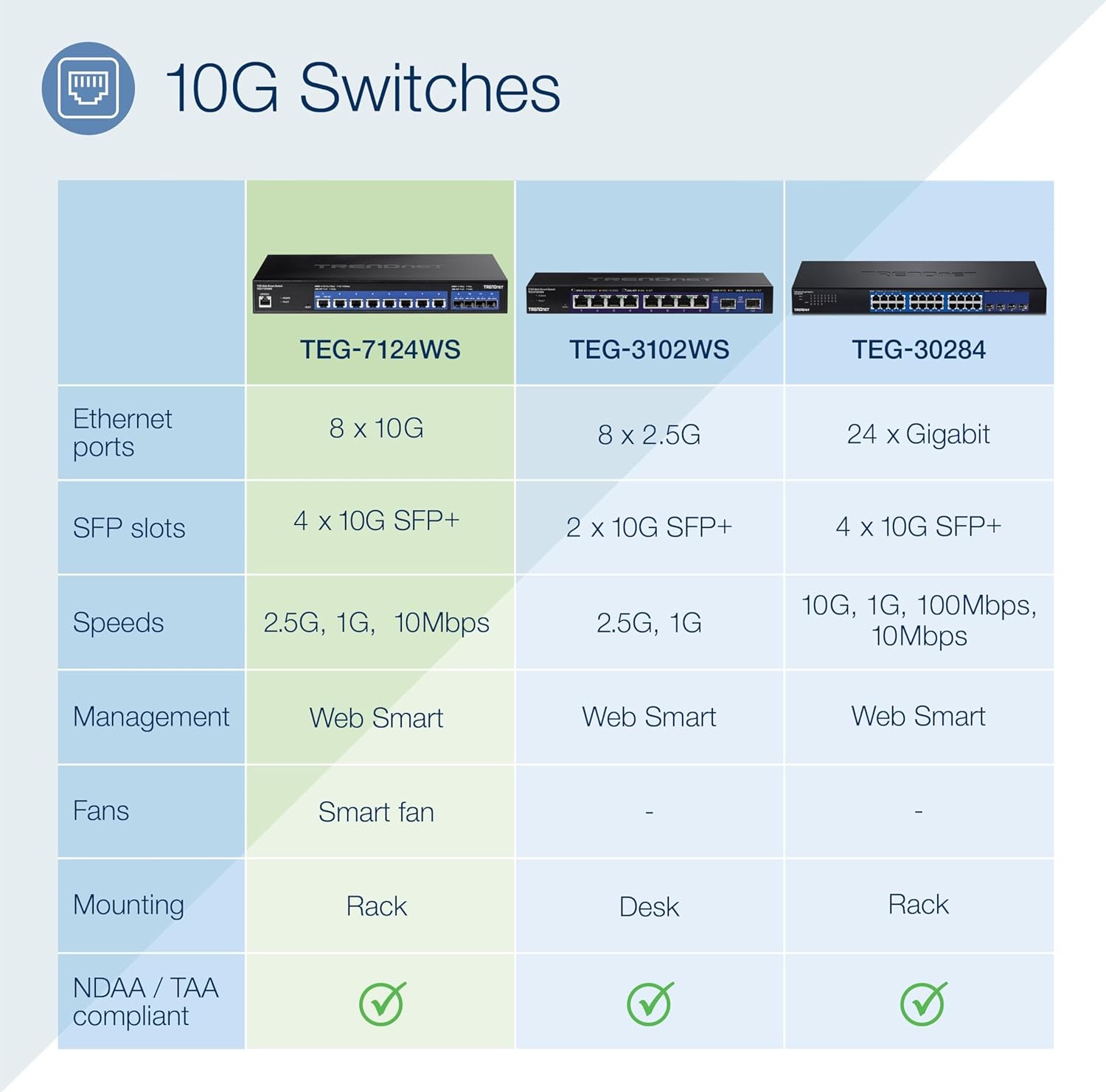

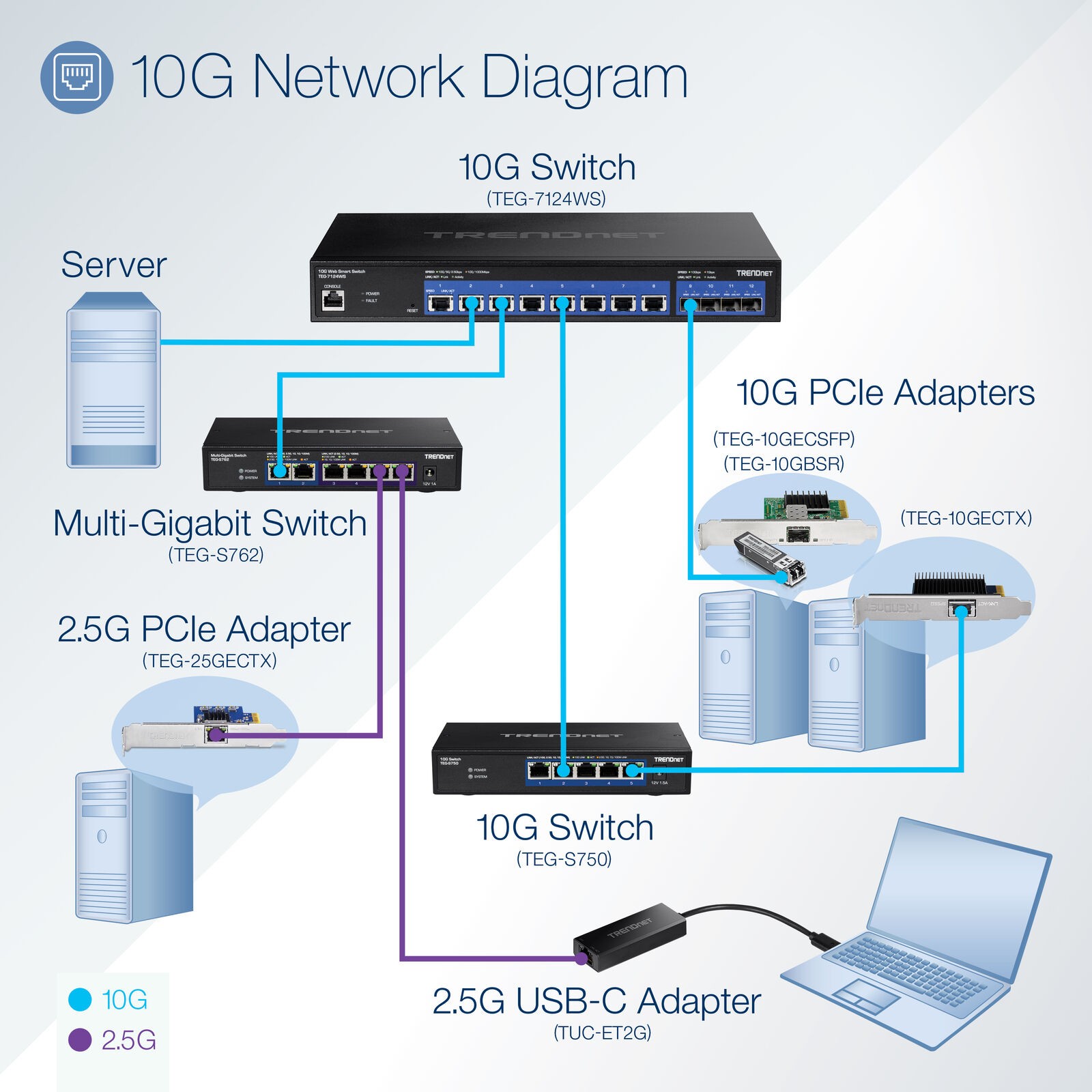

TRENDnet End-to-End Multi-Gigabit Networking Solutions

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3an IEEE 802.3az IEEE 802.3bz
Device Interface	8 x 10G Ports 4 x 10G SFP+ slots LED indicators
Data Transfer Rate	Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5000Mbps (full duplex) 10G Ethernet: 20Gbps (full duplex) SFP: 2000Mbps (full duplex) SFP+: 20Gbps (full duplex)
Performance	Switch fabric: 240Gbps RAM buffer: 16MB MAC Address Table: 32K entries Jumbo Frames: 10KB HOL Blocking Prevention Forwarding rate: 178.56Mpps (64-byte packet size)
Management	CLI (Telnet / SSHv2) for basic administration HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration Dual image and configuration
MIB	RMON MIB RFC 1271 LLDP MIB IEEE 802.1ab RFC 1213 MIB II RFC 1643 Ethernet intf MIB RFC 1493 bridge MIB
Spanning Tree	IEEE 802.1d STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) MLD Snooping v1, v2 IGMP fast leave Up to 256 multicast entries
Port Mirror	RX, TX, or Both Many to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial-In User Authentication DHCP Snooping Loopback Detection Trusted Host Denial of Service (DoS) IP MAC port binding Block unknown multicast
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p TOS (IPv4 only) IPv4 Address and Mask (IPv4 only) IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features	IPv4 / IPv6 static routing IP interfaces: Up to 6 Routing table entries: Up to 32 (IPv4 / IPv6) ARP table (up to 128 entries) Inter-VLAN routing
Power	Input: 100 – 240V AC, 50/60Hz, internal power supply Max. consumption: 152.3W
Fan/Acoustics	Quantity: 1 Smart Fans Noise Level: 39 dBa (max.)
MTBF	53,900 hours
Operating Temperature	-0° – 50° C (32° – 122° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	325 x 230 x 44mm (12.80 x 9.06 x 1.74 in.) Rack mountable 1U height
Weight	1.96kg (4.31 lbs.)
Certifications	CE FCC UL
Warranty	Lifetime Warranty*
