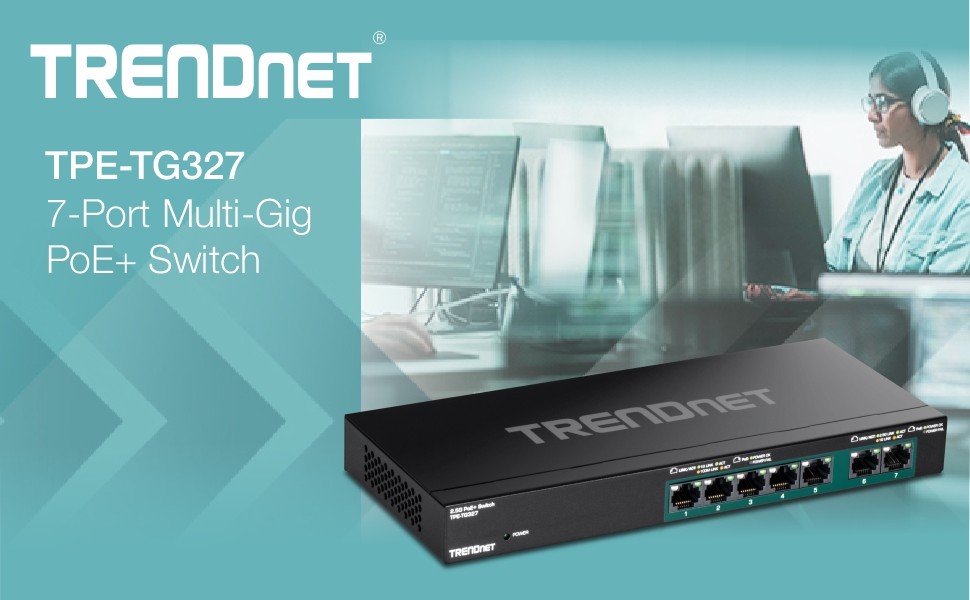

TRENDnet’s 7-Port Multi-Gig PoE+ Switch, model TPE-TG327, is an affordable 2.5G PoE+ switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TPE-TG327 multi-gig switch offers two dedicated 2.5G PoE+ ports and five dedicated 1G PoE+ ports for high-speed network connections with a 20Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the multi-gig PoE+ switch is a cost-effective solution for high-speed network connections. A 70W total PoE power budget on this affordable multi-gig PoE+ switch supplies up to seven PoE+ devices with up to 30W per port.

7-Port Multi-Gig PoE+ Switch

  • 5 x 1G RJ-45 PoE+ ports
  • 2 x 2.5G RJ-45 PoE+ ports
  • 70W PoE power budget
  • Compatible with existing Cat5e or better cabling
  • 2.5G ports are backwards compatible with 100/1000Mbps devices
  • Fanless design for silent operation
  • Easy installation, no configuration required
  • Supports IEEE 802.3af/at
  • IEEE 802.3bz (2.5G) compliant
  • 20Gbps switching capacity
  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warrant


2.5G Ports

Equipped with two 2.5GBASE-T RJ-45 PoE+ ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Fanless


Convenient fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.

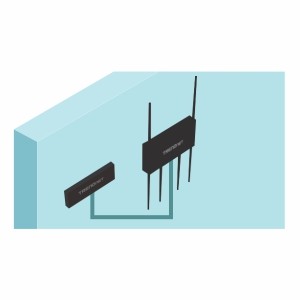

Wall Mountable


Well-suited for desktop installations, but also features a convenient wall-mountable design for greater installation flexibility.

Network Ports

Provides 5 x 1G PoE+ ports and 2 x 2.5G PoE+ ports for high-speed network connections.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 15KB) for increased performance.

LED Indicators

LED indicators conveniently convey port status on this affordable 2.5G PoE+ switch.

Housing Design

Sturdy metal housing on this affordable 2.5G PoE+ switch is also compact and lightweight

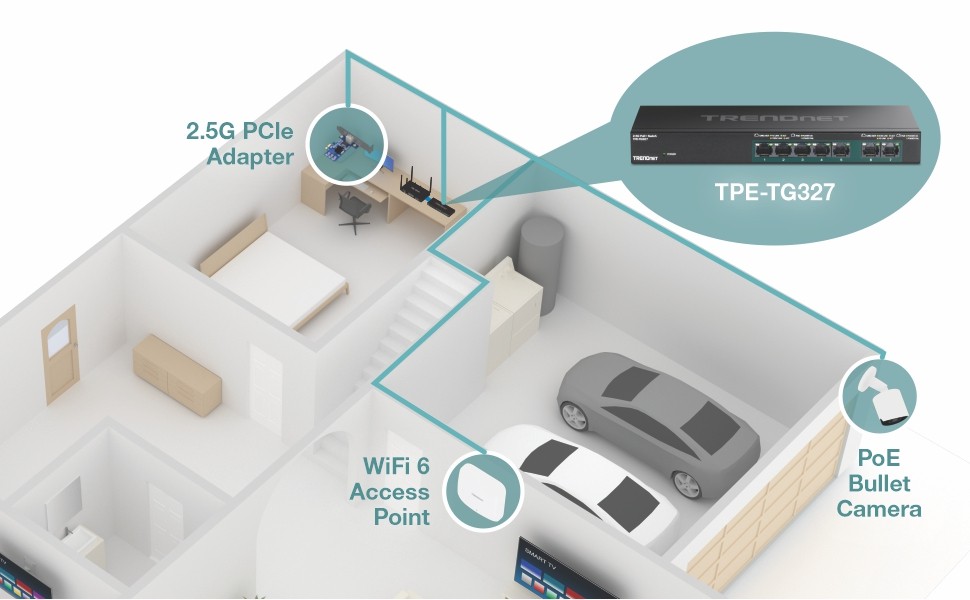

TRENDnet End-to-End Multi-Gigabit Networking Solutions

SPECIFICATIONS

Standards
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bz
Device Interface
  • 5 x Gigabit PoE+ ports
  • 2 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Data RAM Buffer: 384KB
  • Switch Capacity: 20Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 14.88Mpps (64-byte packet size)
  • Jumbo Frame: 15KB
Special Features
  • Wall mountable
  • Fanless
Power
  • Input: 100 – 240V AC, 50/60Hz
  • Output: 55V/1.67A
  • Max. consumption: 8W (no PD)
PoE
  • PoE budget: 70W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
MTBF
  • 830,917 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 286 x 102 x 27mm (11.3 x 4 x 1 in.)
Weight
  • 0.9kg (2 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TPE-TG327
  • Quick Installation Guide
  • Power brick (55V, 1.67A)
  • Power cord (1.8m /6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
