TRENDnet’s Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls
to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive
web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports
TPE-3102WS together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP
monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve
voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds
capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated
10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB
network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G
managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network’s throughput.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Multi-Gig Web Smart Managed
PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users
only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as
high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and
more.

FEATURES

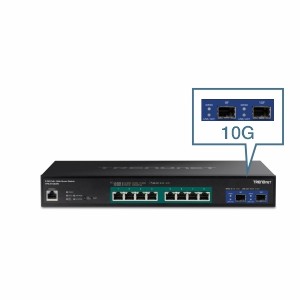

10G SFP+ Slots
Offers two ultra-fast 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability.

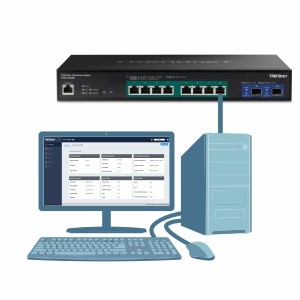

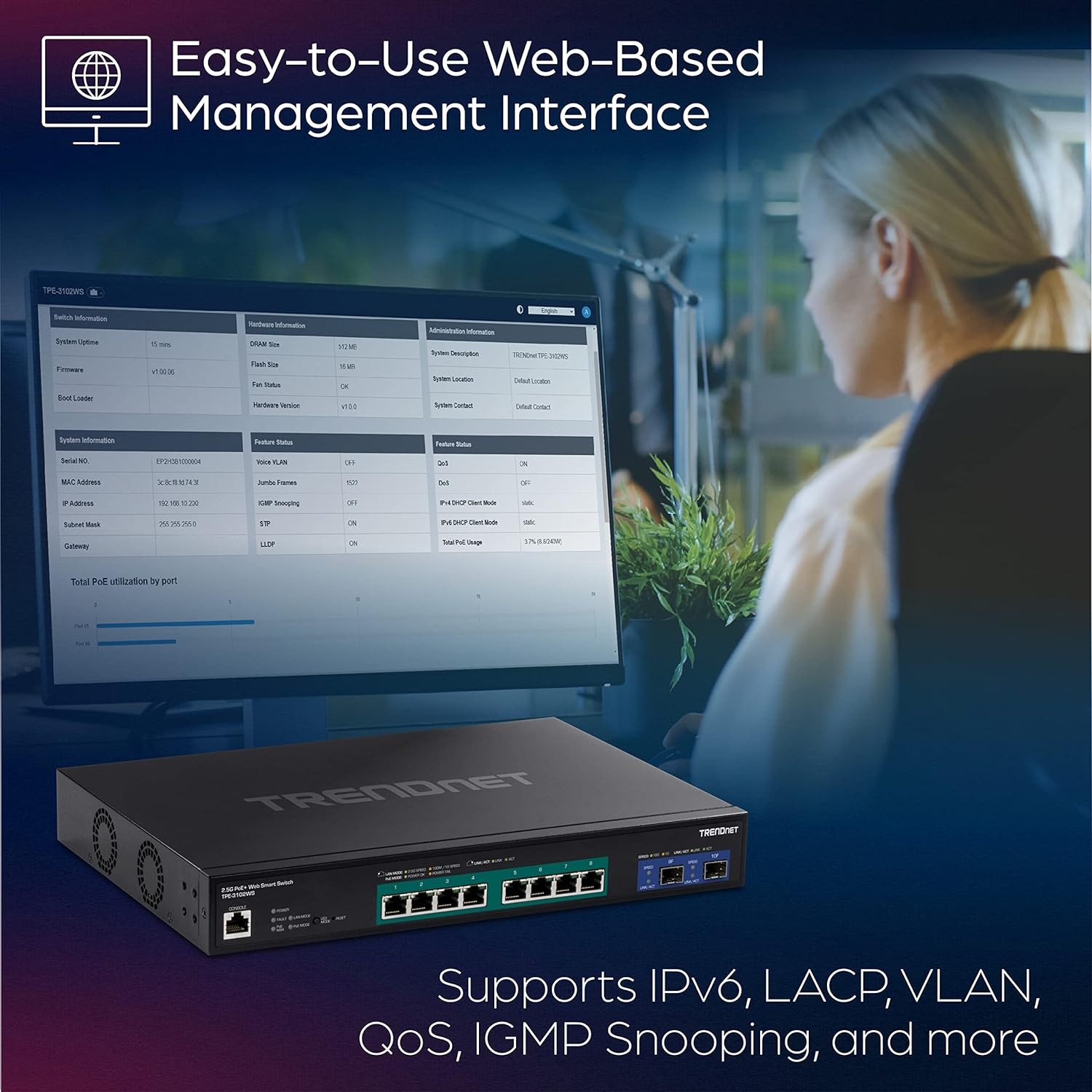

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

2.5G Ports

Equipped with eight high-speed 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

FEATURES

Easy Installation

No configuration needed, simply
connect network devices to the
2.5G managed PoE+ switch

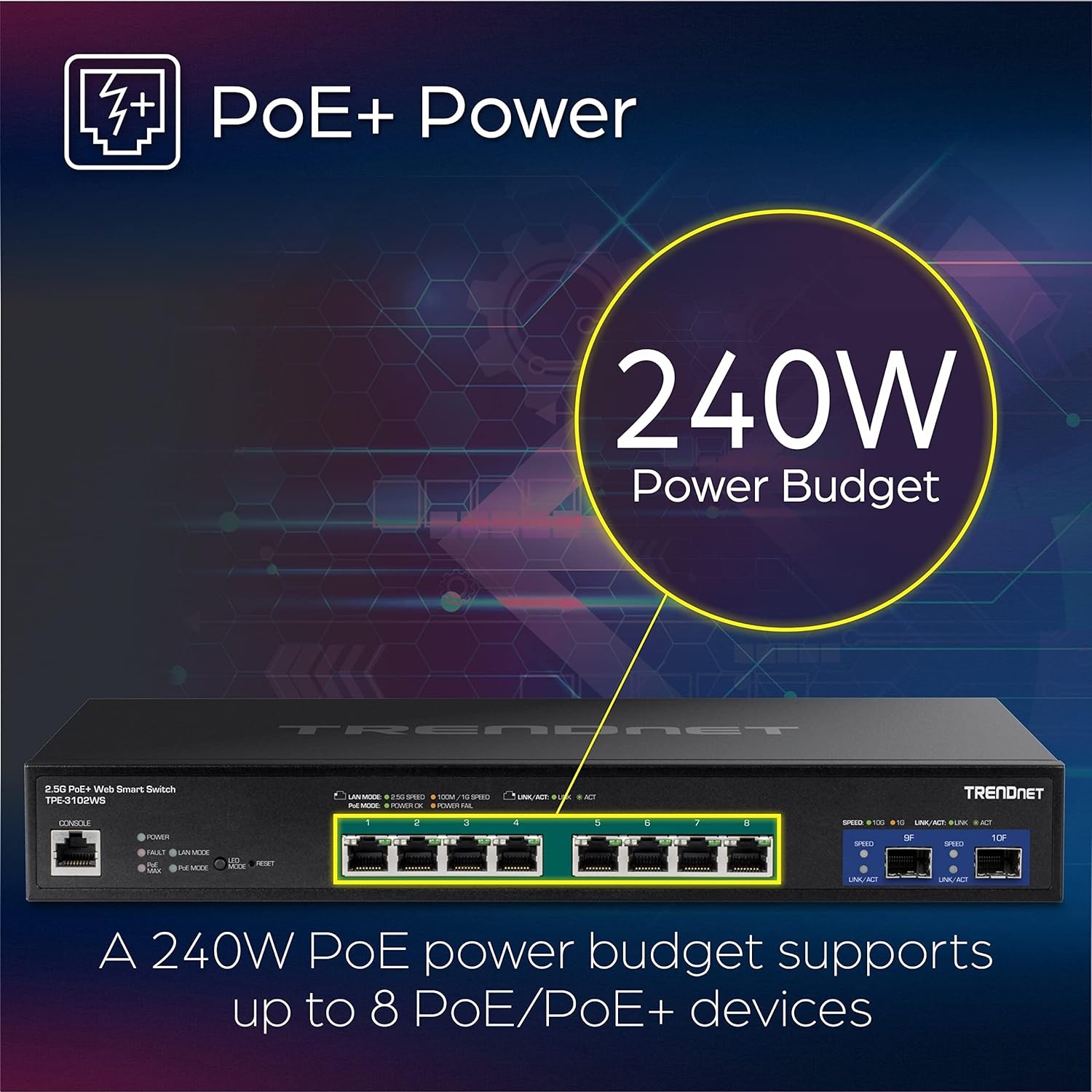

PoE Power

Supplies up to 30W of PoE+ power
per port with a 240W power budget

IPv6 Ready

This 2.5G managed PoE+ switch
supports IPv6 configuration and
IPv6 neighbor discovery

LED Indicators

LED indicators on this 2.5G
managed PoE+ switch convey port
status

Troubleshooting

The 2.5G managed PoE+ switch’s
convenient cable diagnostic test
and traffic statistics aid in network
troubleshooting

Access Control

Features such as ACL, SSL, MAC/
port filtering, 802.1X, TACACS+,
and RADIUS are compatible with
layered access controls

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 10KB) for increased
performance

Monitoring

RMON, SNMP, SNMP Trap, and
Port Mirroring support administrator
monitoring solutions

Traffic Management
A broad range of network
configurations are supported by:
802.3ad link aggregation,
Asymmetric VLAN, 802.1Q VLAN,
Voice VLAN, RSTP, MSTP,
Loopback Detection, GVRP, 802.1p
Class of Service (CoS), port
bandwidth management, and QoS
queue scheduling

Integration Flexibility
Managed features on the 2.5G
managed PoE+ switch include
access control lists, VLAN, IGMP
snooping, QoS, RMON, SNMP trap,
and syslog for monitoring and
flexible network integration

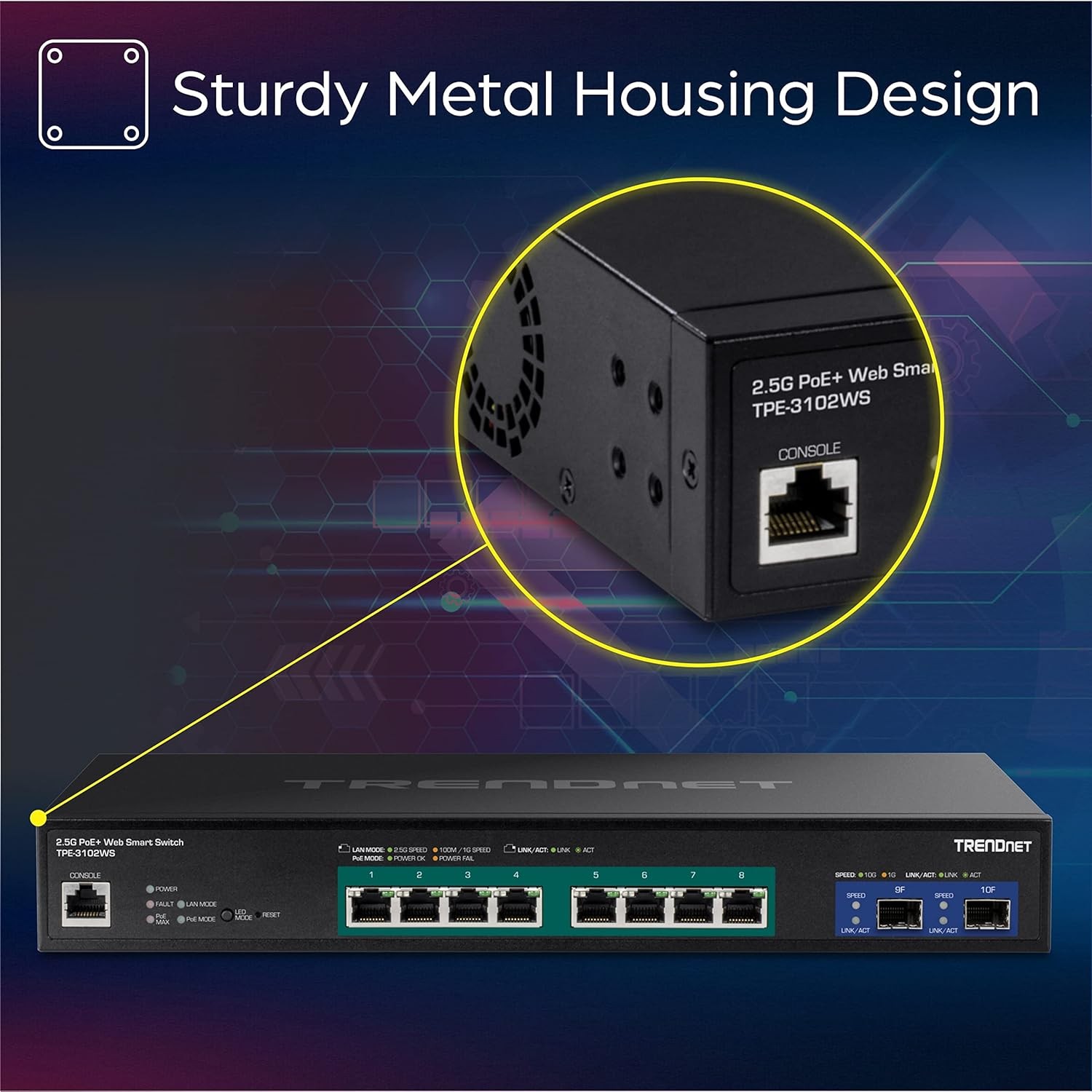

Housing Design
Sturdy metal housing

Cursus Sapien Ut

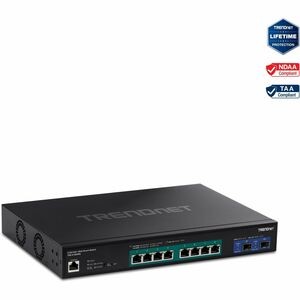

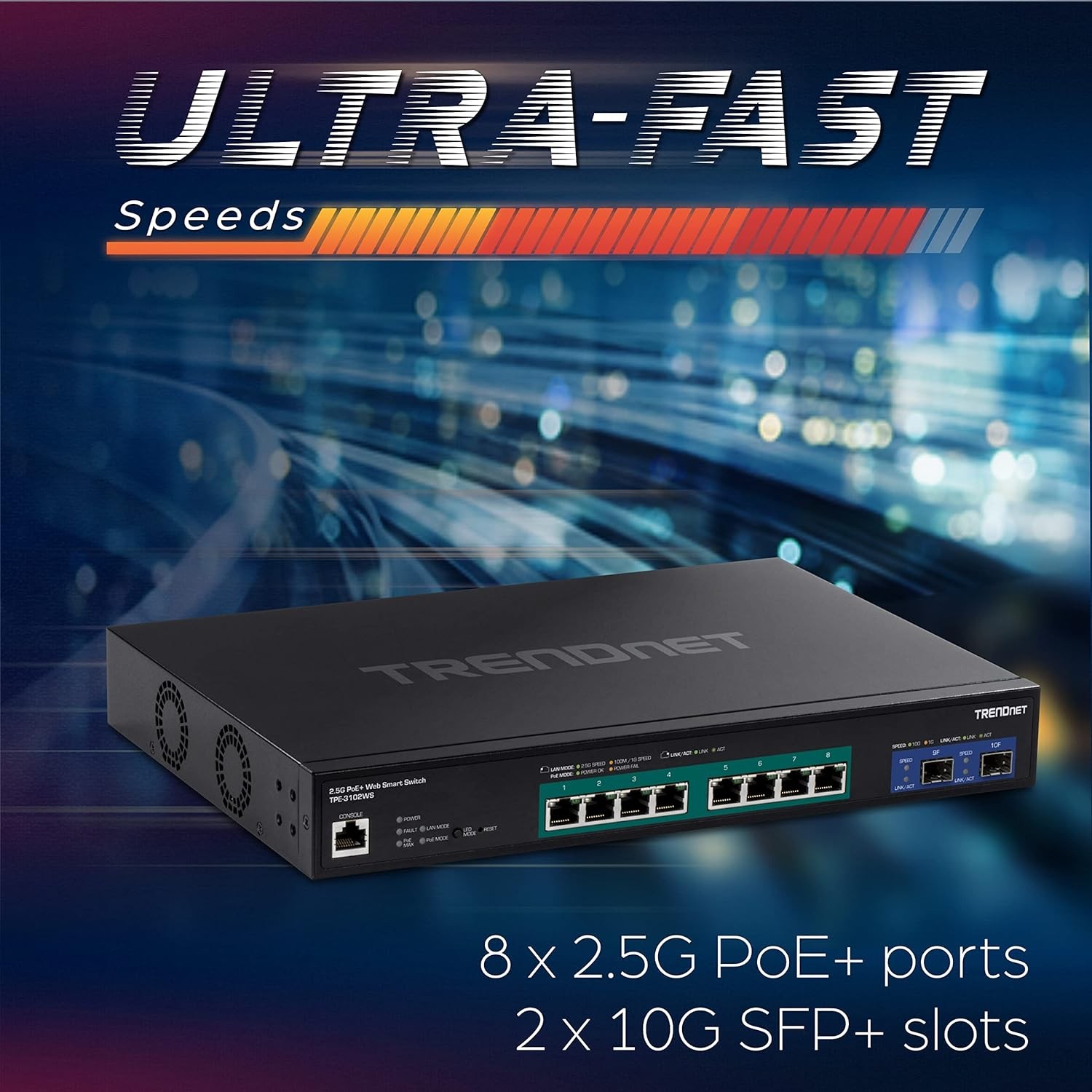

TRENDnet 10-Port Multi-Gig Web Smart PoE+ Switch -TPE-3102WS

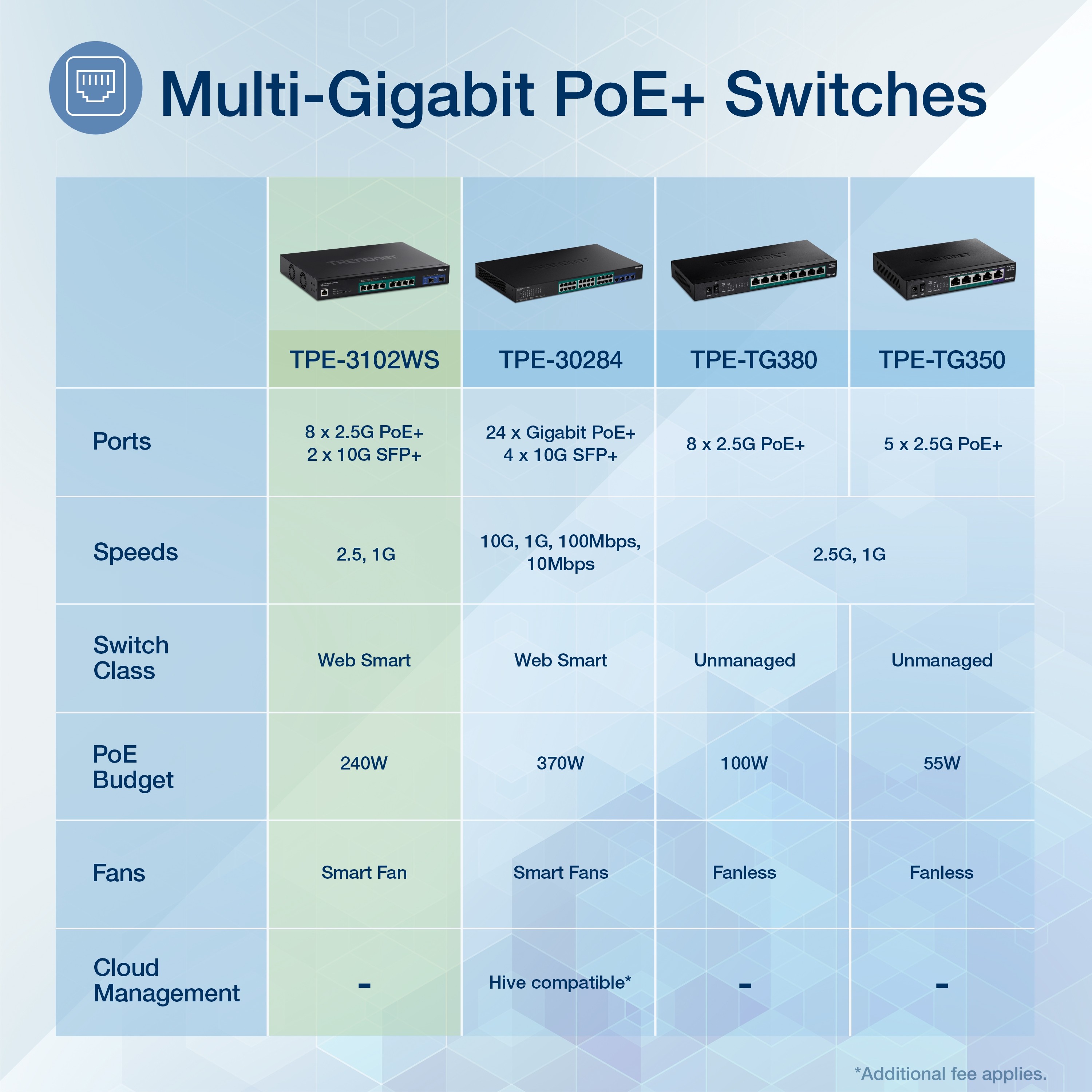

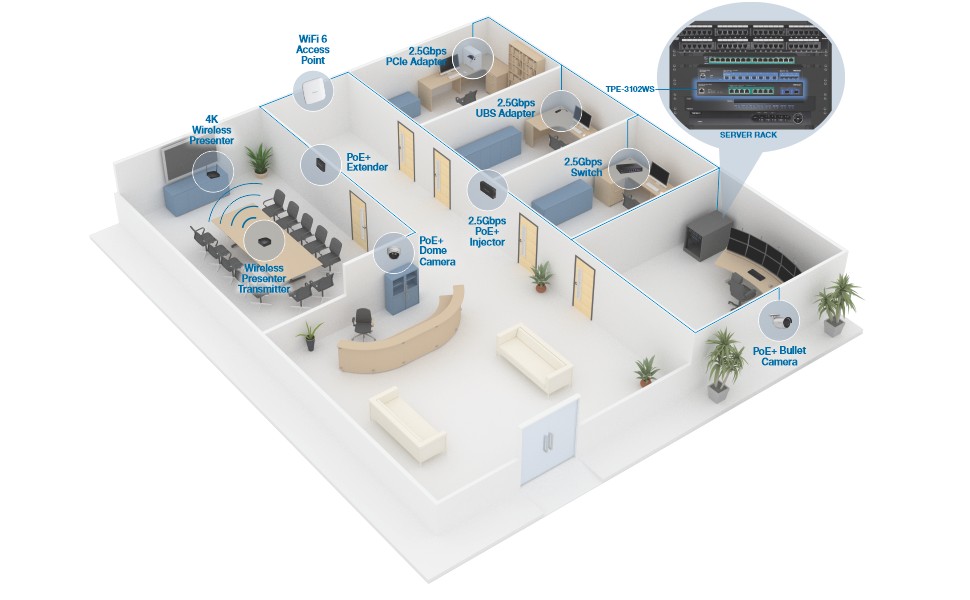

TRENDnet End-to-End Multi-Gigabit Networking Solutions

10-Port Multi-Gig Web Smart PoE+ Switch

8 x 2.5GBASE-T PoE+ ports
2 x 10G SFP+ slots
240W PoE power budget
Backwards compatible with 100/1000BASE-T devices
Easy-to-use web-based management interface
PoE alive check automatically attempts to recover an unresponsive PoE device connected
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private, Multicast, and Voice VLAN support
1U 19” rack mountable
80Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
IEEE 802.3ae (SFP+) compliant
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3bz

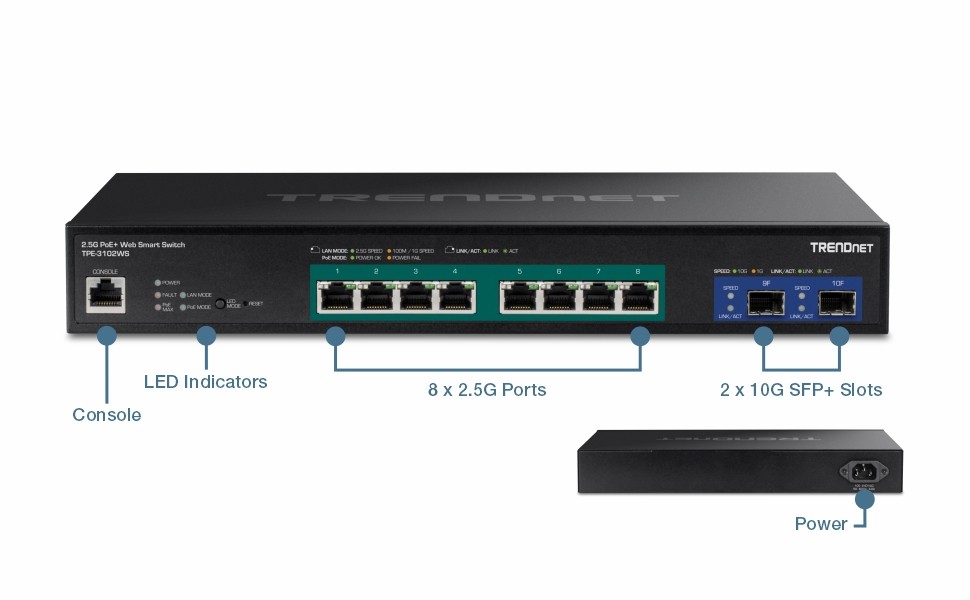

Device Interface	8 x 2.5G Ports 2 x 10G SFP+ slots LED indicators
Data Transfer Rate	Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5000Mbps (full duplex) SFP: 2000Mbps (full duplex) SFP+: 20Gbps (full duplex)
Performance	Switch fabric: 80Gbps RAM buffer: 1.5MB MAC Address Table: 16K entries Jumbo Frames: 10KB HOL Blocking Prevention Forwarding rate: 59.52Mpps (64-byte packet size)
Management	CLI (Telnet / SSHv2) for basic administration HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration Dual image and configuration
MIB	RMON MIB RFC 1271 LLDP MIB IEEE 802.1ab RFC 1213 MIB II RFC 1643 Ethernet intf MIB RFC 1493 bridge MIB
Spanning Tree	IEEE 802.1d STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 MLD Snooping v1, v2 IGMP fast leave Up to 256 multicast entries
Port Mirror	RX, TX, or Both Many to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial-In User Authentication DHCP Snooping Loopback Detection Trusted Host Denial of Service (DoS) IP MAC port binding Block unknown multicast
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p TOS (IPv4 only) IPv4 Address and Mask (IPv4 only) IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features	IPv4 / IPv6 static routing IP interfaces: Up to 6 Routing table entries: Up to 32 (IPv4 / IPv6) ARP table (up to 128 entries) Inter-VLAN routing
Power	Input: 100 – 240V AC, 50/60Hz, internal power supply Max. consumption: 60W (No PD connected)
PoE	PoE budget: 240W 802.3at: Up to 30W per port PoE Mode A: Pins 1, 2 for power and pins 3.6 for power PD auto classification Over current/short circuit protection
Fan/Acoustics	Quantity: 1 Smart Fans Noise Level: 48.5 dBa (max.)
MTBF	342,321 hours
Operating Temperature	-0° – 40° C (32° – 104° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	300 x 230 x 44mm (13 x 9.06 x 1.73 in.)
Weight	2.265kg (1.46 lbs.)
Certifications	CE FCC UL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-3102WS
Quick Installation Guide
Power Cord (1.5m / 5 ft.)
Rackmount Brackets
