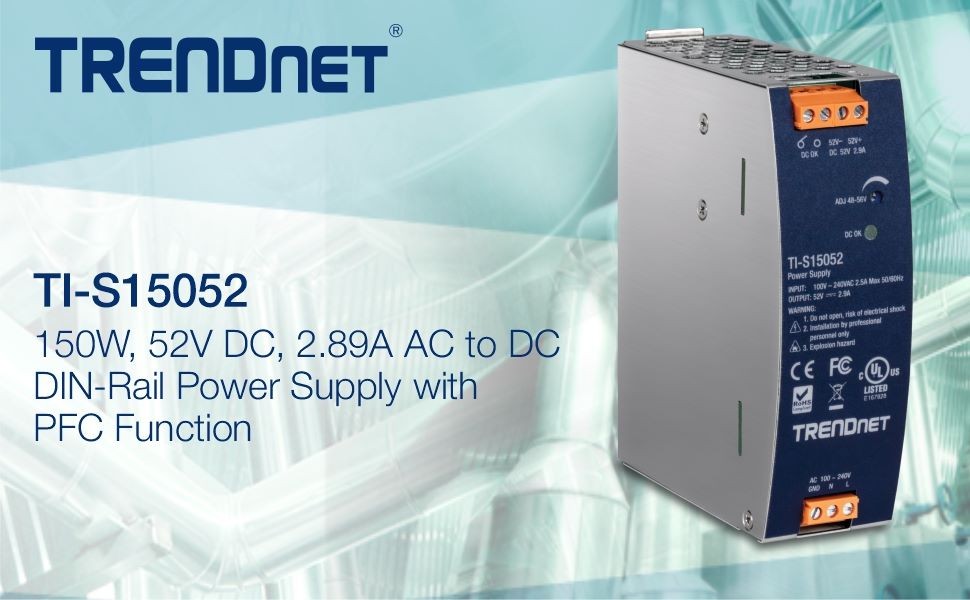

TRENDnet’s AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S15052, supplies up to 150W (52V DC, 2.89A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, overload current protection.

• DEVICE INTERFACE: Input: 90 – 264V AC, 47 – 63Hz, 1.8A 127 – 370V DC; Output: 150W, 48 – 56V, 0 – 2.9A; DIN-rail: TS-35/7.5 or 15

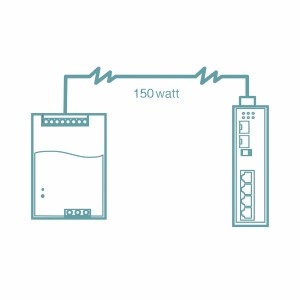

• 150W POWER: The UL508 approved industrial power supply provides up to 150W (52V DC, 2.89A) of power for PoE devices, such as switches, injectors, and access points.
• INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
• EXTREME ENVIRONMENT READY: Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F)
• ACTIVE PFC: Built-in active Power Factor Controller (PFC, PF > 0.96) helps eliminate unusable reactive power
• PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
• PASSIVE COOLING: The industrial power supply cools itself by natural air convection
• DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
• • 100% Peak Load Capability
• • UL 508 approved

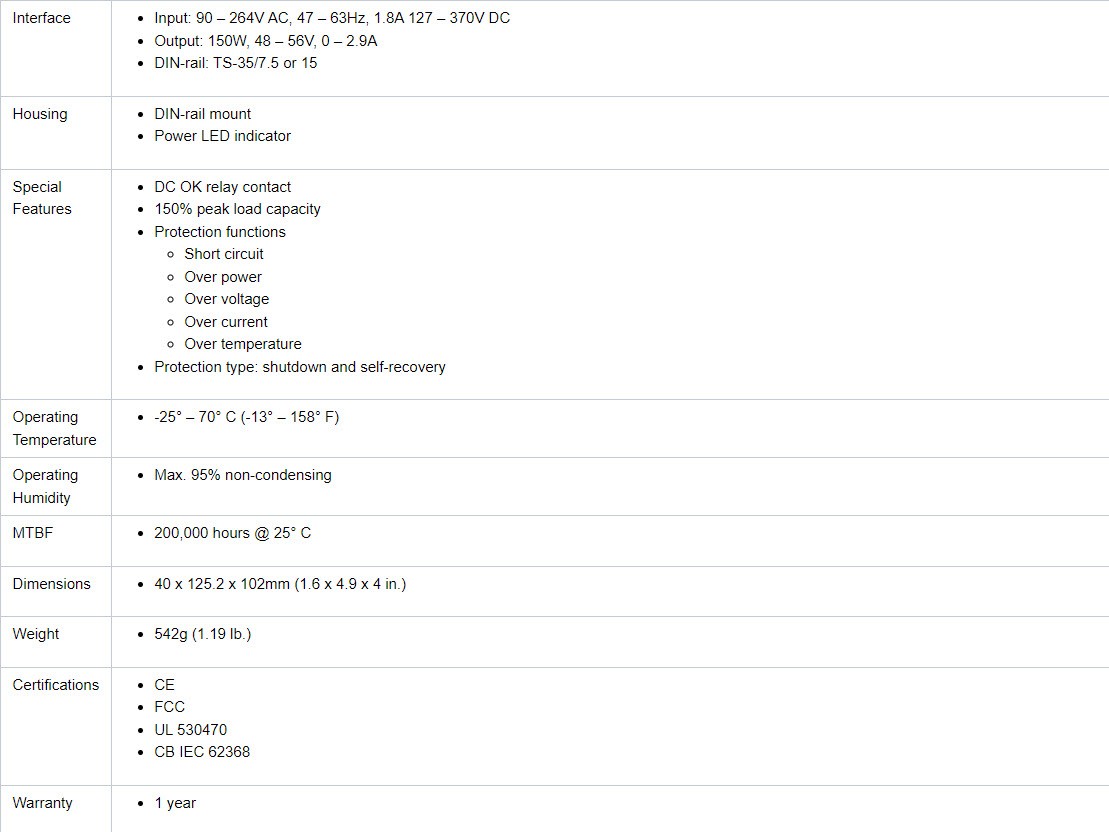

SPECIFICATIONS
