OVERVIEW

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Unmanaged Gigabit PoE+ Switches. These gigabit PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both power and data.

The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. Easily connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet’s gigabit PoE+ switches.

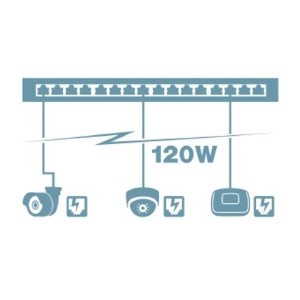

PoE+

Features a 120W total PoE power budget, and supplies 16 Power over Ethernet devices with up to 30W per port.

Gigabit Ports

With high-speed gigabit ports and a full switching capacity, these switches are well-suited for the most demanding network applications.

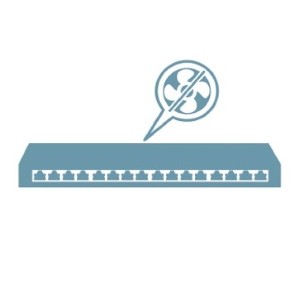

Fanless

Fanless PoE+ switch design lowers unnecessary energy consumption and eliminates disruptive operating noise.

Cost Effective PoE Switches

TRENDnet offers a wide variety of PoE switches including PoE, PoE+ and 802.3bt supported switches. TRENDnet also offers a variety of specialty PoE switches including long range PoE switches that reach up to 200m away, smart surveillance switches, and industrial switches.

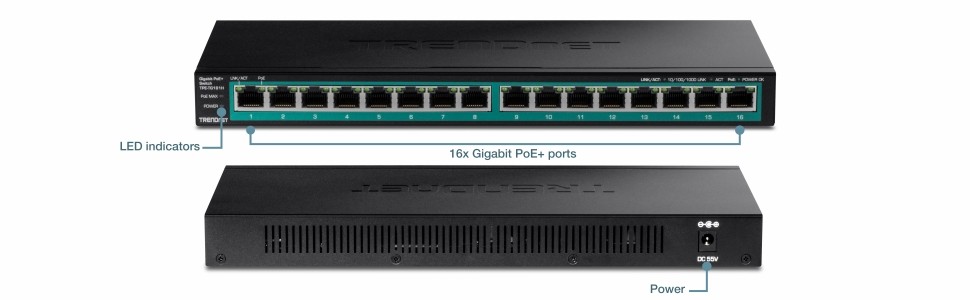

• DEVICE INTERFACE: 16 x Gigabit PoE+ Ports; LED Indicators
• POE+ POWER & SWITCHING CAPACITY: The Gigabit PoE+ switch is equipped with 32Gbps switching capacity, and a 120W
PoE power budget that supplies 16 Power over Ethernet devices with 30W per port PoE+ power.
• GIGABIT PORTS: Equipped with high-speed gigabit ports and a full switching capacity, this fanless PoE+ switch is well-suited
for the most demanding networking applications
• FANLESS DESIGN: The fanless PoE+ switch design lowers unnecessary energy consumption and eliminates disruptive
operating noise
• HOUSING DESIGN: With a sturdy metal housing and included rackmount brackets, this 16 Port PoE+ switch is well-suited for
wall mount or 19” 1U rack installations.
• TRENDnet LIFETIME PROTECTION: The TPE-TG161H Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer Protection.
•NDAA / TAA compliant (U.S. and Canada only)

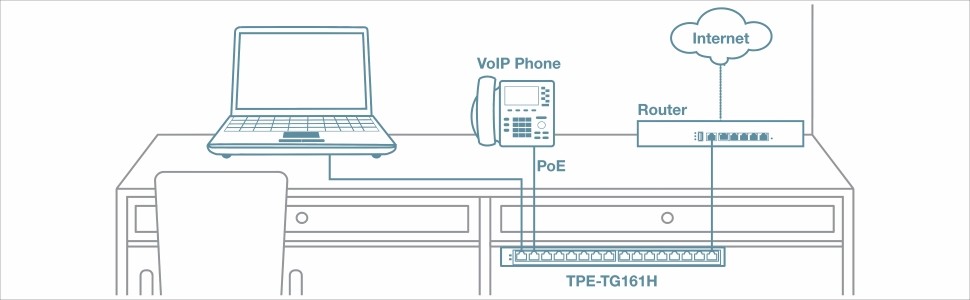

Easy Installation

No configuration needed, simply connect PoE+ network devices to the PoE+ switch

PoE+

Supplies up to 30W of power per port with data over a single Ethernet cable to PoE and PoE+ devices

Gigabit Ports

Equipped with 16 high-speed gigabit PoE+ ports and a full switching capacity, these switches are well-suited for the most demanding networking applications

Fanless

Fanless PoE+ switch design lowers energy consumption and eliminates distracting operating noise

Housing Design

With a sturdy metal housing and included rackmount brackets, this PoE+ switch is designed for wall-mount or 19” 1U rack installations

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

LED Indicators

LED indicators convey port status

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	16 x Gigabit PoE+ ports LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 512KB Switch Fabric: 32Gbps MAC Address Table: 8K entries Forwarding rate: 23.8Mpps (64-byte packet size) Jumbo Frame: 10KB
Power	Input: 100 – 240V AC, 50/60Hz, DC 54V/2.78A Max. consumption: 12.8W (no PD)
PoE	PoE budget: 120W PoE Mode A: Pins 1, 2, 3, and 6 for power Over current protection Short circuit protection
MTBF	443,948 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	287 x 128 x 27mm (11.3 x 5.04 x 1.06 in.)
Weight	908g (32 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty

PACKAGE CONTENTS

TPE-TG161H
Quick Installation Guide
Rack Mount Kit
Power brick (55V, 2.55A)
Power cord (1.5m / 4.9 ft.)
