OVERVIEW

TRENDnet’s 5-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° – 65°C (-4° – 149°F), model TI-PGM541, has four gigabit PoE+ ports with a 120W PoE power budget, plus one gigabit SFP slot for long distance fiber applications. Users are able to connect four PoE+ devices to the switch, while still providing one gigabit SFP slot for an additional network connection. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F) for harsh, industrial environments.

PoE Power

A 120W PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power

Fault Tolerance

Features redundant power inputs with overload current protection and output alarm relay.

Industrial Hardened Design

Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F).

Full PoE+ Power Budget

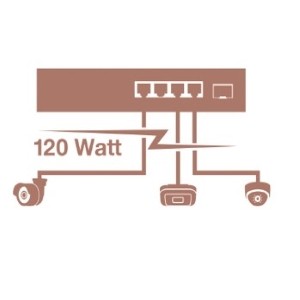

Supplies up to 30W of PoE/PoE+ power per port with a 120W PoE power budget

Network Ports

4 x Gigabit PoE+ ports and 1 x Gigabit SFP slot

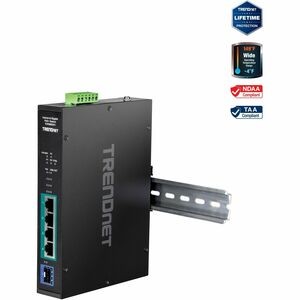

DIN-Rail/Wall Mounts

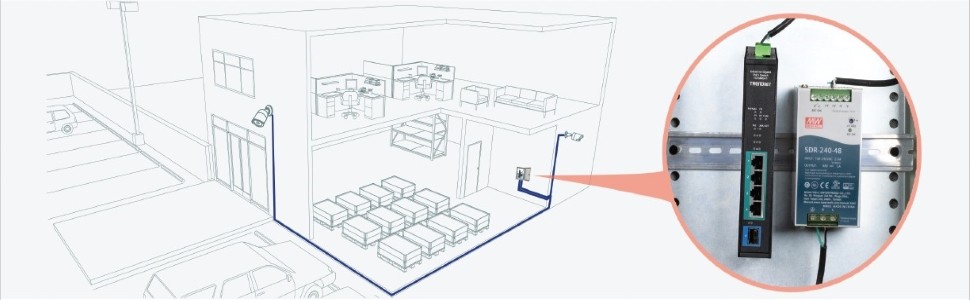

IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware

Switching Capacity

10Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately, models: TI-S15052, TI-S24052, TI-S12048)

Alarm Relay

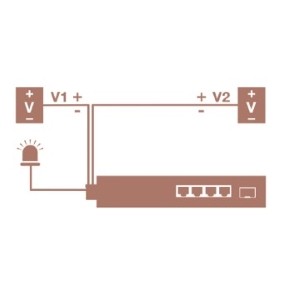

Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wide Operating Temperature

Rated for an operating temperature range of -20° – 65°C (-4° – 149°F)

Grounding Point

Grounding point protects equipment from external electrical surges

5-port Industrial Gigabit PoE+ DIN-Rail Switch -20° – 65°C (-4° – 149°F)

4 x Gigabit PoE+ ports
1 x Gigabit SFP slot
120W PoE power budget
10Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail and wall mounts
Operating temperature range of -20° – 65°C (-4° – 149°F)
Redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048)
NDAA / TAA compliant
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at

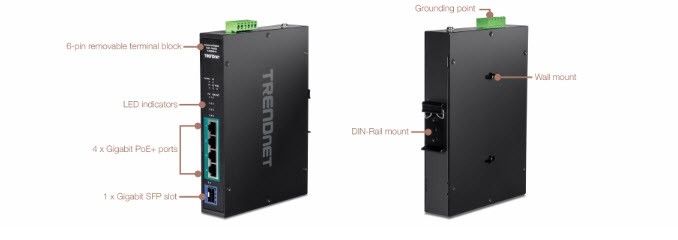

Device Interface	4 x Gigabit PoE+ ports 1 x Gigabit SFP slot 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) SFP: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 8KB Switching Fabric: 10Gbps MAC Address Table: 2K entries Jumbo Frame: 9KB Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Dual redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging
DC Power	Input: 48 – 55 V DC Compatible power supply: TI-S15052, TI-S24052, TI-S12048, TI-S24048 (sold separately) Max. consumption: 5W (no PoE)
PoE	PoE budget: 120W @56V DC
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 28-14 Stranded wire (AWG): 28-14 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
MTBF	1,000,000 hours @ 25°C
Housing	IP30 metal case DIN-Rail mount Wall mount Grounding point
Operating Temperature	-20° – 65° C (-4° – 149° F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	180 x 130 x 28mm (7 x 5.1 x 1.1 in.)
Weight	668g (1.47 lb.)
Certifications	CE FCC LVD IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty

PACKAGE CONTENTS

TI-PGM541
Quick Installation Guide
Removable terminal block
