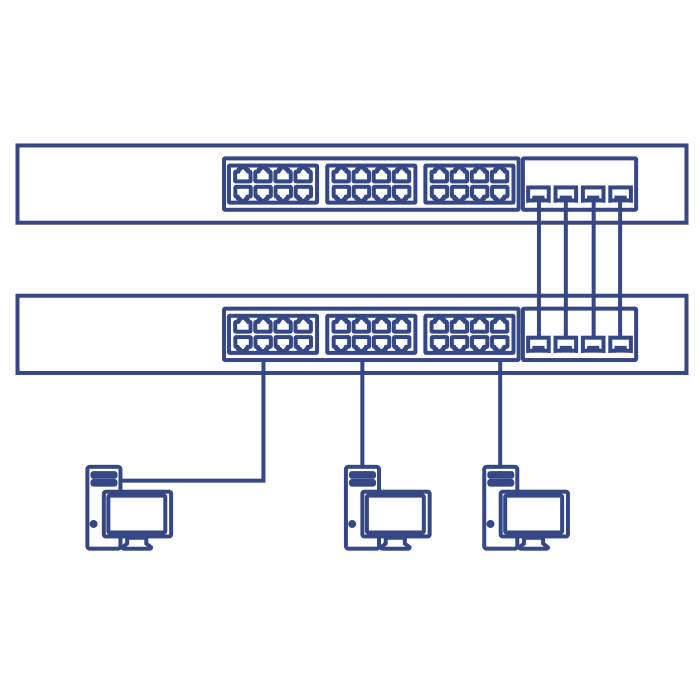

Fiber Applications


Long distance fiber networking for manufacturing, business parks, and school campus applications.

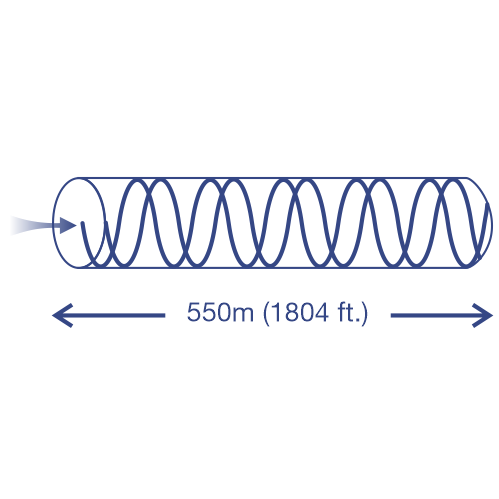

Fiber Mode/Distance


Multi-Mode transceiver spans distances up to 550m (1804 ft.) at gigabit speeds.

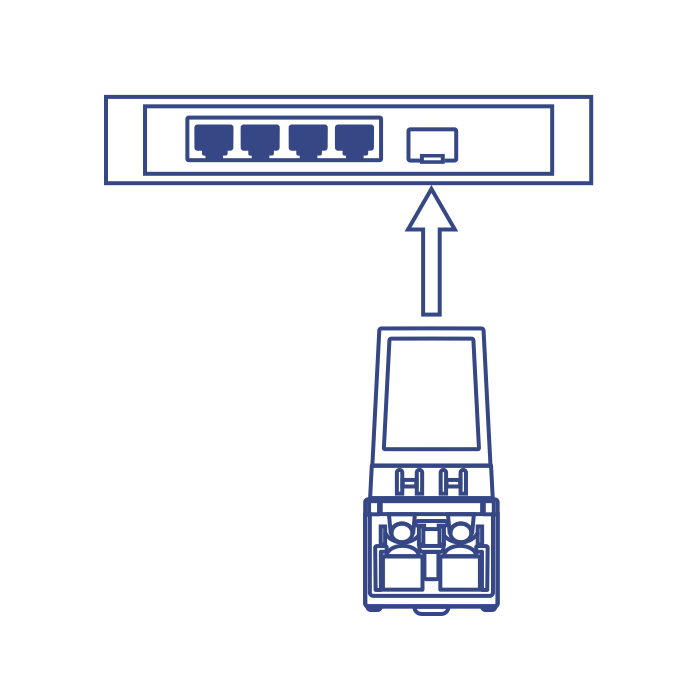

Compatibility


Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors.

The TEG-MGBSX Mini-GBIC Multi Mode module works with standard Mini-GBIC slots on most switches. This Multi-Mode LC Type module spans distances up to 550m (1,800ft).

  • Transmission distance of up to 550m (1804 ft.)
  • Supports data rates of up to 1.25Gbps
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Low Electromagnetic Interference (EMI) design
  • Supports 850nm multi-mode network transmissions
  • Duplex LC optical interface
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty


SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z

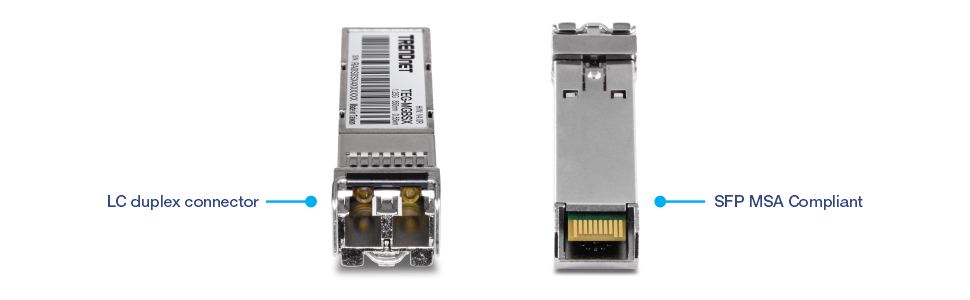

Device Interface
  • SFP MSA Compliant
  • LC duplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • 850nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 550m (1804 ft.)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -20 dBm
Power
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158 °F)
Operating Humidity
  • Max. 85% non-condensing
Dimensions
  • 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 18g (0.6 oz.)
Certifications
  • CE
  • FCC
PACKAGE CONTENTS
  • TEG-MGBSX
  • Quick Installation Guide
