OVERVIEW

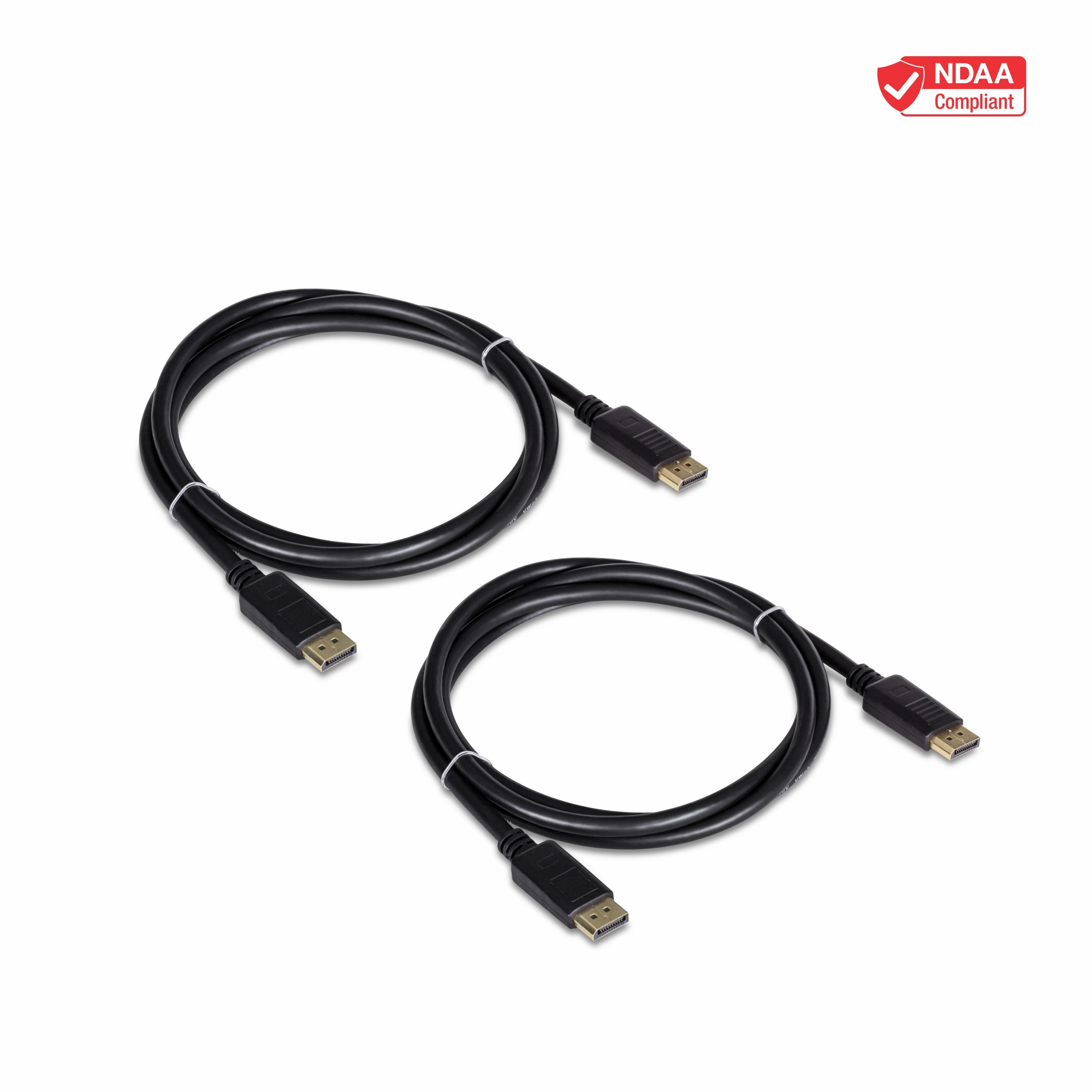

TRENDnet’s 6 ft. DisplayPort 1.2 Cable – 2 Pack, model TK-DP06, is designed to connect a DisplayPort computer to a DisplayPort monitor. The DisplayPort cable 2-pack can also be used with our Dual Monitor DisplayPort KVM Switches, modelsTK-240DP and TK-440DP.


DisplayPort

Designed to connect a DisplayPort computer to a DisplayPort monitor.

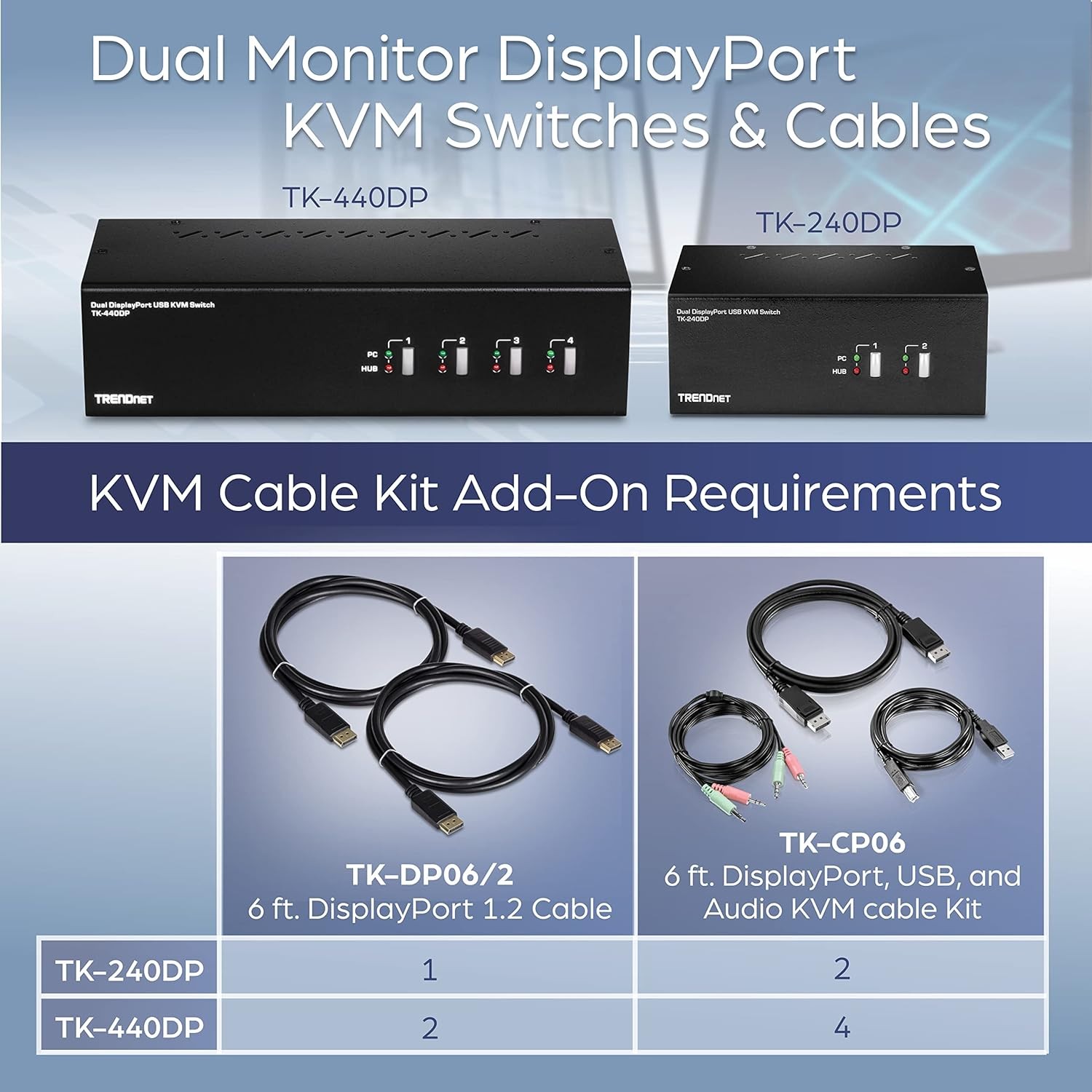

KVM Compatibility

This monitor cable can be used with our TK-240DP and TK-440DP Dual Monitor DisplayPort KVM Switches.


6 ft. DisplayPort 1.2 Cable

  • Includes 2 x DisplayPort™ 1.2 cables
  • Supports up to 2560 x 1440 @ 144Hz
  • Works with DisplayPort Monitors, Video Cards, and KVM switches (including TK-240DP and TK-440DP)
  • NDAA compliant

SPECIFICATIONS

Connectors
  • DisplayPort 1.2 Male to Male 20 pin connector
  • Nickel Plated
Video Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3840 x 2160 @ 60Hz
Maximum Data Rate
  • Up to 21.60 Gbit/s
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Length
  • 1.8m (6 ft.)
Weight
  • 120g (4.23 oz.)
Warranty
  • 2 year
PACKAGE CONTENTS
  • 2 x TK-DP06
