OVERVIEW

TRENDnet’s Unmanaged Gigabit PoE+ Switches provide high-bandwidth performance, ease of use, and reliability. These IEEE 802.3at compliant switches feature a sturdy 1U 19” rack-mountable metal housing with mounting brackets included. These gigabit PoE+ switches also offer SFP slots for long-distance fiber network applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged gigabit PoE+ switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, access controls, and more with these gigabit PoE+ switches.

Gigabit Ports
Gigabit ports provide a full switching capacity
to this gigabit PoE+ switch, with SFP slots for
long-distance fiber applications.

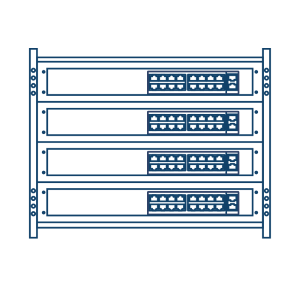

Hardware Design
With a sturdy metal housing and rackmount
brackets included, this gigabit PoE+ switch is
well-suited for 19” 1U rack installations.

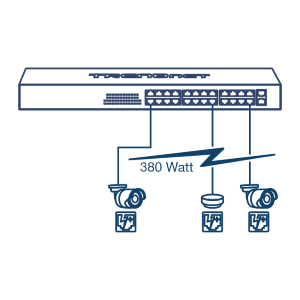

PoE Power
A 380W total PoE power budget on this gigabit
PoE+ switch supplies 24 PoE+ devices with up
to 30W per port.

Hardware Design

With a sturdy metal housing and rackmount brackets included, this PoE+ gigabit switch with SFP slots is well-suited for 19” 1U rack installations

PoE Power

A 380W total PoE power budget supports 24 PoE+ devices with up to 30W per port

Gigabit Ports

Gigabit ports feature a full switching capacity to this gigabit PoE+ switch, with fiber SFP support for long-distance fiber applications

Jumbo Frame

Sends larger packets, or Jumbo Frames, for increased performance

LED Indicators

LED indicators on this PoE+ switch with SFP slots conveniently convey port status

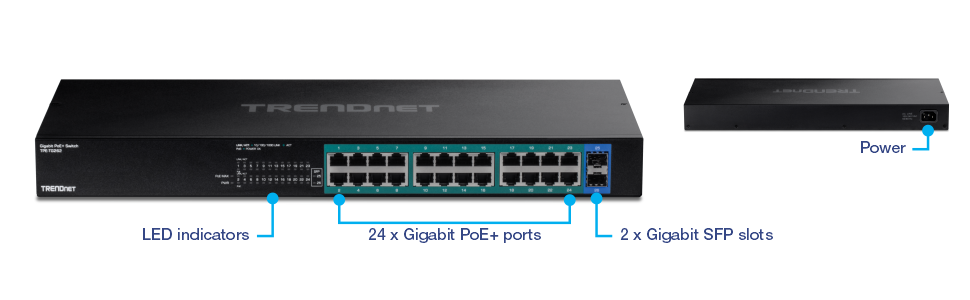

• DEVICE INTERFACE: 24 x Gigabit PoE+ ports (up to 30W); 2 x Gigabit SFP Slots; LED indicators; Internal Power Supply.

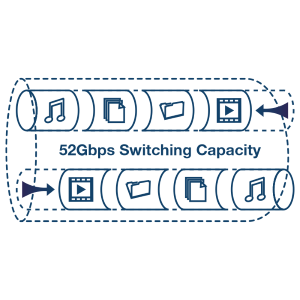

• POE+ POWER BUDGET & SWITCH CAPACITY: 380W total PoE power budget on this Gigabit PoE+ Switch supplies up to
twenty-four power over Ethernet devices with up to 30W per port with a 52Gbps switching capacity.
• GIGABIT PORTS: Gigabit ports provide a full switching capacity to this 24-Port gigabit PoE+ switch, with SFP support for long
distance fiber applications.
• DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200
Mbps (full duplex);Gigabit: 2000 Mbps (full duplex); SFP: 2000Mbps (full duplex).
• HARDWARE DESIGN: Sturdy metal housing and rackmount brackets are included making this network Ethernet switch wellsuited for 19” 1U rack installations.
• TRENDnet LIFETIME PROTECTION: The TPE-TG262 24-Port Gigabit PoE+ Switch is backed by TRENDnet’s Lifetime
Manufacturer Protection.
•NDAA / TAA compliant (U.S. and Canada only)



Cost Effective PoE Switches

TRENDnet offers a wide variety of PoE switches including PoE, PoE+ and 802.3bt supported switches. TRENDnet also offers a variety of specialty PoE switches including long range PoE switches that reach up to 200m away, smart surveillance switches, and industrial switches.

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 24 x Gigabit PoE+ ports
  • 2 x Gigabit SFP slots
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • SFP: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switch Fabric: 52Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 35.7Mpps (64-byte packet size)
  • Jumbo Frame: 10KB
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 40W (no PD)
PoE
  • PoE budget: 380W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
Fan/Acoustics
  • Quantity: 2
  • Max. noise Level: 30dB
MTBF
  • 480,878 hours
Operating Temperature
  • 0° – 40° C (32° - 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 435 x 195 x 44mm (17.12 x 8.3 x 1.67 in.)
Weight
  • 3.04kg (6.7 lbs.)
Certifications
  • CE
  • FCC
  • ETL
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TPE-TG262
  • Quick Installation Guide
  • Rack mount kit
  • Power cord (1.5m/4.9 ft.)
