OVERVIEW

TRENDnet’s 5-Port 10G Switch, model TEG-S750, provides advanced high bandwidth performance, ease of use, and reliability. The TEG-S750 10G switch features five dedicated 10G ports for high-speed network connections with a 100Gbps switching capacity. With a sturdy compact metal housing and fanless design, the 10G switch is a reliable and cost-effective switch solution for high-speed 10 Gigabit network connections. This versatile unmanaged 10G switch also supports 2.5G-BASE-T connections for faster throughput over your existing Cat5e cabling (or better).

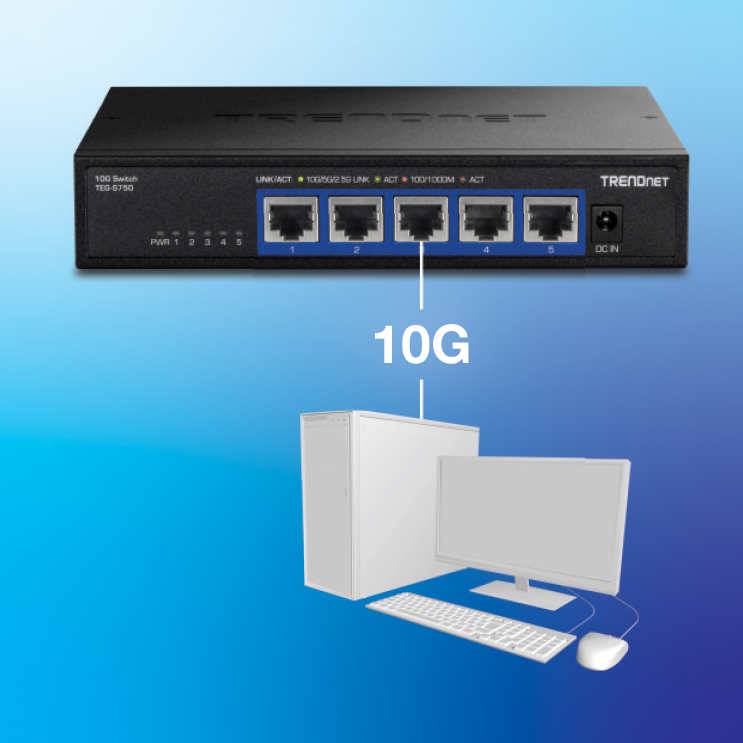

10G Ports
Provides a cost-effective solution in adding
10G link capability with five 10G ports for highspeed connections over Cat6a cabling (or
better).

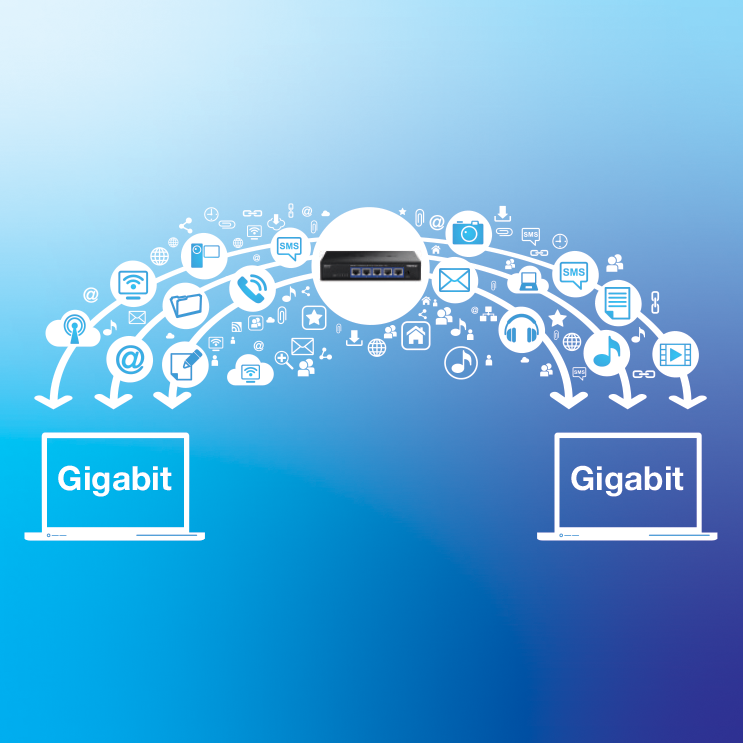

Multi-Gigabit Support
This versatile unmanaged 10G switch also
supports 2.5G/5G-BASE-T connections for
faster speeds over your existing Cat5e cabling
(or better).

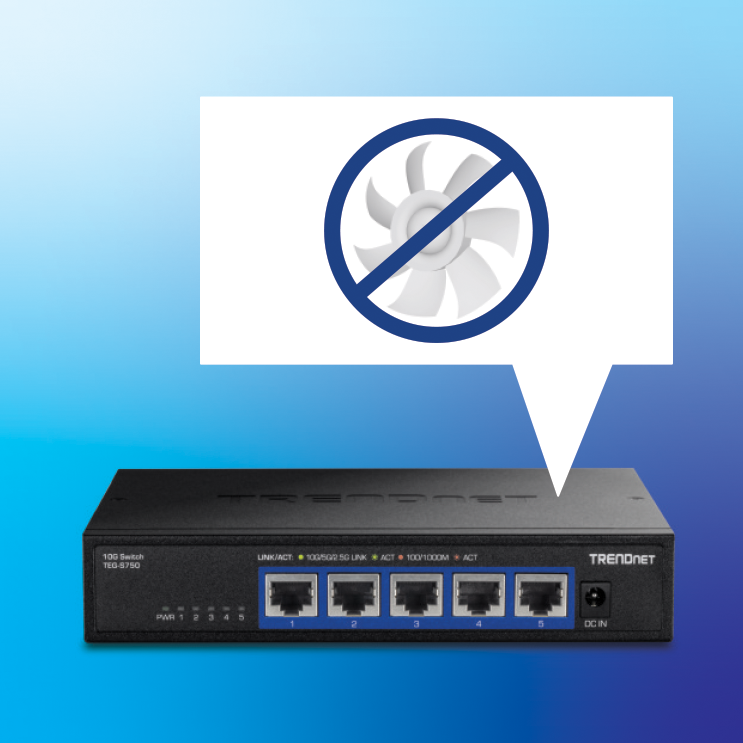

Fanless
Convenient fanless design lowers energy
consumption and costs, and eliminates
distracting noise for silent operation.

10G Ports

Provides a cost-effective solution in adding 10G link capability with five 10G ports for high-speed connections over Cat6a cabling (or better)

Multi-Gigabit Support

This versatile unmanaged 10GbE switch also supports 2.5G/5G-BASE-T connections for faster speeds over your existing Cat5e cabling (or better)

Fanless

Fanless design lowers energy consumption and eliminates noise for silent operation

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

Housing Design

Sturdy metal housing on the 10 gigabit Ethernet switch / 2.5G switch combo is also compact and lightweight

Switching Capacity

The 10GB ethernet switch supports a 100Gbps switching capacity

LED Indicators

LED indicators conveniently convey port status on the 10G switch


TRENDnet 10G Networking Ecosystem

TRENDnet's 10G Switches are cost-effective solutions to upgrade your network's bandwidth and performance using your existing Cat5e or Cat6 cabling. Deliver the highest possible speeds over your existing cables, and save cost and time on wiring and cabling infrastructure.

Meet the growing demands for higher bandwidth, reduce bottlenecks, and futureproof your network infrastructure. These 10G Switches (or 10GbE switches) allow users to improve data rates and manage high density network environments with video feeds, access controls, advanced surveillance, and other bandwidth-heavy network setups.

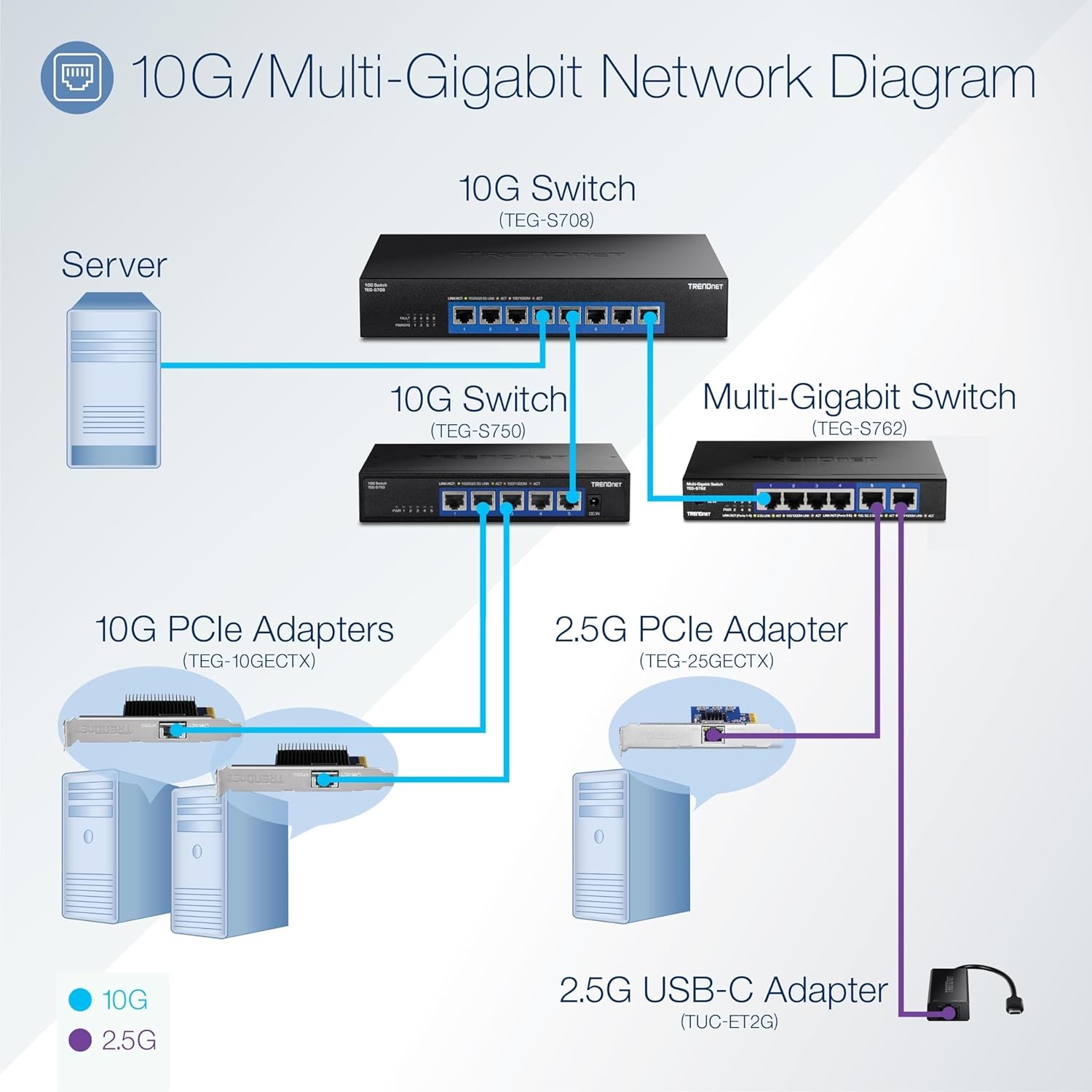

TRENDnet End-to-End Multi-Gigabit Networking Solutions

SPECIFICATIONS

Standards
  • IEEE 802.1x
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 5 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5 Gigabit Ethernet: 5Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switching fabric: 100Gbps
  • RAM buffer: 2MB
  • MAC address table: 16K entries
  • Jumbo frames: 12KB
  • Forwarding mode: store and forward
  • Forwarding rate: 74.4Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 12V, 3A
  • Max. consumption: 22.75W
MTBF
  • 521,600 hours
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° C – 40° C (-4° F – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 180 x 145 x 33mm (7 x 5.7 x 1.3 in.)
Weight
  • 2.2kg (4.85 lbs.)
Certifications
  • CE
  • FCC
  • IC
  • LVD
  • UKCA
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S750
  • Quick Installation Guide
  • Power Adapter (12V, 3A)
  • Wall mount kit
