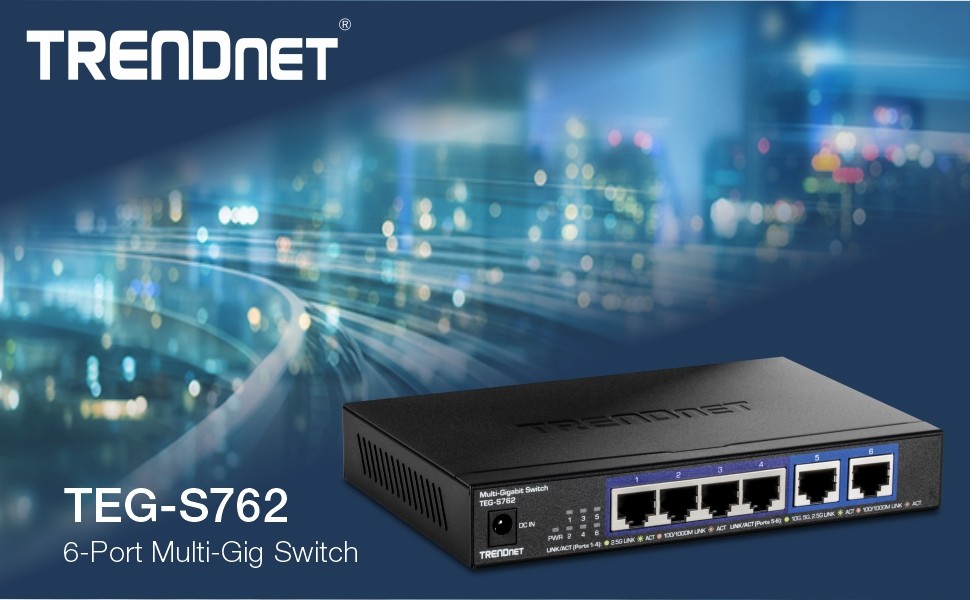

OVERVIEW

TRENDnet’s 6-Port Multi-Gig Switch, model TEG-S762, is a multi-gig switch that provides advanced, high-bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. It features a sturdy compact metal housing and fanless design. This multi-gig switch is a cost-effective switch solution for high-speed 10 gigabit network connections.

10G Ports


Offers two 10G ports for high-speed network connections providing a cost-effective solution in adding 10G link capability.

2.5G Ports

Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

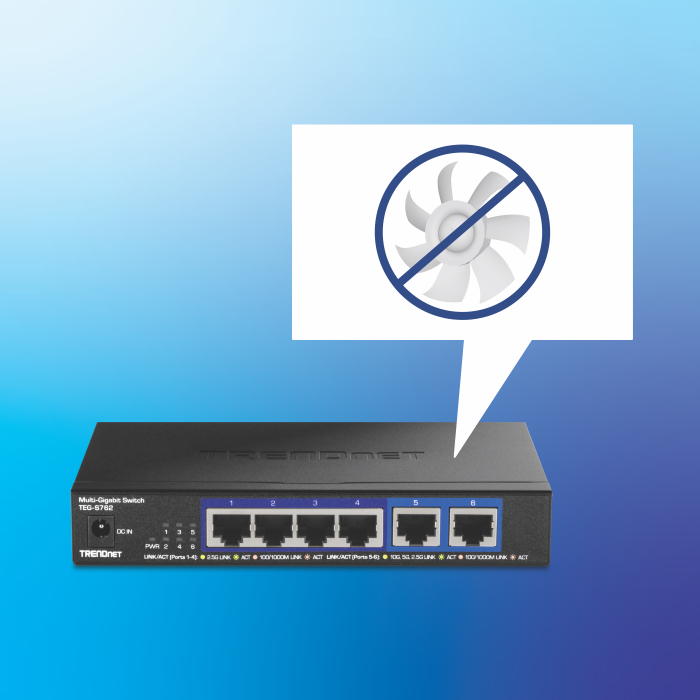

Fanless


Convenient fanless design lowers unnecessary energy consumption and costs, and eliminates distracting operating noise.

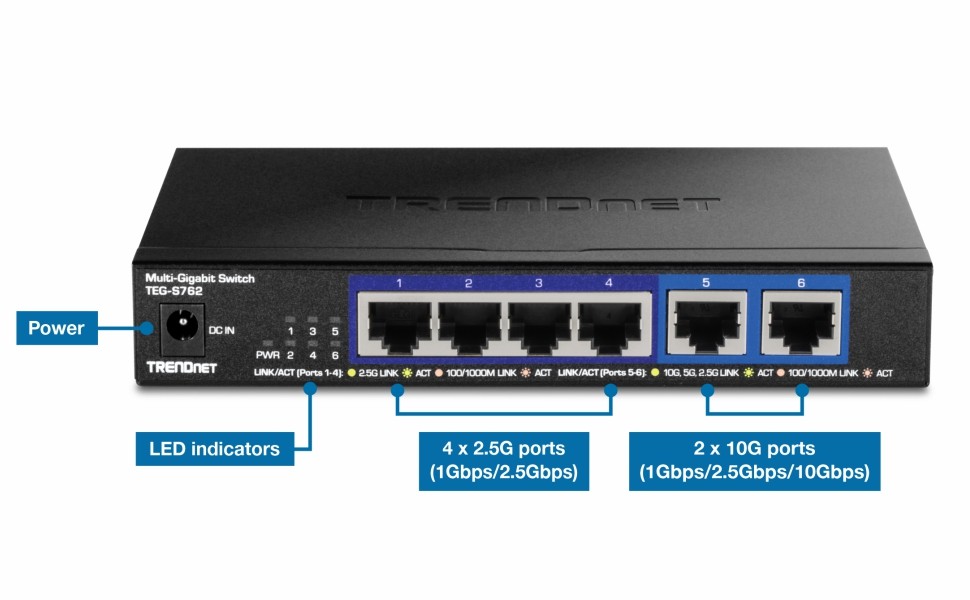

Network Ports

Provides 4 x 2.5Gports and 2 x 10G ports for high-speed network connections

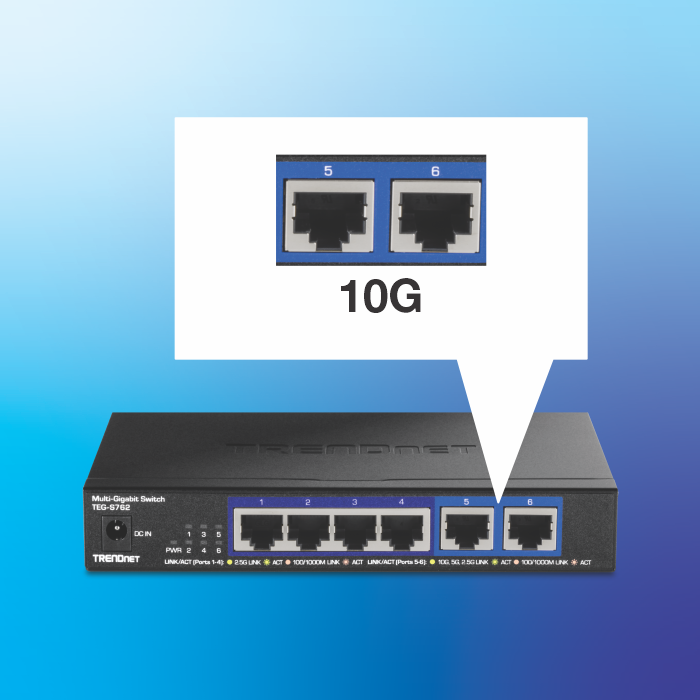

10G Ports

Provides a cost-effective solution in adding 10G link capability with two 10G ports for high-speed connections over Cat6A or better cabling

2.5G Ports

Connect 2.5GBASE-T supported devices at 2.5Gbps for increased throughput over existing Cat5e or better cabling

Fanless

Fanless design on this multi-gig switch lowers energy consumption and eliminates operating noise

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

Housing Design

Sturdy metal housing on the 10 gigabit Ethernet switch / 2.5G switch combo is also compact and lightweight

Wall Mountable

Well-suited for desktop installations, but also features convenient wall mountable design for greater installation flexibility

LED Indicators

LED indicators conveniently convey port status on the multi-gig switch

TRENDnet 10G Networking Ecosystem

TRENDnet's 10G Switches are cost-effective solutions to upgrade your network's bandwidth and performance using your existing Cat5e or Cat6 cabling. Deliver the highest possible speeds over your existing cables, and save cost and time on wiring and cabling infrastructure.

Meet the growing demands for higher bandwidth, reduce bottlenecks, and futureproof your network infrastructure. These 10G Switches (or 10GbE switches) allow users to improve data rates and manage high density network environments with video feeds, access controls, advanced surveillance, and other bandwidth-heavy network setups.

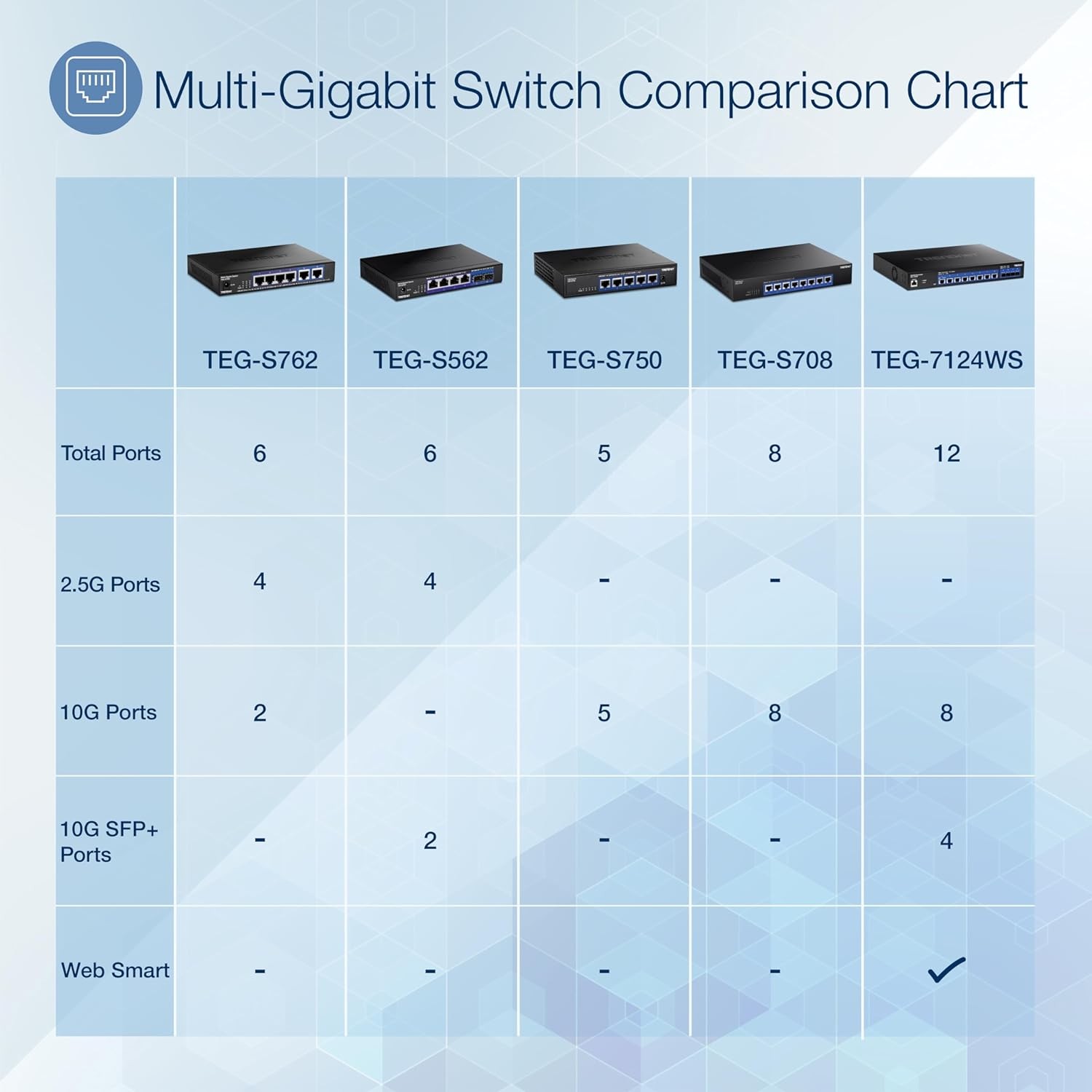

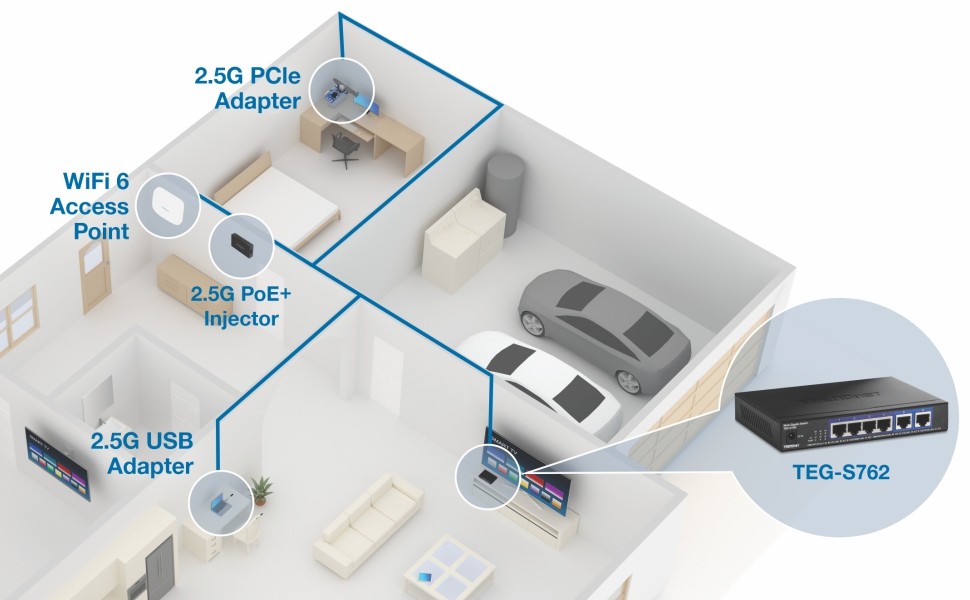

TRENDnet End-to-End Multi-Gigabit Networking Solutions

6-Port Multi-Gig Switch

  • 4 x 2.5G RJ-45 ports
  • 2 x 10G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • 60Gbps switching capacity
  • Fanless design for silent operation
  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*


SPECIFICATIONS

Standards
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3bz
  • IEEE 802.1x
Device Interface
  • 4 x 2.5G ports (1Gbps/2.5Gbps)
  • 2 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5 Gigabit Ethernet: 5Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switch fabric: 60Gbps
  • RAM buffer: 1MB
  • MAC address table: 4K entries
  • Jumbo frames: 12KB
  • Forwarding mode: store and forward
  • Forwarding rate: 44.64Mpps (64-byte packet size)
Power
  • Input: 90 – 264 VAC, 47/63 Hz
  • Output: 12V, 1A
  • Max. Consumption: 13.37W
MTBF
  • 524,503 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 160 x 110 x 26mm (6.3 x 4.3 x 1 in.)
Weight
  • 0.5kg (1.12 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S762
  • Quick Installation Guide
  • Power adapter (12V, 1A)
