OVERVIEW

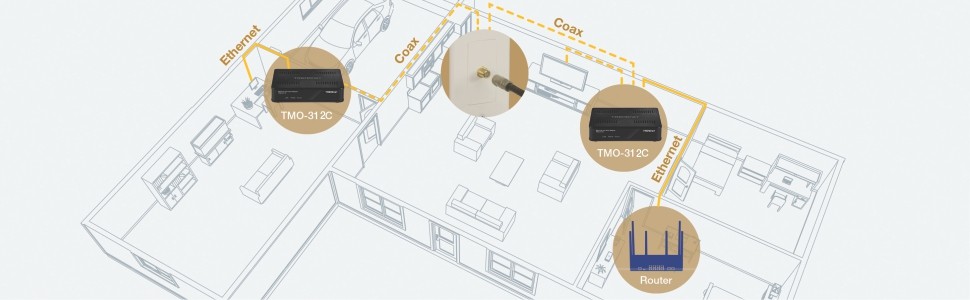

TRENDnet’s MoCA ^® 2.5 Ethernet Over Coax Adapter, model TMO-312C, uses your existing coaxial cables to extend a high-speed building-wide Triple Play network throughout your home or office. These compact MoCA adapters are designed to support MoCA 2.5 deployment for digital TV, High-speed internet, and VoIP single-access subscription service offerings. Compliant with Multimedia over Coax Alliance (MoCA 2.5) standards with improved packet error rate technology that delivers consistent voice and video bandwidth with lowered latency.

MoCA 2.5

Supports Multimedia over Coaxial Alliance 2.5 with improved packet error rate technology that delivers consistent voice and 4K HD video bandwidth with lowered latency.

Compact Design

No configuration needed, simply connect the adapters to the MoCA network to extend your network over existing coaxial cabling.

Easy Installation

No configuration needed, simply connect the adapters to the MoCA network to extend your network over existing coaxial cabling.

Ethernet over Coax 2.5Gbps Adapter

Supports MoCA ^® 2.5 over coaxial cables
Backward compatible with MoCA 2.0/1.1/1.0 standards
1 x MoCA Coax: F-Type Female coax input
1 x RJ-45 Gigabit LAN port
Supports up to 16 nodes on one network
Bonded MoCA 2.5 channels provide a net throughput of up to 2.5Gbps

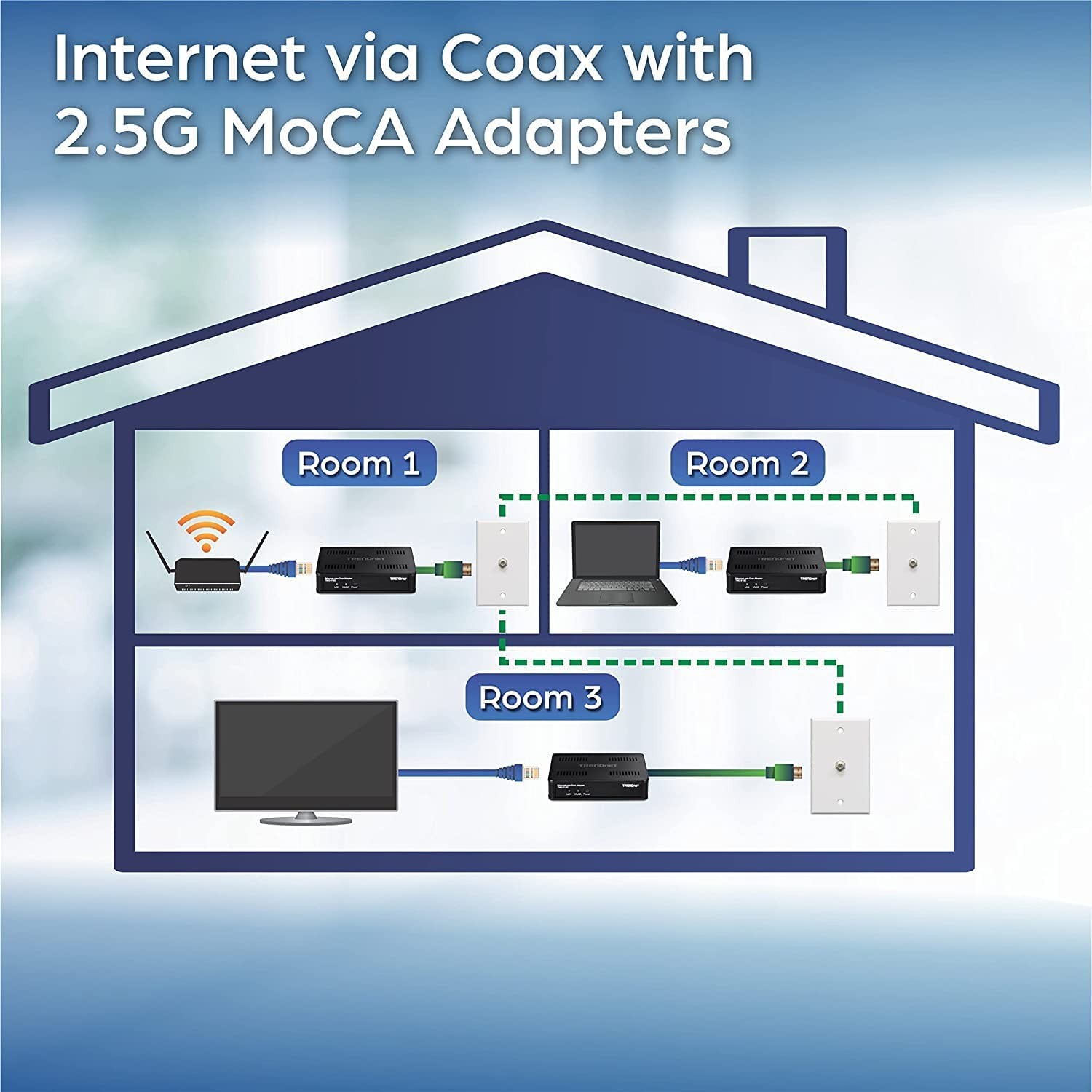

Designed to connect Ethernet devices to an existing MoCA compliant network
Not compatible with DirecTV, DISH Network, AT&T U-Verse, or other non-MoCA compliant subscription services

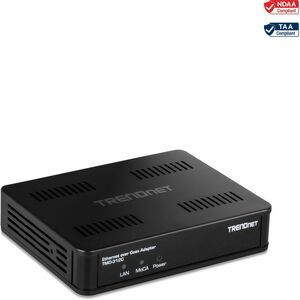

Includes one MoCA 2.5 Ethernet over Coax Adapter (TMO-312C)
NDAA / TAA compliant (U.S. and Canada only)

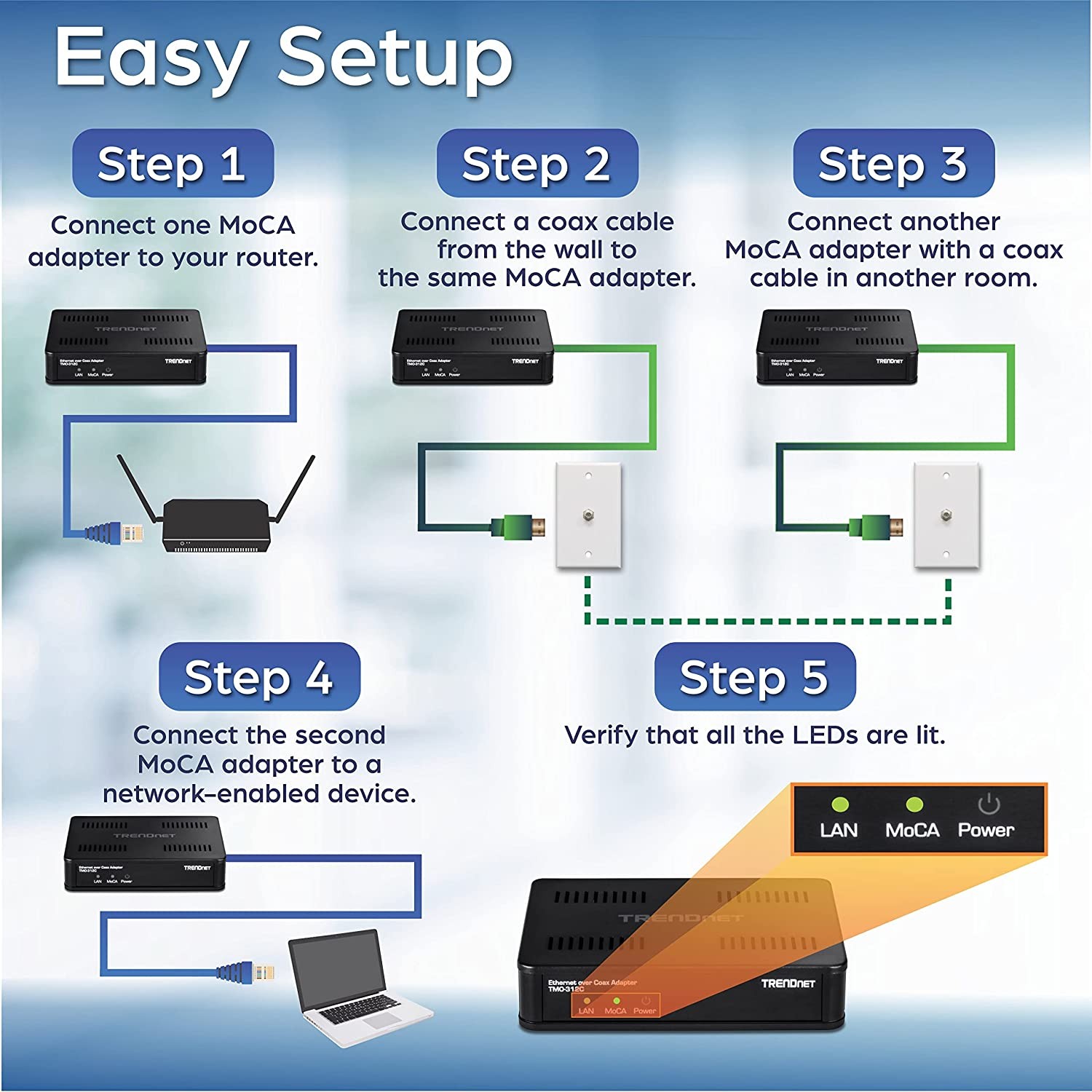

Easy Installation

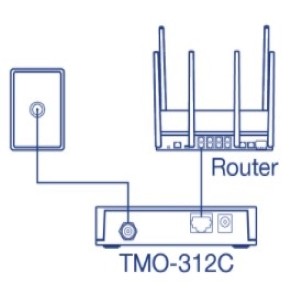

These MoCA coax to Ethernet adapters require no configuration, simply connect the adapters to the MoCA network to extend your network over existing coaxial cabling

MoCA 2.5

Supports Multimedia over Coaxial Alliance 2.5 with improved packet error rate technology, delivering consistent voice and 4K HD video bandwidth with lowered latency

Compact Design

With a compact and lightweight housing design, our MoCA adapters are well-suited for a variety of installations, such as your desktop or entertainment center

Gigabit

These MoCA to Ethernet converters each feature a Gigabit LAN port that allows MoCA traffic to flow smoothly, reducing traffic bottlenecks

LED Indicators

LED indicators on the MoCA adapters convey MoCA, LAN, and Power status

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab MoCA 1.1/1.0 MoCA 2.0 MoCA 2.5

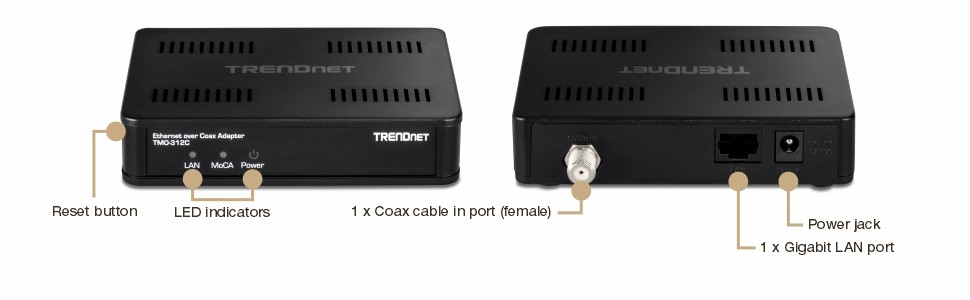

Device Interface	1 x Coax cable in port (female) 1 x Gigabit LAN port Reset button LED indicators Power jack
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) MoCA 1.1: Single channel up to 225Mbps MoCA 2.0: Single channel up to 600Mbps MoCA 2.0: Two bonded channel up to 1.2Gbps MoCA 2.5: Five bonded channel up to 3Gbps MoCA MAC rate: 16-node single channel: up to 400Mbps 16-node 2 channel bonding: up to 800Mbps 16-node 5 channel bonding: up to 2.5Gbps
MoCA Radio	Max. 16 MoCA 1.1 or 2.0/2.5 devices Max. 8 MoCA 1.0 devices Max. transmit power: +3 dBm typical 1.1/1.0 channels: 8 with 50MHz bandwidth 2.0 channels: 10 with 100MHz single channel, 225Mhz bonded channel 2.5 channels: 5 with 100MHz bonded channel 2.0/2.5 Edge-to-edge frequency: 1125-1675MHz Default channel: 1150MHz
Compatible	Verizon FiOS Spectrum Devices with Ethernet port
Not Compatible	Direct TV Dish network Satellite TV AT&T U-verse
Power	Input: 100 – 240V AC, 50/60Hz, 0.5A Output: 12V DC, 1A external power adapter Max. consumption: 12W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 85% non-condensing
Dimensions	112 x 88 x 25mm (4.4 x 3.5 x 1 in.)
Weight	116g (4 oz.)
Certifications	FCC
Warranty	3-year

PACKAGE CONTENTS

TMO-312C
Quick Installation Guide
Power adapter (12V, 1A)

** 2.5Gbps is the maximum theoretical MoCA 2.5 data rate when connecting bonded MoCA 2.5 devices. Data throughput may vary based on coax wire conditions or quality.
