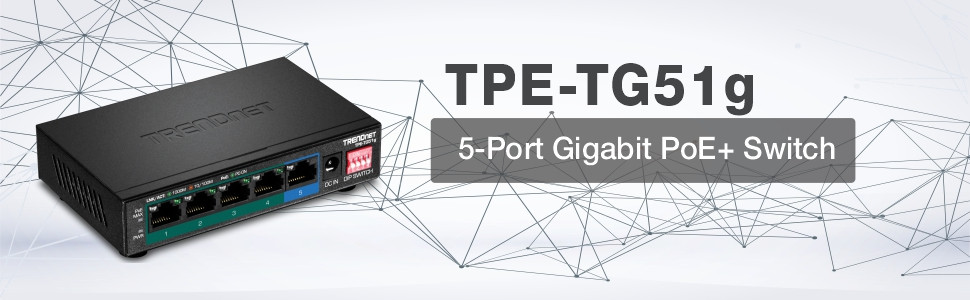

OVERVIEW

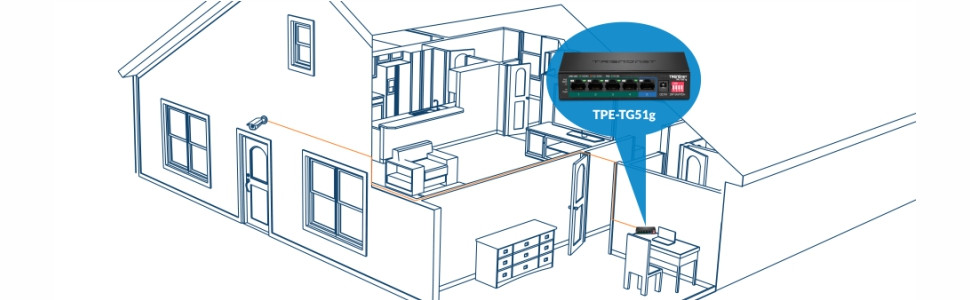

TRENDnet’s 5-Port Gigabit PoE+ Switch, model TPE-TG51g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. This long-range PoE switch supports both PoE and PoE+ devices with a 60W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.

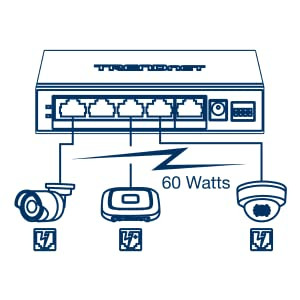

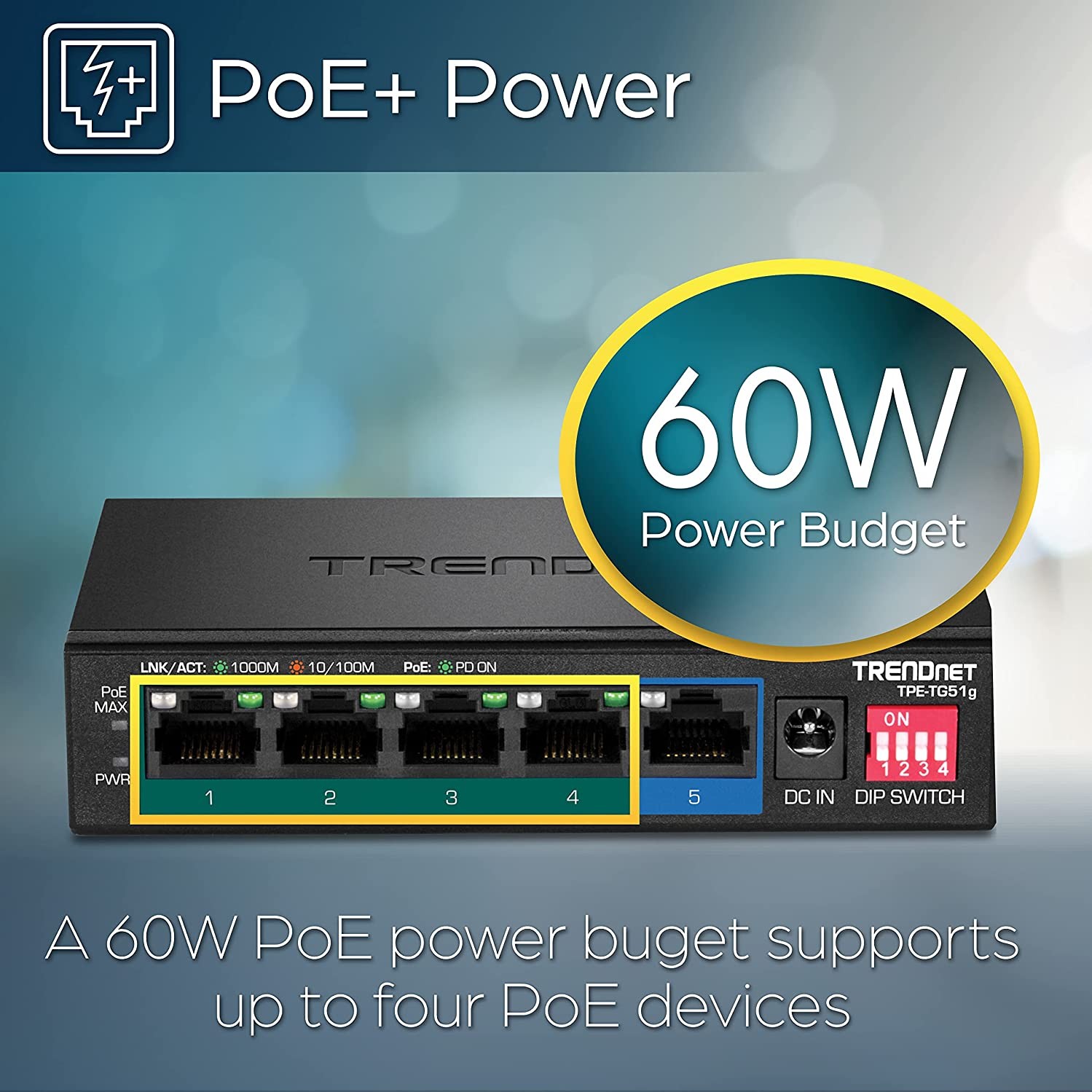

PoE+ Power

A 60W PoE power budget supplies up to four Power over Ethernet devices.

Gigabit Ethernet

Five gigabit ports provide a 10Gbps switching capacity to support edge network installations.

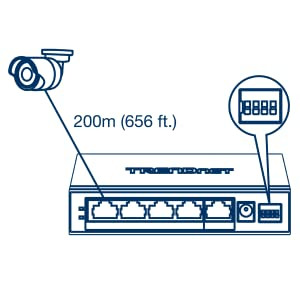

Long Range PoE+ Switch

Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps.

PoE

Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE power budget

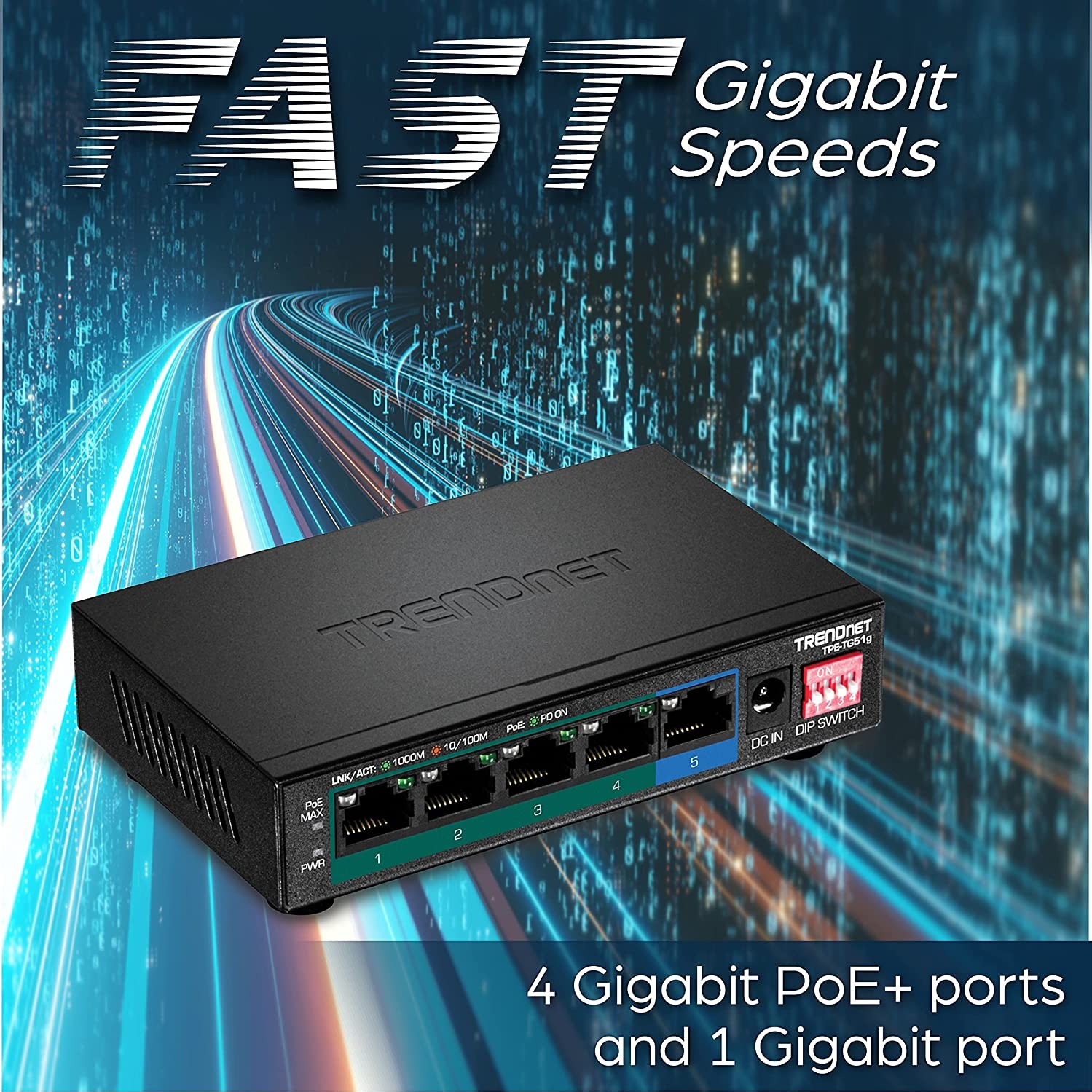

Ports

Four gigabit PoE+ ports and one gigabit port

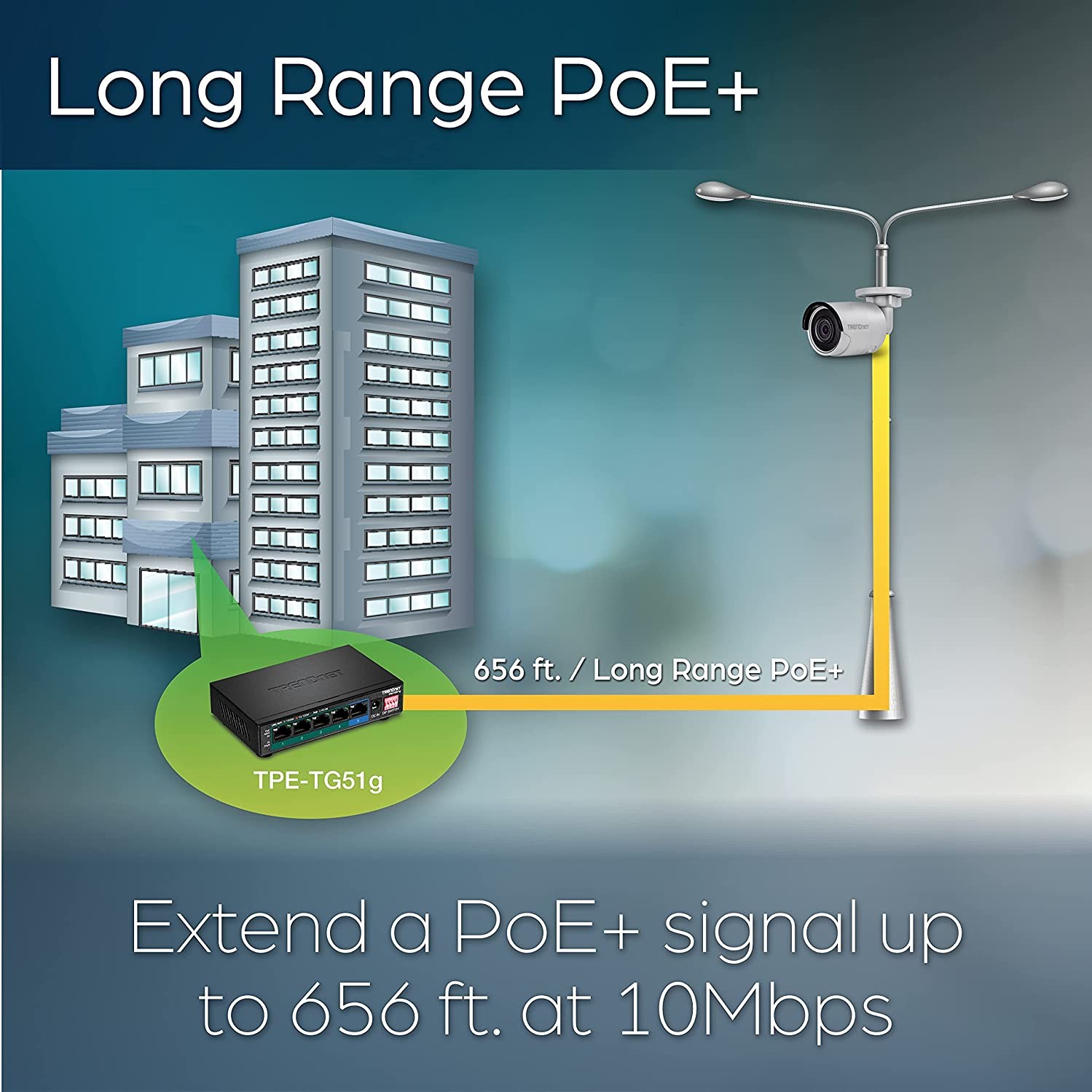

Long Range PoE+

Extend PoE+ signal up to 200m (656ft.) on the long-distance PoE switch by enabling it through the DIP switch

Port Isolation

Ideal for surveillance networking applications, the DIP switch also enables port isolation on ports 1 – 4

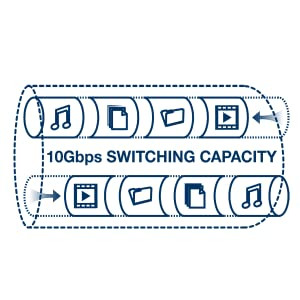

Switching Capacity

10Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Housing

Wall mountable rugged metal housing

LED Indicators

LED indicators on the long-range PoE switch convey port status


Cost Effective PoE Switches

TRENDnet offers a wide variety of PoE switches including PoE, PoE+ and 802.3bt supported switches. TRENDnet also offers a variety of specialty PoE switches including long range PoE switches that reach up to 200m away, smart surveillance switches, and industrial switches.

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at

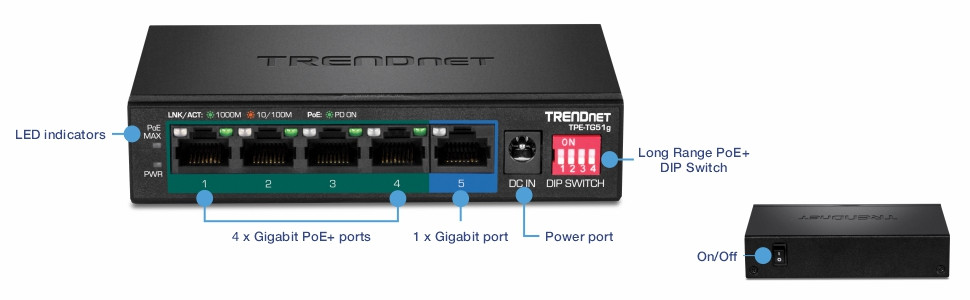

Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • DIP switch
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 10Gbps
  • RAM Buffer: 128KB
  • MAC Address Table: 2K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features
  • Long range PoE+ up to 200m at 10Mbps
  • VLAN port isolation
  • 802.1p Class of Service (CoS)
  • Wall mountable
Power
  • Input: 100 – 240 V AC, 50/60Hz, 2.5A
  • Output: 54V DC, 1.3A external power adapter
  • Max. consumption: 64.3W
PoE
  • PoE budget: 60W
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
Weight
  • 246g (8.68 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • Lifetime Warranty

PACKAGE CONTENTS
  • TPE-TG51g
  • Quick Installation Guide
  • Power adapter (55V DC, 1.3A)
