OVERVIEW

TRENDnet's AC1200 WiFi EasyMesh™ Kit is designed to blanket your home or small office in seamless WiFi coverage. The AC1200 WiFi EasyMesh System provides ample coverage for up to a 4,000 square foot home. Add up to an additional AC1200 WiFi Mesh Node to the system for expanded WiFi Coverage.

The WiFi EasyMesh Kit uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app. In minutes, you'll have your AC1200 WiFi EasyMesh System up and running providing whole home WiFi coverage.

Mesh Made Simple

The mesh WiFi system uses an intuitive app-based installation process, making setup a breeze with the TRENDnet MESHnet mobile app

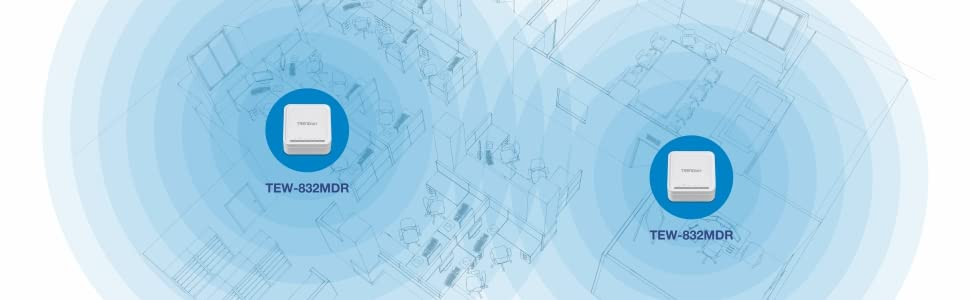

Whole Home WiFi Coverage

The AC1200 Dual Band WiFi EasyMesh Node provides ample coverage for up to a 4,000 square foot area. Add up to an additional AC1200 WiFi EasyMesh Node (TEW-832MDR) to the system for expanded WiFi coverage

Seamless Smart WiFi Roaming

All EasyMesh nodes broadcast a single WiFi SSID that provides seamless roaming capabilities. The system intelligently calculates wireless roaming parameters, and dynamically adjusts in real time to provide optimum signal coverage to connected clients

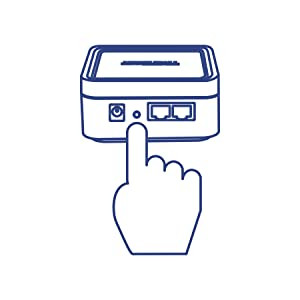

Easy WPS Push Button Expansion

To expand coverage easily, add more AC1200 WiFi EasyMesh Nodes (TEW-832MDR) to the system by using the convenient WPS push button sync method

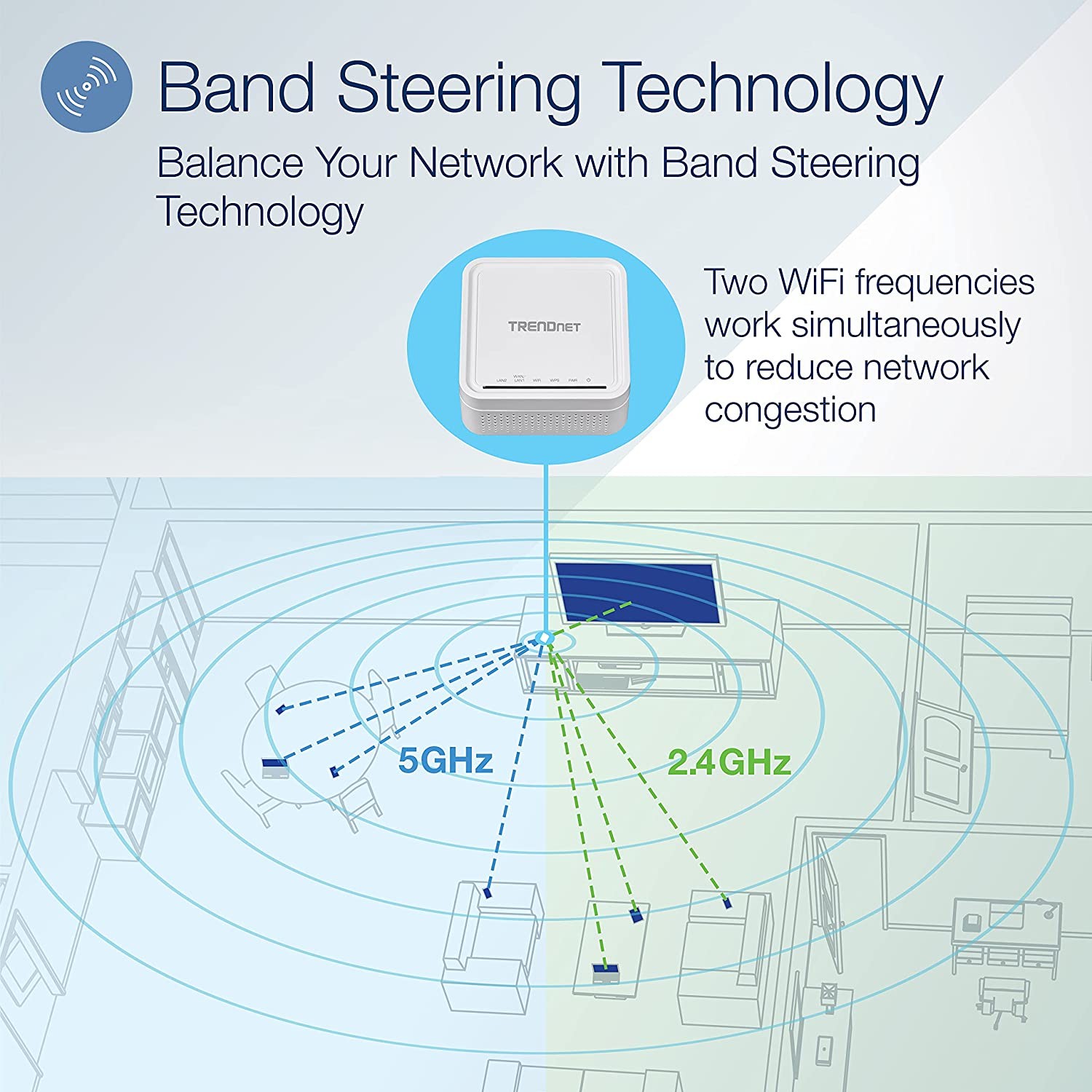

Band Steering

With band steering technology, the mesh WiFi system alleviates network congestion by automatically balancing client connections between the 2.4GHz and 5GHz bands

Auto Optimizing

Detects and selects the best path to send data traffic to the desired destination, and provides better resilience to node failures

Targeted Beamforming

Beamforming increases real-time performance by directing stronger wireless signals to your specific location. Beamforming improves wireless range, reception, and throughput

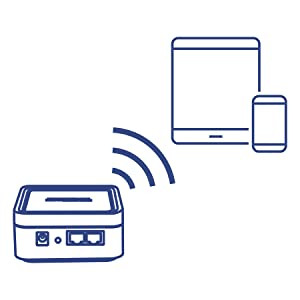

Monitor Mesh Signal Status

The TRENDnet MESHnet mobile app allows you to monitor each WiFi mesh node’s mesh signal status

Intelligent Self-healing Mesh

The EasyMesh node detects any mesh node disconnections and intelligently takes action to remedy the issue

Parental Controls

Limit access to specific websites, and control access to the network for connected devices

Guest Network

Create an isolated WiFi network for guest internet access

LED Signal Indicator

LED signal indicator helps in locating an EasyMesh node by showing mesh signal quality in real-time

Gigabit Ports

1 x Gigabit WAN Port, 1 x Gigabit LAN Port

IPv6

Mesh WiFi system supports IPv6 network

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300Mbps)* IEEE 802.11ac (up to 867Mbps)* WiFi EasyMesh R1

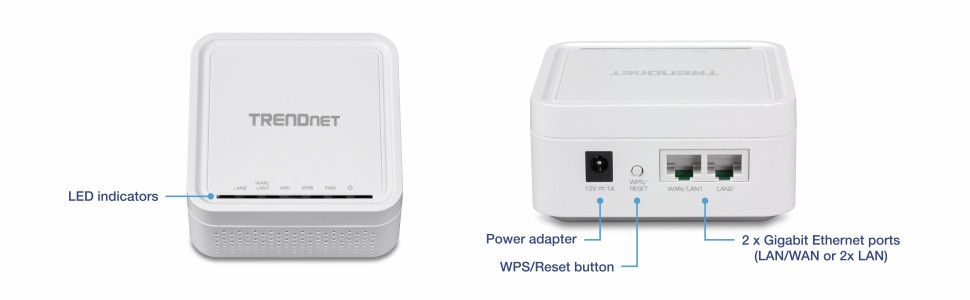

Device Interface	2 x Gigabit Ethernet ports (LAN/WAN or 2x LAN) WPS/Reset button LED indicators
Special Features	Multi-User MIMO for increased bandwidth efficiency and better user experience* Seamless WiFi roaming IPv6 support Implicit/Explicit Beamforming Band Steering
Access Control	WiFi encryption: WPA/WPA2-PSK AES WiFi Guest network Hide WiFi Name/SSID Wireless client isolation NAT Port forwarding DMZ host UPnP DoS prevention Allow/deny WAN ping requests Parental controls (Set schedules for Internet access or filter by custom websites)
Quality of Service	Set client device priority (Normal/High priority) WMM
Management/Monitoring	IOS and Android App based management Internal system logging Manual or online auto firmware upgrade Mesh Connection quality display Client device list Internet speed test Router/AP operation modes
Frequency	2.4000 – 2.4835GHz (Industrial Scientific Medical Band) 5.150 – 5.825GHz (subject to local regulations)
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	2 x 4.2 dBi Internal Antenna
Receiving Sensitivity	802.11a: -67 dBm (typical) @ 54Mbps 802.11b: -79 dBm (typical) @ 11Mbps 802.11g: -67 dBm (typical) @ 54Mbps 802.11n (2.4GHz, 20MHz): -66 dBm (typical) @ 300Mbps 802.11n (2.4GHz, 40MHz): -63 dBm (typical) @ 300Mbps 802.11n (5GHz, 20MHz): -67 dBm (typical) @ 867Mbps 802.11n (5GHz, 40MHz): -65 dBm (typical) @ 867Mbps 802.11ac: -56 dBm (typical) @ 867Mbps
Wireless Channels	2.4GHz: FCC: 1–11, ETSI: 1-13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165, ETSI: 36, 40, 44, 48
Power	Input: 100 – 240V AC, 50 – 60Hz, 1A Output: 12V DC, 1A external power adapter Max. Consumption: 4.63 W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions (L x W x H)	95 x 95 x 50mm (3.75 x 3.75 x 1.97 in.)
Weight	Each unit :116g (4.1 oz)
Warranty	3 year

PACKAGE CONTENTS

2 x TEW-832MDR (1 x Main, 1 x Remote Node) Quick Installation Guide 1 x Network cable (1.5m / 5 ft.) 2 x Power adapter (12V DC, 1A) Wall Mount Screws

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials, and other conditions. For maximum performance of up to 867Mbps, use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

**Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.
