OVERVIEW

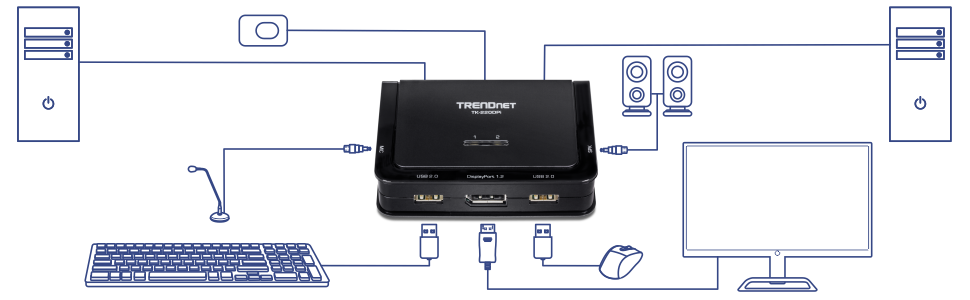

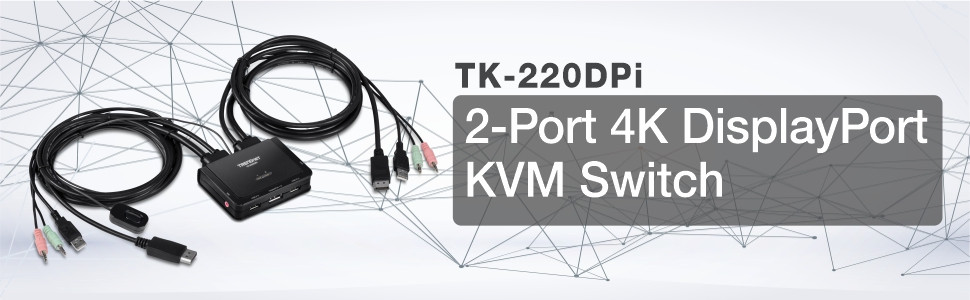

TRENDnet’s 2-Port 4K DisplayPort KVM Switch, model TK-220DPi, allows you to control two computers with one set of console controls. Easily experience up to 4K UHD resolutions, no driver installation required. This compact DisplayPort switch is designed for 4K DisplayPort systems with USB mouse and keyboard connections. This UHD DisplayPort KVM switch also features 3.5mm speaker and microphone connections to switch between computers.

Computers

2-Port DisplayPort KVM controls up to 2 computers

4K UHD

4K DisplayPort KVM switch supports resolutions up to 4K UHD (3840 x 2160) with a 60Hz refresh rate

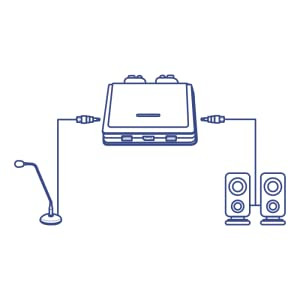

Audio Support

Full audio support maximizes work station productivity

USB Mouse & Keyboard

True Transparent USB (TTU) technology supports most keyboard and mouse designs

DisplayPort 1.2

DisplayPort 1.2 with HDCP support

Integrated Cables

Fully integrated DisplayPort, USB, and audio cables

Computer Ports

Requires free USB and DisplayPort ports from connected computers

Hot Keys

This DisplayPort switch features Hot Key command shortcuts

SPECIFICATIONS

Console Port Connectors	Keyboard: USB Type A Mouse: USB Type A Monitors: 1 x DisplayPort 1.2 Speaker jack: 3.5mm Microphone jack: 3.5mm
Computer Interface (up to 2)	Keyboard/Mouse: USB 2.0 Type A Monitors: DisplayPort 1.2 Speaker jack: 3.5mm Microphone jack: 3.5mm Cable length: 1.5m (4.92 ft.)
Monitor Resolution	Up to 1920 x 1080 @ 144Hz Up to 1920 x 1200 @ 144Hz Up to 1920 x 1440 @ 144Hz Up to 2560 x 1440 @ 144Hz Up to 3440 x 1440 @ 60Hz Up to 3840 x 2160 @ 60Hz

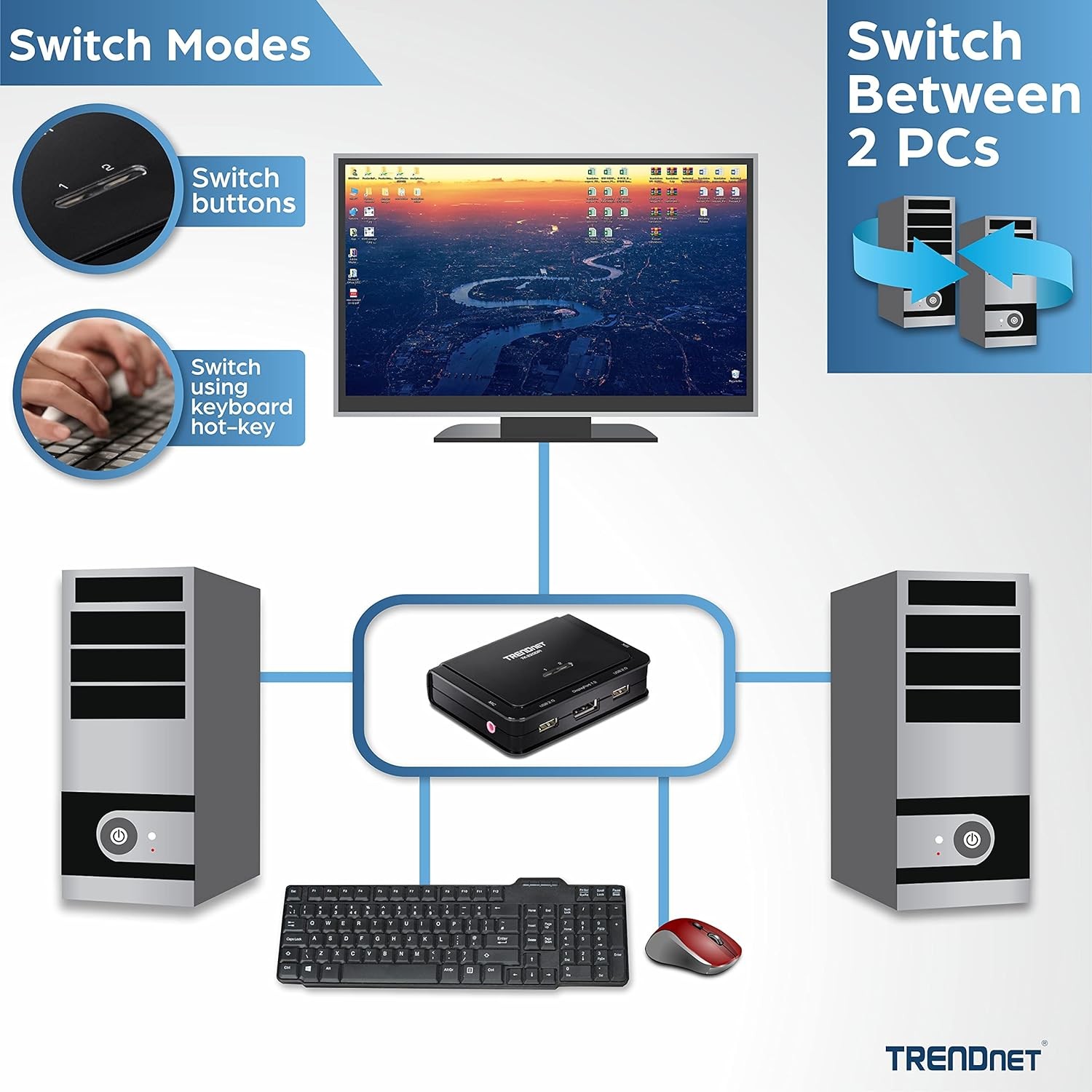

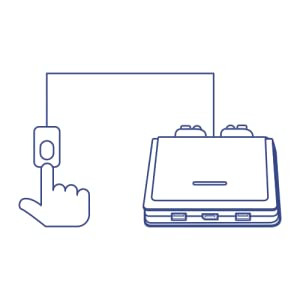

Switching Control	One touch toggle switch Keyboard hot key commands
Audio Support	5.1 Audio support over DisplayPort cables Analog audio over speaker and microphone jacks
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing

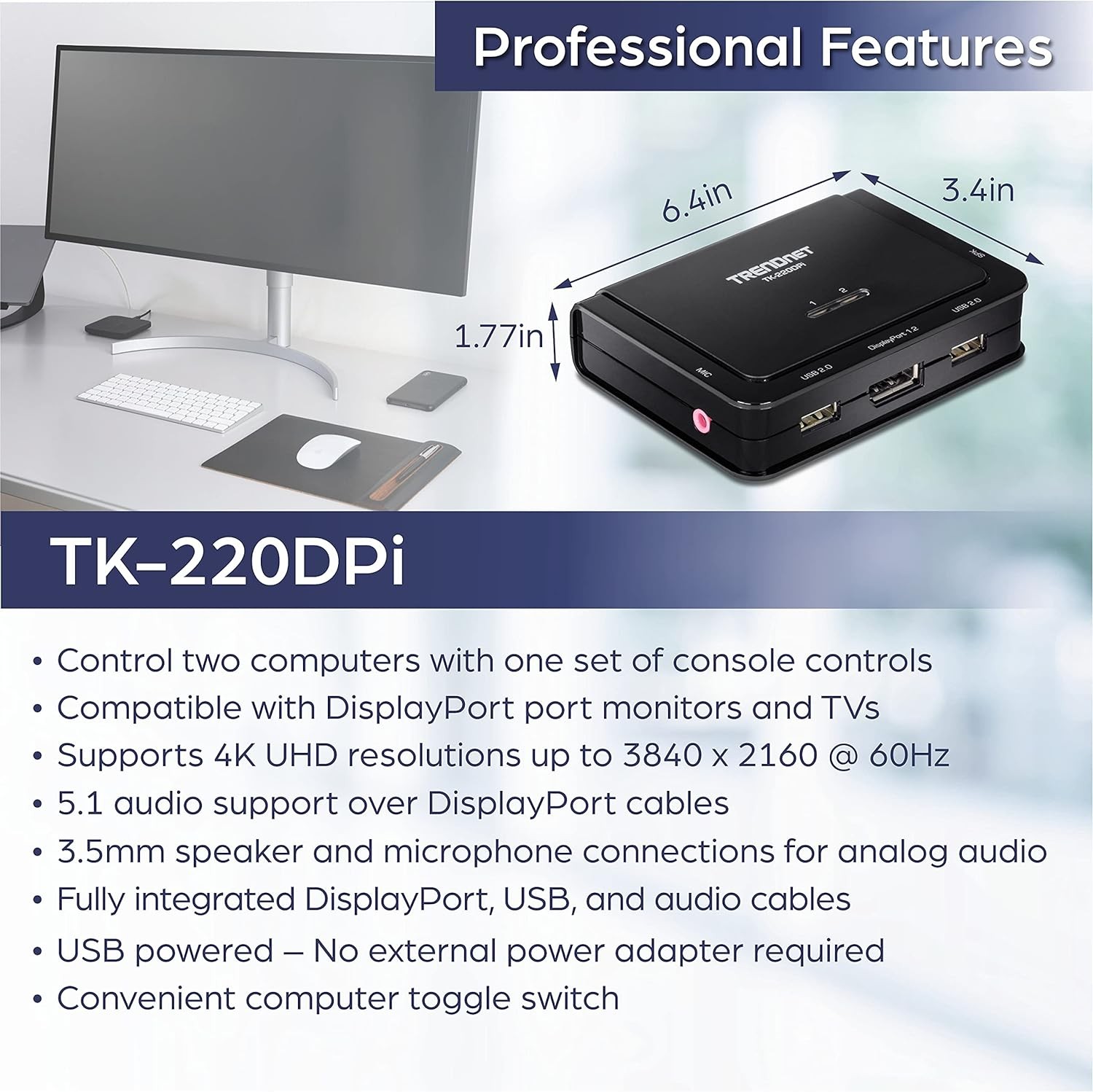

Dimensions	164 x 87 x 45mm (6.4 x 3.4 x 1.77 in.)
Weight	578g (1.27 lbs.)
Certifications	CE FCC
Warranty	2 year

PACKAGE CONTENTS

TK-220DPi Quick Installation Guide
