OVERVIEW

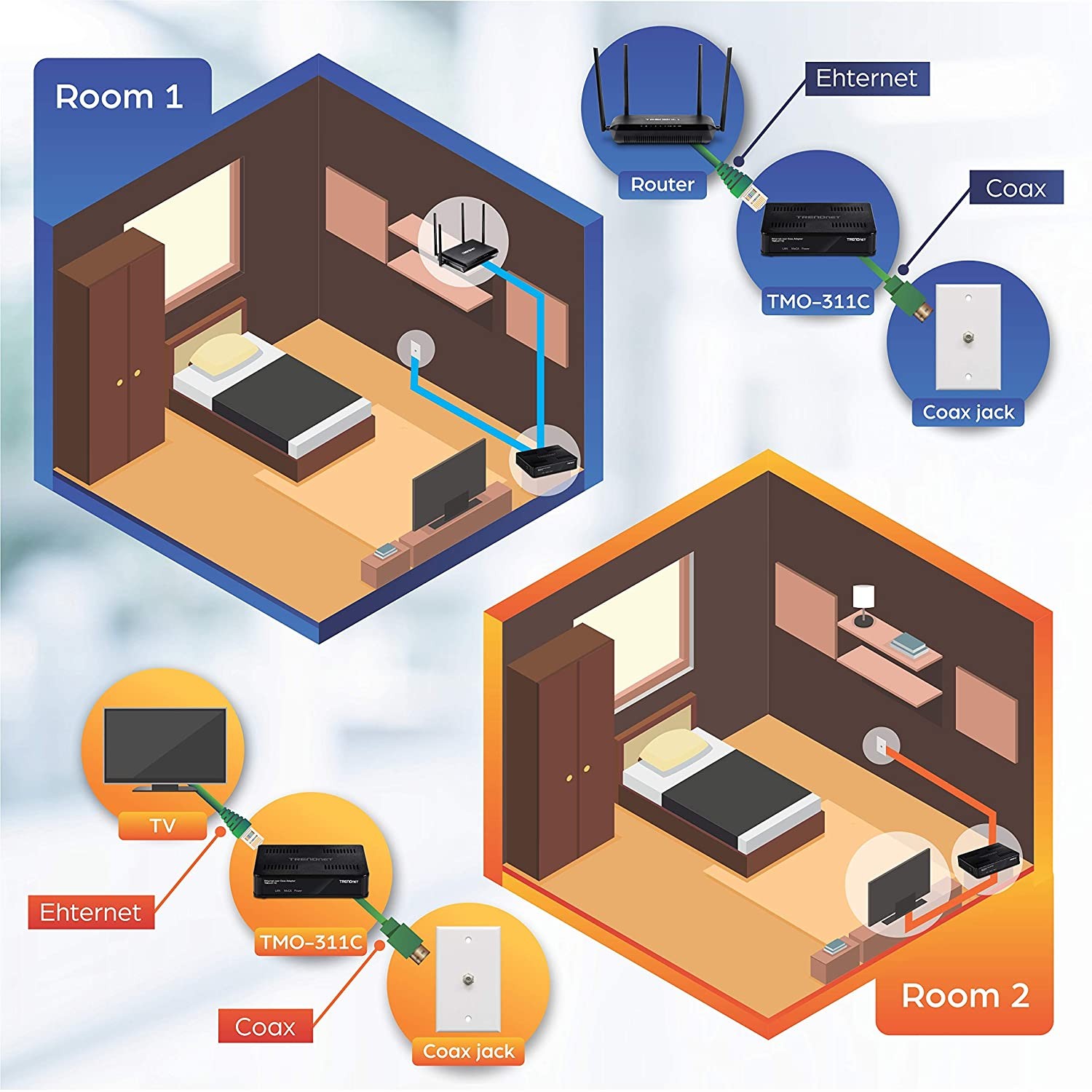

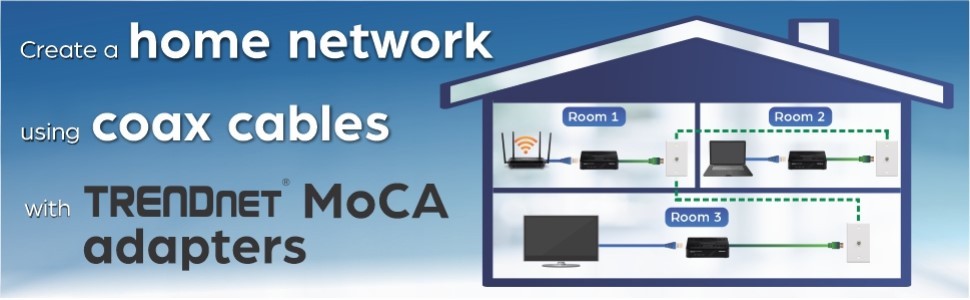

TRENDnet's MoCA 2.0 Ethernet Over Coax Adapter, model TMO-311C and TMO-311C2K, uses your existing coaxial cables to extend a high-speed building-wide Triple Play network throughout your home or office. These compact MoCA adapters are designed to support MoCa 2.0 deployment for digital TV, high speed-internet, and VoIP single-access subscription service offerings. Compliant with Multimedia over Coax Alliance (MoCA 2.0) standards with improved packet error rate technology that delivers consistent voice and video bandwidth with lowered latency.

MoCA 2.0

Supports multimedia over Coaxial Alliance 2.0 with enhanced packet error rate technology that delivers consistent video and voice bandwidth with reduced latency.

Compact design

With a compact and lightweight design, our MoCA adapters are suitable for a variety of installations, such as your desk or entertainment center.

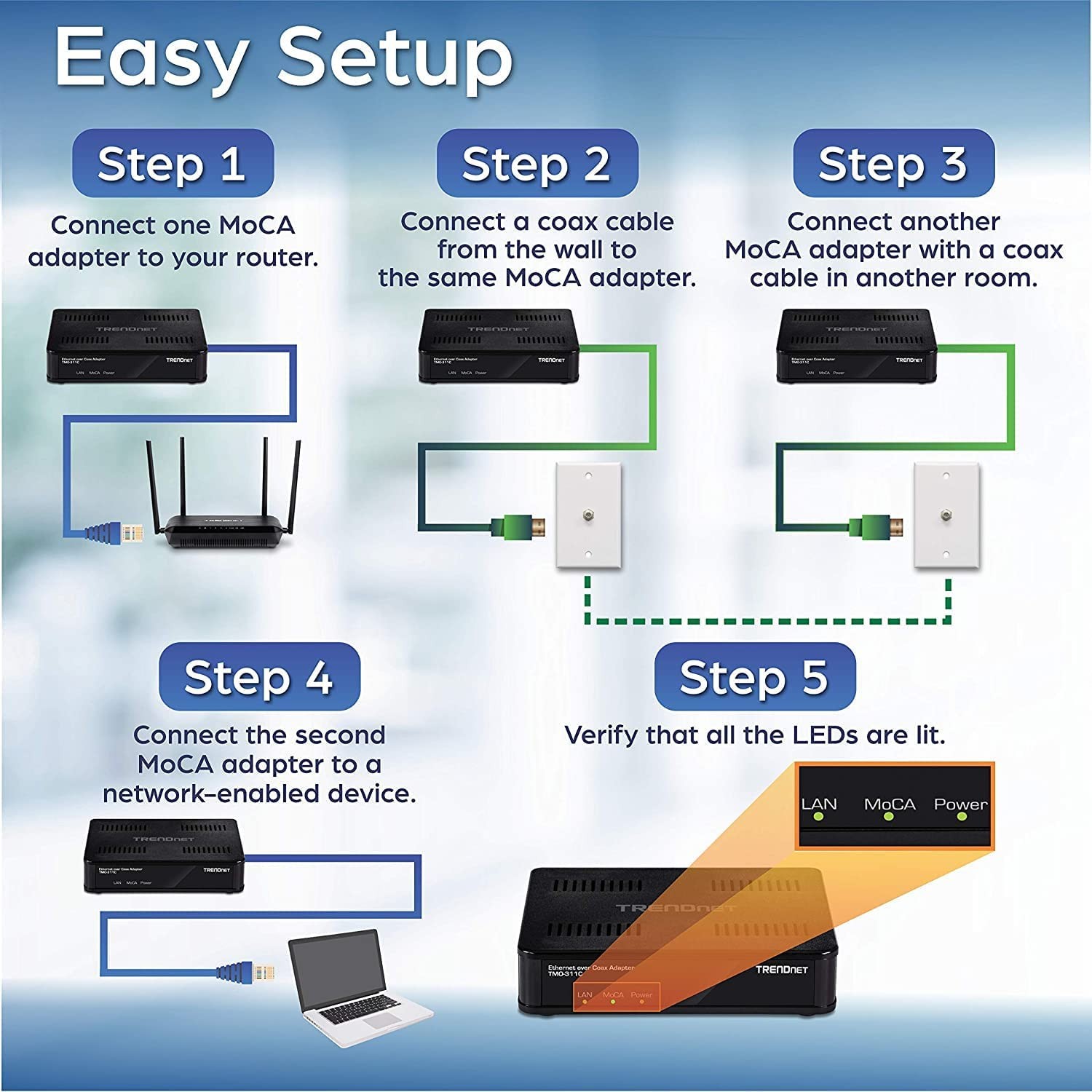

Easy installation.

No configuration required, just connect the adapters to the MoCA network to extend your network over existing coaxial cabling.

MoCA 2.0

Supports multimedia over Coaxial Alliance 2.0 with improved packet error rate technology, offering consistent voice and video bandwidth with reduced latency

Compact design

With a compact and lightweight design, our MoCA adapters are suitable for a variety of installations, such as your desk or entertainment center.

Gigabit

These MoCA to Ethernet converters feature a Gigabit LAN port that allows MoCA traffic to flow smoothly, reducing traffic bottlenecks.

LED indicators

MoCA adapter LEDs transmit MoCA, LAN, and Power status

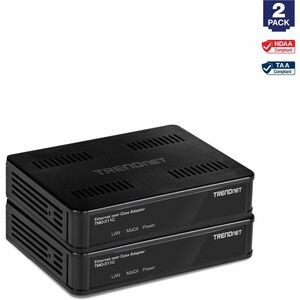

TRENDnet Ethernet Over Coax Adapter - TMO-311C / TMO-311C2K

Ethernet Over Coax Adapter (2-Pack)

  • 2-Pack includes two MoCA 2.0 Ethernet over Coax Adapters
  • Supports MoCA 2.0 over coaxial cables
  • Backward compatible with MoCA 1.1/1.0 standards
  • 1 x MoCA Coax: F-Type Female coax input
  • 1 x TV Coax: F-Type Female coax output
  • 1 x RJ-45 Gigabit LAN port
  • Supports up to 16 nodes on one network
  • Supports net throughput of up to 1Gbps
  • Performance modes 400Mbps and 800Mbps (bonded)
  • Designed to connect Ethernet devices to an existing MoCA compliant network
  • Not compatible with Directv, Dish Network, AT&T U-Verse, or other non-MoCA compliant subscription services
  • NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • MoCA 1.1/1.0
  • MoCA 2.0

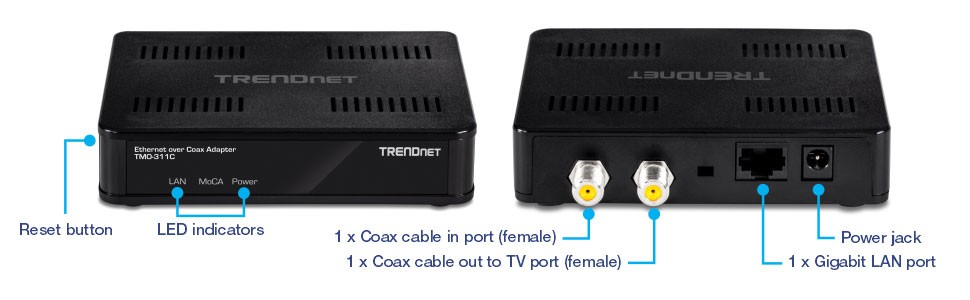

Device Interface
  • 1 x Coax cable in port (female)
  • 1 x Coax cable out to TV port (female)
  • 1 x Gigabit LAN port
  • Reset button
  • LED indicators
  • Power jack
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • MoCA 1.1: 225Mbps (50dB attenuation)
  • MoCA 2.0: Multi-node: 600Mbps @ -2 – 43dBm
  • MoCA MAC rate:
    • 16-node single channel: up to 400Mbps
    • 16-node 2 channel bonding: up to 1Gbps
MoCA Radio
  • Max. 16 MoCA 1.1 or 2.0 devices
  • Max. 8 MoCA 1.0 devices
  • Max. transmit power: +0 dBm @ 1150MHz
  • 1.1/1.0 channels: 8 with 50Mhz bandwidth
  • 2.0 channels: 10 with 100Mhz single channel, 225Mhz bonded channel
  • 2.0 Edge-to-edge frequency: 1125-1675Mhz
  • Default channel: 1150Mhz
Compatible
  • Verizon FiOS ®
  • Spectrum ®
  • Devices with Ethernet port
Not Compatible
  • DIRECTTV ®
  • Dish network ®
  • Satellite TV
  • AT&T U-verse ®
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.5A
  • Output: 12V DC, 1A external power adapter
  • Max. consumption: 7W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 85% non-condensing
Dimensions
  • 112 x 88 x 25mm (4.4 x 3.5 x 1 in.)
Weight
  • 124g (4.4 oz.)
Certifications
  • FCC
Warranty
  • 3-year

PACKAGE CONTENTS
  • 2 x TMO-311C
  • Quick Installation Guide
  • 2 x Power adapter (12V, 1A)
