OVERVIEW

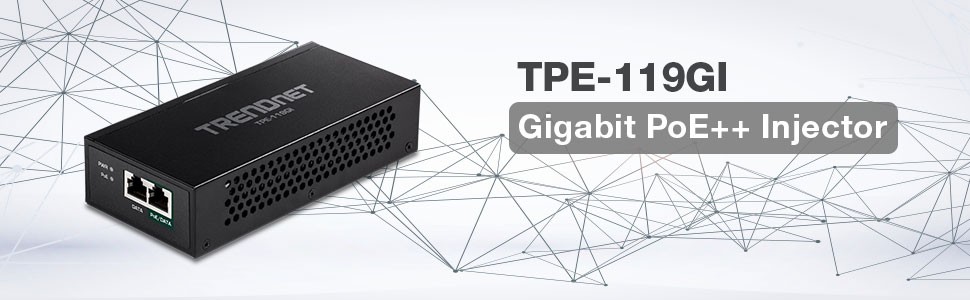

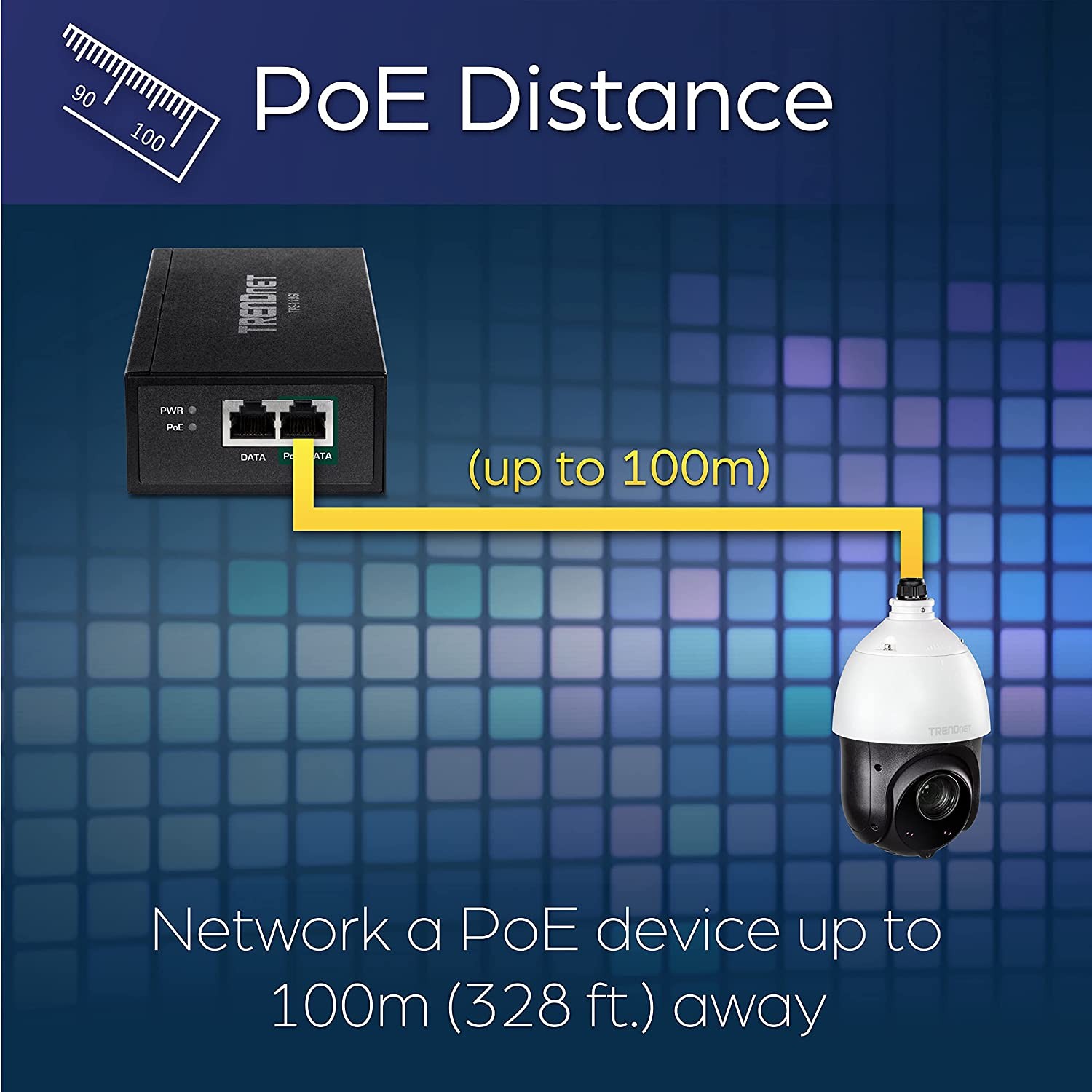

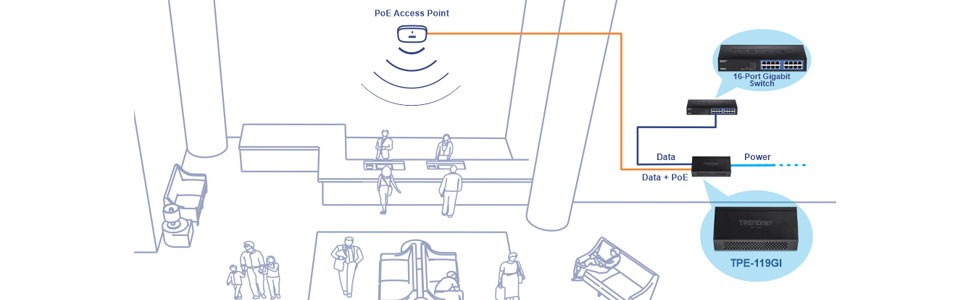

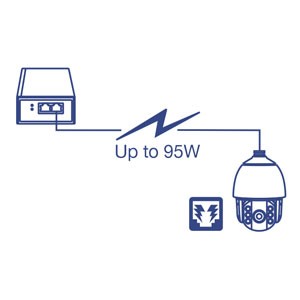

TRENDnet's Gigabit PoE++ Injector, model TPE-119GI, is an 802.3bt PoE injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ devices. Connect the Gigabit PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more with this 802.3btbt PoE injector.

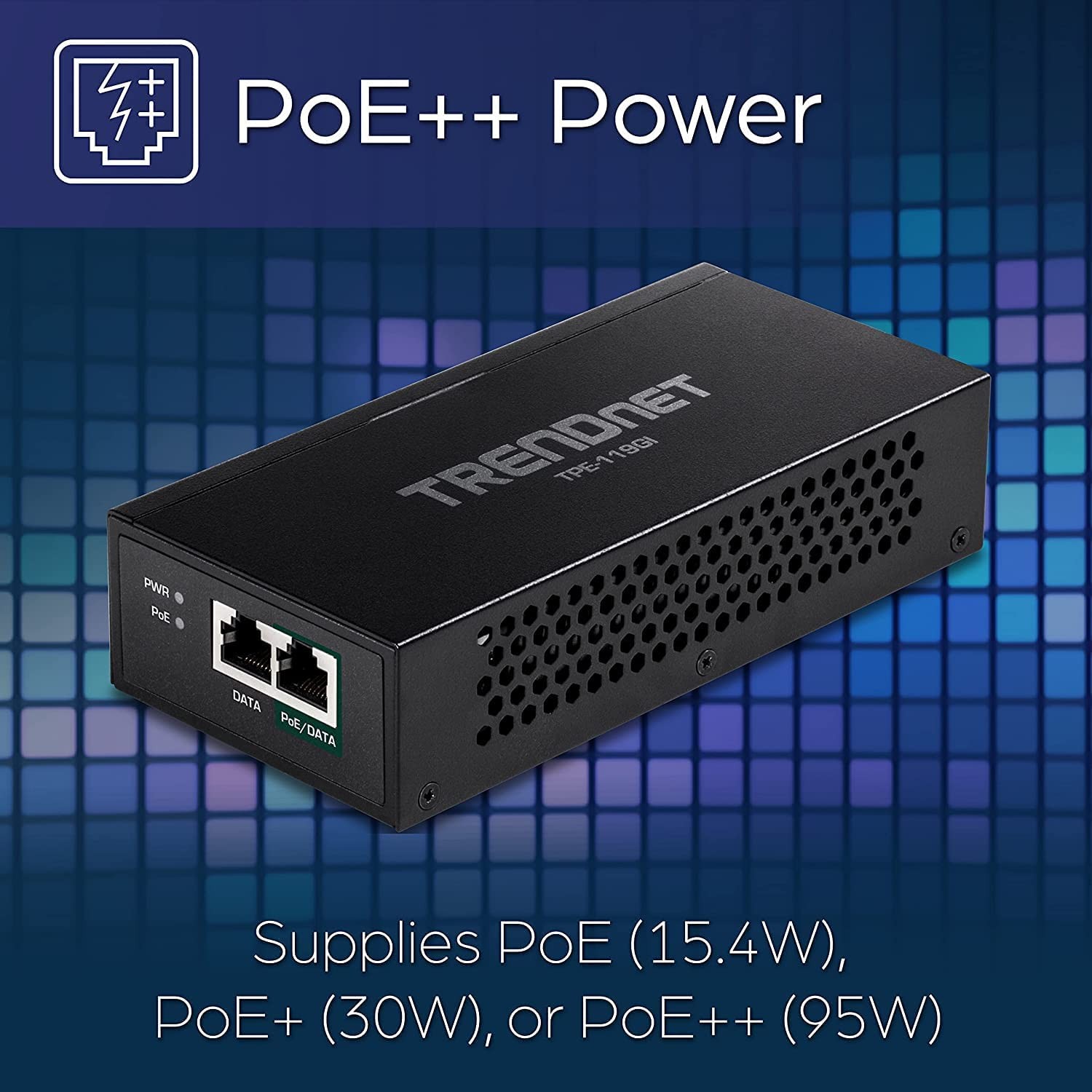

4-Pair PoE

Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 95W) device.

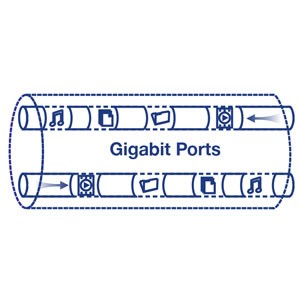

Gigabit Ports

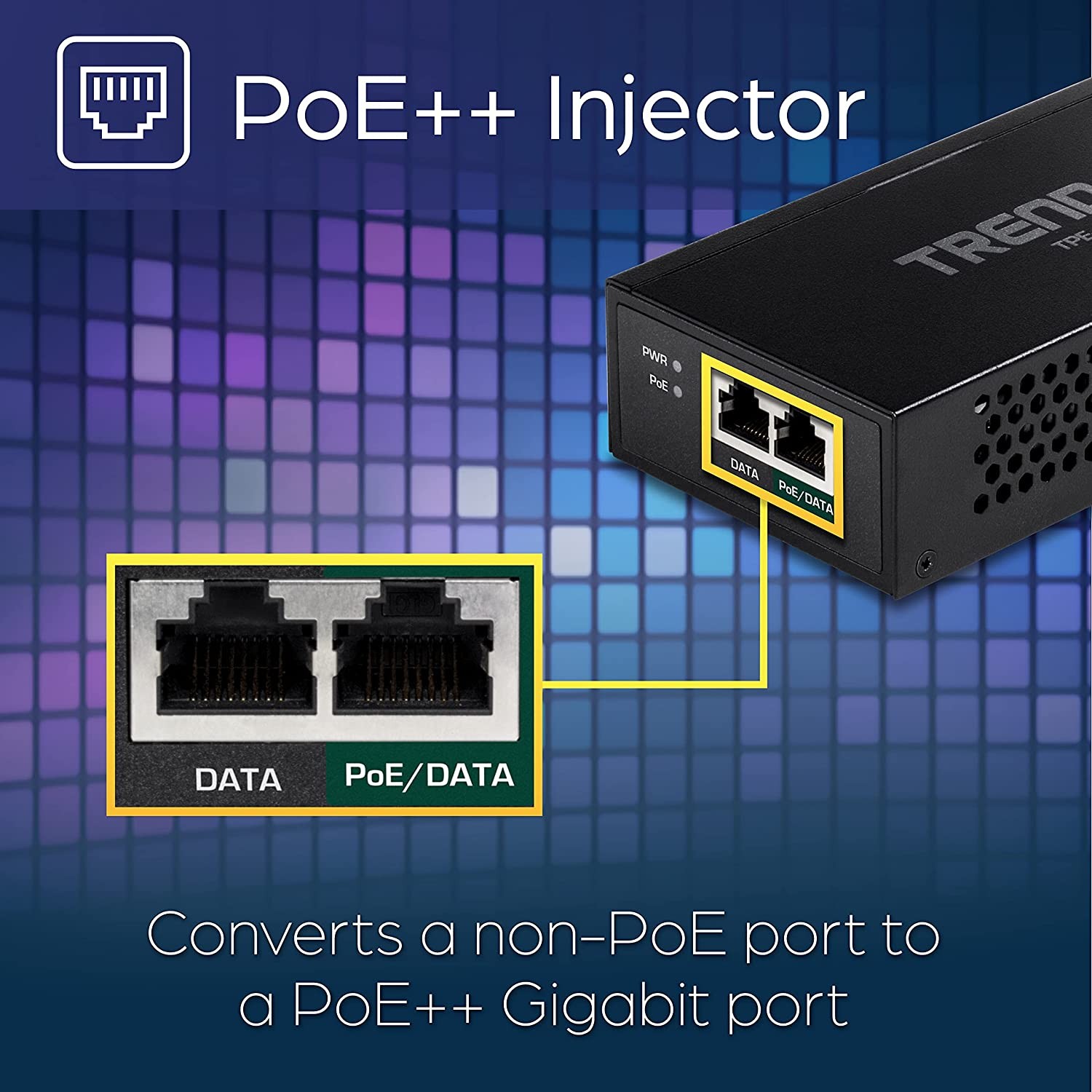

The PoE++ injector features 1 x gigabit port and 1 x gigabit PoE++ port.

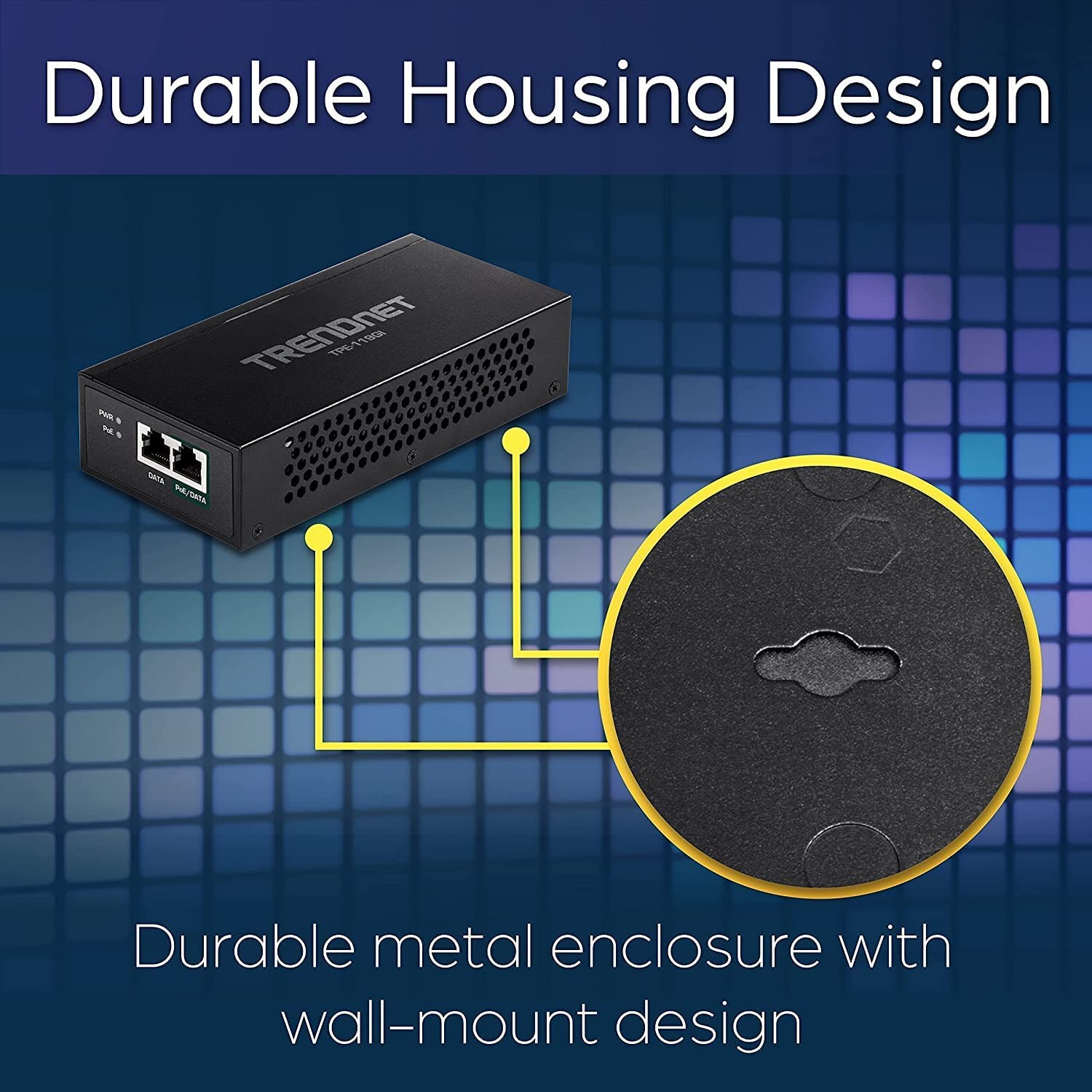

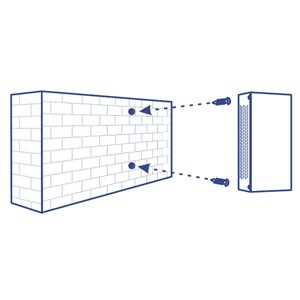

Wall Mount Design

Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios.

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt

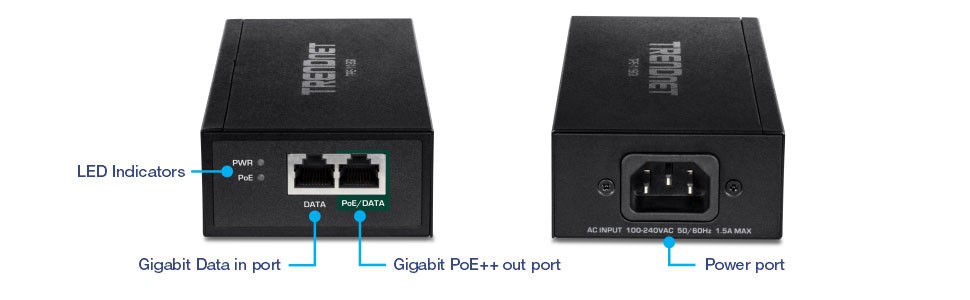

Device Interface
  • 1 x Gigabit Data in port
  • 1 x Gigabit PoE++ out port
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Special Features
  • Wall-mountable
PoE
  • Pin 1, 2, 7, 8 for power+ and pin 3, 6, 4, 5 for power-
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 3W
PoE Budget
  • Max. 95W
Temperature
  • 0 – 40°C (32 – 104°F)
Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • ETL
Dimensions
  • 154 x 73 x 36mm (6 x 2.9 x 1.4 in.)
Weight
  • 422g (0.93 lb.)
Warranty
  • 3 year
PACKAGE CONTENTS
  • TPE-119GI
  • Quick Installation Guide
  • Power cord


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
