OVERVIEW

TRENDnet’s 2-Port DisplayPort KVM Switch, model TK-241DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolution with this DisplayPort KVM switch, no driver installation required. The TK-241DP DisplayPort KVM switch is designed for systems with DisplayPort, USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or other USB peripherals between computers.

DisplayPort 1.2

Designed to connect to two DisplayPort computers.

4K UHD Resolution

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz).

USB 2.0 Hub

Two additional USB ports to connect storage drives and other USB peripherals.

Audio Support

Full audio support maximizes work station productivity

USB Mouse & Keyboard

True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

Housing

DisplayPort KVM switch with rugged metal enclosure

Easy Installation

DisplayPort KVM switch features simple setup with driverless installation

2-Port DisplayPort KVM Switch, TK-241DP | TRENDnet

SPECIFICATIONS

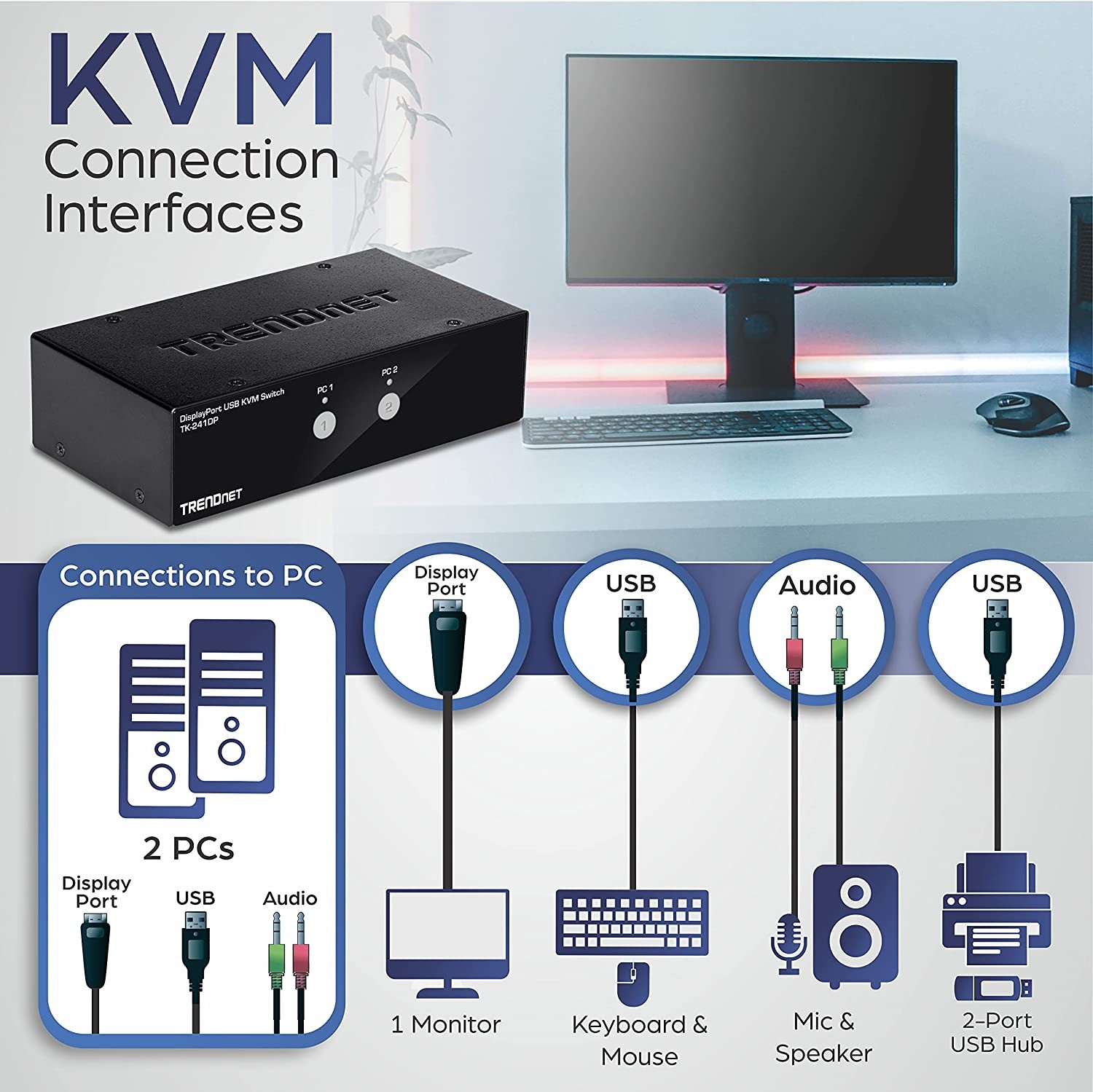

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
KVM Port Interface (up to 2)
  • Keyboard/Mouse: USB Type B
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 2)
  • Keyboard/Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

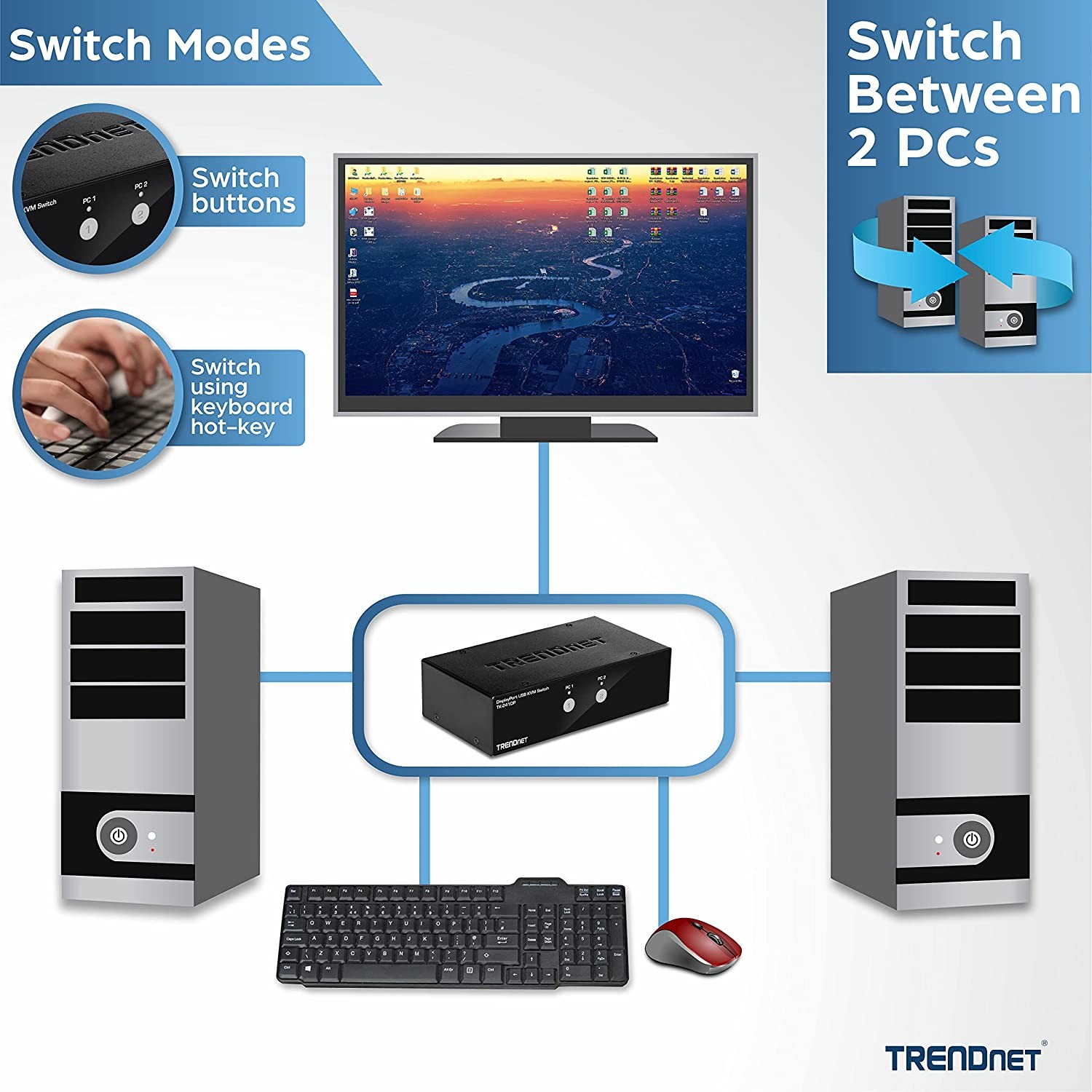

Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W

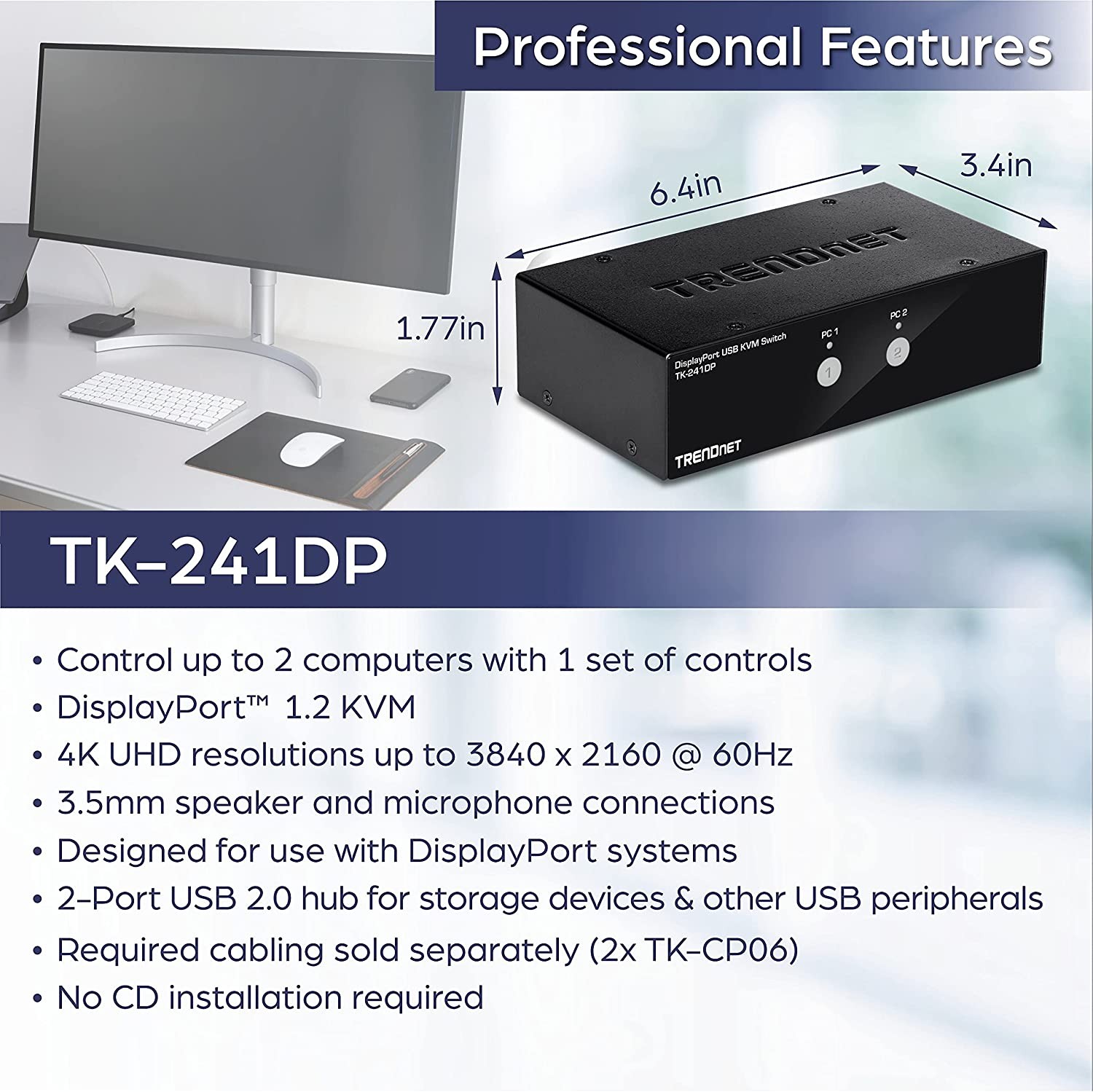

Dimensions
  • 164 x 87 x 45mm (6.4 x 3.4 x 1.77 in.)
Weight
  • 920g (2.02 lbs.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC
PACKAGE CONTENTS
  • TK-241DP
  • Quick Installation Guide
  • Power adapter (9V DC, 1A)
