OVERVIEW

TRENDnet's Industrial Gigabit L2 Managed PoE+ Rackmount Switch Series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 rackmount switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments. Our industrial layer 2 rackmount switch models feature copper gigabit ports for high-speed device connections, as well as SFP slots that support 100/1000Base-FX SFP modules for long distance fiber networking applications. These industrial layer 2 rackmount switches feature a fanless design that eliminates operating noise and lowers energy consumption.

These Industrial Gigabit L2 Managed PoE+ Rackmount Switch Series provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, SNMP monitoring, and more, making each TRENDnet industrial layer 2 rackmount switch a powerful solution for SMB networks

L2 Management

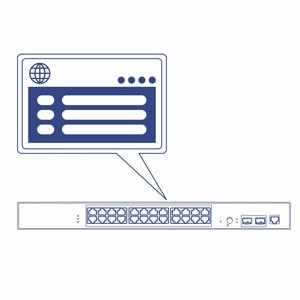

Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction

PoE Power

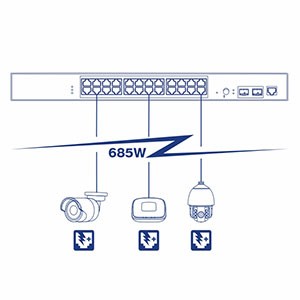

A 685W PoE power budget supplies up to 24 Power over Ethernet devices, and includes advanced PoE port controls, such as enabling / disabling PoE, power priority, PD alive check, and power scheduling

Industrial Design

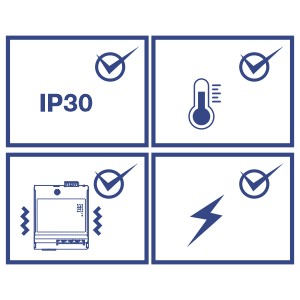

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments

Access Control

Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping, and IP Source Guard provides layered network access controls

Switching Capacity

52Gbps switching capacity

19” Rackmount

Sturdy rack mountable metal housing with mounting kit included

Shock and Vibration Resistant

Rated for shock, freefall and vibration

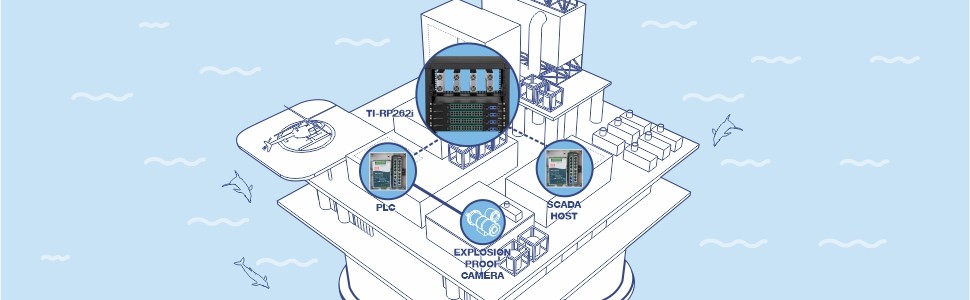

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.1ax IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az IEEE 802.3af IEEE 802.3at

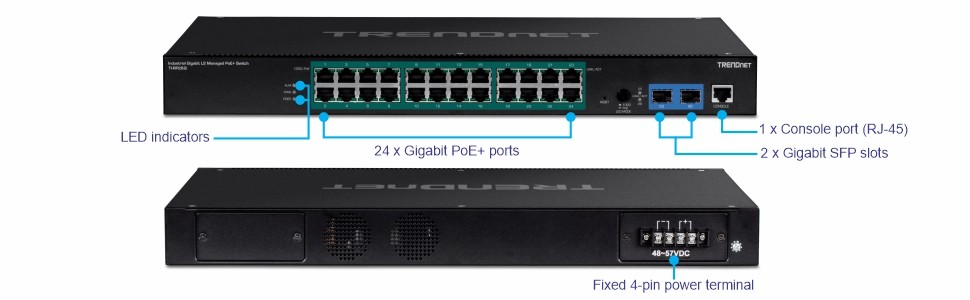

Device Interface	24 x Gigabit PoE+ ports 2 x Gigabit SFP slots 1 x Console port (RJ-45) Fixed 4-pin power terminal LED indicators LED Display mode button (toggles LED indicators to display link/activity or PoE only port status)
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) SFP: 2000Mbps (full duplex)
Performance	Switch fabric: 52Gbps Data RAM buffer: 512KB MAC address table: 8K entries Jumbo frames: 10KB Forwarding mode: store and forward Forwarding rate: 38.7Mpps (64-byte packet size)
Management	HTTP web-based GUI CLI: Telnet / SSHv2 SNMP v1, v2c, v3 SNMP trap (up to 5 receivers) RMON groups 1/2/3/9 Device configuration backup & restore, upgrade firmware, reboot, and reset to default Multiple administrative or read-only user accounts Enable or disable power saving mode per port Static MAC entries Static unicast entries LLDP (Link layer discovery protocol) Netlite device map ONVIF device discovery SNTP SMTP alert Syslog Port statistics/utilization Traffic monitor Port mirror: one to one, many to one Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps) Loopback detection DHCP relay/option 82 Modbus/TCP ERPS (Ethernet Ring Protection Switching) G8032v2
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol) BPDU filter, guard, and root guard
Link Aggregation	Static link aggregation and 802.1ax/802.3ad dynamic LACP (Up to 8 groups)
Quality of Service (QoS)	802.1p Class of service (CoS) DSCP (Differentiated Services Code Point) Bandwidth control per port Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN	802.1Q tagged VLAN MAC-based VLAN Port isolation Up to 256 VLAN groups, ID range 1-4094
Multicast	IGMP snooping v1, v2, v3 IGMP querier IGMP fast/immediate leave Up to 256 multicast groups Static multicast entries
Access Control	802.1X authentication (Local user database, RADIUS, guest VLAN assignment) DHCP snooping/screening Trusted host/IP access list for management access Port Security/MAC address learning restriction (Up to 100 entries per port) Static/dynamic ARP inspection
ACL	Source/Destination MAC address Source/Destination IP address Source Interface VLAN ID EtherType TCP/UDP port 1-65535
Special Features	Netlite device discovery and map display in GUI Port security: MAC address learning restriction per port DHCP relay/option 82 & DHCP server snooping/screening support Wide operating temperature range Surge and ESD protection
Power	Power terminal input: 48 – 57V DC Compatible power supply: TI-RSP100048 (1000W) sold separately Max. Consumption: 20W (no PoE load); 705W (full PoE load)
PoE	PoE budget: 685W @ 48V DC input 802.3at: Up to 30W per port PoE Mode A: Pins 1, 2, 3, and 6 for power PoE auto classification PoE port priority/power scheduling/PD alive check Over current/short circuit protection
Terminal Block	Power input, 4 pin Wire range: 1.5 mm^2 to 2.5 mm^2 Solid wire (AWG): 12-18 Stranded wire (AWG): 12-18 Wire strip length: 10-11mm
Enclosure	IP30 rated metal enclosure Fanless passive cooling Rack mountable 1U Grounding point ESD (Ethernet) Protection: 8KV DC (Air) 4KV (Contact) Surge (Power) Protection: 1KV DC
MTBF	475,352 hours @ 25° C 127,076 hours @ 70° C
Operating Temperature	-40° – 70° C (-40° – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	440 x 310 x 44mm (17.3 x 12.3 x 1.7 in.)
Weight	3.58kg (7.89 lbs.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)

PACKAGE CONTENTS

TI-RP262i
Quick Installation Guide
Console cable (RJ-45 to RS-232)
Rackmount Kit

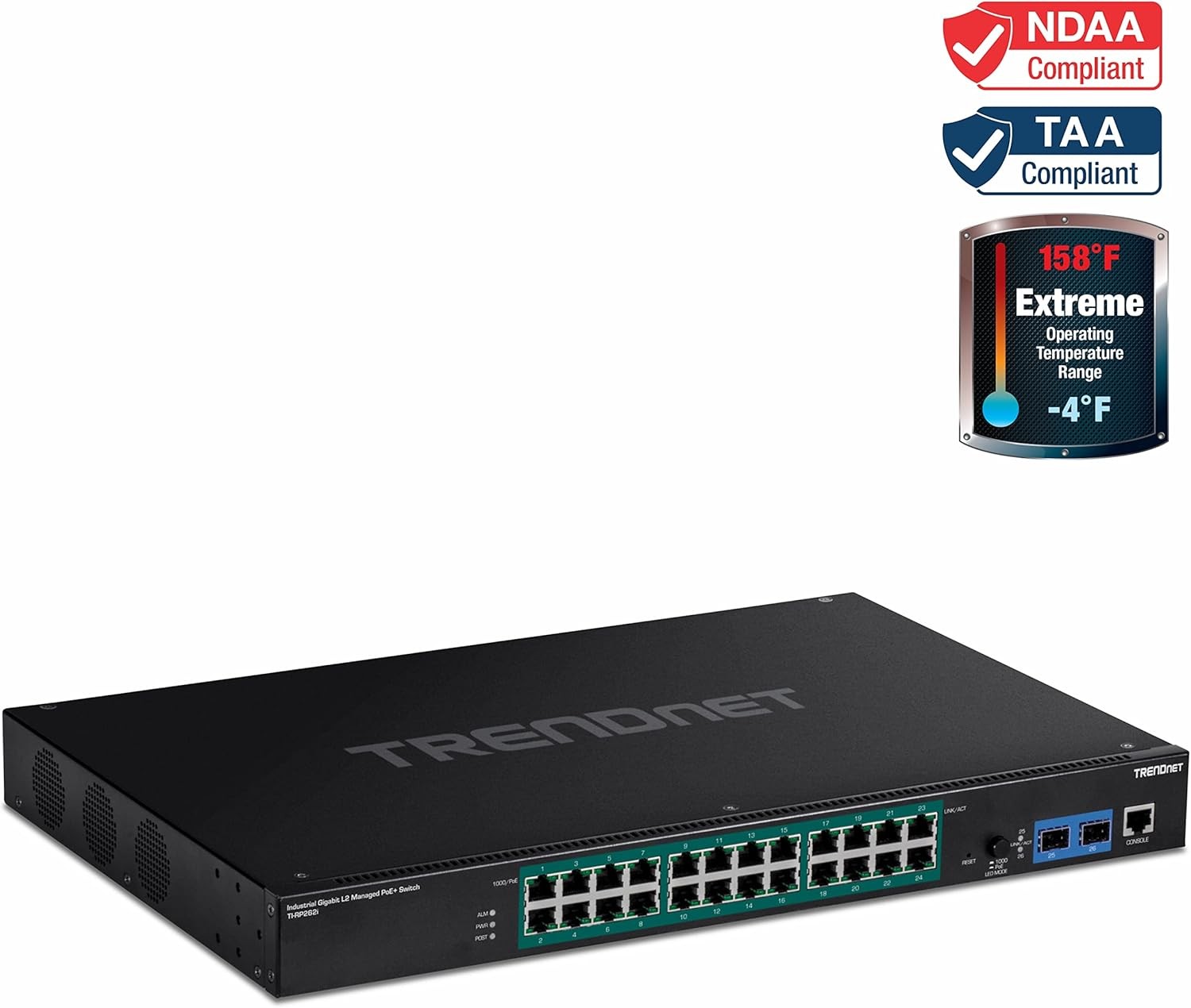

26-Port Industrial Gigabit L2 Managed PoE+ Rackmount Switch

24 x Gigabit PoE+ ports
2 x SFP slots
Supports 100/1000Base-FX fiber SFP modules
685W PoE power budget
PoE alive check restarts unresponsive PoE powered devices
52Gbps switching capacity
Hardened IP30 rated metal housing
Operating temperature range of -40° – 70° C (-40° – 158° F)
Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
IEEE 802.1p QoS with queue scheduling support
CLI (Console / Telnet / SSH), Web (HTTP/HTTPS), SNMP v1 / 2c / 3 management
IGMP Snooping / MVR support
802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support
Bandwidth control per port
Supports Ethernet Ring Protection Switching (ERPS)
19” rack mountable metal housing with included mounting kit
Multiple inputs provide power with overload current protection
Power supply sold separately (model: TI-RSP100048)
NDAA / TAA compliant
Lifetime Warrant
