OVERVIEW

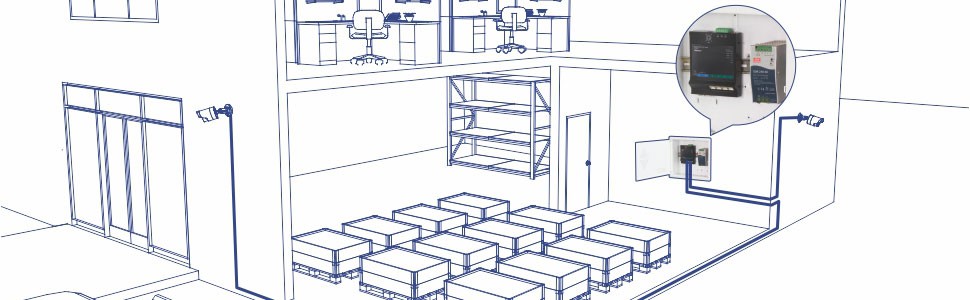

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

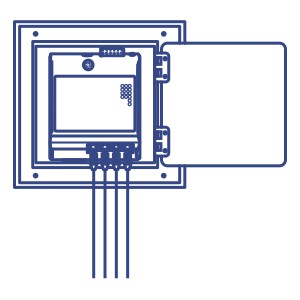

Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited

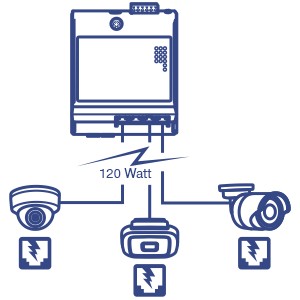

PoE+ Power

A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices

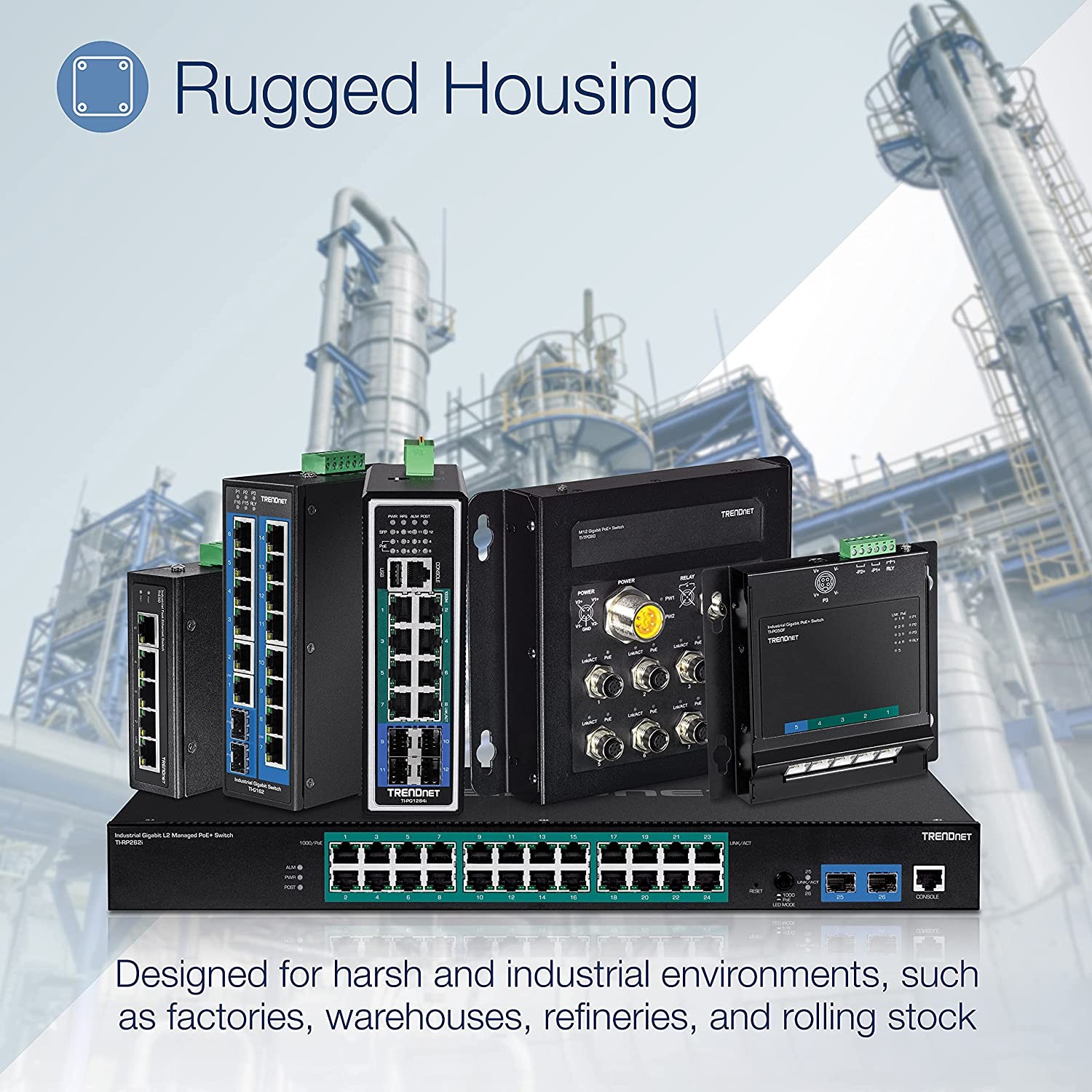

Hardened Industrial Design

Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

Compact

The flat and compact size is ideal for cabinet installations where space is limited

Wide Temperature Range

Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments

Jumbo Frames

Sends larger packets, or jumbo frames (up to 10KB), for increased performance

Grounding Point

Grounding point protects equipment from external electrical surges

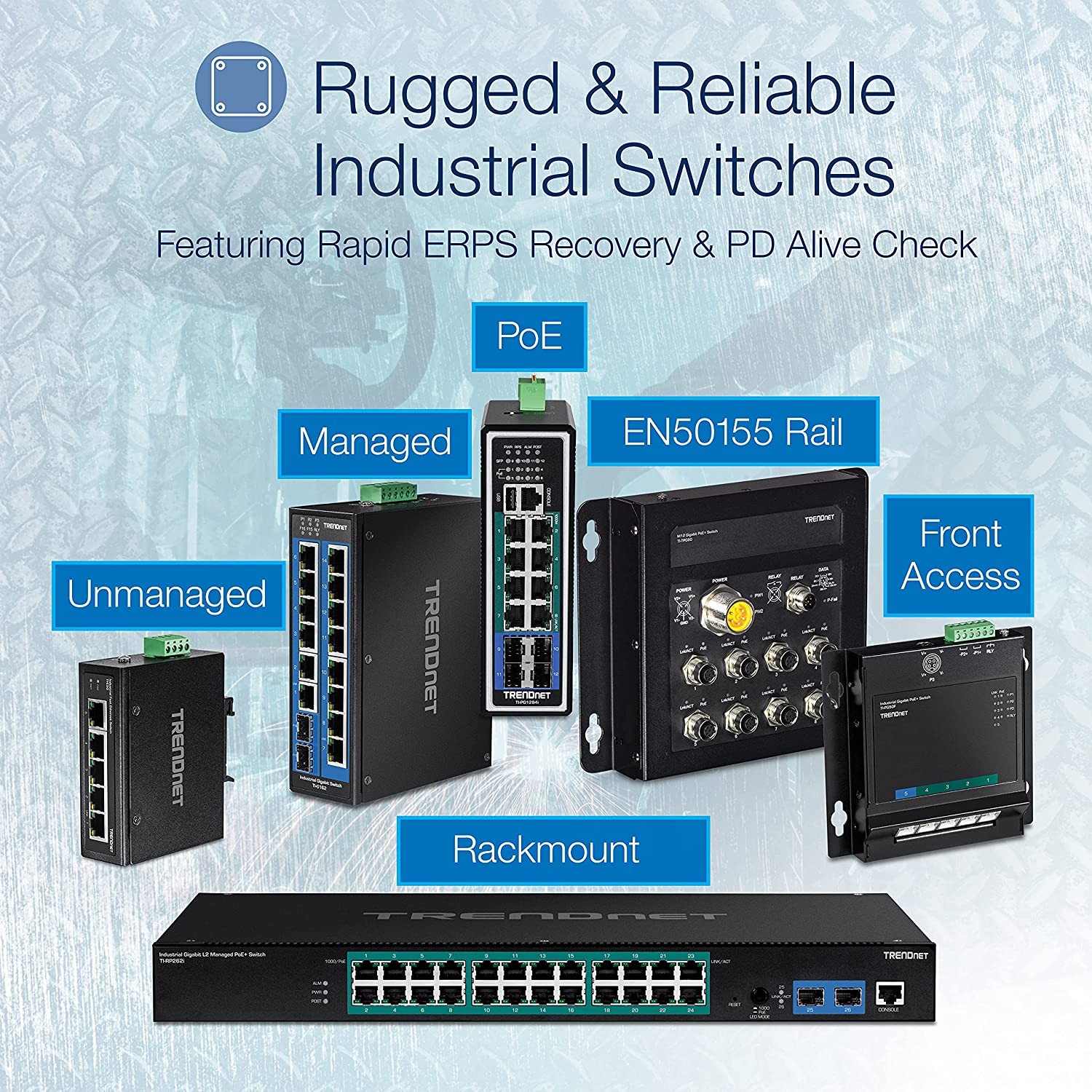

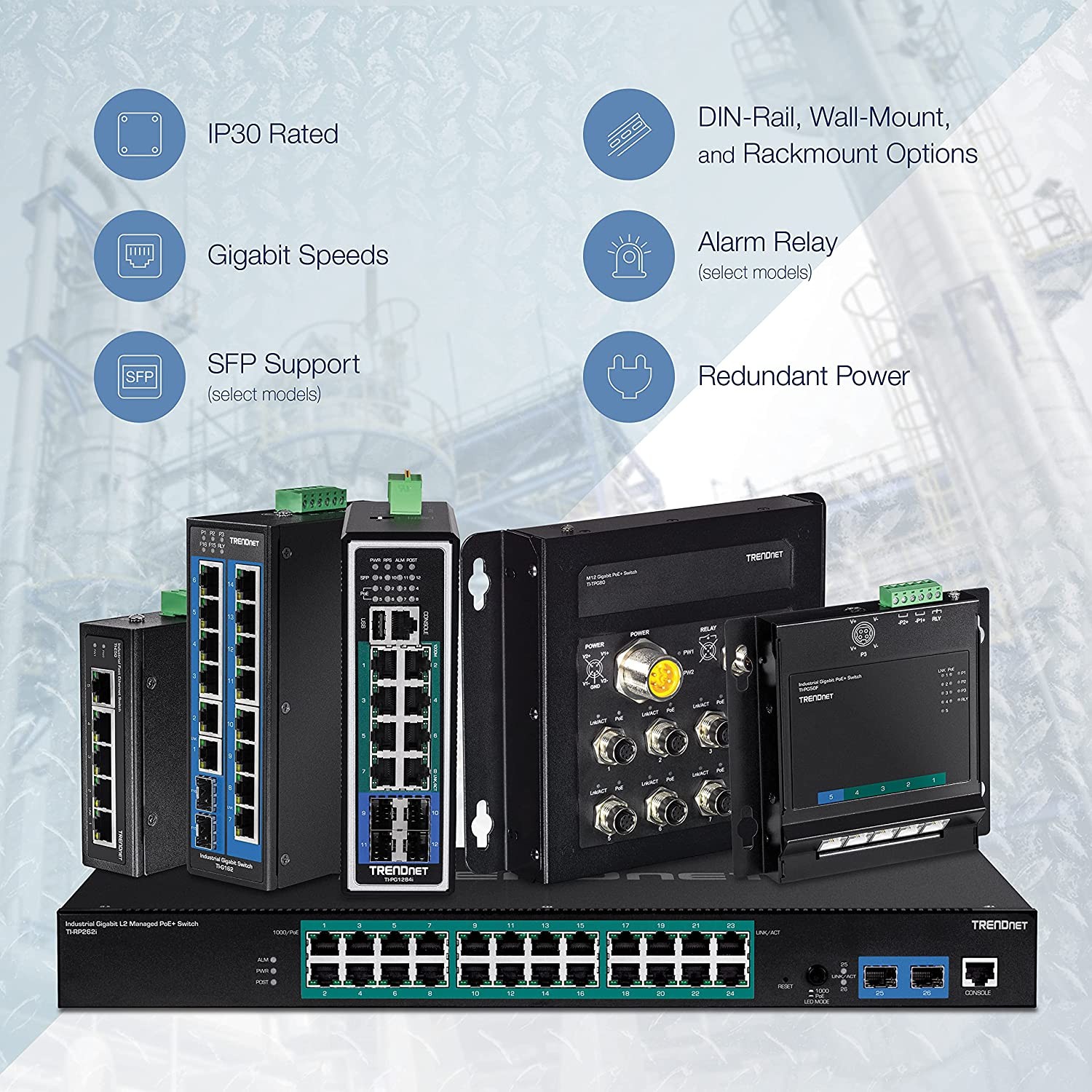

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

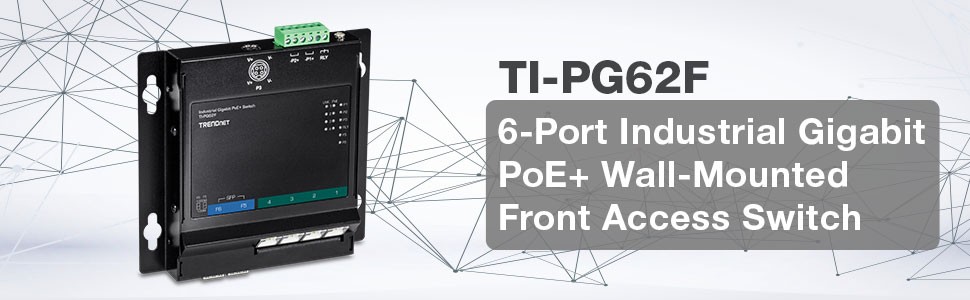

6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

4 x Gigabit PoE+ ports
2 x Gigabit SFP slots
120W PoE power budget
12Gbps switching capacity
Forwarding rate: 8.9Mpps (64-byte packet size)
Supports jumbo frames up to 10KB
Hardened IP40 rated metal housing

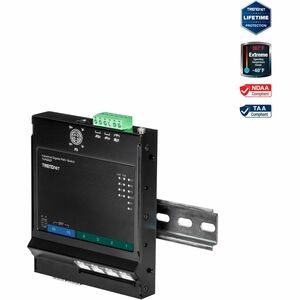

Includes DIN-Rail bracket and magnetic wall mount kit
Operating temperature range of -40° – 75° C (-40° – 167° F)
Redundant power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at

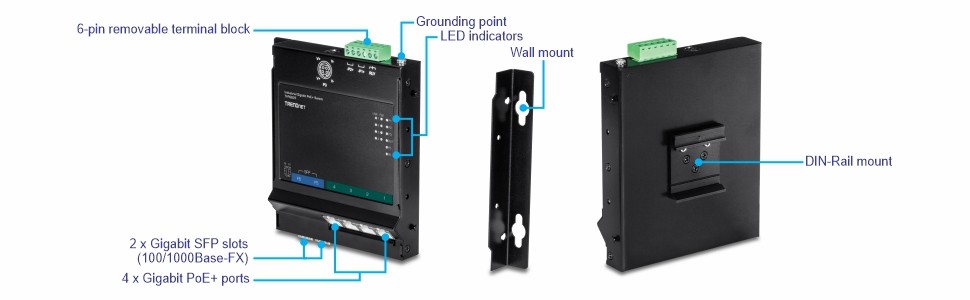

Device Interface	4 x Gigabit PoE+ ports 2 x Gigabit SFP slots (100/1000Base-FX) 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Magnet mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) SFP: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 128KB Switching Fabric: 12Gbps MAC Address Table: 1K entries Jumbo Frame: 10KB Forwarding rate: 8.9Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Redundant power inputs Power DIN adapter (sold separately: model 48VDC3000) ESD 8KV support Low-profile design
DC Power	Input: 48 – 56 V DC Compatible power supply: TI-S15052, TI-S24052, TI-S12048, TI-S24048 (sold separately) Max. consumption: 7.2W (no PoE)
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max.
PoE	PoE budget: 120W@56V DC
DIP Switch	DIP 1: OFF (F6 SFP 1000Mbps by default) ON (F6 SFP 100Mbps) DIP 2: OFF (F5 SFP 1000Mbps by default) ON (F5 SFP 100Mbps)
Terminal Block	Redundant power inputs, alarm relay contact, 6-pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	580,972 hours
Housing	IP40 metal case DIN-Rail mount Wall mount Magnet mount Grounding point
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	150 x 145 x 26.7mm (5.9 x 5.7 x 1.1 in.)
Weight	580g (1.28 lb.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG62F
Quick Installation Guide
Removable terminal block
DIN-Rail, wall and magnet mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
