OVERVIEW

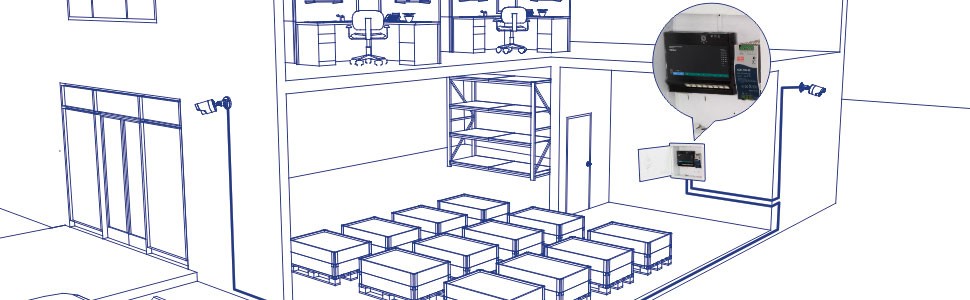

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited

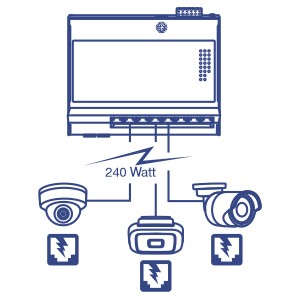

PoE+ Power

A 240W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices

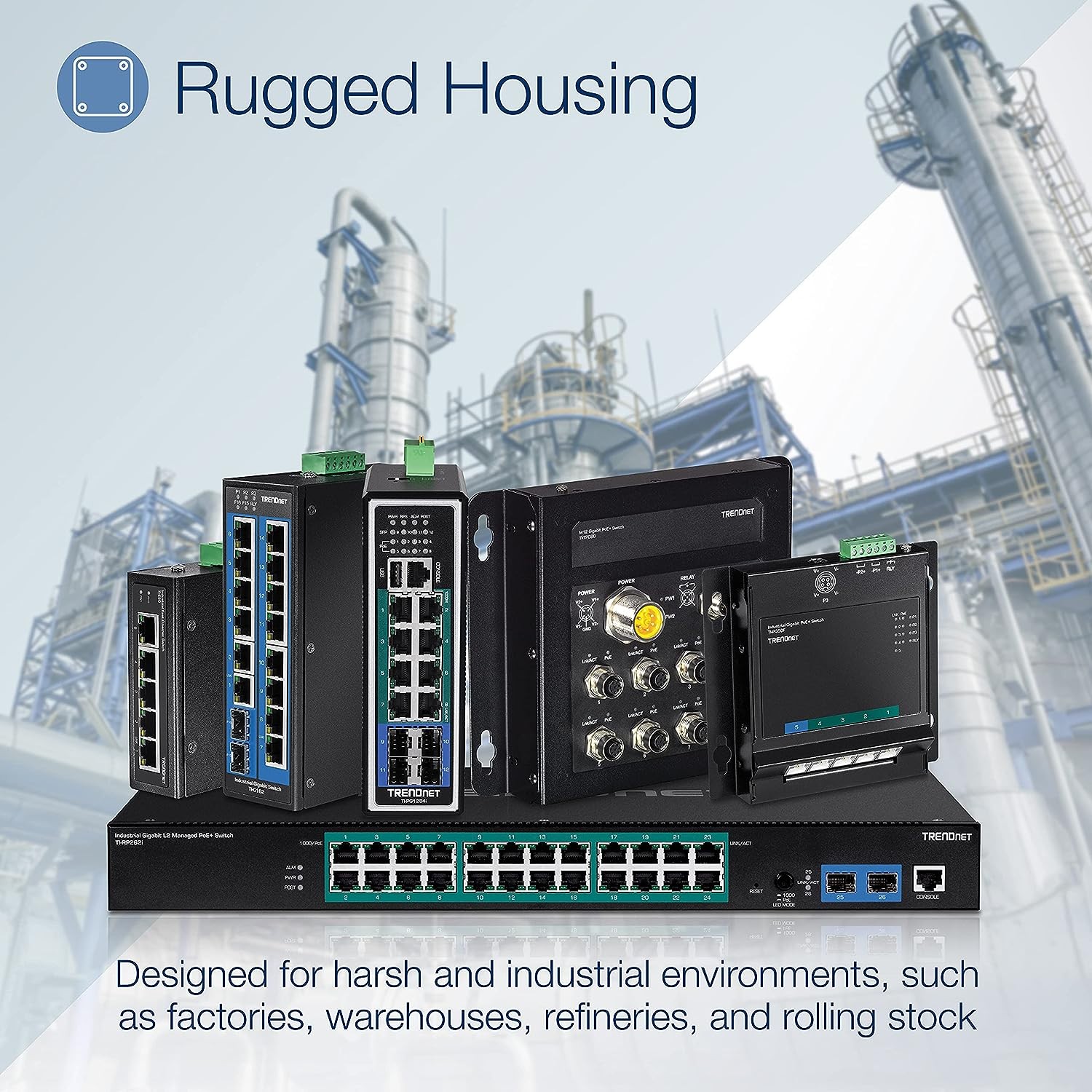

Hardened Industrial Design

Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

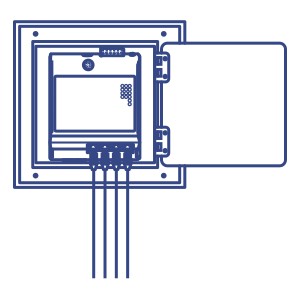

Compact

The flat and compact size is ideal for cabinet installations where space is limited

Alarm Relay

Alarm relay output triggered by power failure of primary or secondary power inputs

Shock and Vibration Resistant

Hardened design rated for shock freefall and vibration for industrial settings

Grounding Point

Grounding point protects equipment from external electrical surges

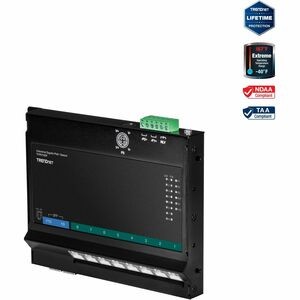

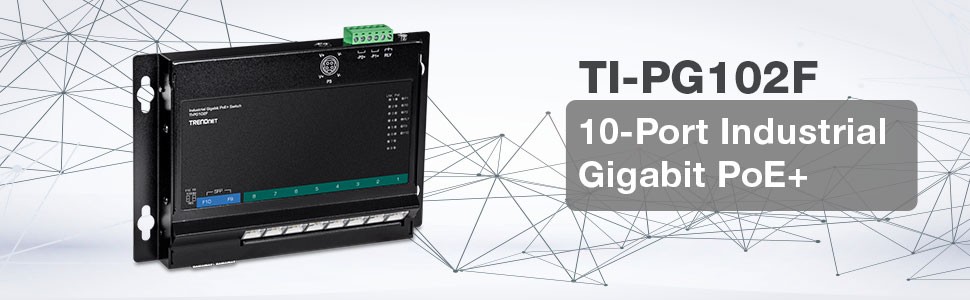

10-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

8 x Gigabit PoE+ ports
2 x Gigabit SFP slots
240W PoE power budget
20Gbps switching capacity
Forwarding rate: 14.88Mpps (64-byte packet size)
Supports jumbo frames up to 10KB
Hardened IP40 rated metal housing
Includes DIN-Rail Bracket and magnetic wall mount kit
Operating temperature range of -40° – 75° C (-40° – 167° F)
Redundant power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S24052, TI-S24048, , TI-S48048, and 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at

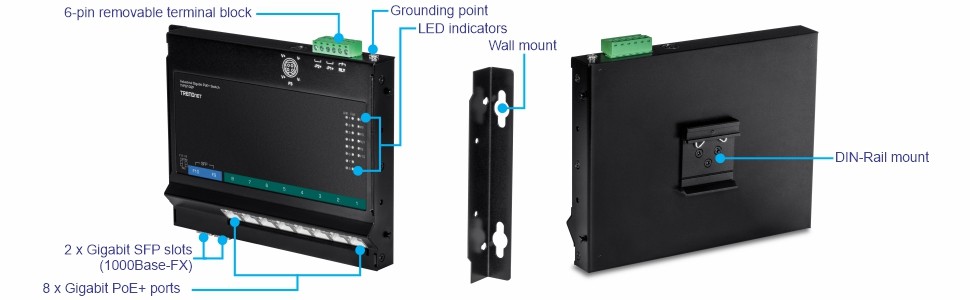

Device Interface	8 x Gigabit PoE+ ports 2 x Gigabit SFP slots (1000Base-FX) 6-pin removable terminal block LED indicators Wall mount DIN-Rail mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) SFP: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 0.25MB (Change unit of measure) Switching Fabric: 20Gbps MAC Address Table: 11K entries Jumbo Frame: 10KB Forwarding rate: 14.88Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Redundant power inputs Power DIN adapter (sold separately: model 48VDC3000) ESD 8kV support Low-profile design
DC Power	Input: 48 – 56V DC Recommended power supply: TI-S24052, TI-S24048, TI-S48048 (sold separately) Max. consumption: 4.8W (no PoE)
Optional Power DIN Adapter (48VDC3000 sold separately)	Input: 100 – 240V AC, 50/60Hz, 2A Output: 48V DC, 3.34A 160W max.
PoE	PoE budget: 240W
Terminal Block	Redundant power inputs, alarm relay contact, 6-pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – in. / 0.5Nm / 0.56Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	459,123 hours
Housing	IP40 metal case DIN-Rail mount Wall mount Grounding point
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	150 x 145 x 23mm (5.9 x 5.7 x 1 in.)
Weight	635g (22.5 oz.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG102F
Quick Installation Guide
Removable terminal block
DIN-Rail and magnetic wall mount kits

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
