OVERVIEW

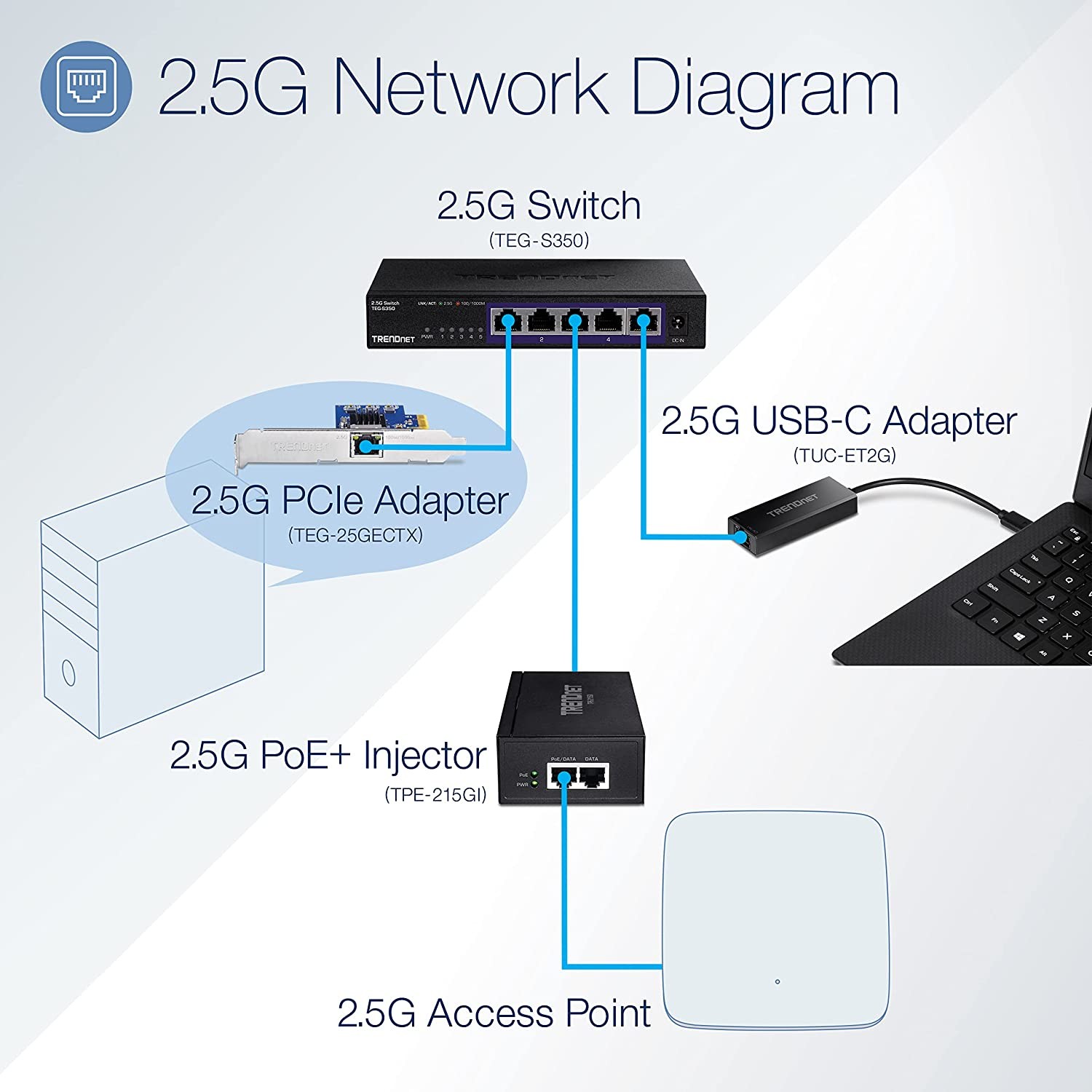

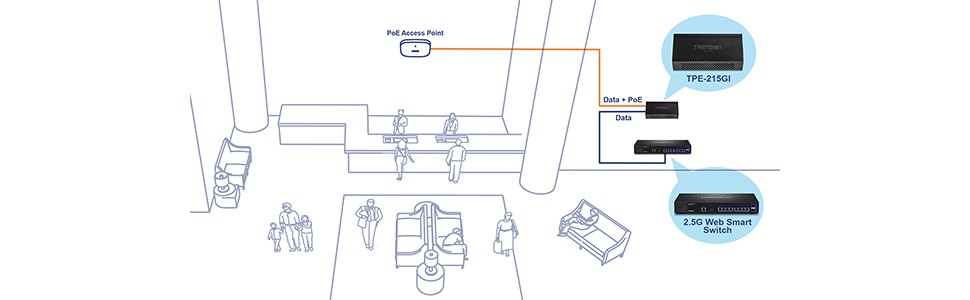

TRENDnet's 2.5G PoE+ Injector, model TPE-215GI, combines electrical power with a 2.5GBASE-T network connection to produce a 2.5G PoE+ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE and PoE+ devices. Connect the 2.5G PoE+ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) away. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

PoE+

The 2.5G PoE+ injector supplies a PoE device with PoE (15.4W) or PoE+ (30W) power.

Installation Flexibility

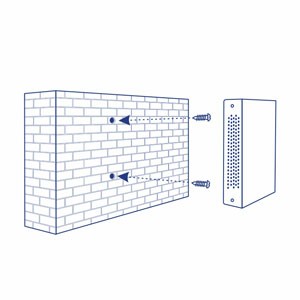

Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios.

2.5G Speeds

Equipped with a 2.5GBASE-T RJ-45 port providing network speeds of up to 2.5Gbps over existing Cat5e or better cabling.

Installation Flexibility

Wall-mount design and a sturdy metal housing accommodates most installations scenarios

Easy Installation

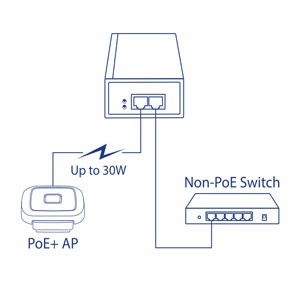

Simply connect the 2.5G PoE+ injector to your switch and PoE device – no configuration needed

LED Indicators

LED indicators on the 2.5G PoE+ injector confirm PoE and network connectivity

PoE+

2.5G PoE+ injector supplies a PoE device with PoE (15.4W) or PoE+ (30W) power

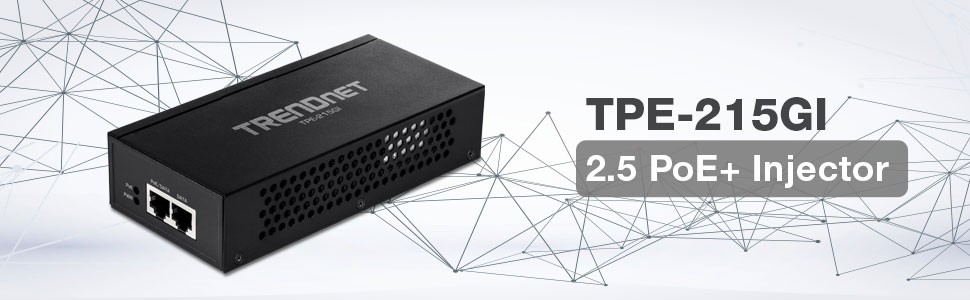

TRENDnet 2.5G PoE+ Injector - TPE-215GI

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bz

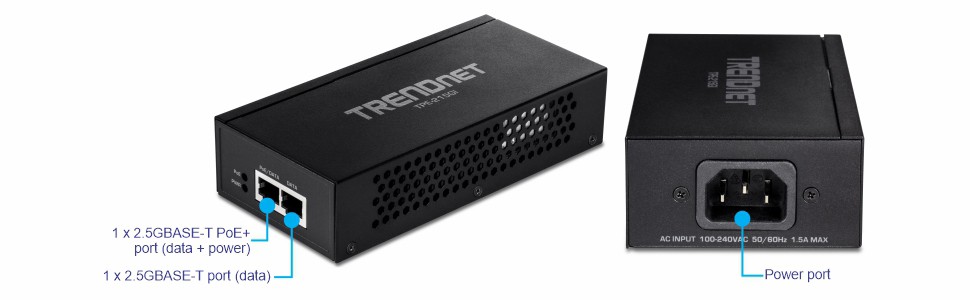

Device Interface
  • 1 x 2.5GBASE-T port (data)
  • 1 x 2.5GBASE-T PoE+ port (data + power)
PoE Budget
  • Max. 30W
Power Consumption
  • Max. 0.7W (without PD)
Temperature
  • 0 – 40° C (32 – 104° F)
Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • ETL
Dimensions
  • 154 x 73 x 36mm (6 x 2.9 x 1.4 in.)
Weight
  • 386g (0.85 lbs.)
Warranty
  • 3 year
PACKAGE CONTENTS
  • TPE-215GI
  • Quick Installation Guide
  • Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
