OVERVIEW

TRENDnet's Industrial Gigabit DIN-Rail Switches are reliable and rugged networking solutions that are designed for use in both extreme and demanding environments. Each Industrial Gigabit DIN-Rail Switch features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Our hardened industrial switch models feature copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications.

Gigabit Ports

This Industrial switch features copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

Redundant Power

Multiple power inputs provide redundant power with overload current protection on this hardened industrial switch, minimizing overall network downtime (power supplies sold separately).

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).

Grounding Point

Industrial switches feature a grounding point for protection against external electrical surges

DIN-Rail / Wall Mounts

IP30 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for the installations of the industrial switches in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock , freefall , and vibration

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z

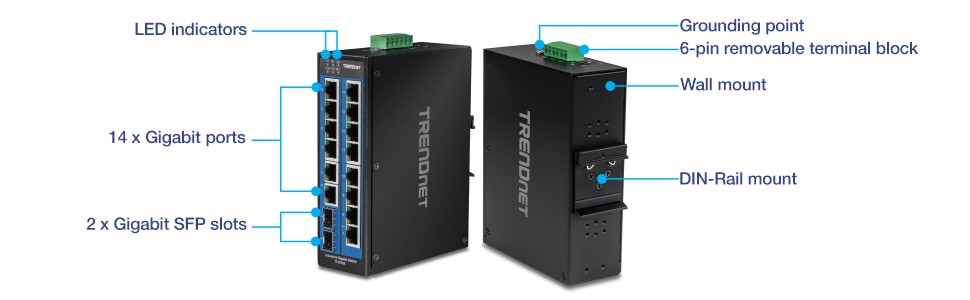

Device Interface	14 x Gigabit ports 2 x Gigabit SFP slots 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) SFP: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 512KB Switching Fabric: 32Gbps MAC Address Table: 8K entries Jumbo Frame: 9KB Forwarding rate: 23.8Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Multiple power inputs ESD contact 6kV, air 8kV, and surge 2kV support Low-profile design
DC Power	Input: 12 – 56V DC Recommended power supply: TI-M6024 (sold separately) Max. consumption: 13W
Optional Power Adapter (48VDC3000 sold separately)	Input: 100 – 240V AC, 50/60Hz, 2A Output: 48V DC, 3.34A 160W max.
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	514,167 hrs @ 50° C 188,310 hrs @ 75° C
Housing	IP30 metal case DIN-Rail mount Wall mount Grounding point 6kV contact protection 8kV air protection 2kV surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	155 x 120 x 48mm (6 x 4.7 x 1.9 in.)
Weight	536g (18.9 oz.)
Certifications	CE FCC MET Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-G162
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
