OVERVIEW

TRENDnet’s AC2200 WiFi Mesh Router System is designed to blanket your home or small office in seamless WiFi coverage. The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage.

The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app. In minutes, you’ll have your AC2200 WiFi Mesh Router System up and running providing whole home WiFi coverage.

Mesh Made Simple

The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app

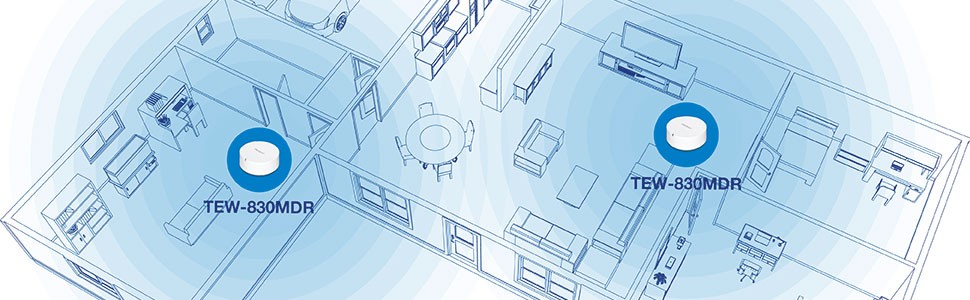

Whole Home WiFi Coverage

The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage

Router Limits

Router Limits' innovative tools offers an enhanced user experience for device-level scheduling and filtering capabilities. Offering access to these advanced web content filtering and productivity tools allows you to take control of your Internet, whether it be for business or home

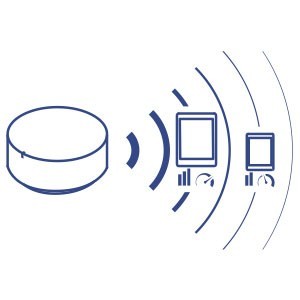

Airtime Fairness

This smart WiFi feature calculates and determines which clients have priority over others. Clients that are faster and closer to the Mesh Router will have the highest priority while clients that are slower and farther away will have lower priority, freeing up WiFi resources

Band Steering

With band steering technology, the mesh router system alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the 5GHz band

Targeted Beamforming

Beamforming increases real-time performance by directing stronger wireless signals to your specific location. Beamforming improves wireless range, reception, and throughput

Monitoring

The TRENDnet WiFi Mesh app allows you to monitor each WiFi mesh router and connection status of network devices

Parental Controls

Limit access to specific websites and control connected device access to the network

Guest Network

Create an isolated WiFi network for guest internet access

Pre-Encrypted

For your convenience, the wireless network on the mesh router system is pre-encrypted with its own unique password

IPv6

IPv6 network support

Gigabit Ports

1 x Gigabit WAN Port, 1 x Gigabit LAN Port

USB 3.0 Share Port

Share content across the network with the USB 3.0 share port on each mesh router

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 400Mbps @ 256QAM)* IEEE 802.11ac (5GHz1: up to 867Mbps, 5GHz2: up to 867Mbps @ 256QAM)*

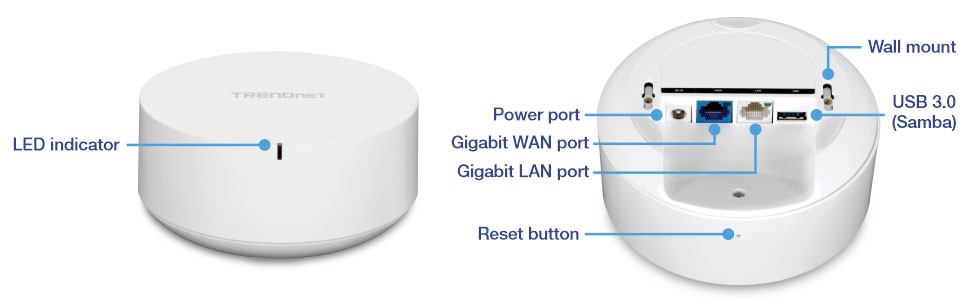

Device Interface	1 x Gigabit LAN port 1 x Gigabit WAN port 1 x USB 3.0 (Samba) Reset button LED indicator
Special Features	Easily expand your WiFi mesh network coverage with additional TRENDnet WiFi mesh router Multi-User MIMO for increased bandwidth efficiency and better user experience* Seamless WiFi roaming Multi-Language app interface: English, Traditional Chinese, German, Italian, Swedish, French, Spanish, Dutch IPv6 support Samba support Implicit/Explicit Beamforming Band Steering
Access Control	WiFi encryption: WPA/WPA2-PSK AES WiFi Guest network Hide WiFi Name/SSID Wireless client isolation NAT Port forwarding DMZ host UPnP DoS prevention Allow/deny WAN ping requests Parental controls (Set schedules for Internet access or filter by keyword or custom websites) Manage screen time, filter content, monitor bandwidth, and track browsing history with Router Limits™ web management system
Quality of Service	Set client device priority (Normal/High priority) WMM
Internet Connection Types	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP/Static IP) PPTP (Dynamic IP/Static IP) L2TP(Dynamic IP/Static IP) IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6rd)
Management/Monitoring	HTTP/HTTPS local/remote web-based management Internal system logging Mesh connection quality display Client device list Internet speed test Manual or online firmware upgrade and notification Backup and restore configuration Internal logging Restore to factory default Router/Bridge operation modes Static routes
Frequency	2.412 - 2.472GHz 5.180 – 5.825GHz
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	2.4GHz: 2 x 4.03 dBi (max.) / 5GHz: 4 x 5.64 dBi internal antennas
Receiving Sensitivity	802.11a: -73 dBm (typical) @ 54Mbps 802.11b: -90 dBm (typical) @ 11Mbps 802.11g: -76 dBm (typical) @ 54Mbps 802.11n (2.4GHz): -89 dBm (typical) @ 300Mbps 802.11n (5GHz): -86 dBm (typical) @ 300Mbps 802.11ac: -83 dBm (typical) @ 867Mbps
Wireless Channels	2.4GHz: FCC: 1–11 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Power	Input: 100 – 240V AC, 50/60Hz Output: 12V DC, 1.5A external power adapter Max. Consumption: 15.12W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	FCC IC
Dimensions	126 x 126 x 60mm (4.96 x 4.96 x 2.36 in.)
Weight	372g (13.1 oz.)
Warranty	3 year

PACKAGE CONTENTS

TEW-830MDR Quick Installation Guide Network cable 0.5m (1.6 ft.) Power adapter (12V DC, 1.5A) Wall mount screws

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials, and other conditions. For maximum performance of up to 867Mbps, use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 400Mbps, use with a 400Mbps 802.11n wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.
