Advanced Thunderbolt 3 docking station adds multiple connectivity ports to your Thunderbolt 3 or USB-C DP Alt mode enabled computer, notebook, or laptop

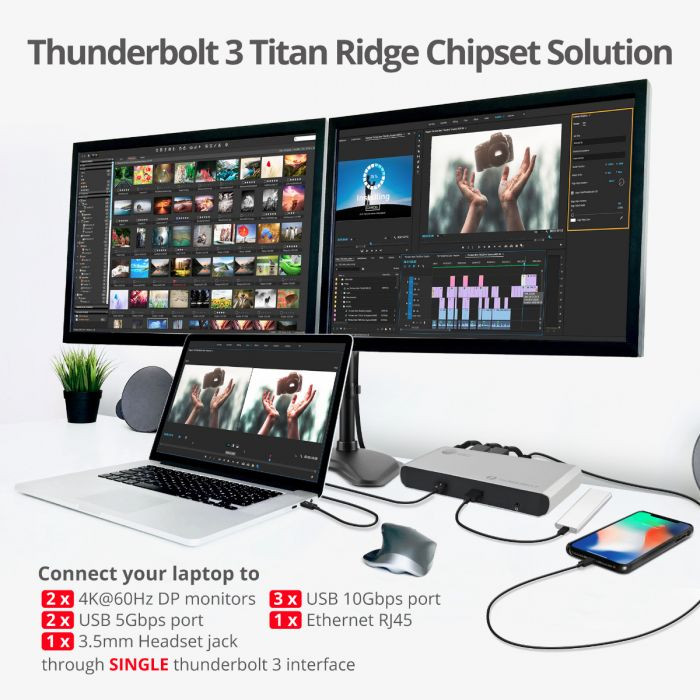

This Thunderbolt 3 dock comes with next generation Intel Titan Ridge IC making the docking station compatible with Thunderbolt 3 and USB-C DP Alt mode compliant systems become the fastest connection
High Performance

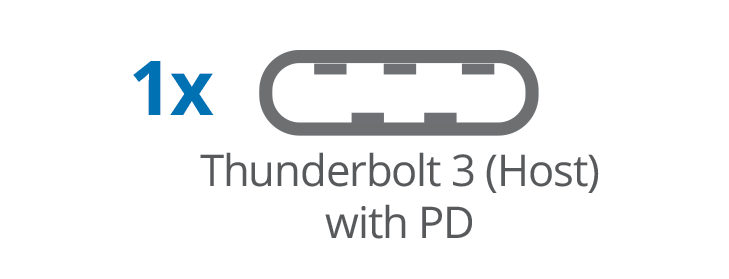

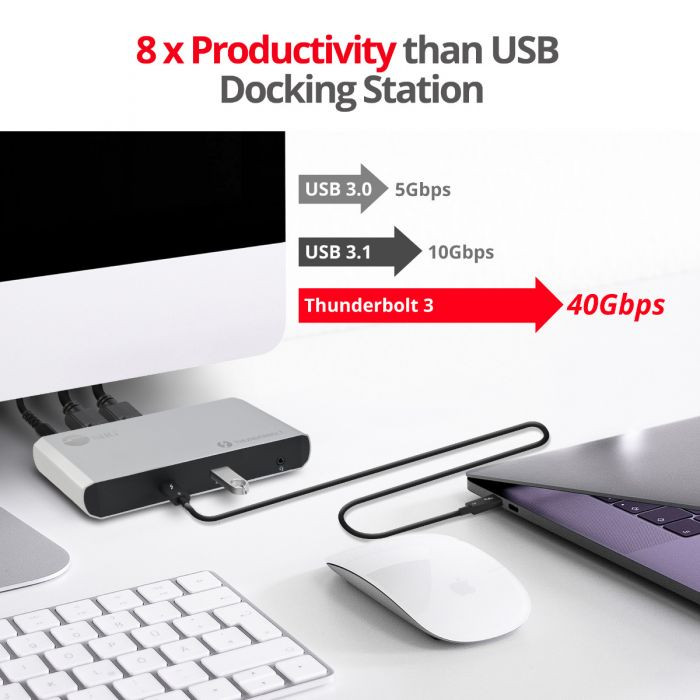

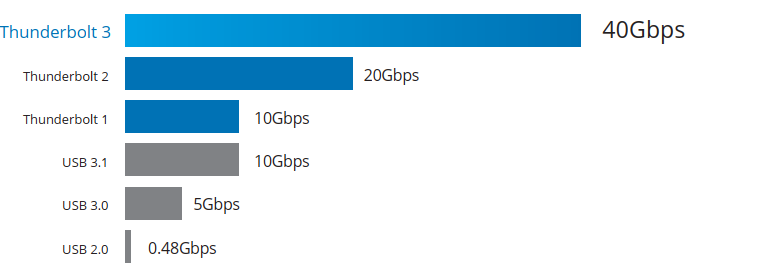

Expand multiple connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency and allows data transfer speeds up to 40Gbps and daisy-chain up to 6 Thunderbolt devices

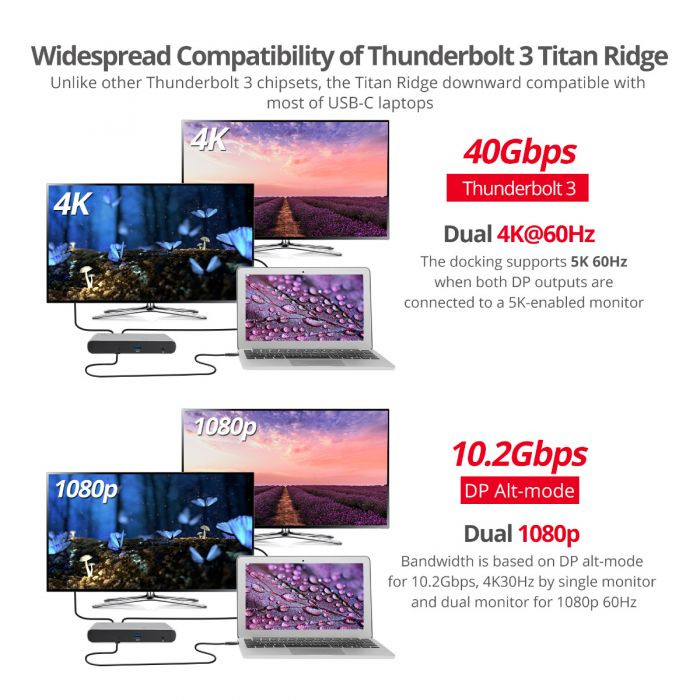

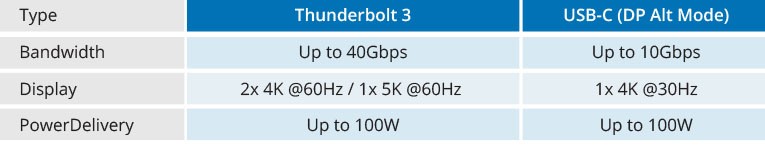

* When connecting to a DP Alt mode USB-C host port the resolution will be 4K@30Hz for single DisplayPort monitor or 1080p for two DisplayPort monitors
*
Compatibility Notes:
- The thunderbolt 3 has the same design as the USB-C port. Thunderbolt 3 has the capabilities of USB-C, but USB-C does not have the capabilities of Thunderbolt 3
- The Docking's Thunderbolt 3 output does not work when connecting to non-Thunderbolt 3 USB-C port
- The USB Type-C connector with DisplayPort technology via an Alternative Mode (Alt mode) and allows a USB-C equipped computer and cable to connect directly to a display/monitor
High-Resolution Graphics

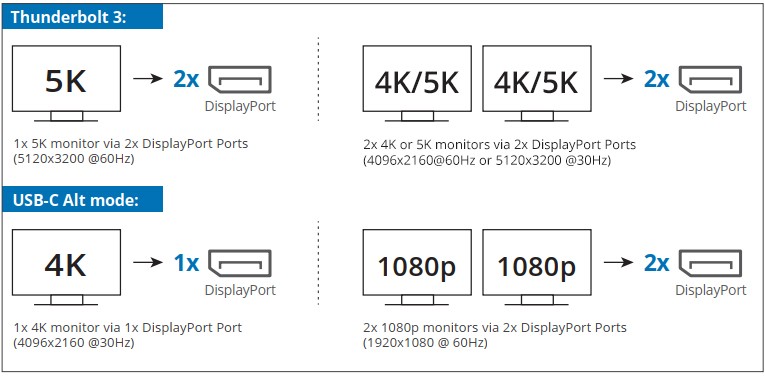

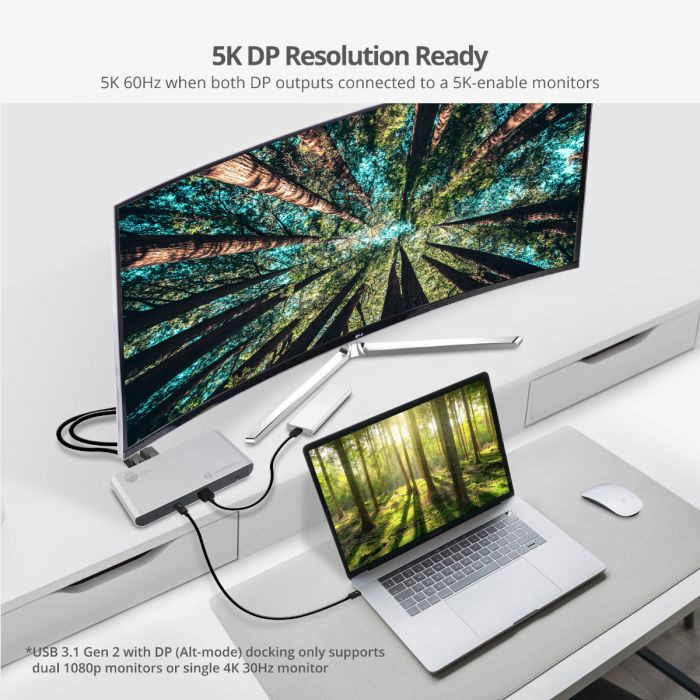

Allows you to connect two 4K Ultra HD displays through DisplayPort connections or a single 5K@60Hz display through dual DisplayPort connection when connected to a Thunderbolt 3 port
Multiple Connectivity Ports

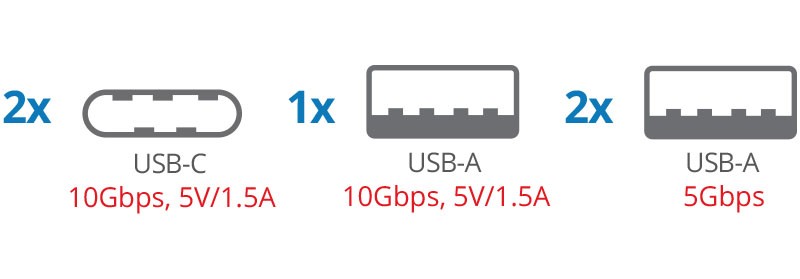

Adds two DisplayPort video ports, two USB 3.1 Gen2 Type-C ports, three USB 3.1 Type-A (1 Gen2 with BC 1.2 charging, 2 Gen1) ports, one Gigabit Ethernet port, and one dual mode 3.5mm audio jack to connect headphones / Stereo speakers or microphone input

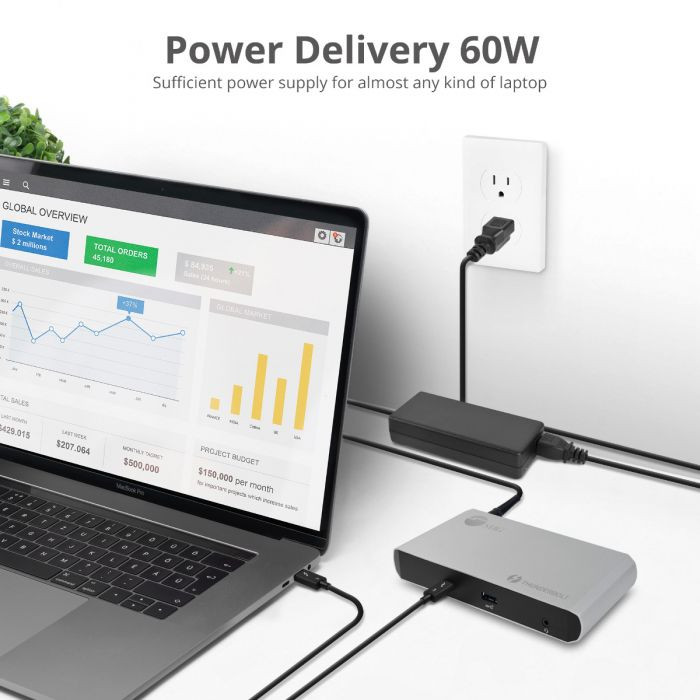

60W Power Delivery
PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone.
Includes 135W power adapter to provide enough power for the connected peripherals
High-Speed Data Transfer
Delivers USB 3.1 Gen 2 10Gbps transfer rate for USB Type-C port and 1 USB Type-A port (front side)

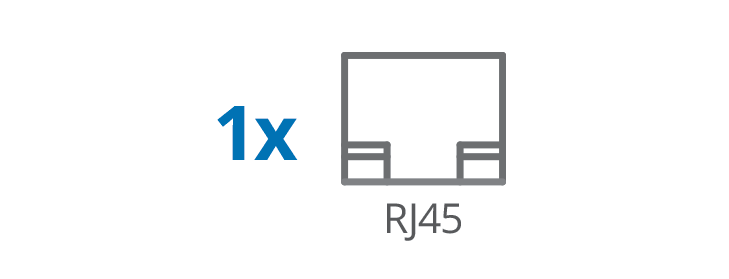

1G Ethernet Data Transmission
Up to 1000Mbps data transfer rate and seamless backward compatible with 10/100Mbps
Aluminum Housing Design
Premium aluminum housing provides efficient heat dissipation for reliable performance and long life
