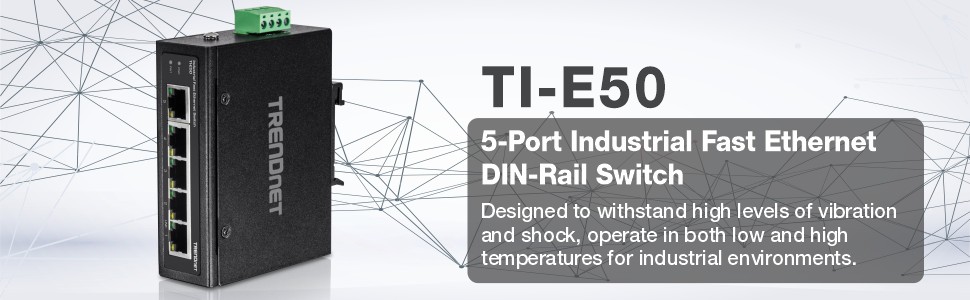

TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.

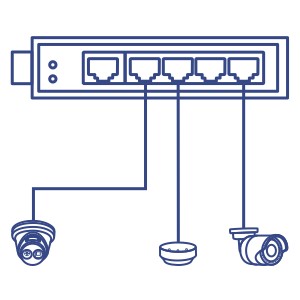

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

Redundant Power

The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F).

Easy Installation

Industrial Ethernet switches feature a quick and easy installation process with an intuitive guided setup

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with DIN-Rail mount and wall mount hardware included

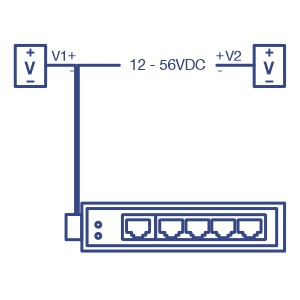

Redundant Power

Dual power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x

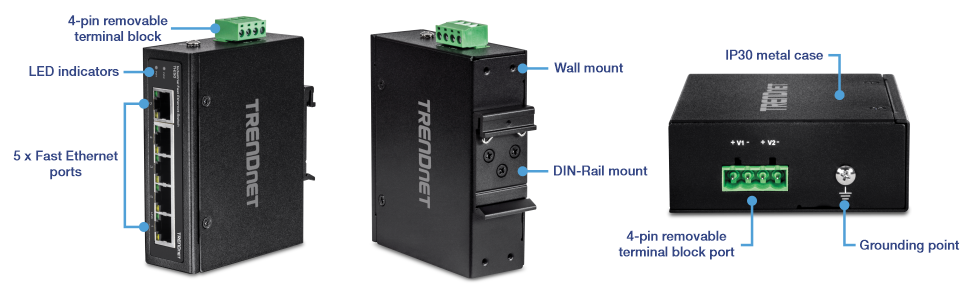

Device Interface	5 x Fast Ethernet ports 4-pin removable terminal block LED indicators Wall mount DIN-Rail mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance	Data RAM Buffer: 56KB (change unit of measure) Switching Fabric: 1Gbps MAC Address Table: 1K entries Forwarding rate: 0.744Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Redundant power inputs ESD 8kV support Low-profile design
DC Power	Input: 12 – 56V DC Recommended power supply: TI-M6024 (sold separately) Max. consumption: 2.24W
Terminal Block	Redundant power inputs, 4-pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – in. / 0.5Nm / 0.56Nm Wire strip length: 7-8mm
MTBF	510,304 hours
Housing	IP30 metal case DIN-Rail mount Wall mount Grounding point
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	104 x 82 x 32mm (4 x 3.2 x 1.25 in.)
Weight	486g (17.1 oz.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-E50
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
