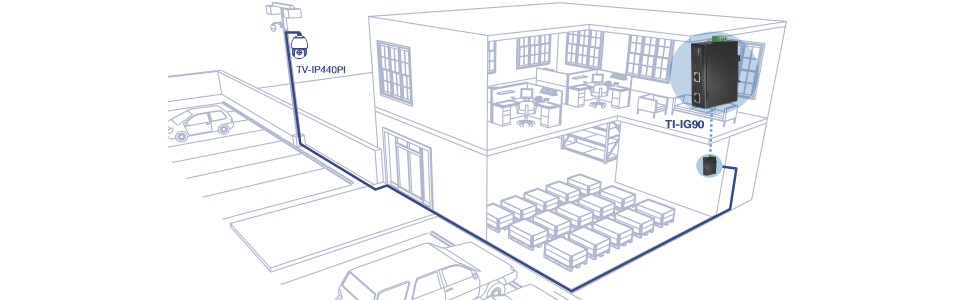

TRENDnet's TI-IG90 is a reliable IP30 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or PoE++ (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.

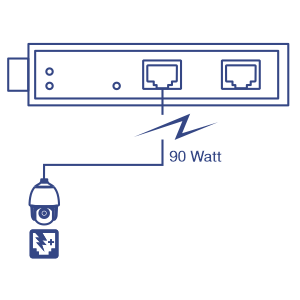

4-Pair PoE

Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 90W) device.

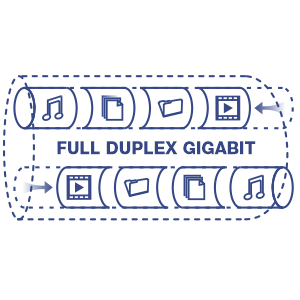

Gigabit Ports

The industrial PoE injector features 1 x gigabit port and 1 x gigabit PoE++ port.

Installation Flexibility

A rugged IP30 rated metal enclosure with DIN-rail and wall mount brackets accommodate most installations scenarios.

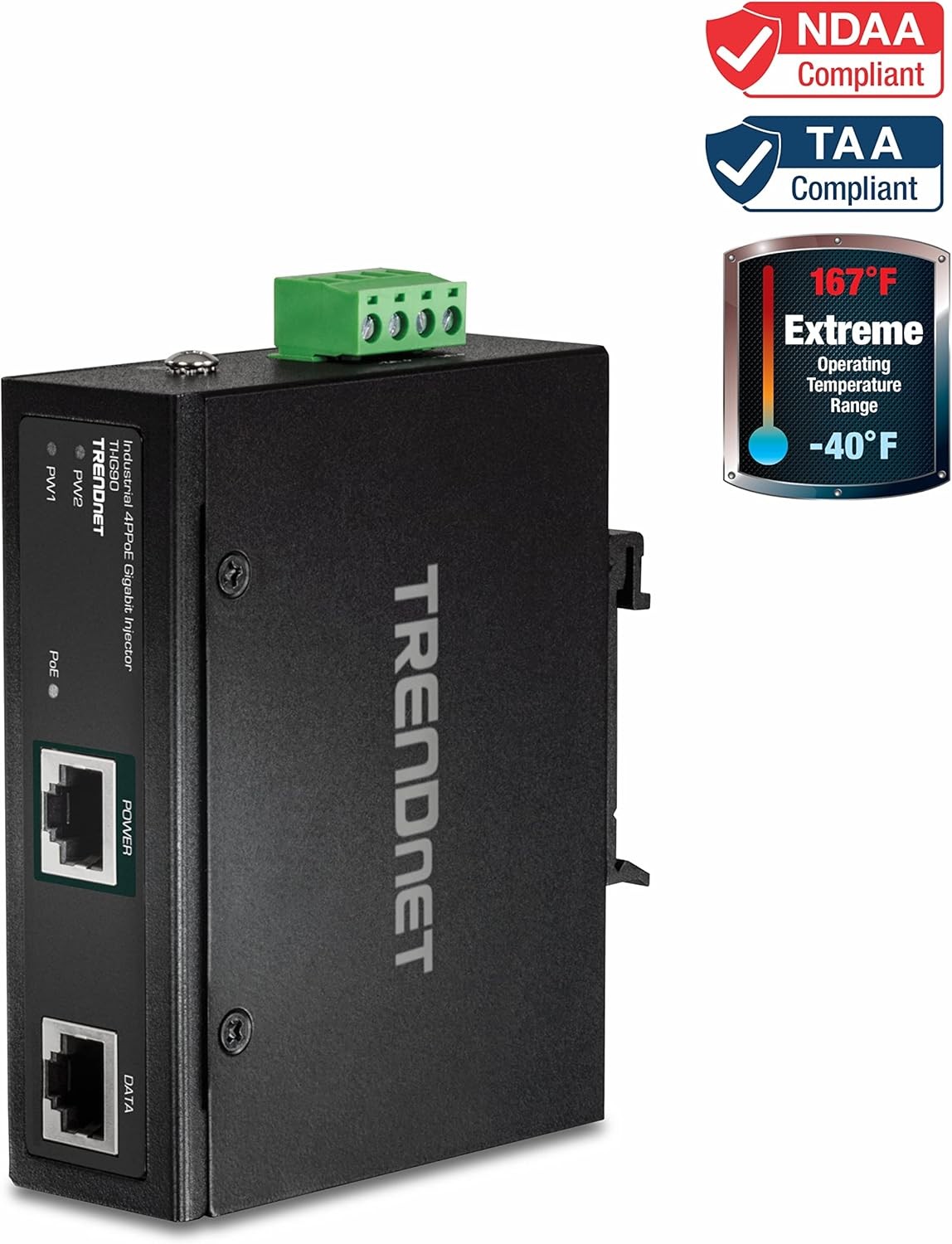

Hardened Industrial 90W Gigabit PoE++ Injector

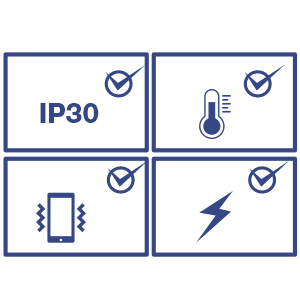

Hardened IP30 rated Gigabit PoE++ Injector
PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
Network a PoE device located up to 100m (328 ft.) away
Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
Redundant power inputs with overload current protection
Includes DIN-rail mount and wall mount
Power supply sold separately (model TI-S15052, TI-S12048)
NDAA / TAA compliant

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt

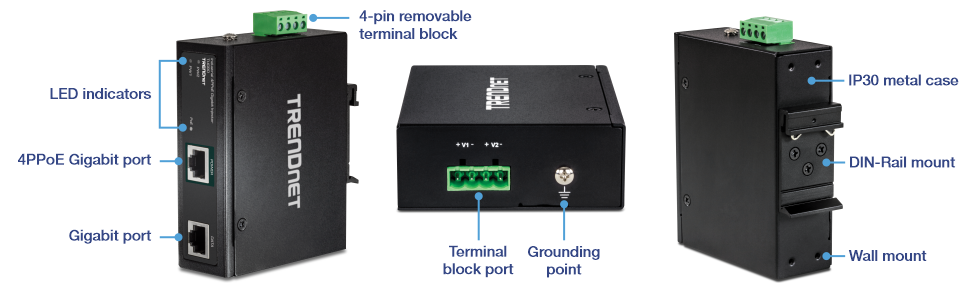

Device Interface	1 x Gigabit port 1 x PoE++ Gigabit port 4-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Special Features	90W 4-Pair PoE port Hardened components rated for extreme temperatures Redundant power inputs Auto-Negotiation ESD contact 6kV, air 8kV, and surge 2kV protection
Power	Input: 52 – 56 V DC Compatible power supply: TI-S15052, TI-S12048 (sold separately) Max. consumption (PoE): 95W
PoE	PoE budget: 90W Pin 3,6 for power+ and pin 1,2 for power- Pin 4,5 for power+ and pin 7,8 for power-
Terminal Block	Redundant power inputs, 4 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
MTBF	>716,685 hours
Housing	IP30 metal case DIN-rail mount Wall mount Grounding point 6kV contact, 8kV air ESD protection 2kV surge protection
Operating Temperature	- 40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95 % non-condensing
Dimensions (L x W x H)	104 x 82 x 32mm (4.1 x 3.2 x 1.2 in.)
Weight	154g (5.4 oz.)
Certifications	CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	3 year

PACKAGE CONTENTS

TI-IG90
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
