Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It’s flat and compact size make it ideal for cabinet installations where space is limited

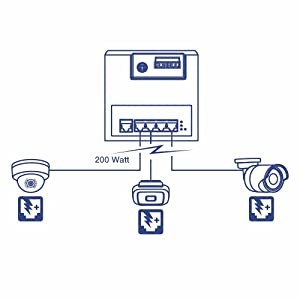

PoE+ Power

A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices

Hardened Industrial Design

Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

PoE Power

Supplies up to 30W of PoE+ power per port with a 120W power budget

Hardware Design

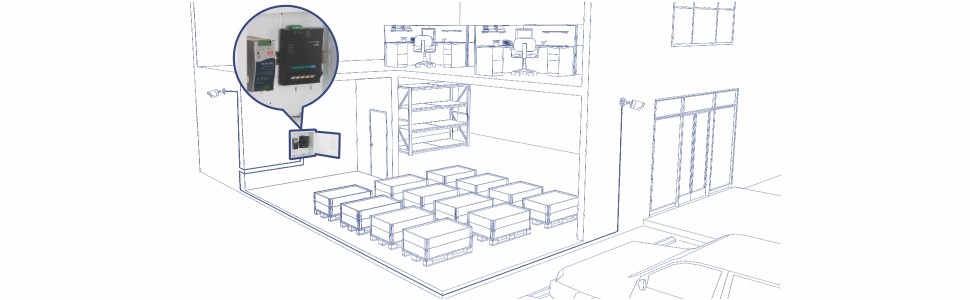

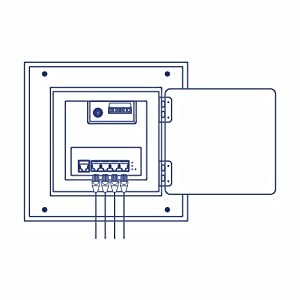

Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact

The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

DIN-Rail Mount

Includes DIN-Rail mounting bracket

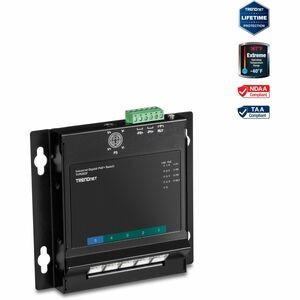

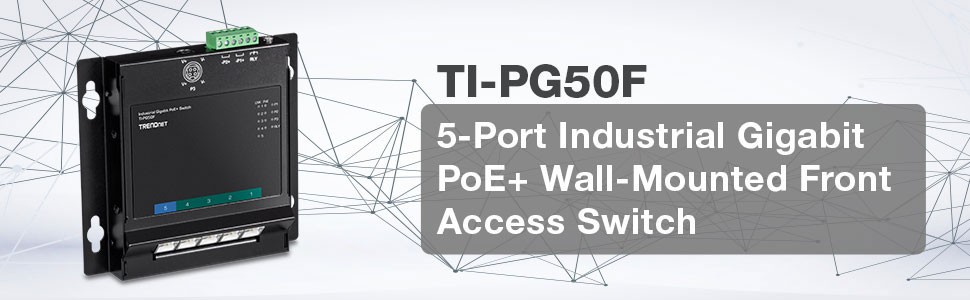

5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

4 x Gigabit PoE+ ports
1 x Gigabit port
120W PoE power budget
10Gbps switching capacity
Supports jumbo frames up to 9KB
Hardened IP40 rated metal housing
Includes DIN-Rail bracket and magnetic wall mount kit
Operating temperature range of -40° – 75° C (-40° – 167° F)
Redundant power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at

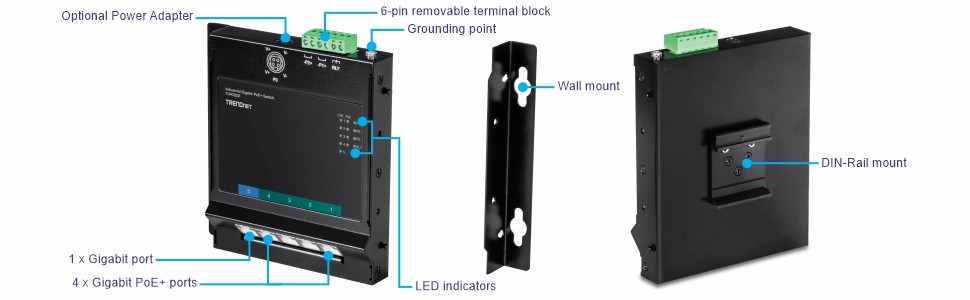

Device Interface	4 x Gigabit PoE+ ports 1 x Gigabit port 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 1024KB Switching Fabric: 10Gbps MAC Address Table: 2K entries Jumbo Frame: 9KB Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Dual redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging ESD 8KV support
DC Power	Input: 48 – 56V DC Compatible power supply: TI-S15052, TI-S24052, TI-S12048, TI-S24048 (sold separately) Max. consumption: 5W (no PoE)
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max.
PoE	PoE budget: 120W @56V DC
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	454,556 hours
Housing	IP40 metal case DIN-Rail mount Wall mount Magnet mount Grounding point
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	120 x 145 x 25mm (4.7 x 5.7 x 1 in.)
Weight	510g (1.2 lb.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG50F
Quick Installation Guide
Removable terminal block
DIN-Rail, wall and magnet mount kit
