OVERVIEW

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Wall-Mounted Front Access Switch

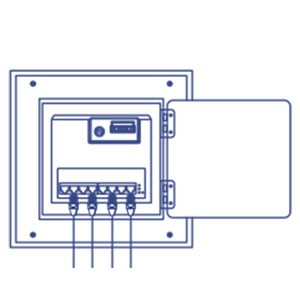

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It’s flat and compact size make it ideal for cabinet installations where space is limited

PoE+ Power

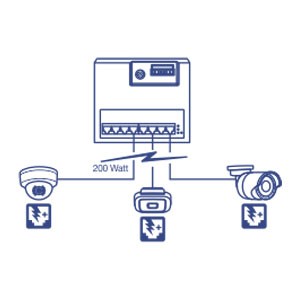

A 200W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices

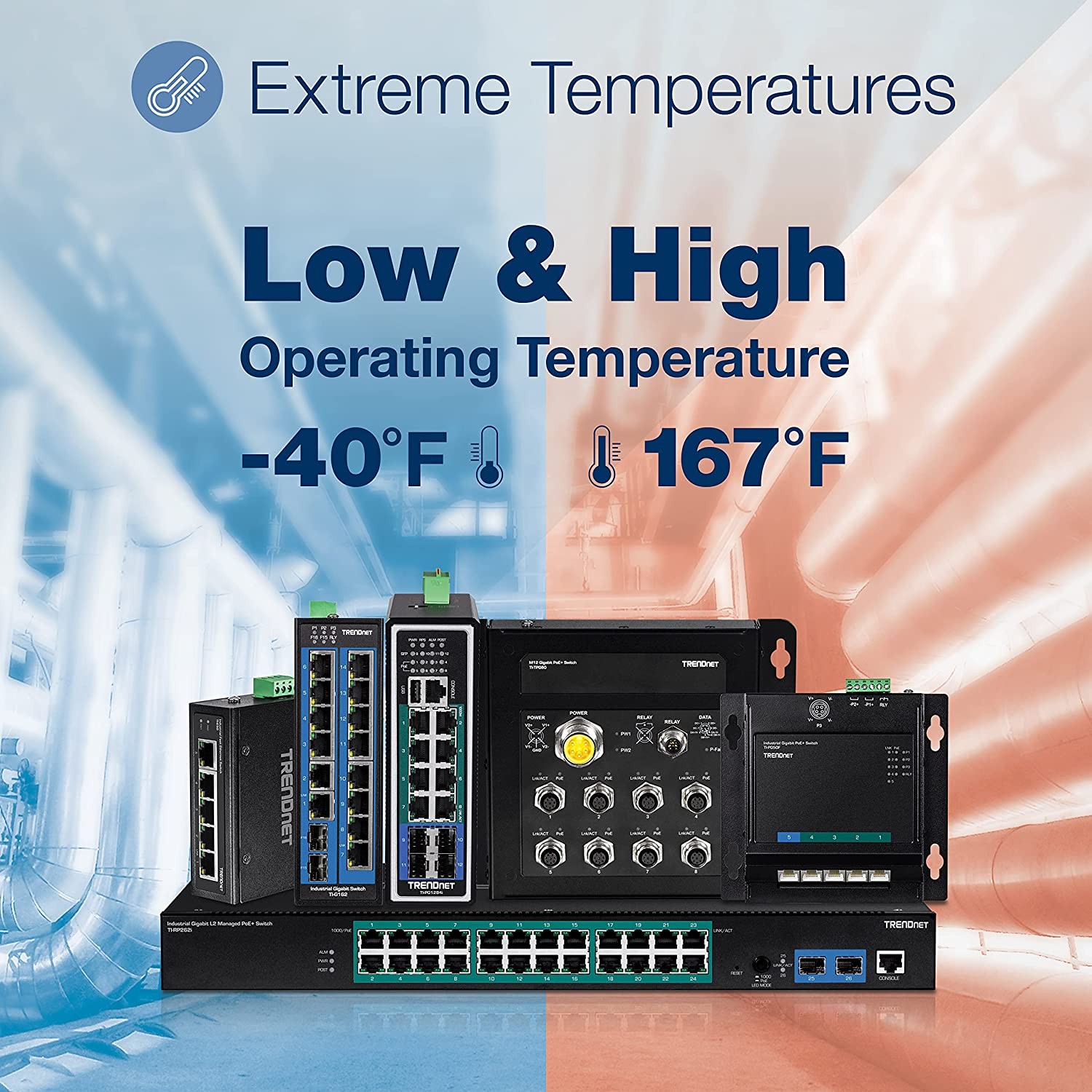

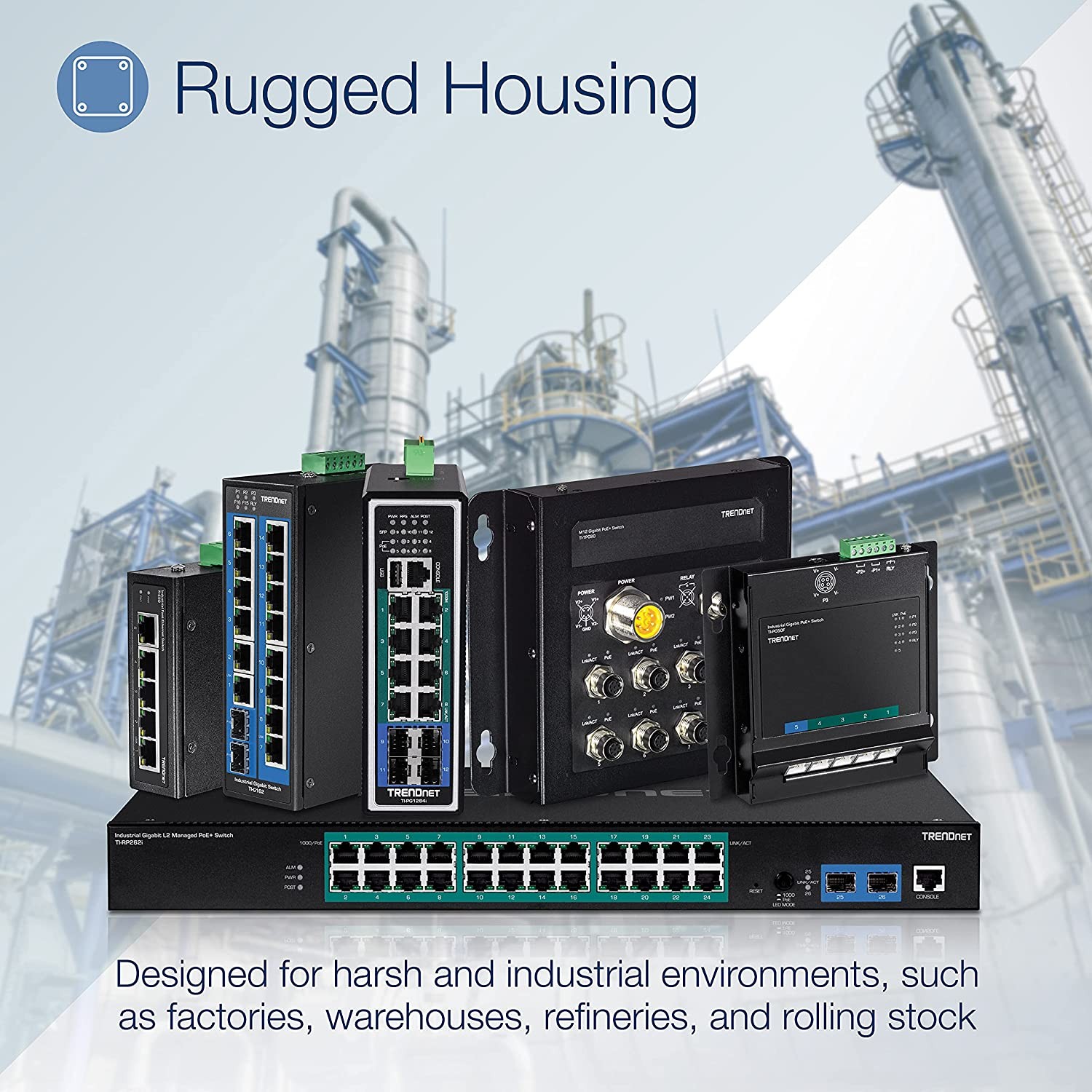

Hardened Industrial Design

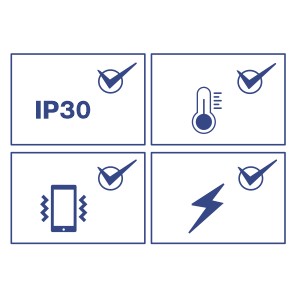

Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

Network Ports

4 x Gigabit PoE+ ports, 1 x shared Gigabit port (RJ-45 / SFP) and 1 x dedicated SFP slot

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

12 Gbps switching capacity

Alarm Relay

Alarm relay triggered by power failure of primary and / or redundant power

Network Ports

8 x Gigabit PoE+ ports

Compact

The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

DIN-Rail Mount

Includes DIN-Rail mounting bracket

Alarm Relay

Alarm relay output triggered by power failure of primary or secondary power inputs

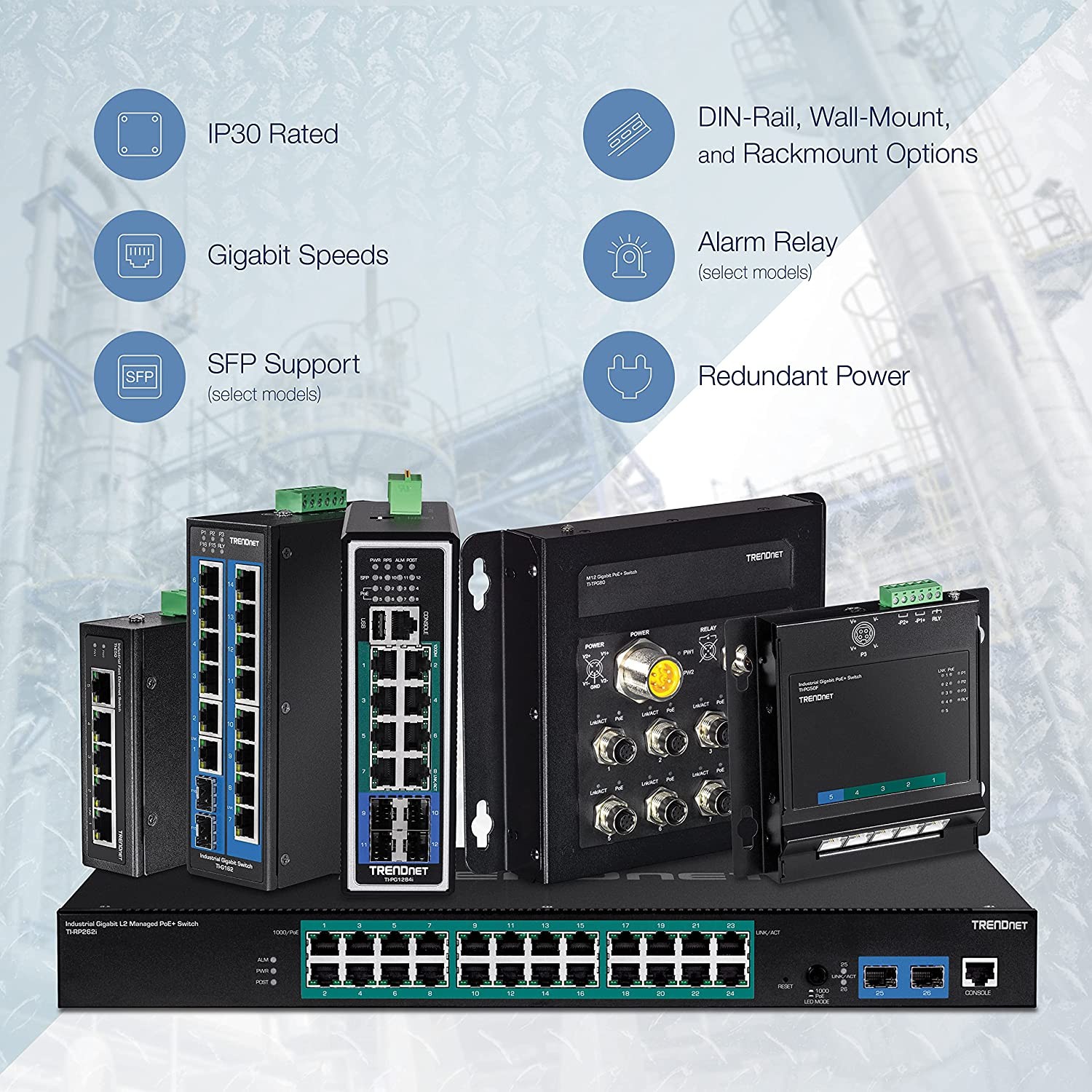

TRENDnet hardened industrial switches - YouTube

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

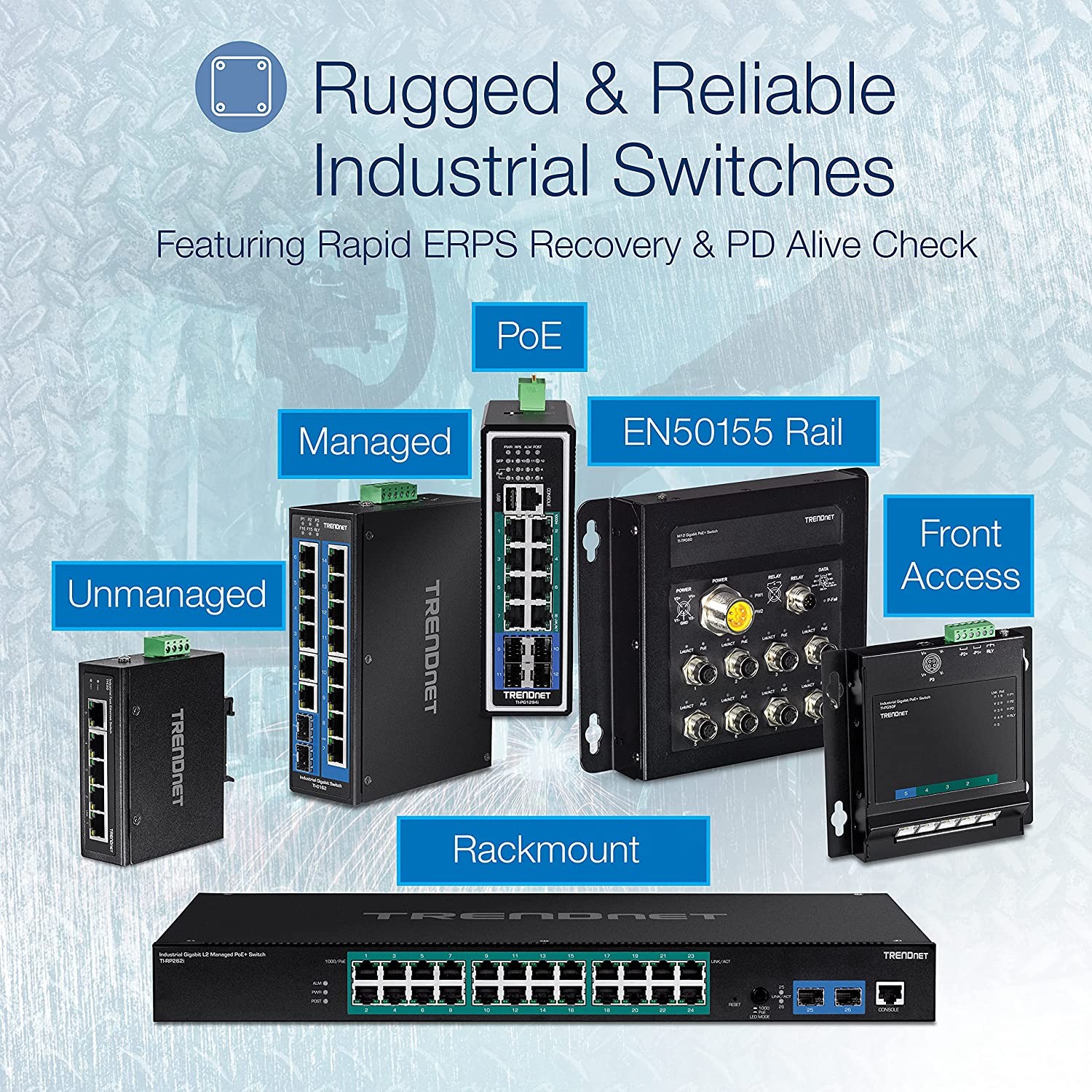

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

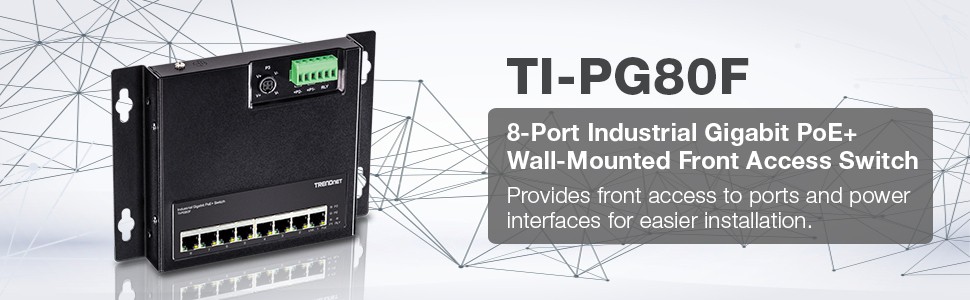

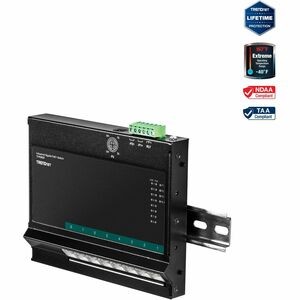

8-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

8 x Gigabit PoE+ ports
200W PoE power budget
16Gbps switching capacity
Supports jumbo frames up to 9KB
Hardened IP40 rated metal housing
Includes DIN-Rail bracket and magnetic wall mount kit
Operating temperature range of -40° – 75° C (-40° – 167° F)
Redundant power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048, and 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at

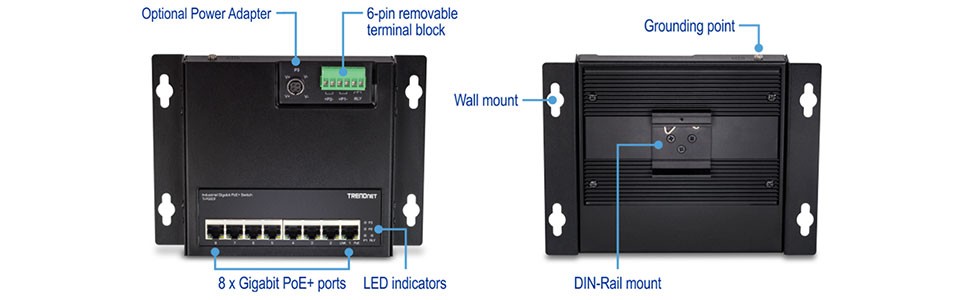

Device Interface	8 x Gigabit PoE+ ports 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 1024KB Switching Fabric: 16Gbps MAC Address Table: 4K entries Jumbo Frame: 9KB Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Dual redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging ESD 8KV support
DC Power	Input: 48 – 56 V DC Compatible power supply: TI-S24052, TI-S24048, TI-S48048 (sold separately) Max. consumption: 5.76W (no PoE)
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max.
PoE	PoE budget: 200W @56V DC
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	500,000 hours
Housing	IP40 metal case DIN-Rail mount Wall mount Magnet mount Grounding point
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	185 x 145 x 25mm (7.2 x 5.7 x 1 in.)
Weight	726g (2 lb.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG80F
Quick Installation Guide
Removable terminal block
DIN-Rail, wall and magnet mount kit
