Overview

TRENDnet’s 24-Port Gigabit Switch with 2 x 10G SFP+ Slots, model TEG-30262, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. This 10G SFP switch offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. With a sturdy metal housing and included rackmount brackets, the 10G SFP switch is well-suited for 19” 1U rack installations.

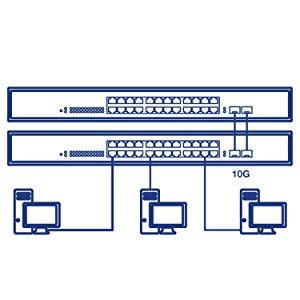

10G SFP + switch

It offers two dedicated 10G SFP + slots for high-speed network connections, providing a cost-effective solution for adding 10G link capacity to an SMB network.

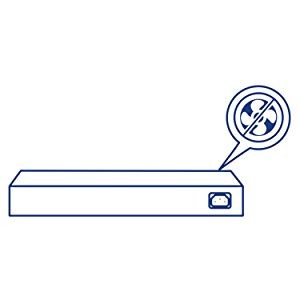

No fans.

The fanless design reduces power consumption and eliminates operating noise.

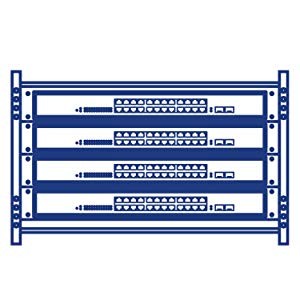

Rack mount design

With a rugged metal enclosure and included rack mount brackets, this 10G SFP switch is suitable for 1U 19 "rack installations.

Ports

24 x Gigabit ports and 2 x 10G SFP + slots for high-speed connections

No fans.

Fanless design reduces power consumption and eliminates operating noise

Jumbo Frame

Send larger packets, or Jumbo frames (up to 10 KB) for higher performance

Housing design

SPF 10G switch with rugged metal housing for rack mounting with mounting kit included

TRENDnet 10G Networking Ecosystem

TRENDnet's 10G Switches are cost-effective solutions to upgrade your network's bandwidth and performance using your existing Cat5e or Cat6 cabling. Deliver the highest possible speeds over your existing cables, and save cost and time on wiring and cabling infrastructure.

Meet the growing demands for higher bandwidth, reduce bottlenecks, and futureproof your network infrastructure. These 10G Switches (or 10GbE switches) allow users to improve data rates and manage high density network environments with video feeds, access controls, advanced surveillance, and other bandwidth-heavy network setups.

TRENDnet End-to-End Multi-Gigabit Networking Solutions

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3ae
  • IEEE 802.3az
Device Interface
  • 24 x Gigabit ports
  • 2 x 10G SFP+ slots
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switching Capacity: 88Gbps
  • RAM Buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 65.5Mpps (64-byte packet size)
  • Jumbo Frames: 10KB
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 18.9W
Fan/Acoustics
  • Fanless design
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 130 x 44mm (17.32 x 5.11 x 1.73 in.)
Weight
  • 1.935kg (4.27 lbs.)
Certifications
  • CE
  • FCC
  • ETL
Warranty
  • Lifetime Warranty

PACKAGE CONTENTS
  • TEG-30262
  • Quick Installation Guide
  • Rackmount kit
  • Power cord (1.8m/6 ft.)
