OVERVIEW

TRENDnet's 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG102i, features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

Industrial design

Equipped with an IP30-rated metal housing, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 ° - 167.0 ° F (-40 ° - 167 ° F) for industrial environments .

PoE power

A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling or disabling PoE, power priority, live PD verification, and power scheduling.

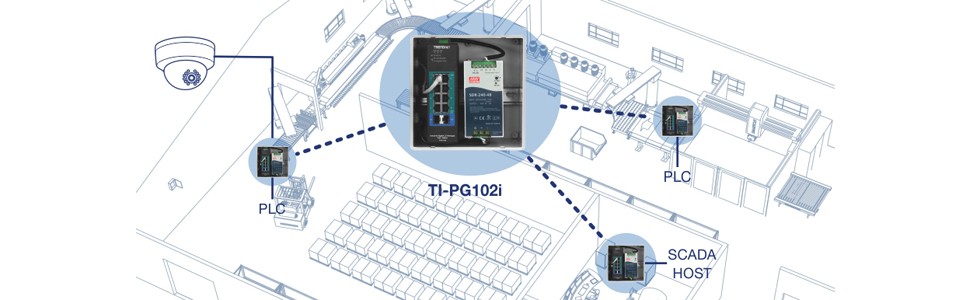

Integration flexibility

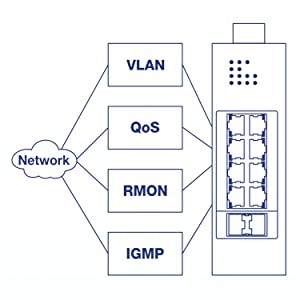

Managed features include access control lists, VLANs, IGMP snooping, QoS, RMON, SNMP trap, and syslog for flexible network monitoring and integration.

Access control

Managed access control features include ACL, IP-MAC port binding, ARP inspection, RADIUS 802.1X, MAC address learning, DHCP snooping, and IP Source Guard provides layered network access controls

Full PoE control per port

Available PoE port controls include PoE enable / disable, power priority, live PD verification, and power scheduling

Traffic management

Managed features include 802.1Q, MAC and VLAN Port Isolation, IGMP Snooping, Per Port Bandwidth Control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP Spanning Tree, and Link Aggregation for flexible network integration.

DIN rail mounting

IP30-rated metal enclosure includes DIN rail mounting bracket

System monitoring

Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and DDMI SFP.

Switching capacity

20Gbps switching capacity congue.

Traffic management

PoE power

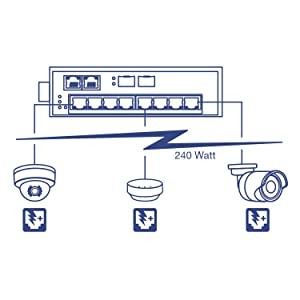

Delivers up to 30W of PoE + power per port with a 240W power budget

Aenean mollis
Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie.

Vivamus elit magna
ex odio pulvinar felis, id sodales tellus erat in lectus. Sed at nulla et urna imperdiet venenatis ut bibendum enim. Donec nec massa quam.

Sed bibendum ullamcorper
Nunc ac purus vel purus sodales feugiat. Donec aliquet et orci vel tincidunt. Cras sit amet facilisis risus, ut interdum libero.

SPECIFICATIONS

Standards

IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.1ax
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at

Device Interface

8 x Gigabit PoE+ ports
2 x 100/1000Mbps SFP slots
6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
DIP switches
LED indicators
Reset button

Data Transfer Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 20Gbps
RAM buffer: 128MB
MAC address table: 8K entries
Jumbo frames: 10KB
Forwarding mode: store and forward
Forwarding rate: 14.88Mpps (64-byte packet size)

Management

HTTP web-based GUI
CLI: Telnet / SSHv2
SNMP v1, v2c, v3
SNMP trap (up to 5 receivers)
RMON groups 1/2/3/9
Device configuration backup & restore, upgrade firmware, reboot, and reset to default
Multiple administrative or read-only user accounts
Enable or disable power saving mode per port
Static MAC entries
LLDP (Link layer discovery protocol)
Netlite device map
ONVIF device discovery
SNTP
SMTP alert
Syslog
Port statistics/utilization
Traffic monitor
Port mirror: one to one, many to one
Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
Loopback detection
DHCP relay/option 82
Modbus/TCP
SFP DDMI (Digital Diagnostic Monitoring Interface)
ERPS (Ethernet Ring Protection Switching) G8032v2

MIB

MIB II RFC 1213
Bridge MIB RFC 1493
RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

IEEE 802.1d STP (spanning tree protocol)
IEEE 802.1w RSTP (rapid spanning tree protocol)
BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth control per port
Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN
MAC-based VLAN
Port isolation
Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3
IGMP querier
IGMP fast leave
Up to 256 multicast groups
Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
DHCP snooping/screening
Trusted host/IP access list for management access
Port Security/MAC address learning restriction (Up to 100 entries per port)
Static/dynamic ARP inspection

ACL

Source/Destination MAC address
Source/Destination IP address
Source Interface
VLAN ID
EtherType
TCP/UDP port 1-65535

Special Features

Netlite device discovery and map display in GUI
Port security: MAC address learning restriction per port
DHCP relay/option 82 & DHCP server snooping/screening support
Wide operating temperature range
Redundant power inputs
Alarm relay triggered by power failure
Surge and ESD protection

Power

PWR (Primary) terminal input: 24 – 57V DC
RPS (Redundant) terminal input: 24 – 57V DC
Compatible power supply: TI-S15052 (150W), TI-S24052 (240W), TI-S12024 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately
Max. Consumption: 13W (no PoE load), 253W (full PoE load)

PoE

PoE budget: 240W@48V DC input, 124W@24V DC input
802.3at: Up to 30W per port
PoE Mode A: Pins 1, 2, 3, and 6 for power
PoE auto classification
PoE port priority/power scheduling/PD alive check
Over current/short circuit protection

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.5 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-26
Stranded wire (AWG): 12-26
Wire strip length: 10-11mm

Dip Switch

Switch	Status	Function
1	OFF	Disable alarm relay for PWR power input
1	ON	Enable alarm relay for power failure on PWR power input
2	OFF	Disable alarm relay for RPS power input
2	ON	Enable alarm relay for power failure on RPS power input
3	OFF	Storm control managed by switch configuration
3	ON	Enable storm control (Broadcast and DLF rate set to 300pps) Takes precedence over storm control switch configuration
4	OFF	802.1p QoS managed by switch configuration
4	ON	Enable 802.1p QoS on ports 1 and 2 (Set CoS priority to tag 4 on ports 1 and 2) Takes precedence over 802.1p QoS switch configuration
5	OFF	Port 9 SFP set to Gigabit speed full duplex
5	ON	Port 9 SFP set to 100Mbps speed full duplex
6	OFF	Port 10 SFP set to Gigabit speed full duplex
6	ON	Port 10 SFP set to 100Mbps speed full duplex

Alarm Relay Output

Relay output with current carrying capacity of 1A, 24V DC
Short circuit mode when one power source is connected
Open circuit mode when two power sources are connected

Enclosure

IP30 rated metal enclosure
Fanless passive cooling
DIN-Rail mount
Grounding point
ESD (Ethernet) Protection: 8KV DC
Surge (Power) Protection: 6KV DC

MTBF

562,234 hours @ 25° C
142,948 hours @ 75° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)

Weight

930g (2.05 lbs.)

Certifications

CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PG102i
Quick Installation Guide
Removable terminal block
DIN rail mounting bracket
