Overview

5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.

Flexible Integration

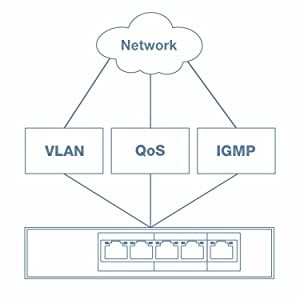

Managed features such as access control lists, VLAN, IGMP snooping and QoS for flexible network integration.

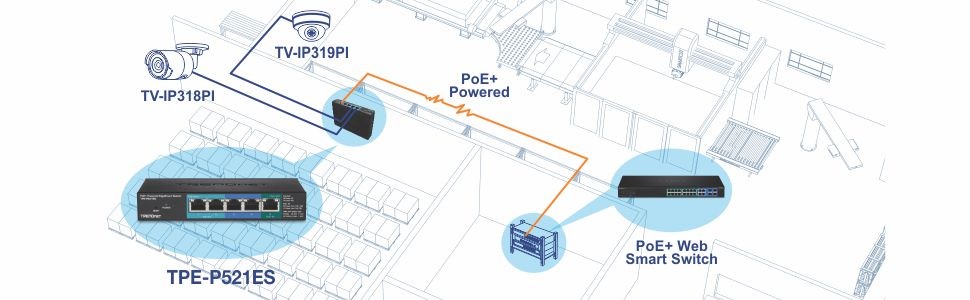

PoE + Powered

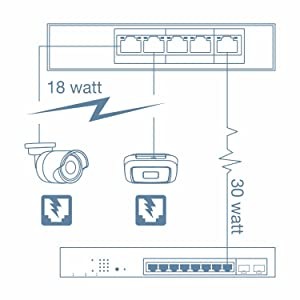

No power supply required - powered by a PoE + switch or injector, this switch has two non-PoE Gigabit ports and two Gigabit PoE ports to power devices such as IP cameras.

EdgeSmart Administration

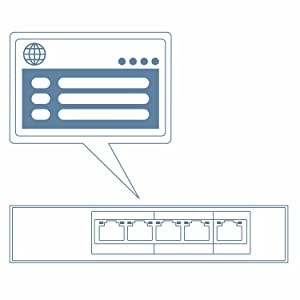

Provides an easy-to-use web-based management interface to reduce the complexity of the switch configuration and provides a combination of commonly used SMB management features for easy deployment.

Ports

One gigabit PoE+ input port, two gigabit PoE output ports, and two gigabit ports provides a 10Gbps switching capacity

Compact Design

With a compact and lightweight housing design this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

Network Management

A broad range of network configurations are supported by: static link aggregation, 802.1Q VLAN, bandwidth controls, IGMP, loopback detection, port mirroring, STP, RTSP and 802.1p (QoS).

Housing

Compact wall mountable metal housing

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az

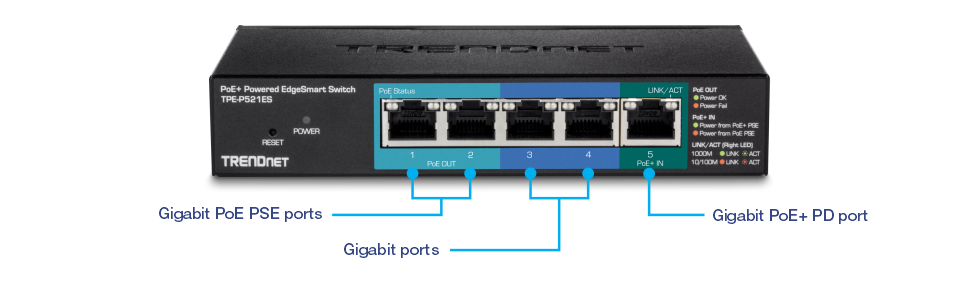

Device Interface	1 x Gigabit PoE+ PD port 2 x Gigabit PoE PSE ports 2 x Gigabit Ports LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 10Gbps RAM buffer: 48KB MAC Address Table: 2K entries Jumbo Frames: 9KB Forwarding rate: 7.44Mpps (64-byte packet size)
Management	HTTP Web based GUI SNMP v1, v2c Cable diagnostic test Backup/Restore Configuration Upload Firmware
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 2 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 8Kbps) Multicast (Min. Limit: 8Kbps) Loopback Detection
Special Features	PoE Powered Enable/disable 802.3az Power Saving Wall mountable
Power	IEEE 802.3at (30W) or IEEE 802.3af (15.4W) PoE input only (no external power supply) IEEE 802.3at Type 2 PoE PD Class 4 IEEE 802.3af Type 1 PoE PD Class 0 Max. Consumption 2.4W (without PoE load) Max. Consumption 24W (with max PoE load)
PoE	18W PoE Budget with IEEE 802.3at (30W) input power 8W PoE Budget with IEEE 802.3af (15.4W) input power PoE Mode A: Pins 1,2 for power and pins 3,6 for power PD auto classification Over current/short circuit protection
Fan / Acoustics	Fanless design
MTBF	2,357,475 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	150 x 97 x 28.6mm (5.9 x 3.81 x 1.12 in.)
Weight	370g (13.05 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-P521ES
Quick Installation Guide
