OVERVIEW

TRENDnet's 8-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG82ES, is a cost-effective desktop PoE managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet's TPE-TG82ES desktop PoE managed switch provides eight gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.

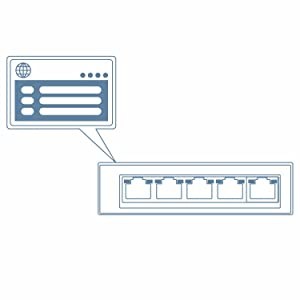

EdgeSmart Administration

It provides an easy-to-use web-based management interface to reduce the complexity of switch configuration and offers a combination of commonly used SMB management features for easier deployment.

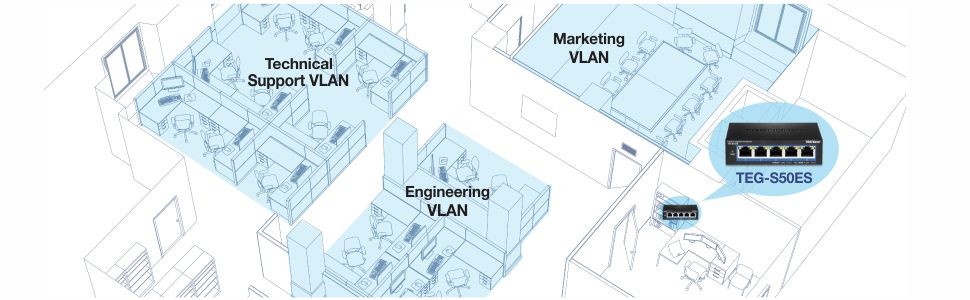

Integration flexibility

Managed features include loop detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS for flexible network integration.

Monitoring

The 5-port smart switch includes SNMP, SNMP Trap, and Port Mirroring to support manager monitoring solutions.

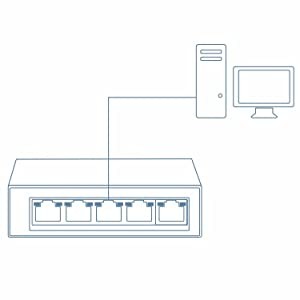

Ports

Five gigabit ports provide 10 Gbps switching capacity

Compact design

With a compact and lightweight metal housing design, this 5-port smart switch is suitable for desktop or wall-mount installations.

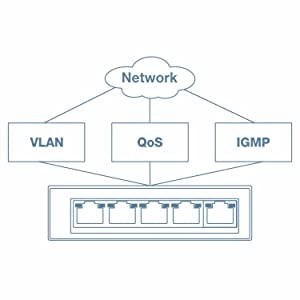

Network administration

Web-based management interface offers features for Loop Detection, RSTP, Static Link Aggregation, VLAN, IGMP Snooping, and QoS

Monitoring

SNMP, SNMP Trap and Port Mirroring support manager monitoring solutions

Cost Effective PoE Switches

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az
Device Interface	8 x Gigabit PoE+ ports LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 16Gbps RAM buffer: 192KB MAC Address Table: 4K entries Jumbo Frames: 9KB Forwarding rate: 11.9Mpps (64-byte packet size)
Management	HTTP Web based GUI SNMP v1, v2c Cable diagnostic test Backup/Restore Configuration Upload Firmware
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 2 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 8Kbps) Multicast (Min. Limit: 8Kbps) Loopback Detection
Special Features	PoE+ support Enable/disable 802.3az Power Saving Wall mountable
Power	Input: 100 – 240V AC, 50/60Hz, 1.2A Output: 54V DC, 1.67A external power adapter Max. consumption: 68.6W
PoE	PoE budget: 64W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power and pins 3,6 for power PD auto classification Over current/short circuit protection
Fan / Acoustics	Fanless design
MTBF	730,455 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	171 x 97.8 x 28.6mm (6.73 x 3.85 x 1.12 in.)
Weight	423g (14.92 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG82ES
Quick Installation Guide
Power adapter (54V DC, 1.67A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
