Atdec AF-AT-NBC Set & Forget desk monitor/notebook mount

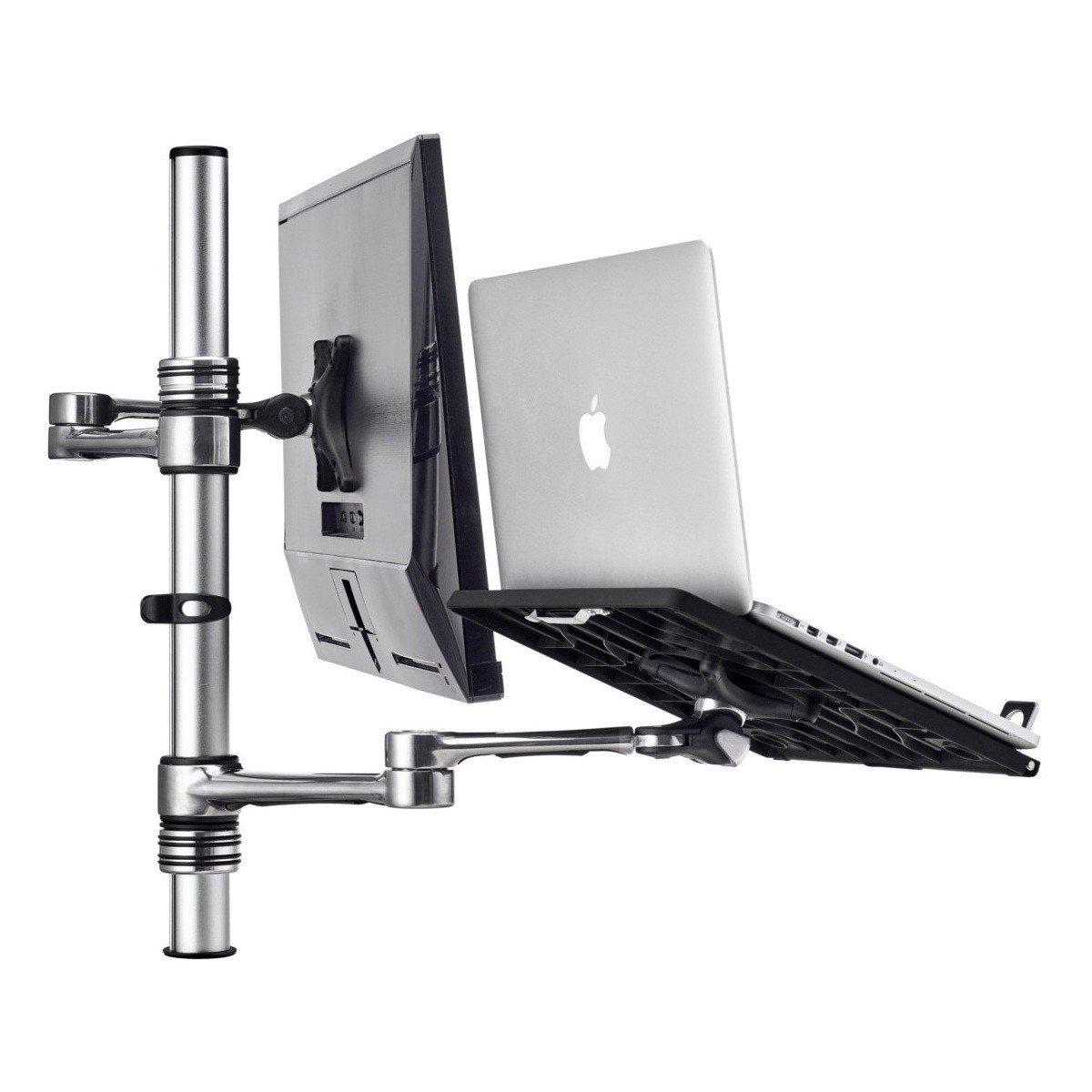

The AF-AT-NBC provides a mounting solution for notebook users who work with additional monitors. The system ships with two arms that can be independently adjusted for height, position and orientation. It allows a high degree of operational flexibility with configuration that can be adapted to the work environment, user situation, and task at hand. The monitor and laptop display can be positioned side by side for a dual screen configuration or separated for detail examination and group work.

Focal distance control via 3 points of articulation

Product specifications

  • Flat screen monitors: maximum load up to 17.6lb
  • Curved screen monitors: maximum load up to 12lb
  • Supports up to 18” notebooks
  • VESA mounting hole pattern: 75 x 75, 100 x 100
  • Articulated design with 3 pivot points for further reach
  • Optional 360° pole rotation (can be limited to 180°)
  • Non-slip, ventilated notebook tray
  • Adjustable tilt (10-35°) and pan (90°)
  • 10-year warranty
  • Installation hardware included
  • Bolt through and Desk clamp desk fixing options included
  • Supports mini PCs (Atdec AC-MP plate, sold separately)

Functionality specifications

  • Ergonomic
  • Landscape or portrait viewing
  • Screen sharing capability
  • Engineered bearing joints for smooth movement
  • Quick-release display head with security screw
  • Glare control and optimal viewing angle adjustment via tilt and pan capabilities
  • Focal distance control
  • Individual monitor height requirements settings

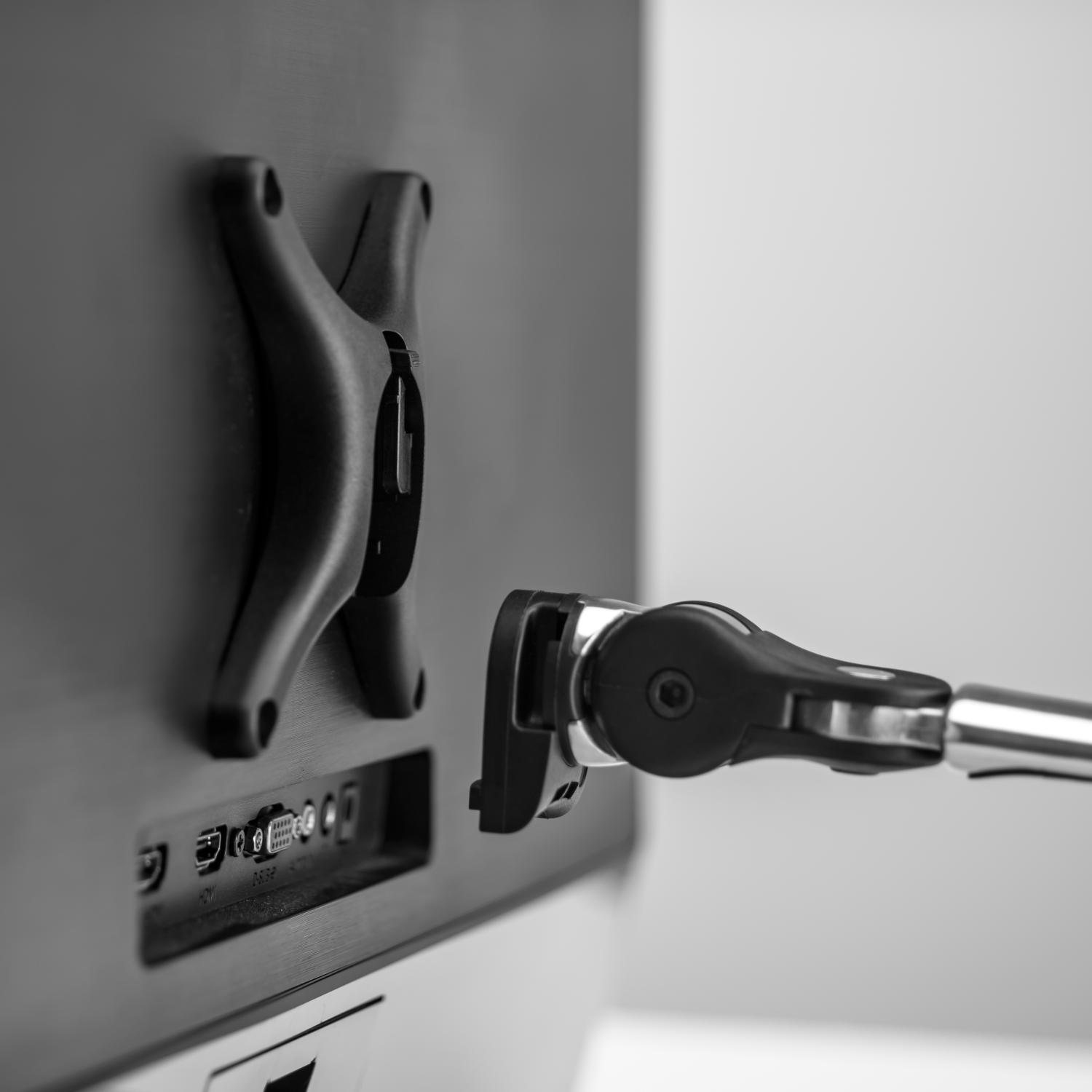

Quick release VESA head

Desk fixing options

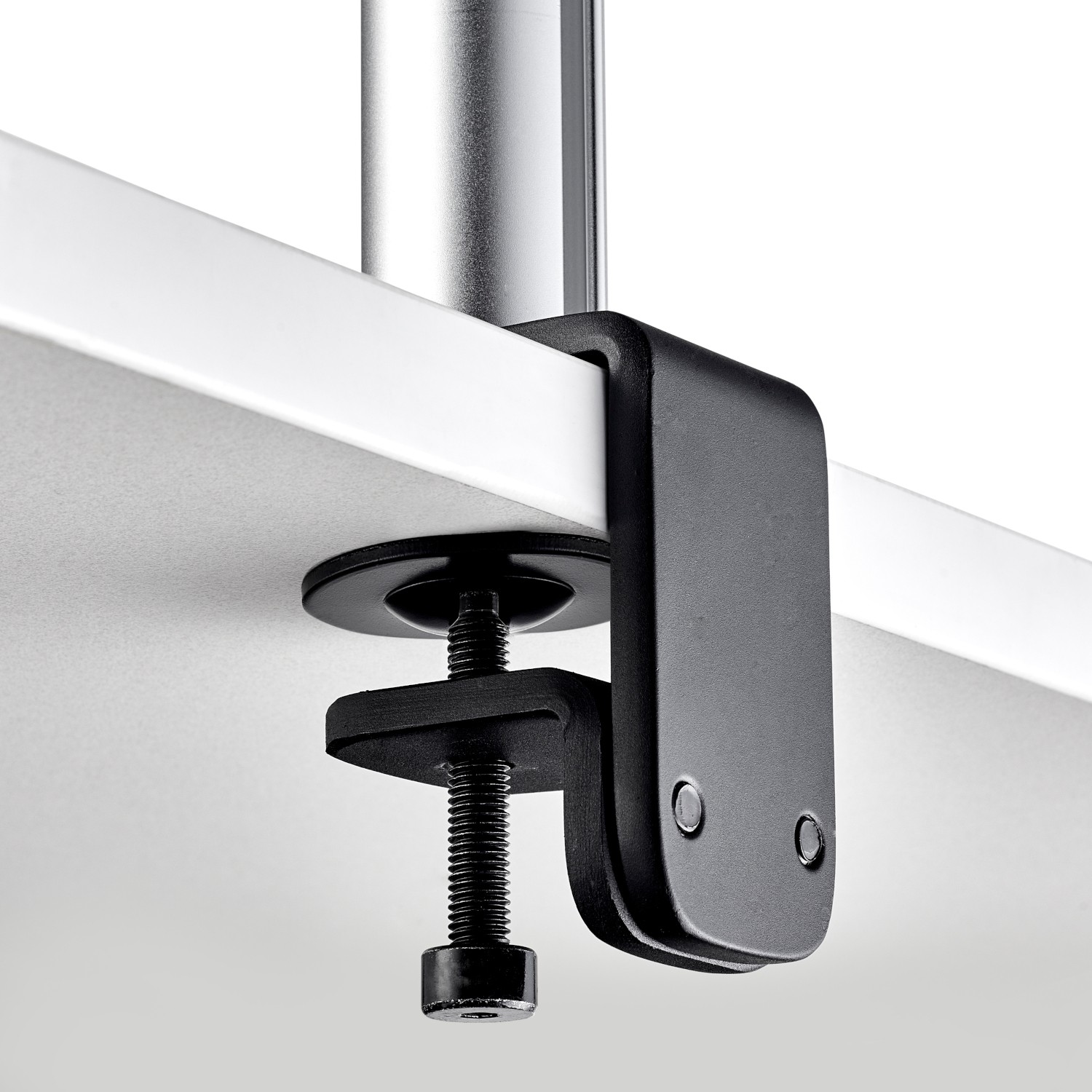

Desk clamp

Desk clamp (included)
Traditional two-piece design. Better for retrofit and thicker desks up to 3”.

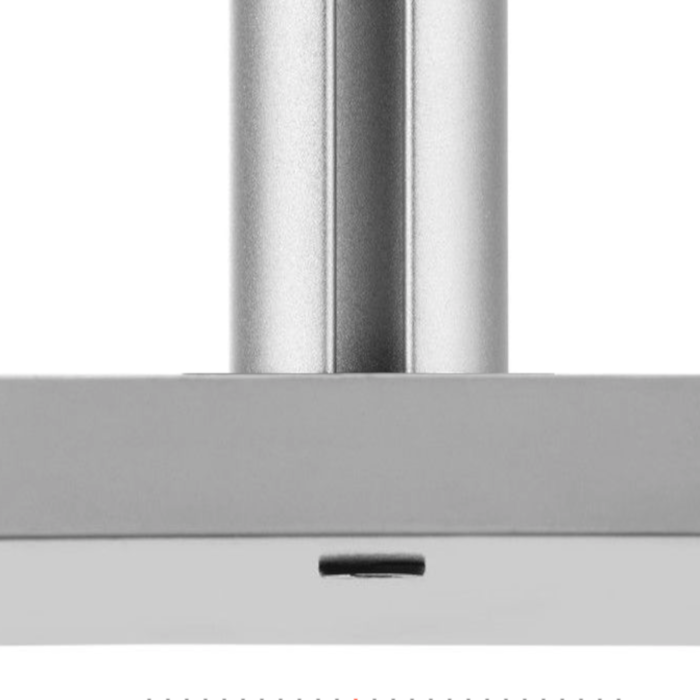

Bolt through

Bolt through (included)
Offers flexibility in mounting position & when attachment to the edge of the desk is not possible.

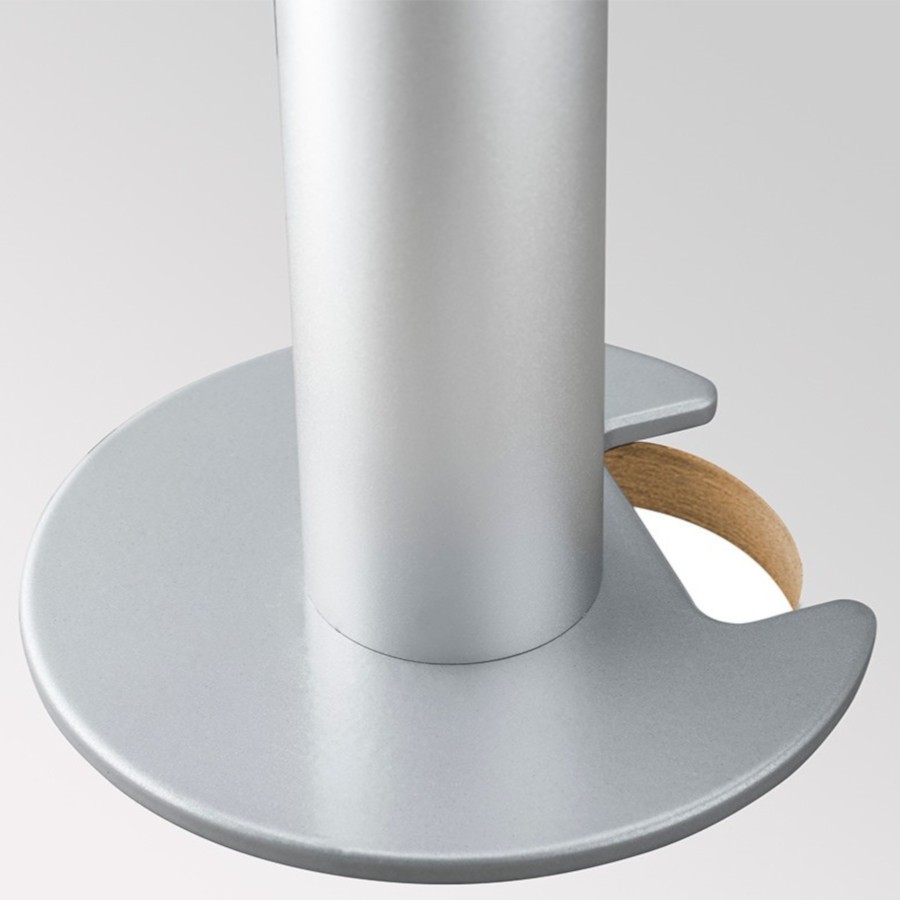

AC-GC

Grommet AC-GC (sold separately)
Utilizes an existing grommet hole & allows for neat cable management. Fits grommet holes 2.3” to 3” in diameter.

Atdec AC-MP

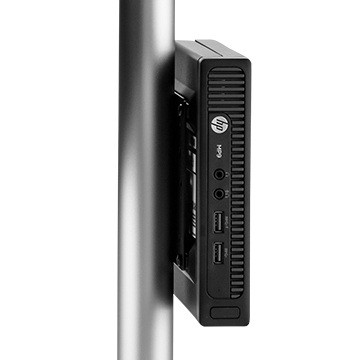

Can be upgraded to carry a mini PC

Atdec AC-MP mini PC attachment plate
Compatible with 75 x 75 and 100 x 100 VESA pattern-compliant mini PCs, as well as Intel® NUC units. Attaches directly to a post channel at any height. Can be retrofitted to existing installations.
