Overview

Advanced docking station adds DisplayPort, HDMI, 4x USB-A 5Gbps, 2x USB-C 5Gbps, Audio/Microphone and Gigabit Ethernet connectivity and PD charging up to 60W to your USB-C or Thunderbolt 3 enabled laptop. Compliant with mac ^® system for M1, M2, M3 Pro, & Max

USB 3.1 Type-C Dual 4K Docking Station with Power Delivery 60watts

Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer
Industry Recognized Display Technology from DisplayLink® - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor

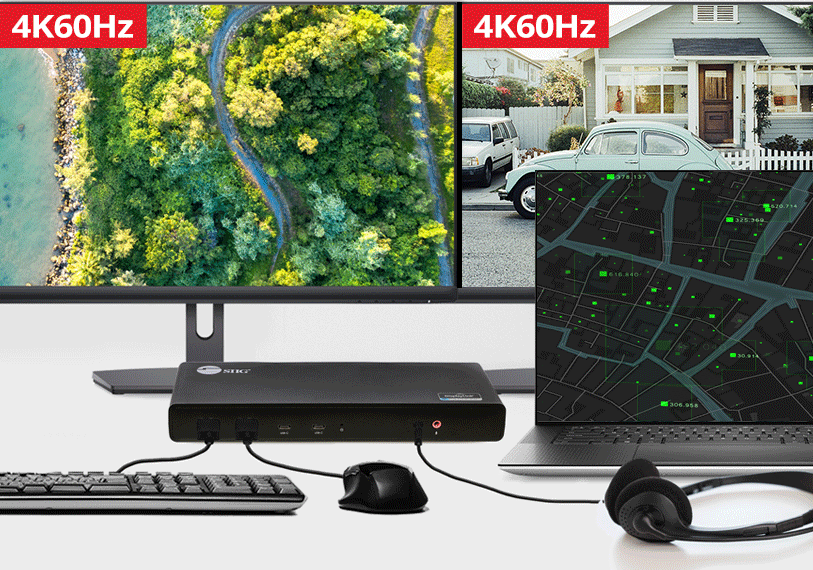

Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
USB-C PD Charging - Supports up to 60W power output to charge your laptop
Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
Two Fast Charging USB-C ports: Compatible with USB Battery Charge Specification 1.2 (BC 1.2) with up to 5V/1.5A power output, fast charges most portable devices
Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
Enterprise Features:
- Wake on LAN
- MAC Address Pass-Through
- PXE Boot
Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
OS Compatibility - Supports various Windows and Mac ^® computers

Features

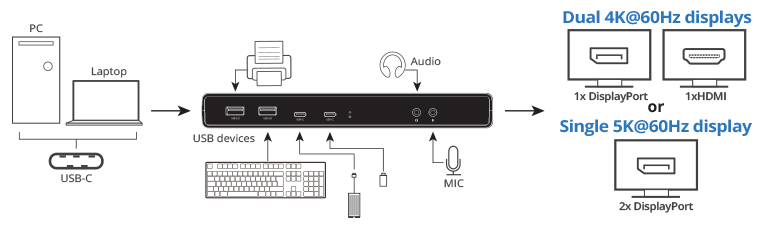

Flexible video interface enables dual 4K@60Hz displays or single 5K @60Hz display, multiple connections, and audio via a single USB-C port with DisplayLink IC laptop/PC to increase your productivity

4K/5K UHD Resolution

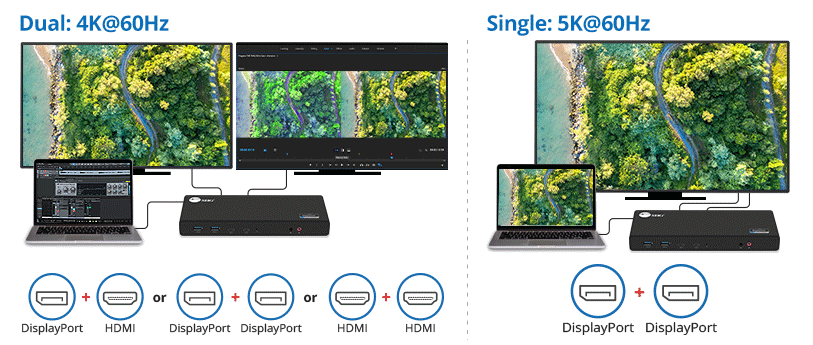

Supports Ultra HD video resolution up to a Single 5K (5120x2880) @60Hz display through two DisplayPort ports, and Dual 4K (3840x2160) @60Hz through two HDMI ports or two DisplayPort ports or a mixed and 5.1-ch. surround sound

Monitor Solution

High Performance

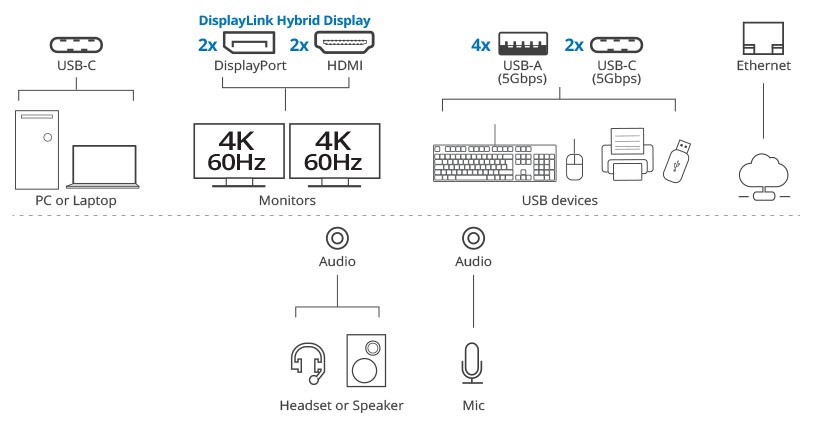

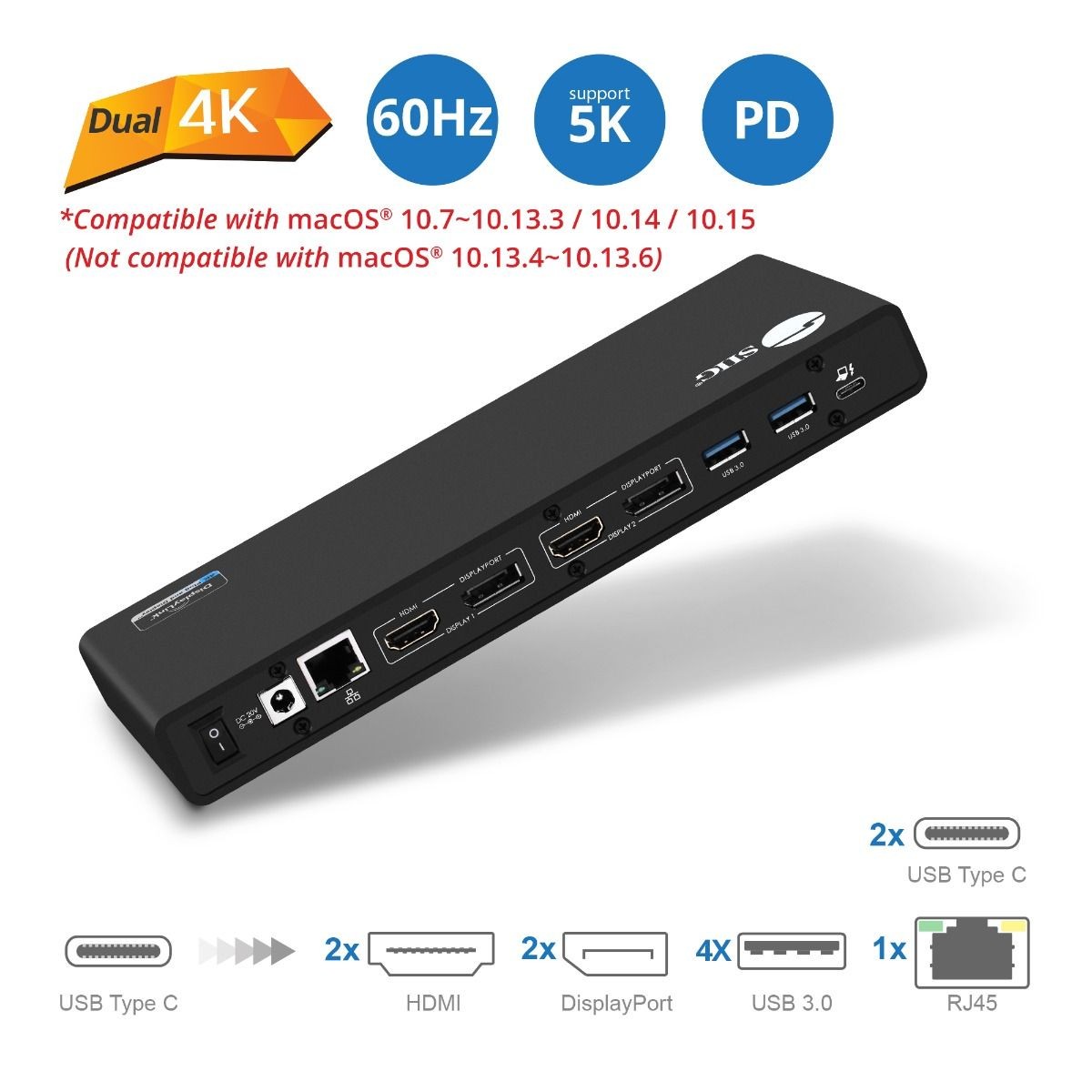

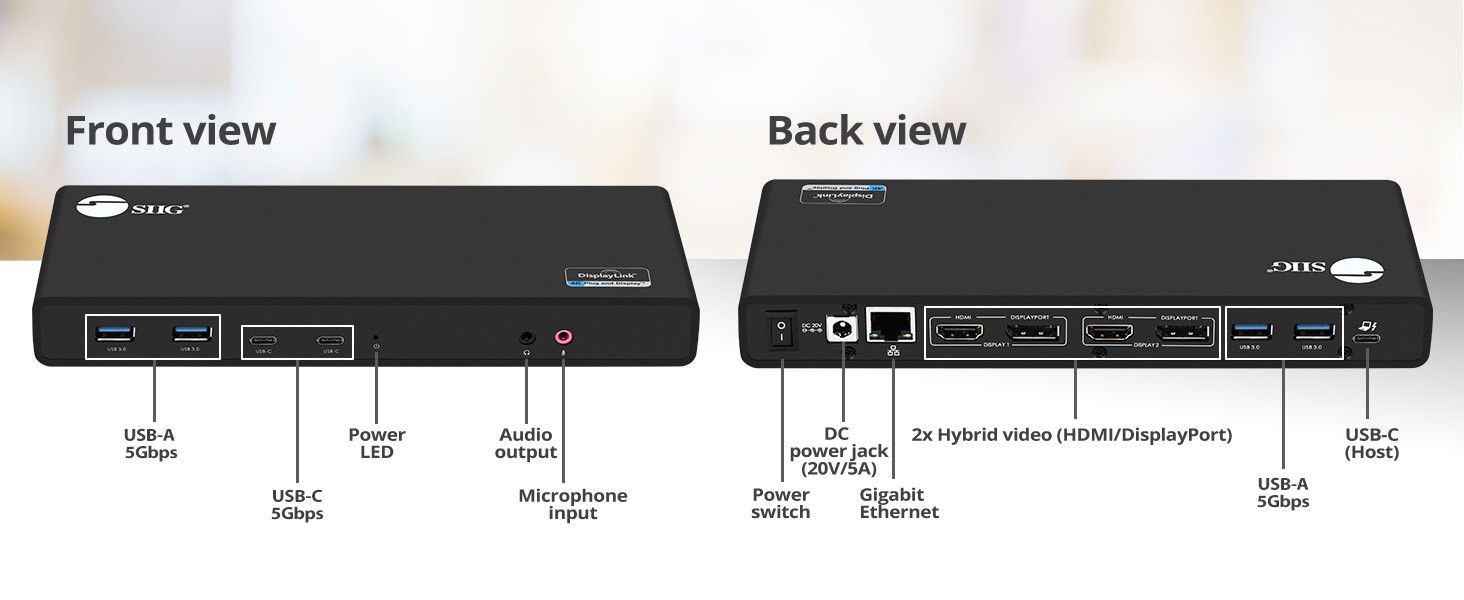

Adds one USB-C input port (Host), two Hybrid video output ports (DisplayPort/HDMI), four USB-A 5Gpbs, two USB-C 5Gbps with 5V/1.5A fast charging, one Gigabit Ethernet, one 3.5mm phone jack for connecting earphone or speaker, one 3.5mm phone jack for connecting microphone, one power switch button, and one DC 20V/5A power jack

Connection

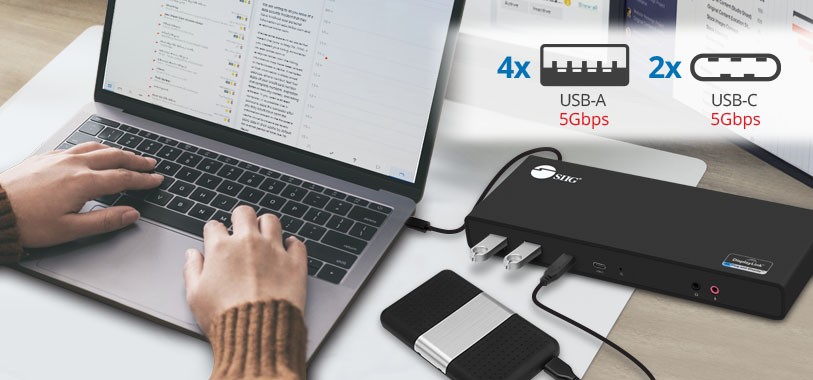

USB-A/USB-C Data Transfer

Provides four USB-A ports and up to 5Gbps data transfer rate, two USB-C 5Gbps Ports with 5V/1.5A fast charging to enhance the performance and transfer capability of USB devices

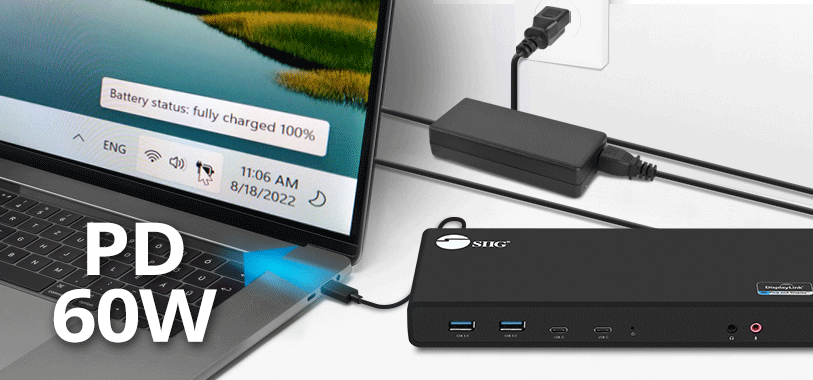

60W Power Delivery

Includes a high-quality USB-C to USB-C cable for connecting laptop/notebook, supports up to 60W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 100W power adapter ensures enough power for laptop charging and USB peripherals

1G Ethernet Data Transmission

Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port

Enterprise Features:
- Wake on Lan
- PXE boot
*Note: Mac address not supported

Audio/MIC

Supports one 3.5mm phone jack for 2 channel stereo audio and one 3.5mm phone jack for microphone connection

ABS Housing Design

Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in power on/off button provides easy recognition of power status

Maximum Compatibility

Compatible with Windows 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) and macOS 13 / 12 / 11 / 10.15 to 10.13

*Note:
- macOS ^® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to 10.14 or later or stay with 10.13.3 and earlier
