Extend an HDMI Signal to an HDMI Display Up to 125 feet

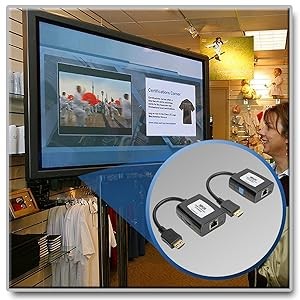

Tripp Lite’s B126-1A1-U HDMI over Cat5/Cat6 Active Extender Kit features a transmitter and a receiver that extend an HDMI audio/video signal from an HDMI source to an HDMI display up to 125 ft. away via Cat5e/Cat6 cable. Each unit is powered by an included USB Micro-B to USB-A cable. No other external power supply, software or drivers are needed. It’s recommended for digital signage applications that require long distance transmission and peak A/V performance.
Convenient Plug-and-Play Setup & Warranty

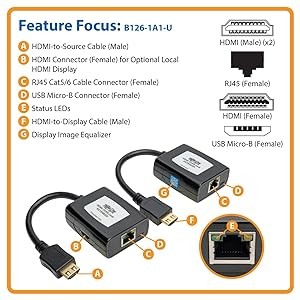

With no software or drivers to install, the B126-1A1-U’s plug-and-play setup gets your application up and running faster, no matter which major operating system you use. The transmitter’s built-in HDMI cable connects to the audio/video source, while the receiver’s built-in HDMI cable connects to the display. An inexpensive user-supplied Cat5e/6 cable (for best results, use a 24 AWG solid-wire cable, such as Tripp Lite’s N202-Series) connects the transmitter and the receiver. Each unit is powered by an included USB Micro-B to USB-A cable, which must be connected between the unit and a USB port on the connected device or a USB wall charger. LEDs indicate the units are receiving power and a signal from the source.
TAA-Compliant for GSA Schedule Purchases
The B126-1A1-U is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty and Environmentally Responsible Design
The B126-1A1-U comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Why Choose Tripp Lite?
Founded in 1922 in Chicago, Illinois, Tripp Lite is one of the leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
