10kW 3-Phase Monitored PDU with Advanced Network Monitoring and Touchscreen LCD

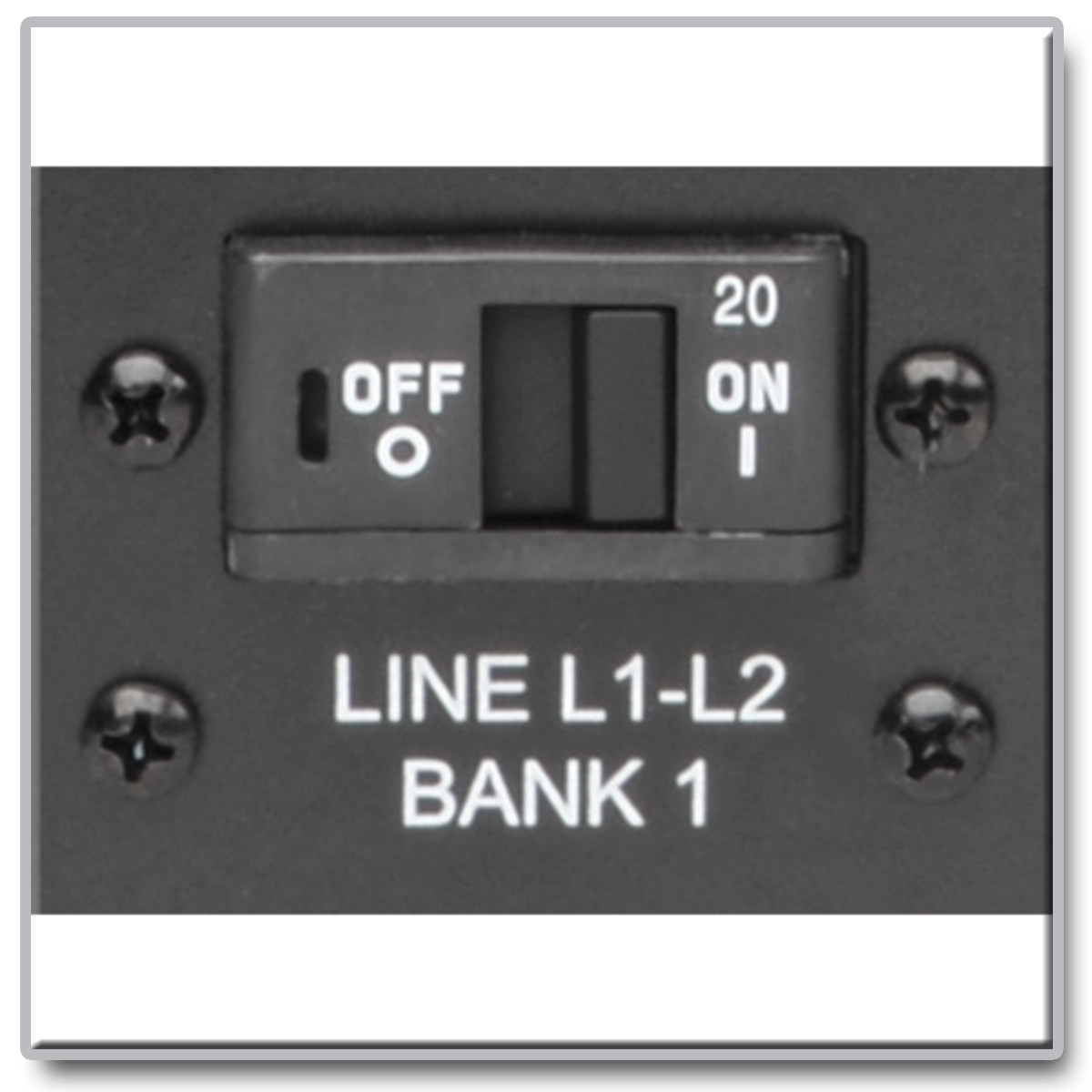

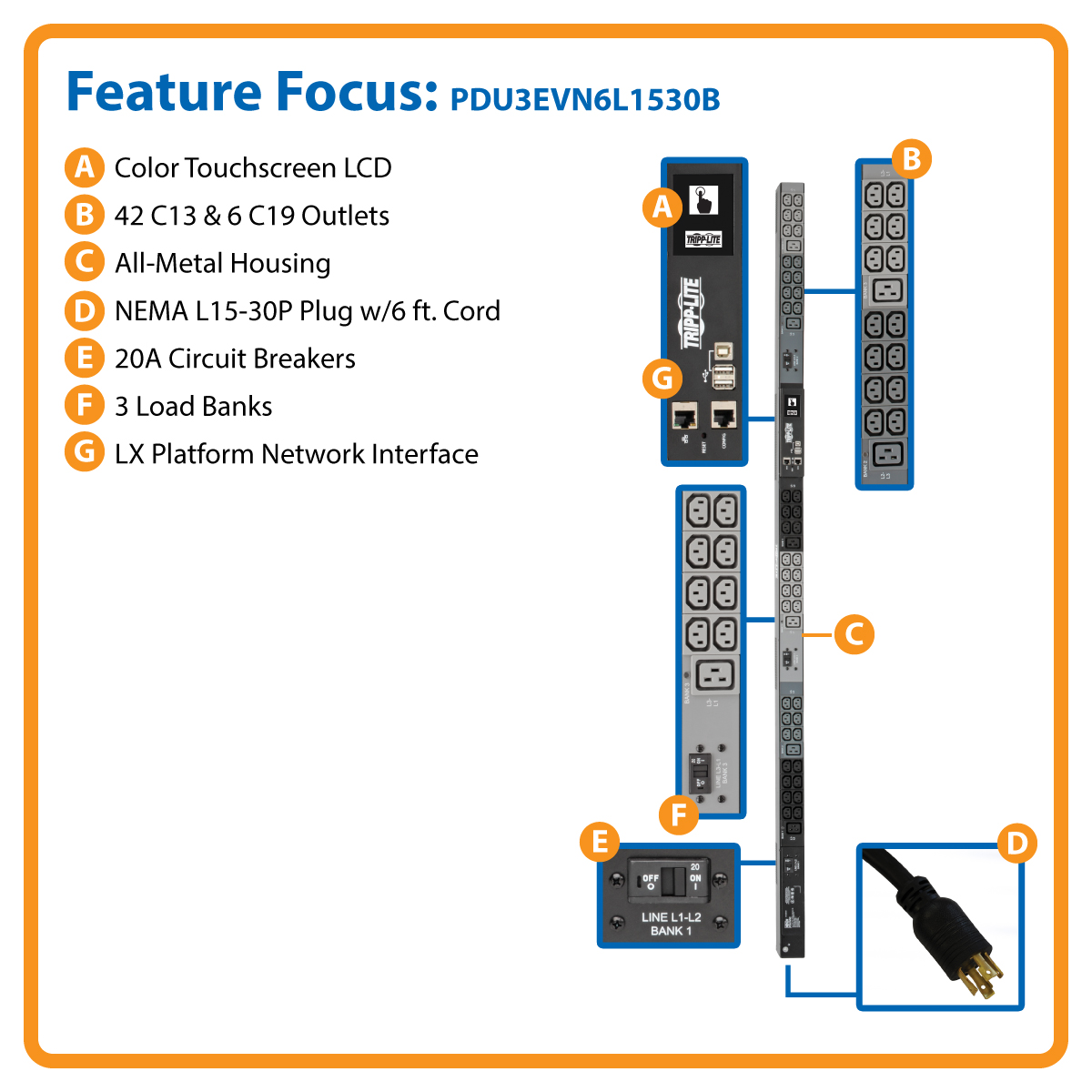

Tripp Lite’s PDU3EVN6L1530B distributes AC power and provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for IT and industrial applications, it features 48 outlets—42 C13, 6 C19—split evenly into three separately breakered load banks. A six-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
Typical Applications
- Provide 200/208/240V power for up to 48 devices
- Simplify rack setups with organized power distribution
- Remotely monitor and manage power to connected equipment
Maintain Complete Remote Access to Your Connected Devices from Anywhere 24/7
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. When used with an optional EnviroSense2 (E2) environmental module (sold separately), it can also perform temperature/humidity and dry contact monitoring, providing IT personnel with enhanced oversight of facility power and environmental conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned or manually assigned via permanent IP address.

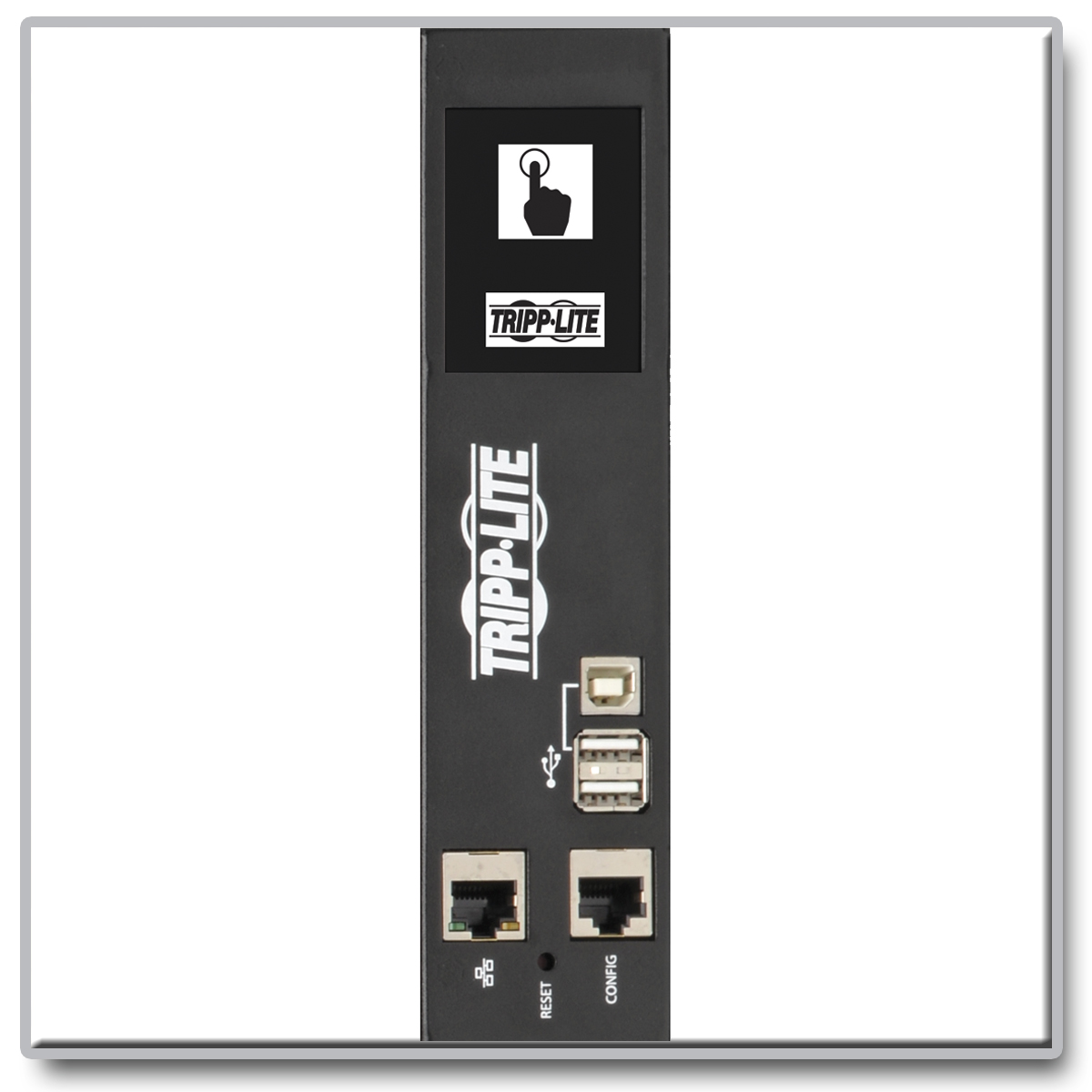

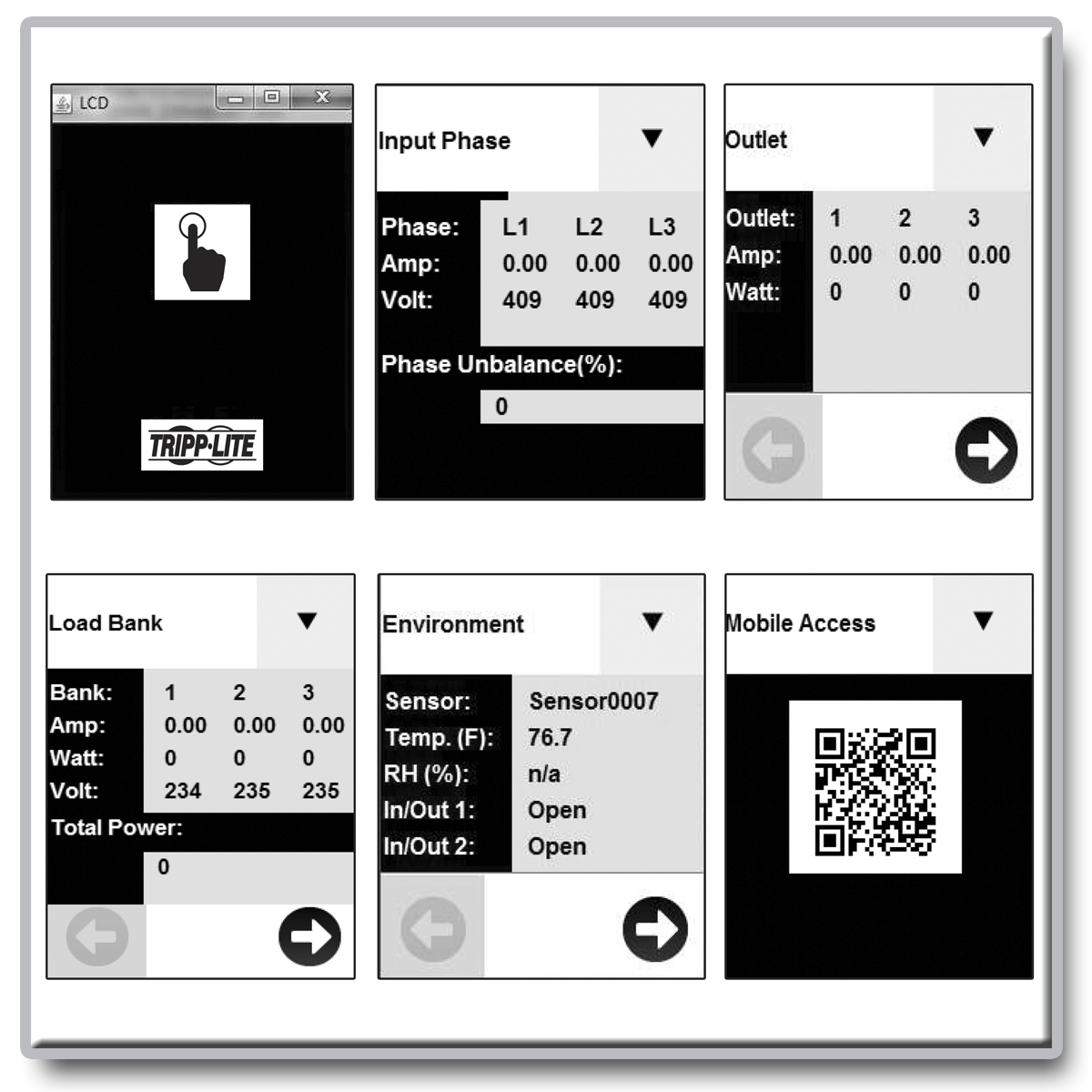

Color Touchscreen LCD Keeps Important Data at Your Fingertips
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data, configuration settings and network information. The LCD also generates a unique QR code to allow access to the free downloadable PowerAlert® Device Manager through a mobile device. Full access is available by logging into PowerAlert via web browser as a user with read/write credentials.
Optimized for Demanding Applications
The all-metal housing is designed to endure in demanding IT and industrial environments. The NEMA L15-30P plug and included plug-lock insert sleeves for the outlets help prevent the PDU and its connected equipment from becoming accidentally disconnected. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered. An LED next to each outlet illuminates when the outlet is ready to distribute live AC power.
Reduces the Cost of Data Center Maintenance
Remote monitoring capabilities lower the PDU3EVN6L1530B’s total cost of ownership by reducing the frequency of on-site visits.
Optimized for Demanding Applications
The all-metal case is designed to endure in demanding IT and industrial environments. The included plug-lock insert sleeves for the outlets help prevent the PDU and its connected equipment from becoming accidentally disconnected.
Versatile Installation Options and Upgradable Firmware
The PDU3EVSR6G60 mounts vertically in 0U of space in EIA-standard 19 in. 2-post and 4-post racks using the included toolless mounting buttons or rack-mounting brackets. Using the included mounting accessory, you can install the PDU with outlets facing either the front or rear, whichever direction offers better airflow or equipment access. To support any future product enhancements, the PDU’s firmware can be upgraded manually.
2-Year Warranty and Environmentally Responsible Design
For peace of mind, the PDU3EVSR6G60 comes with a 2-year warranty. It’s also manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
TAA-Compliant for GSA Schedule Purchases
The PDU3EVSR6G60 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Versatile Installation Options

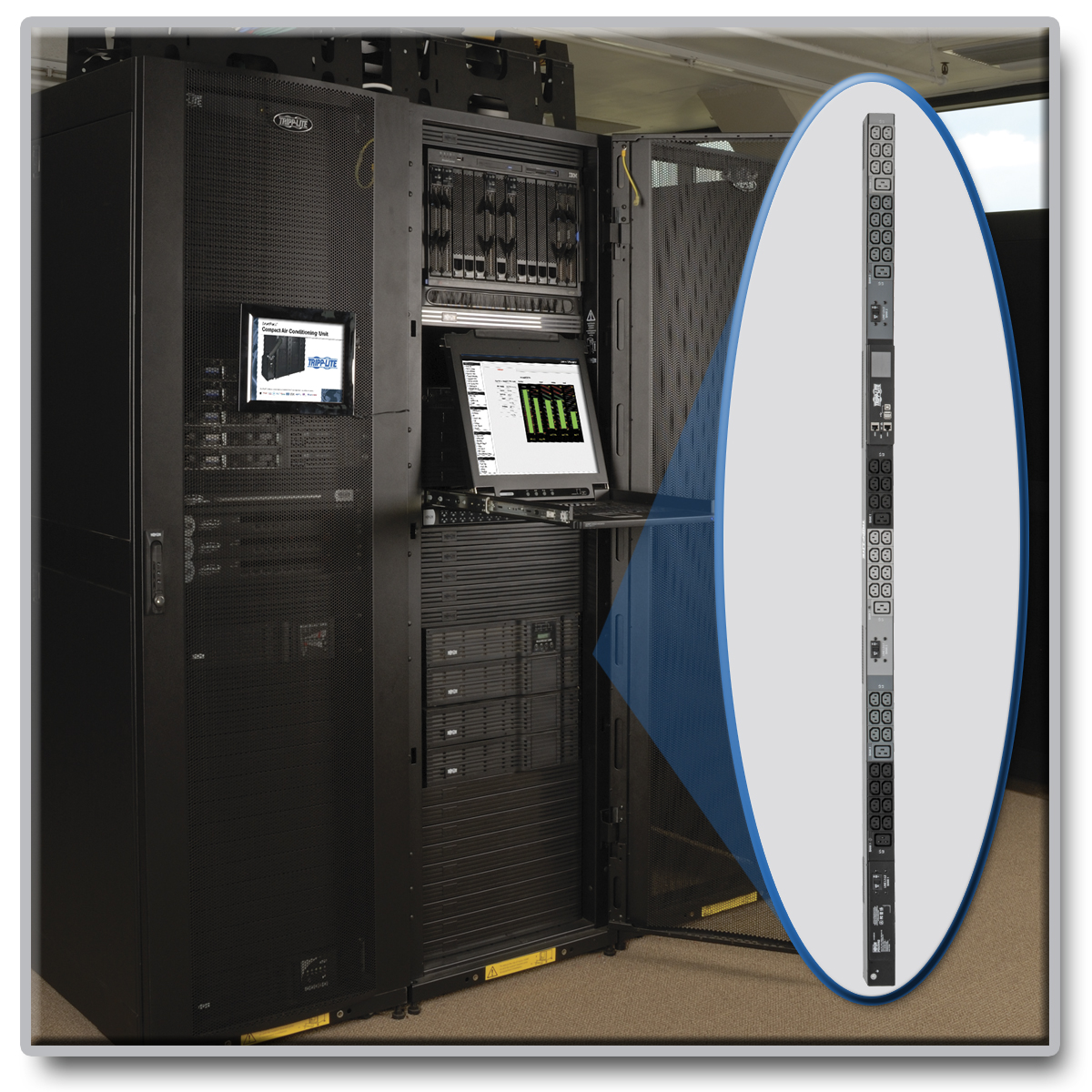

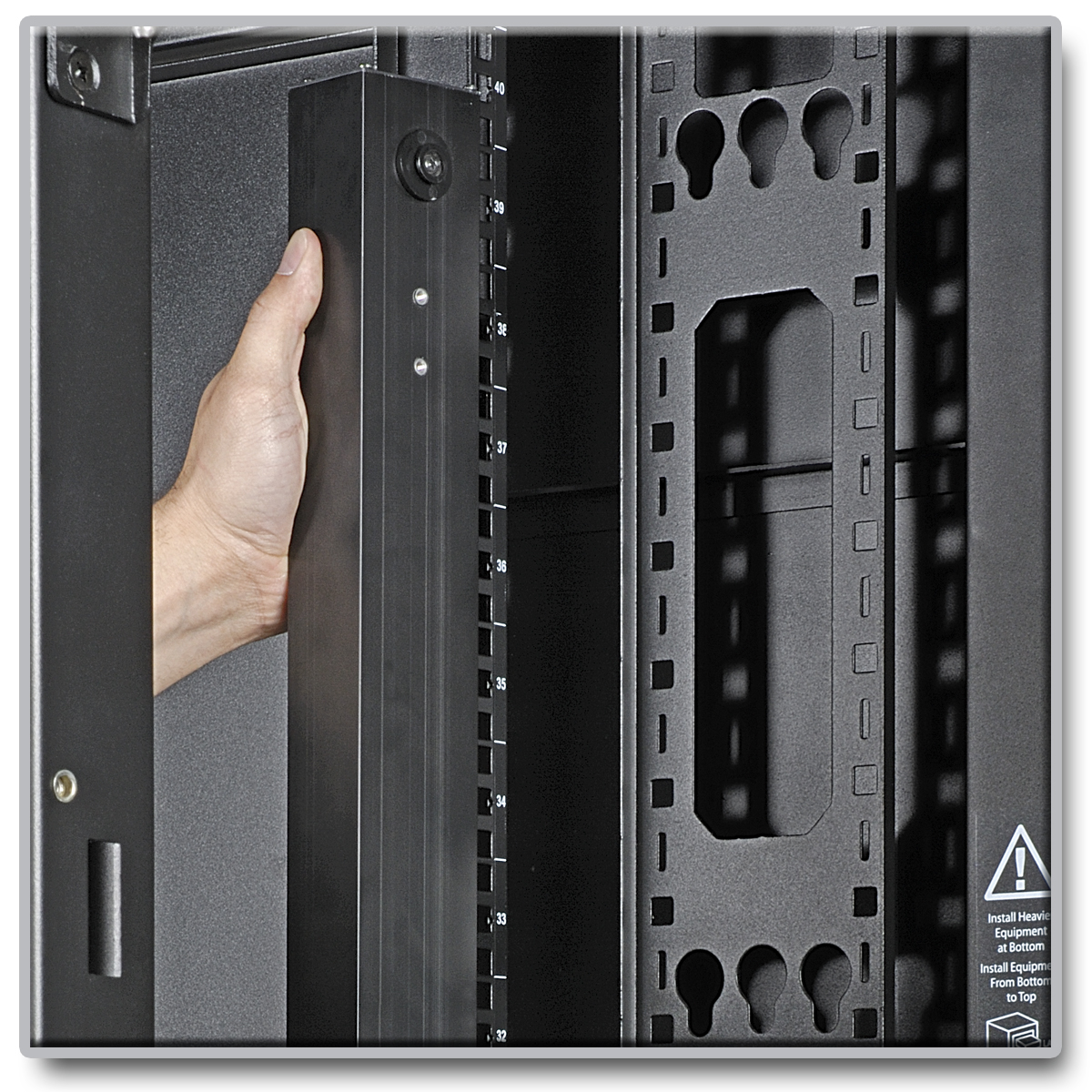

The PDU3EVN6L1530B mounts vertically in 0U of space in EIA-standard 19-inch 2-post and 4-post racks using the included toolless mounting buttons or rack-mounting brackets. Vertical 0U installation frees up space in the rack and promotes more efficient airflow. You can install the PDU with outlets facing either the front or rear, whichever direction offers better airflow or equipment access.
Upgradable Firmware
To support any future product enhancements, the PDU’s firmware can be manually upgraded
2-Year Warranty and Environmentally Responsible Design
The PDU3EVN6L1530B comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
TAA-Compliant for GSA Schedule Purchases
The PDU3EVN6L1530B is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
