Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

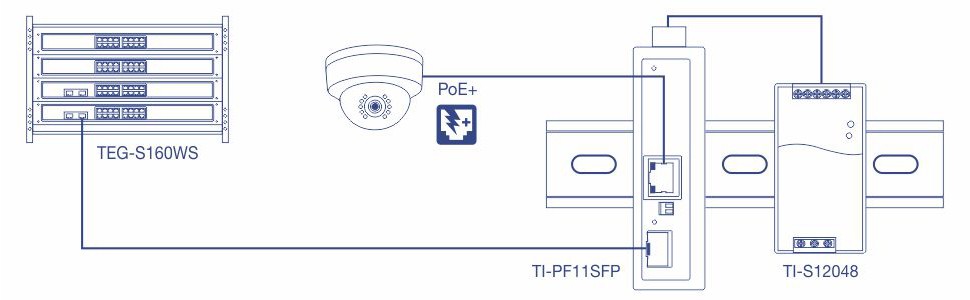

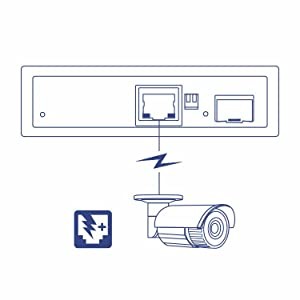

PoE+ Output

Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.

Extreme Environments

Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.

Network Ports

1 x Gigabit PoE+ Ethernet port and 1 x SFP slot

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

2Gbps switching capacity

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)

Extreme Temperatures

Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)

Electromagnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 1 x Gigabit PoE+ port
  • 1 x 100/1000Mbps SFP slot
  • 4-pin removable terminal block
  • LED indicators
  • DIP Switch
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • SFP: 200Mbps (full duplex), 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 1MB
  • MAC address table: 1K
  • Jumbo Frame: 16KB
  • Switching fabric: 4Gbps
Special Features
  • Hardened components rated for extreme temperatures
  • Supports Link Fault Pass through (LFP) function
  • Adjustable SFP speed at 100Mbps or 1000Mbps
  • Auto store and forward architecture
  • Automatic address learning and address aging
Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S12048 (sold separately)
  • Consumption: 2 watts (without PoE) @ 48V DC
PoE
  • Pin 3, 6, 4, 5 for power (+) and pin 1, 2, 7, 8 for power (-)
  • Budget budget: 30 watts
  • Max. consumption: 36W @ 56V DC
Terminal Block
  • Power and relay inputs, 4 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
DIP Switch
  • 1: OFF: LFP disabled (default), ON: LFP enabled
  • 2: OFF: SFP at 1000Mbps (default), ON: SFP at 100Mbps
MTBF
  • 557,082 hours
Housing
  • IP30 aluminum case
  • DIN-rail mount
  • Wall mount
  • Grounding point
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 104 x 81 x 32 mm (4 x 3.2 x 1.2 in.)
Weight
  • 154 g (5.4 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • EN60950-1 (LVD)
Warranty
  • 3 year
PACKAGE CONTENTS
  • TI-PF11SFP
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
