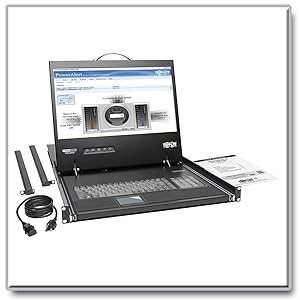

Control Multiple Computers from 19" LCD Console or Remote Location

Tripp Lite's B070-016-19-IP2 NetCommander Cat5e/6 IP Console KVM Switch is the optimal solution for controlling up to 16 connected computers and servers locally or remotely from virtually anywhere in the world. The unit features a built-in 19” LCD and supports VGA video resolutions up to 1366 x 768 locally or 1920 x 1080 remotely. This KVM mounts into 1U of any standard 19” rack. Each connected computer/server can be located up to 100 ft. from the KVM switch using Cat5e/6 cabling and a B078-Series Server Interface Unit.

Support for 2+1 Users

The B070-016-19-IP2 enables control of multiple computers with simultaneous support for two remote users, plus a third local user. The three users can each access a different port on the KVM at the same time. Up to five users can share a single session.

Supports Multiple Platforms

The B070-016-19-IP2 supports PS/2 and USB connections (Tripp Lite B078-101-PS2, B078-101-USB-1 or B078-101-USB2 Server Interface Unit and Cat5e/6 patch cabling required, sold separately) and is compatible with Windows and Linux operating systems.

Access Virtual Media

With the B070-016-19-IP2, users are provided Virtual Media access, which allows an .iso file located in a shared folder of a SAMBA or NFS server to be mounted to a target server and accessed as if it were directly stored on it. The Fast Virtual Media KVM system (U.S. Patent #9,417,720) supports data transfer rates up to 12 Mbps (B078-101-USB2 required to achieve high-speed transfer).

Secure Access at Every Connection

This KVM switch incorporates the most advanced encryption technologies with three levels of password protection. The B070-016-19-IP2 supports TLS 1.2 security protocol. An SSL certificate can be installed to ensure secure transactions between web servers and browsers. Remote authentication support is achieved via full-screen graphical OSD with multi-level authentication (administrator and user) so users can quickly and efficiently manage installations. The B070-016-19-IP2 supports RADIUS and LDAP/S as well as IPv4 and IPv6 protocols.

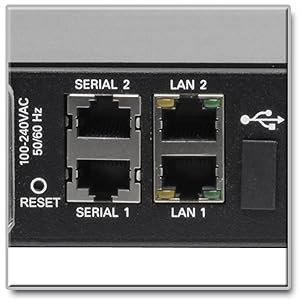

Dual Serial Ports for Local Device Control

The B070-016-19-IP2’s dual serial ports connect serial-manageable devices such as PDUs, firewalls, and routers for comprehensive local device management.

Additional Premium Features

Other rich features include dual 10/100 Mbps LAN ports to provide redundancy in the event of a crash, SNMP messaging and a log function that records events such as logins, reboots and network settings changes. This KVM is also TAA-compliant for GSA Schedule purchase.

One-Year Warranty and Environmentally Responsible Design

For peace of mind, the B070-016-19-IP2 comes backed by a one-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
