Overview

The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBSX is compatible with Duplex LC fiber connector types and supports gigabit multi-mode fiber connections at distances of up to 550 m (1804 ft.).

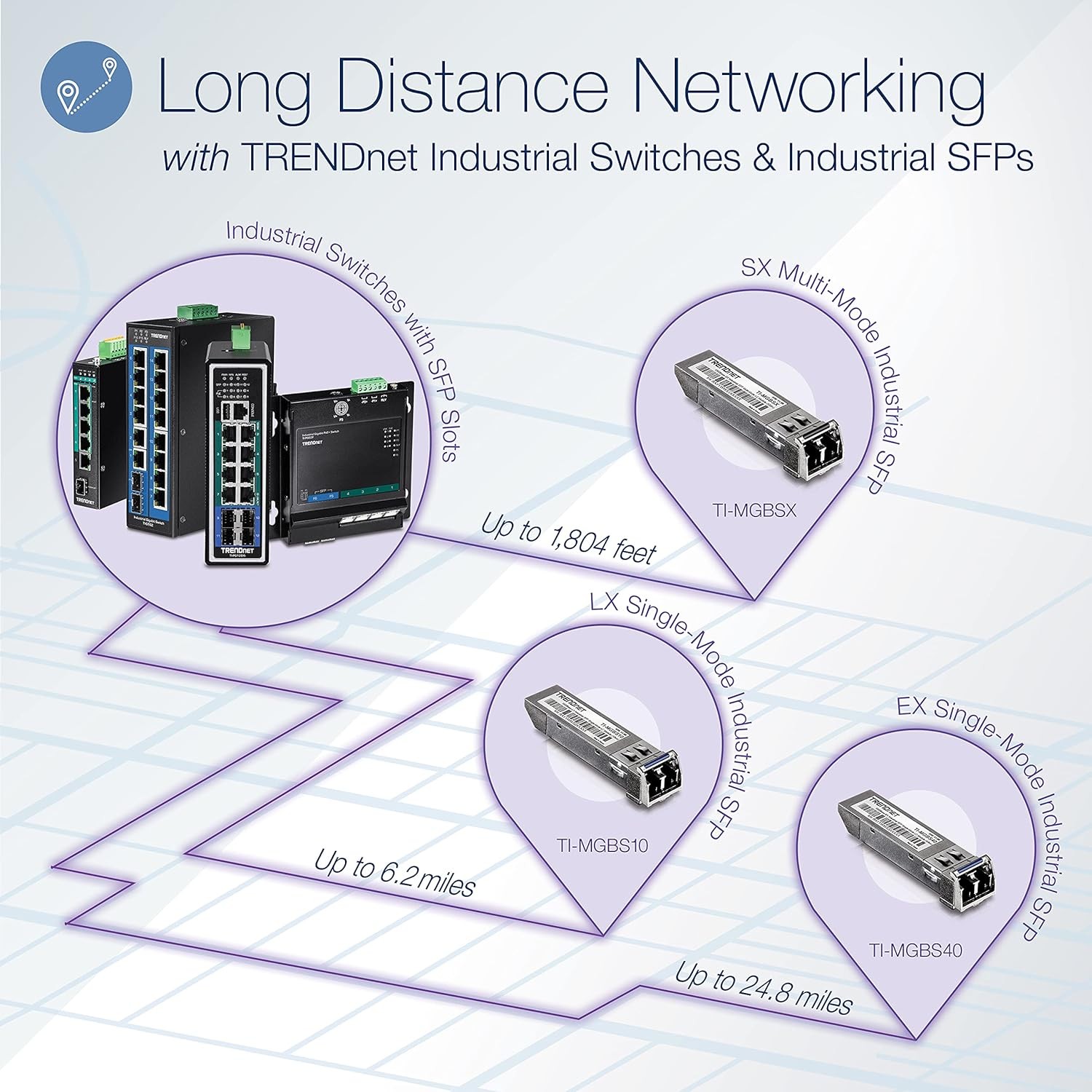

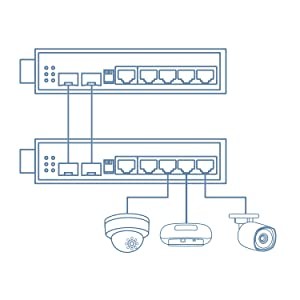

Fiber Applications

Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications

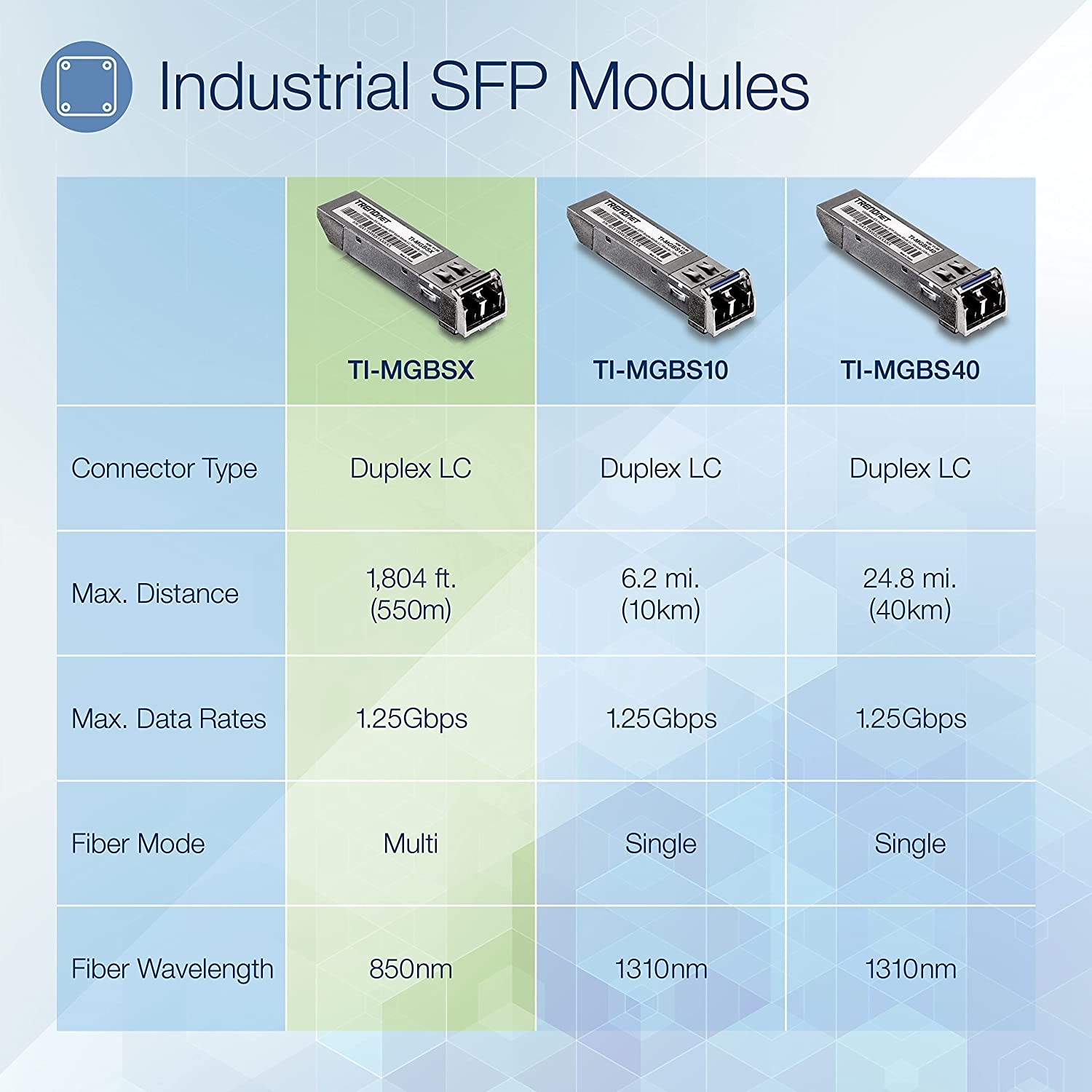

Fiber Mode / Distance

Multi-Mode transceiver spans distances up to 550 m (1804 ft.) and supports up to 1.25 Gbps

Compatibility

Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors

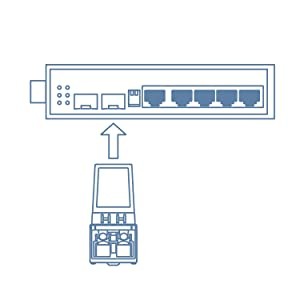

Hot-Pluggable SFP

Hot-pluggable SFP transceiver compatible with a MSA compliant SFP slot

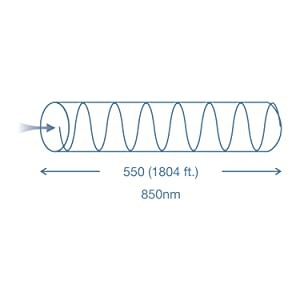

Fiber Wavelength

Compatible with multi-mode 850 nm transmissions

Fiber Distance

Supports networking for distances up to 550 m (1804 ft.)

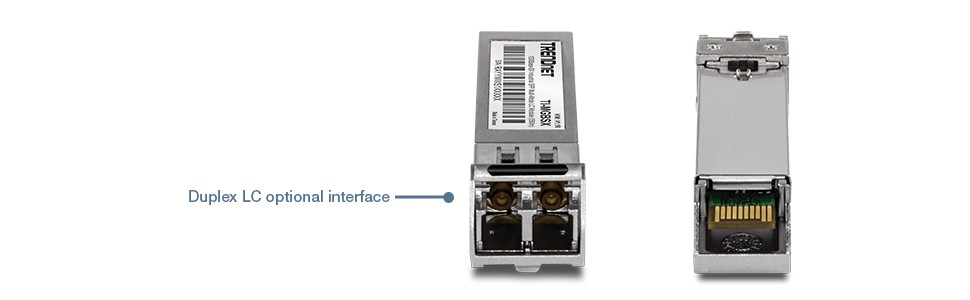

Fiber Interface

LC-type duplex connector

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC duplex connector
Data Transfer Rate
  • 1.25 Gbps
Wavelength
  • 850 nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 550 m (1804 ft.)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -20 dBm
  • Consumption: 1 W
Operating Temperature
  • -40 – 85 °C (-40 – 185 °F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 57 x 13 x 8.5 mm (2.2 x 0.5 x 0.3 in.)
Weight
  • 17g (0.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TI-MGBSX
  • Quick Installation Guide
