Overview

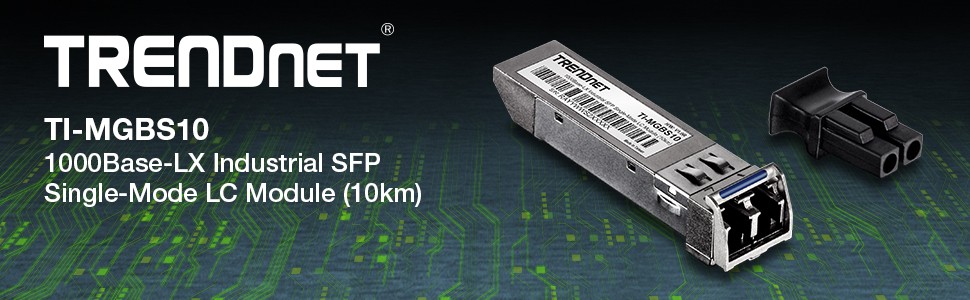

The 1000Base-LX Industrial SFP Single-Mode LC Module, model TI-MGBS10, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS10 is compatible with Duplex LC fiber connector types and supports gigabit single-mode fiber connections at distances of up to 10 kilometers (6.2 miles).

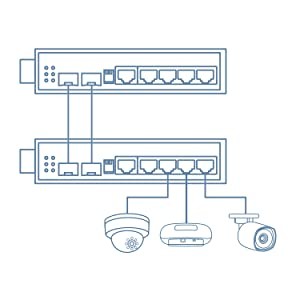

Fiber Applications

Long distance fiber network for industrial, manufacturing, and corporate / educational campus applications.

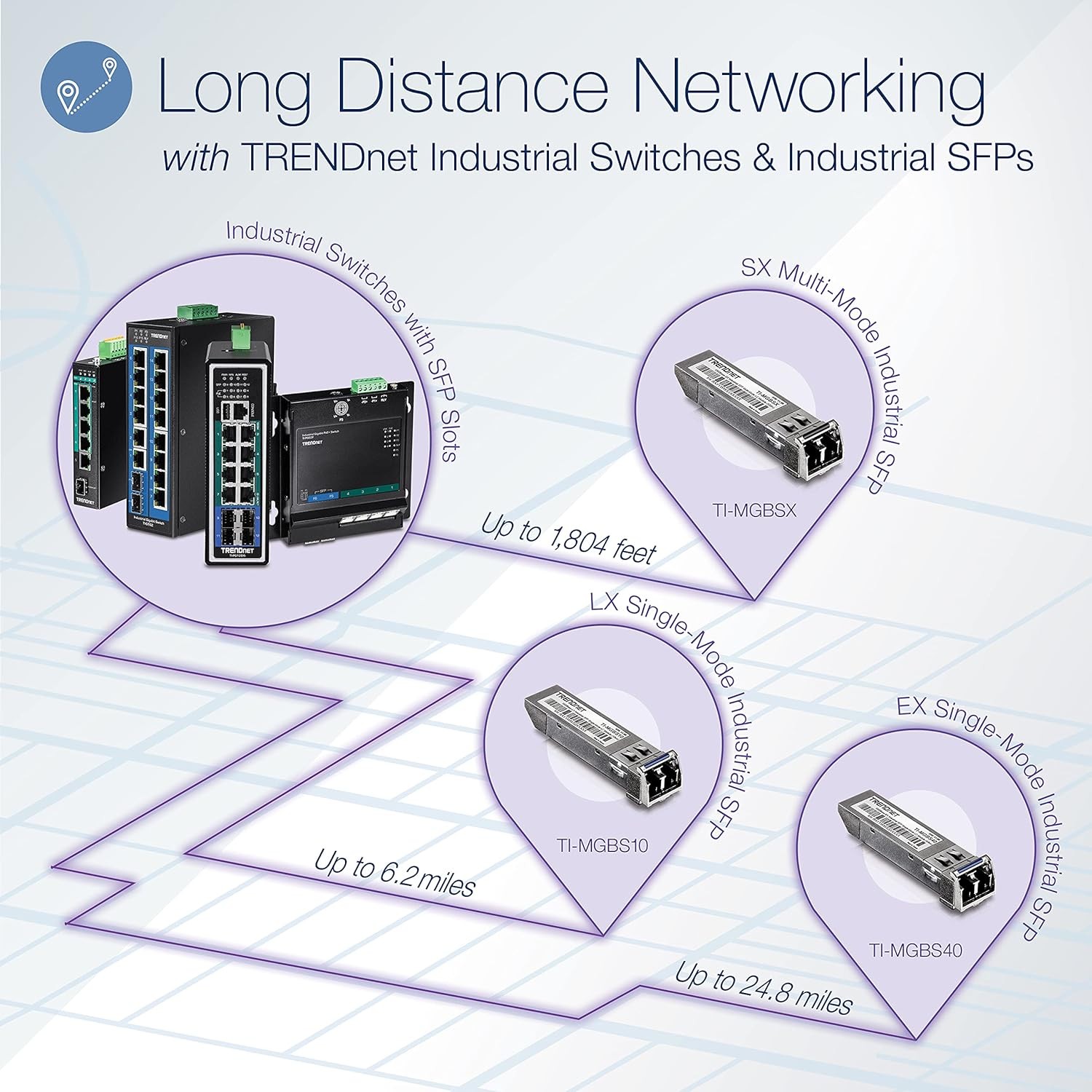

Fiber / distance mode

The single-mode transceiver covers distances of up to 6.2 mi (6.2 miles) and supports up to 1.25 Gbps.

Compatibility:

Hot-pluggable with one SFP slot and compatible with fiber cables with LC-type duplex connectors.

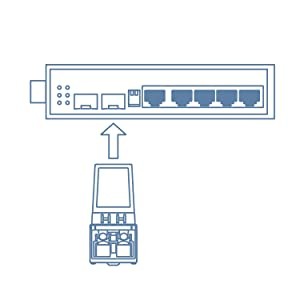

Hot pluggable SFP

Hot-pluggable SFP transceiver supports one MSA-compliant SFP slot

Fiber wavelength

Compatible with single-mode 1310nm transmissions

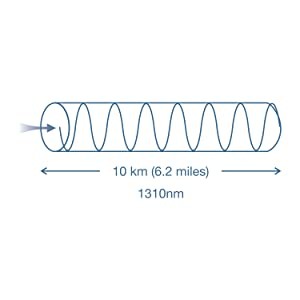

Fiber distance

Supports networks for distances up to 6.2 mi (6.2 miles)

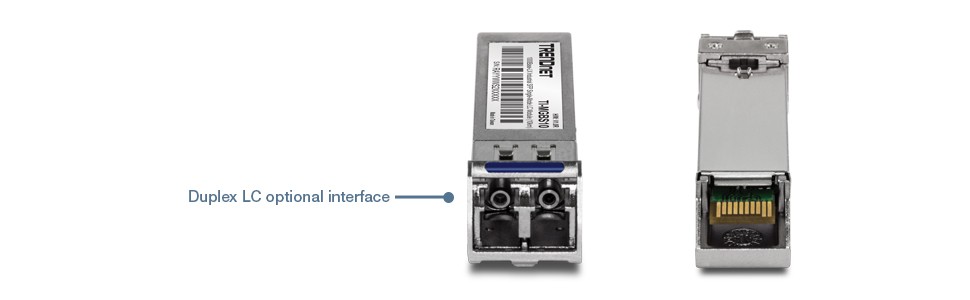

Fiber interface

LC type duplex connector

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC duplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • 1310nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 10km (6.2 mi.)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -23 dBm
Power
  • Consumption: 1W
Operating Temperature
  • -40 – 85 °C (-40 – 185 °F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 57 x 13 x 8.5 mm (2.2 x 0.5 x 0.3 in.)
Weight
  • 19 g (0.67 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty

PACKAGE CONTENTS
  • TI-MGBS10
  • Quick Installation Guide
