OVERVIEW

TRENDnet's 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Gigabit Speeds

Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Fault Tolerance

Features dual redundant power inputs with output alarm relay.

Industrial Hardened Design

Equipped with a rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Network Ports

8 Gigabit ports plus 2 Gigabit RJ-45 / SFP shared ports

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately, models: TI-M6024 / 48VDC3000)

Switching Capacity

20 Gbps switching capacity

Grounding Point

Grounding point protects equipment from external electrical surges

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x

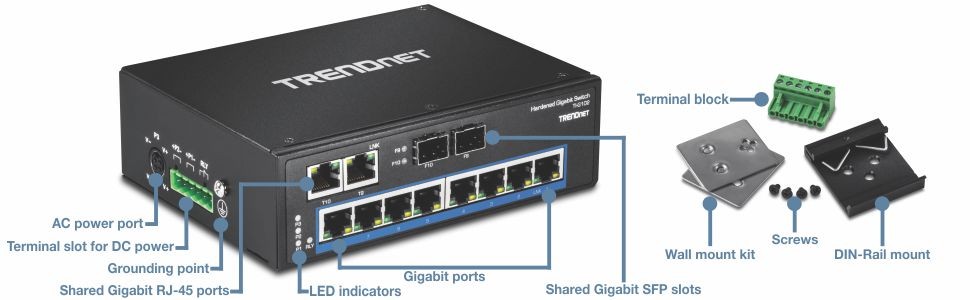

Device Interface	8 x Gigabit ports 2 x Gigabit Ethernet ports 2 x Shared SFP slots 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point

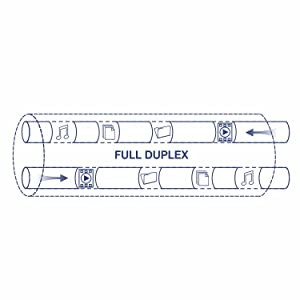

Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 2048 KB Switching Fabric: 20 Gbps MAC Address Table: 16 K entries Jumbo Frame: 10KB Forwarding rate: 14.8 Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging ESD 6KV protection
Power	Input: 12 - 56 V DC Compatible power supply: TI-M6024 (sold separately) Consumption: 5.76 W max.
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34 mm^2 to 2.5 mm^2 Solid wire (AWG): 12-24 / 14-22 Stranded wire (AWG): 12-24 / 14-22 Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm Wire strip length: 7-8 mm

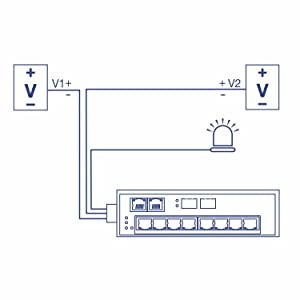

Alarm Relay Contact	Relay outputs with current carrying capacity of 1 A, 24 V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	510,400 hours
Housing	IP30 metal case DIN-rail mount Wall mount Grounding point ESD 6 KV protection
Operating Temperature	- 40 to 75 °C (-40 to 167 °F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)
Weight	415 g (1.1 lb)
Certifications	CE FCC Shock (EN 60068-2-27) Freefall (EN 60068-2-32) Vibration (EN 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-G102
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
